S260-WIFI Internet Streaming Amplifier

103.126UK S260-WIFI

Provides a versatile "hands off" background music solution for continuous playback of music from internet services or other sources for bars, cafes, restaurants, reception areas and house parties.

  • 2 x 60W class-D amplifier
  • WiFi streaming with smart phone control
  • Free WiiM Legacy Player app for Android or iOS
Description Version Packed
103.126UK
S260-WIFI Multi-Streaming Amplifier 2 x 60W
S260-WIFI Box Label

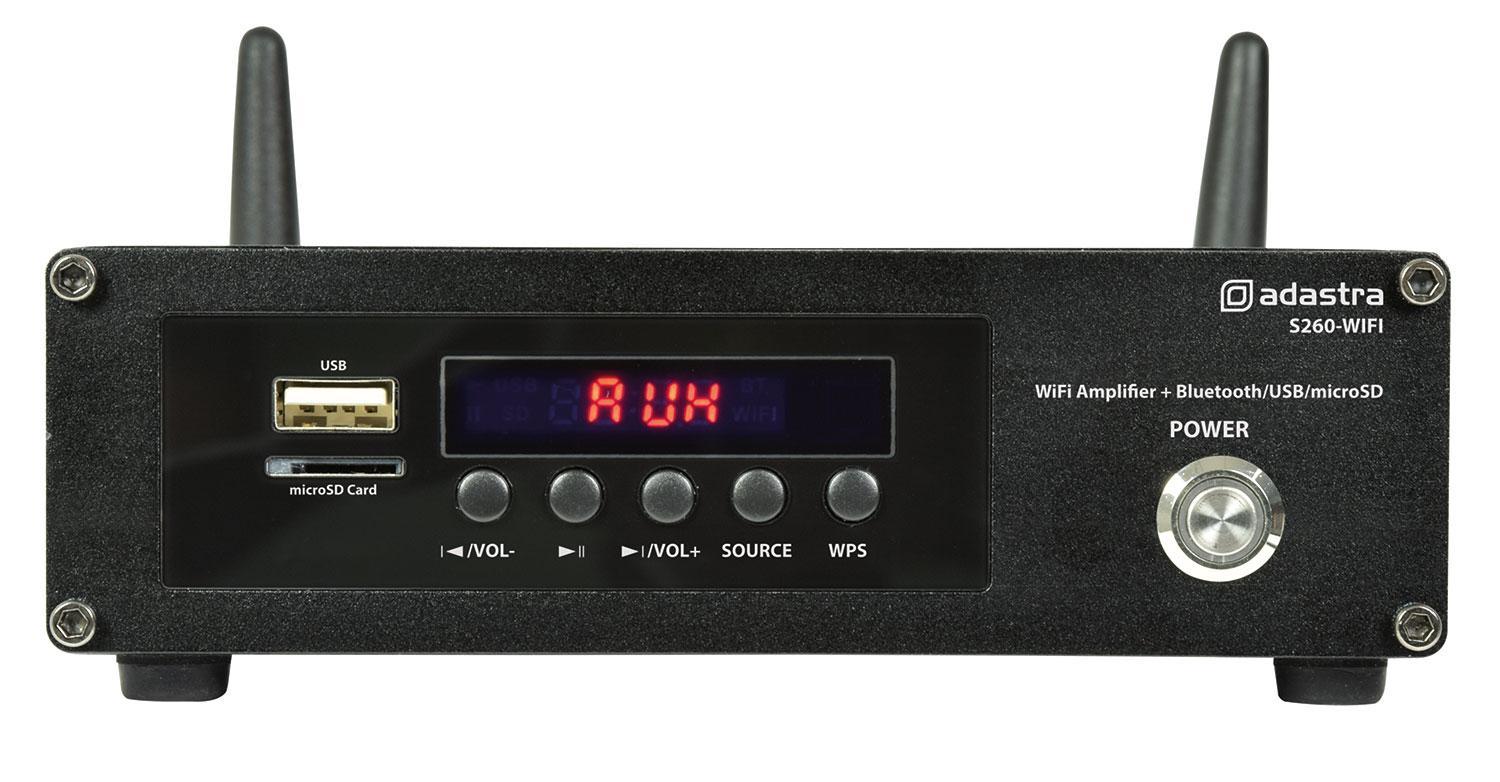

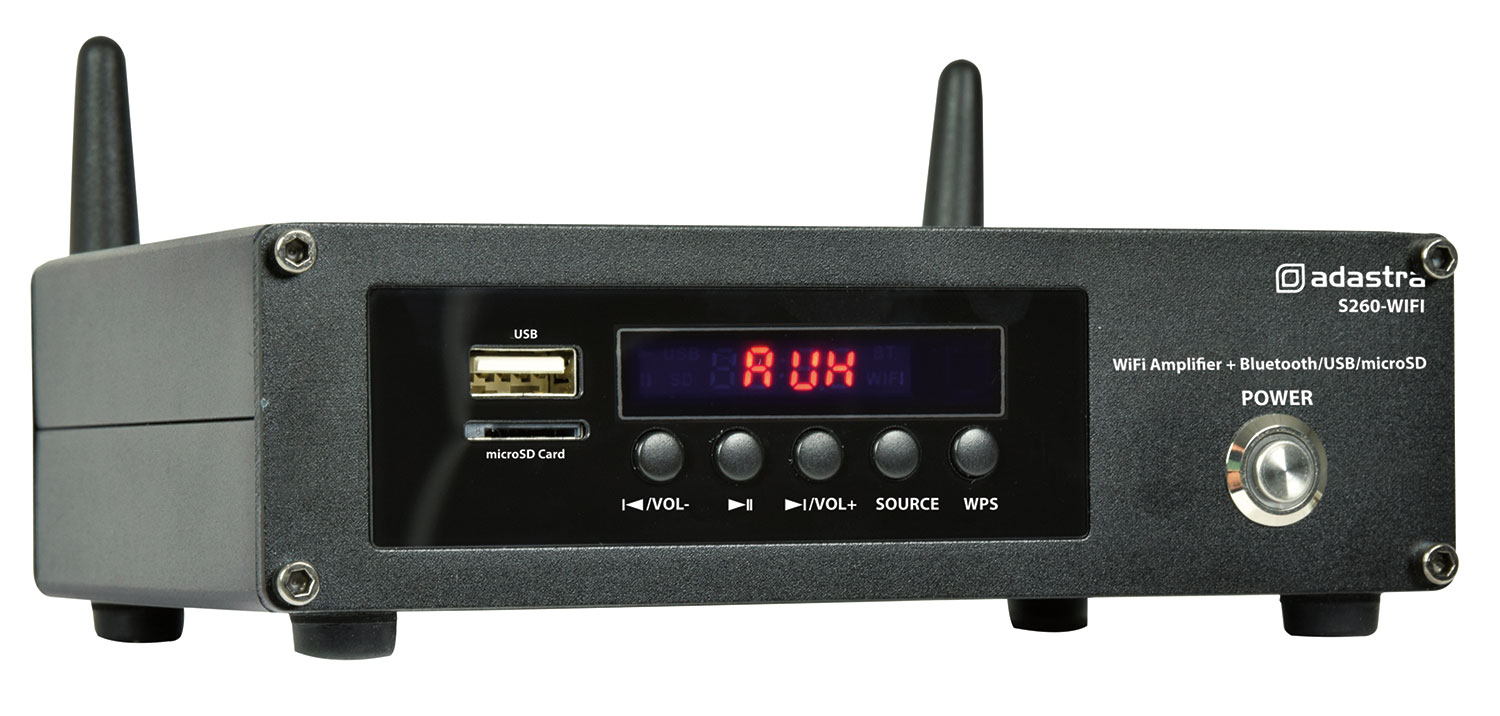

S260-WIFI Internet Streaming Amplifier

Class-D miniature amplifier delivering up to 2 x 60W output with Bluetooth and WiFi streaming capability. Controlled from an Android or iOS smart phone, the S260-WIFI is compatible with freely available apps to stream music and podcasts directly from a WiFi network. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide. Subscription services can store online playlists which can be cast directly from the internet without requiring the smart phone to be connected to the network. Wireless streaming of tracks and playlists stored on the smart phone can be sent from within the app or directly via Bluetooth to the amplifier. A line input is selectable for connection to a TV, CD, DVD or other playback device if required. In addition, the S260-WIFI has inputs for USB and microSD card for playback of stored tracks. Provides a versatile "hands off" background music solution for continuous playback of music from internet services or a choice of other sources for bars, cafes, restaurants, reception areas and house parties.

  • 2 x 60W class-D amplifier
  • WiFi streaming with smart phone control
  • Free WiiM Legacy Player app for Android or iOS
  • Bluetooth receiver
  • USB/microSD player
  • Stereo aux line input
  • Power supply 24Vdc, 3A (in-line adaptor included)
  • Amplifier : construction Class-D
  • Output power rms @ 4 Ohms 2 x 60W
  • Output power rms @ 8 Ohms 2 x 30W
  • Load impedance 4 or 8 Ohms

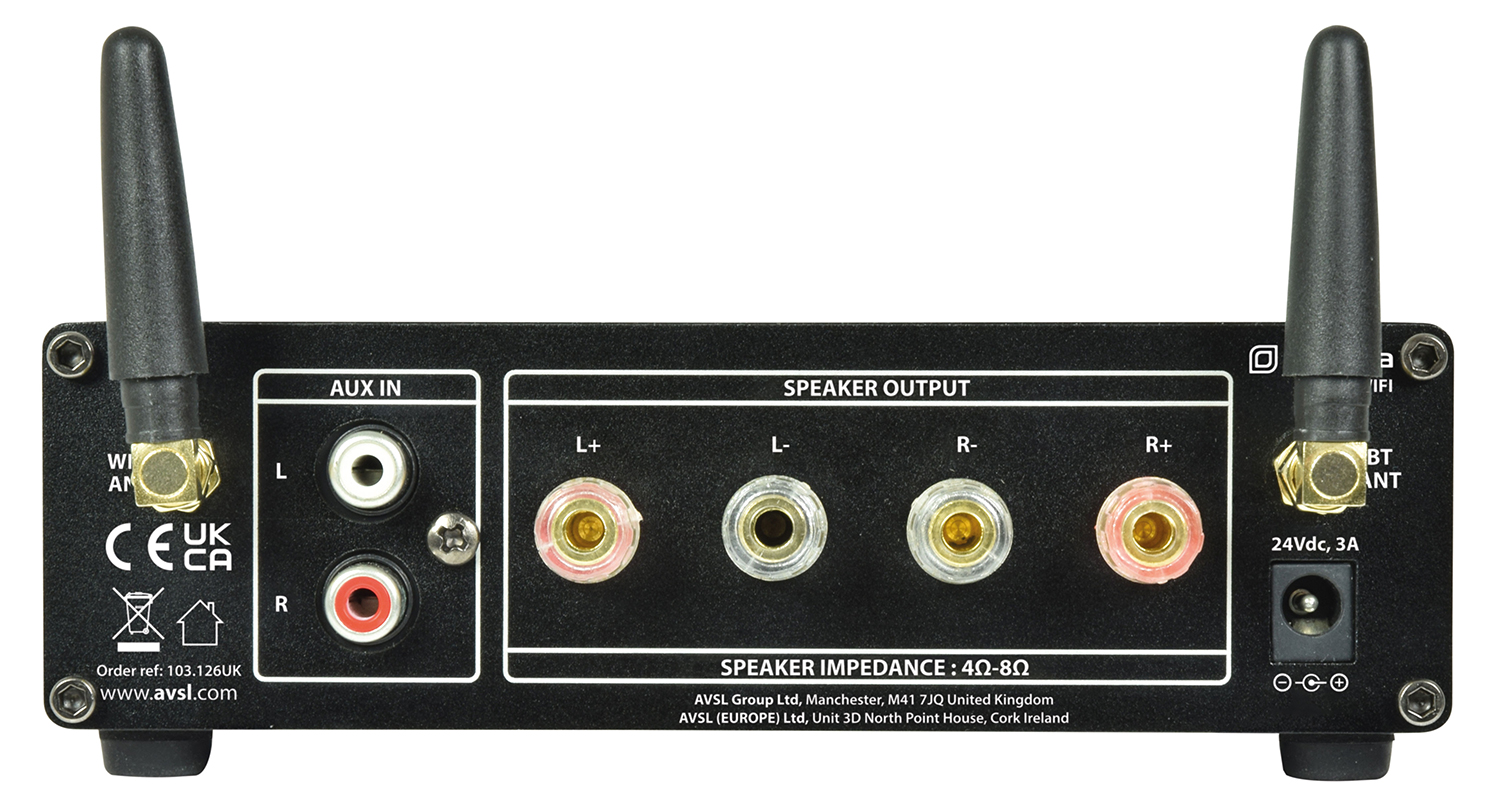

  • Speaker outputs L+R binding posts
  • Processor MediaTek MT7688 580 MHz
  • Sampling format 192kHz, 24-bit max.
  • Wireless connection 802.11b/g/n WiFi standard (up to 300Mbps)
  • Bluetooth version v5.0
  • Audio source WiFi, Bluetooth, USB/microSD, Line input (RCA)
  • Dimensions 150 x 122 x 44mm
  • Weight 494g

Support : articles

Amplifier Classes

There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.

Friday, 28th February 2020

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • S260-WIFI amplifier

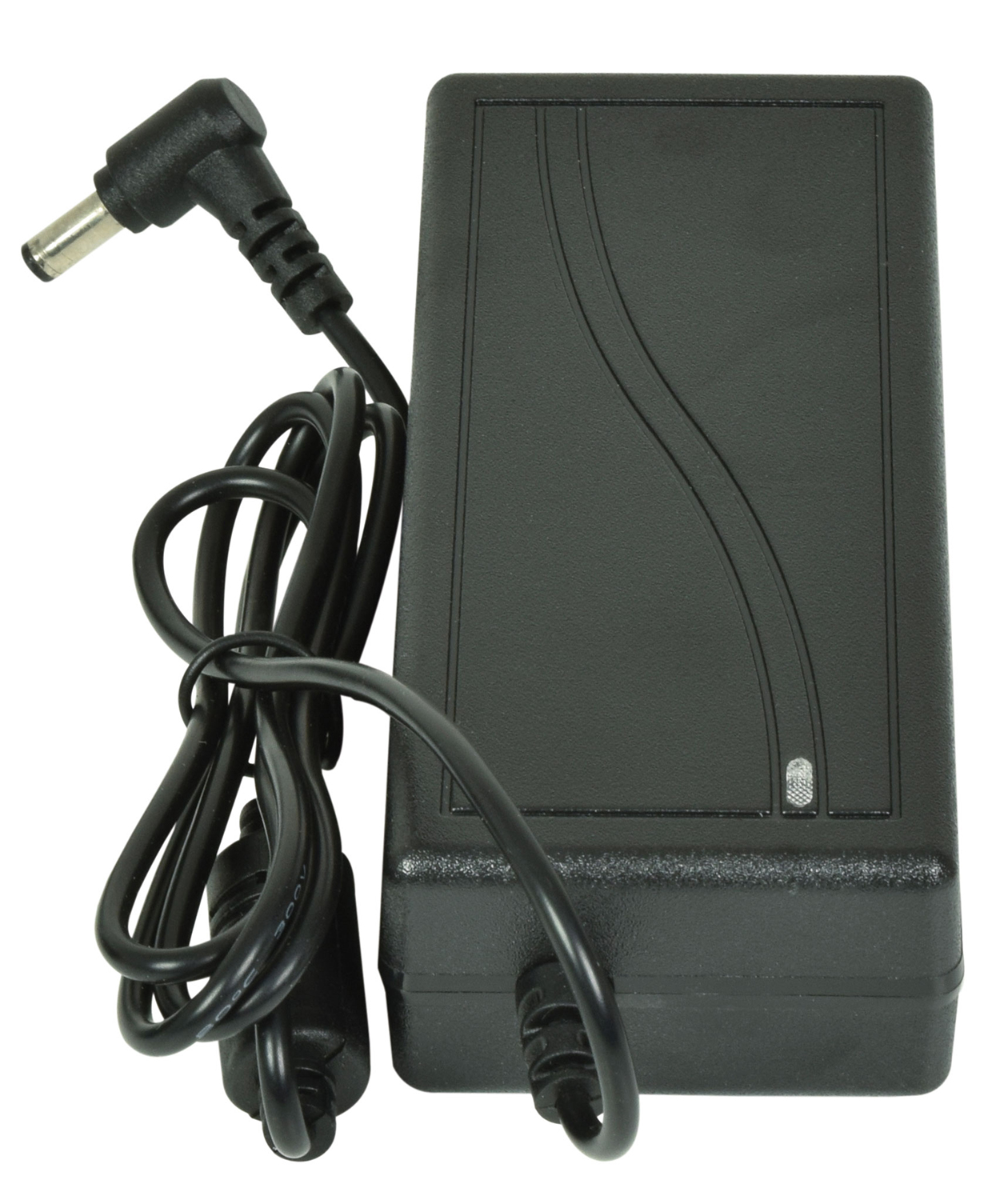

  • 24Vdc 3A in-line power adaptor

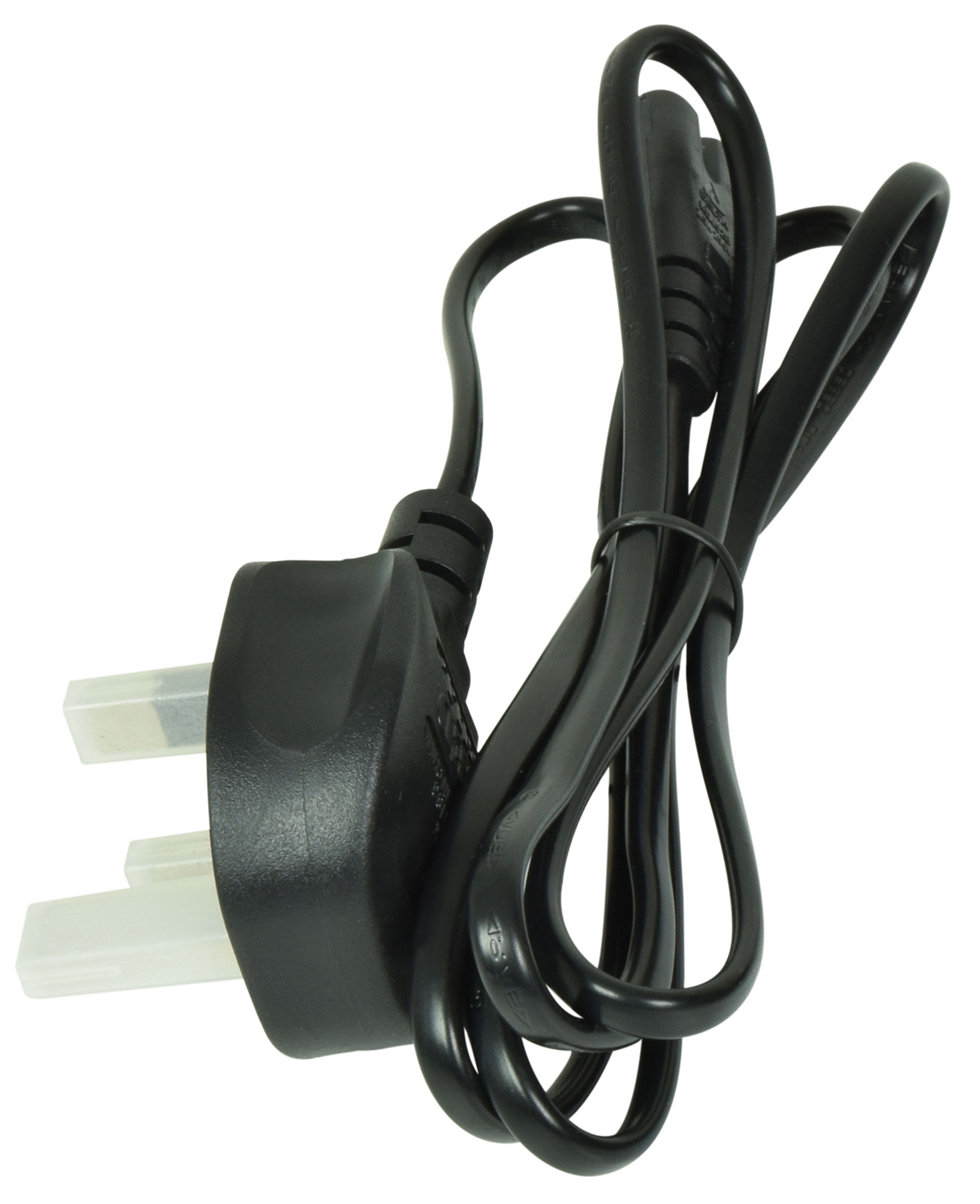

  • UK fig.8 mains power lead
  • 2 x SMA miniature antennas

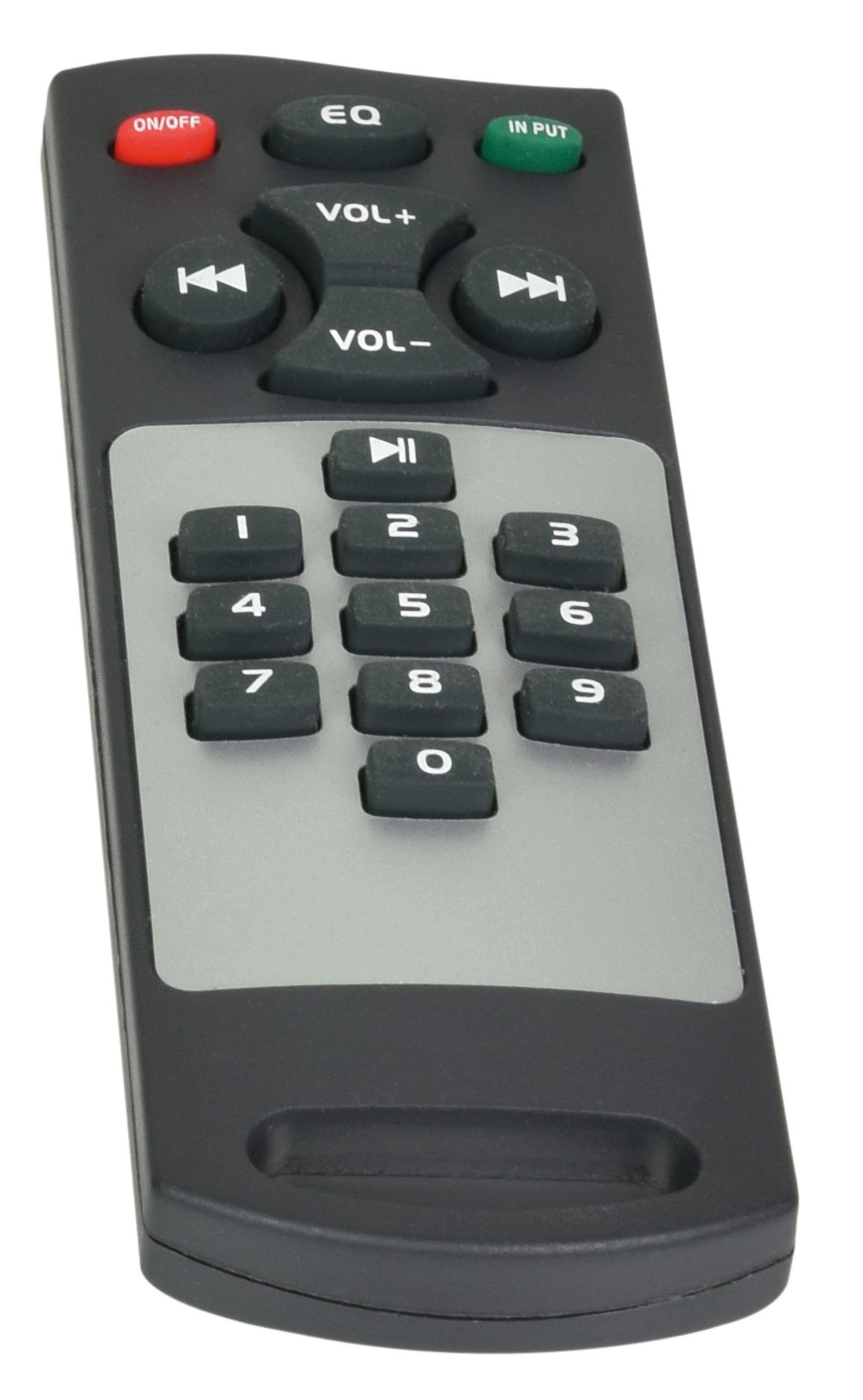

  • I.R. remote control

Downloads

Instruction manual
For 103.126UK (597KB)
UK Declaration of conformity
For 103.126UK (249KB)
EU Declaration of conformity
For 103.126UK (240KB)
