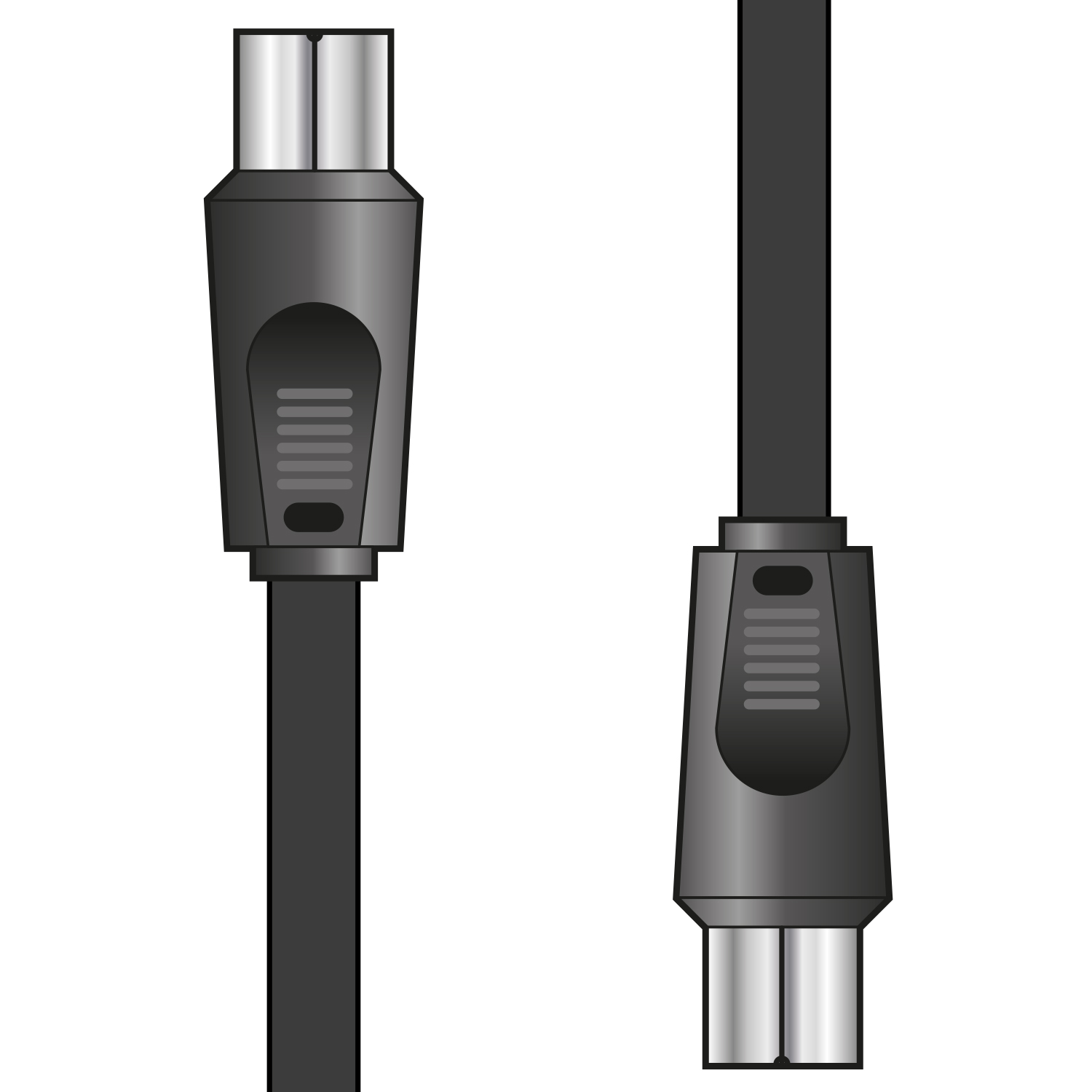

75 Ohms RG6 Coaxial Plug to Plug Leads

112.154UK

75 Ohms RG6 coax plug to plug lead constructed of solid copper clad steel conductor, foamed polyethylene dielectric, aluminium foil screen, copper clad steel braid and PVC sheath. The overall scree...

  • Solid CCS conductor
  • Foamed PE dielectric
  • Aluminium foil screen
Full description Find retailer
Description Version Packed
112.148UK
RG6 coaxial plug to plug lead 2.0m 		Black 2.0m Hanging Bag
112.154UK
RG6 coaxial plug to plug lead 10.0m 		Black 10.0m Gift Box

75 Ohms RG6 Coaxial Plug to Plug Leads

75 Ohms RG6 coax plug to plug lead constructed of solid copper clad steel conductor, foamed polyethylene dielectric, aluminium foil screen, copper clad steel braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

  • Solid CCS conductor
  • Foamed PE dielectric
  • Aluminium foil screen
  • CCS braid
  • Fitted with nickel plated coax plugs
  • Supplied in retail friendly sealed bag
  • Conductor diameter 1mmØ
  • Braid 48 x 0.1mmØ
  • Screen Aluminium
  • Cable : diameter 6.8mmØ

Versions

  112.148UK 112.154UK
Length 2.0m 10.0m
Weight 200g 1kg

Downloads

UK Declaration of conformity
For 112.154UK (242KB)
EU Declaration of conformity
For 112.154UK (229KB)
