Bluetooth Receiver Wallplate and Backbox

122.380UK

A Bluetooth receiver conveniently housed in a standard 1 gang plastic wallplate which allows connection of Bluetooth enabled devices such as smartphones, tablets, iPods etc. Ideal for use in classr...

  • Bluetooth version 3.0 EDR compliant
  • 3.5mm AUX in socket for use with non Bluetooth devices
  • Internal terminal block for speaker connection
Full description Find retailer
Description Version Packed
122.380UK
Bluetooth Receiver Wallplate 		Box Plain

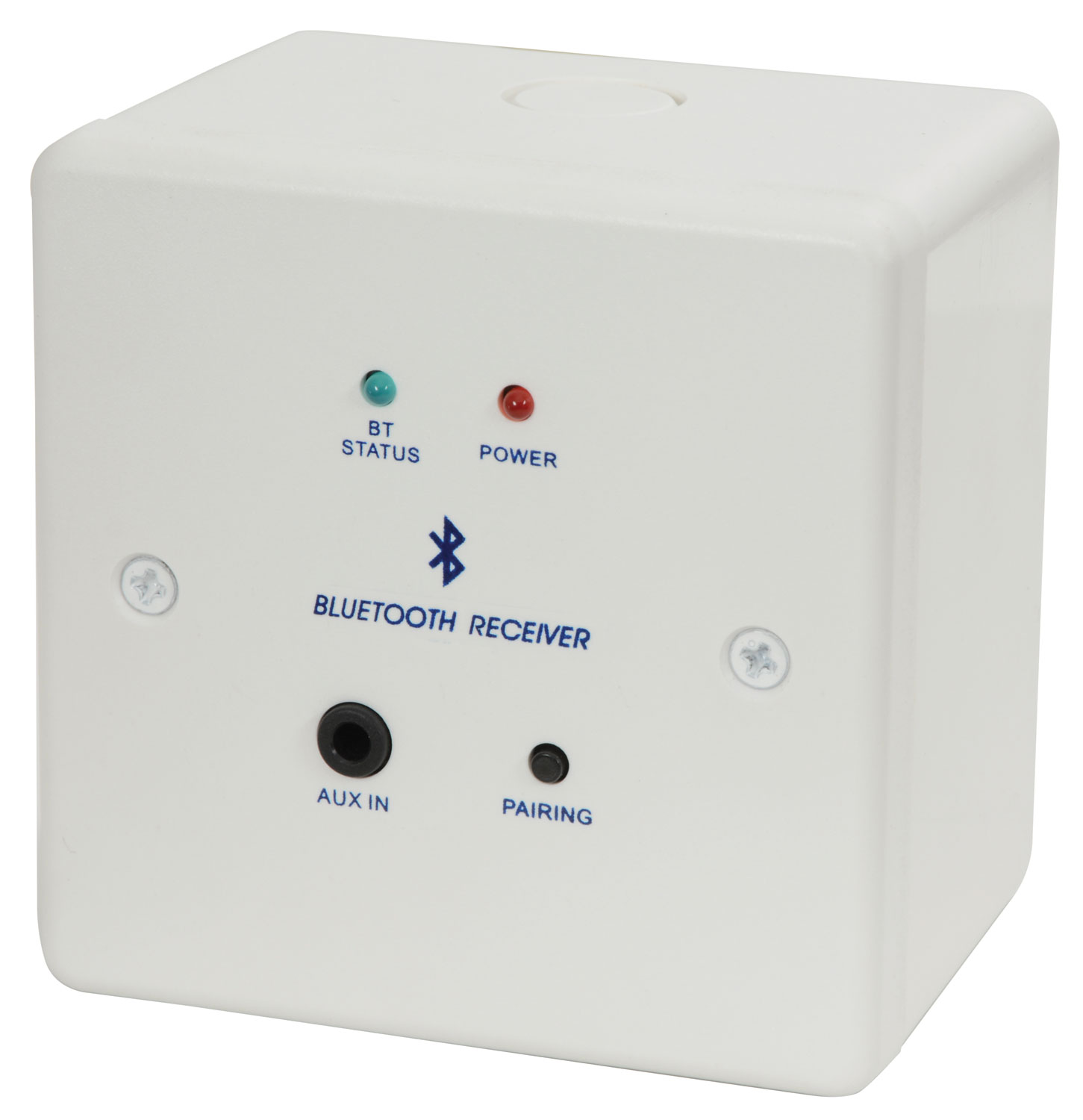

Bluetooth Receiver Wallplate and Backbox

A Bluetooth receiver conveniently housed in a standard 1 gang plastic wallplate which allows connection of Bluetooth enabled devices such as smartphones, tablets, iPods etc. Ideal for use in classrooms, boardrooms, kitchens or home studies the unit comes supplied with a UK power supply and a 50mm backbox for easy installation.

  • Bluetooth version 3.0 EDR compliant
  • 3.5mm AUX in socket for use with non Bluetooth devices

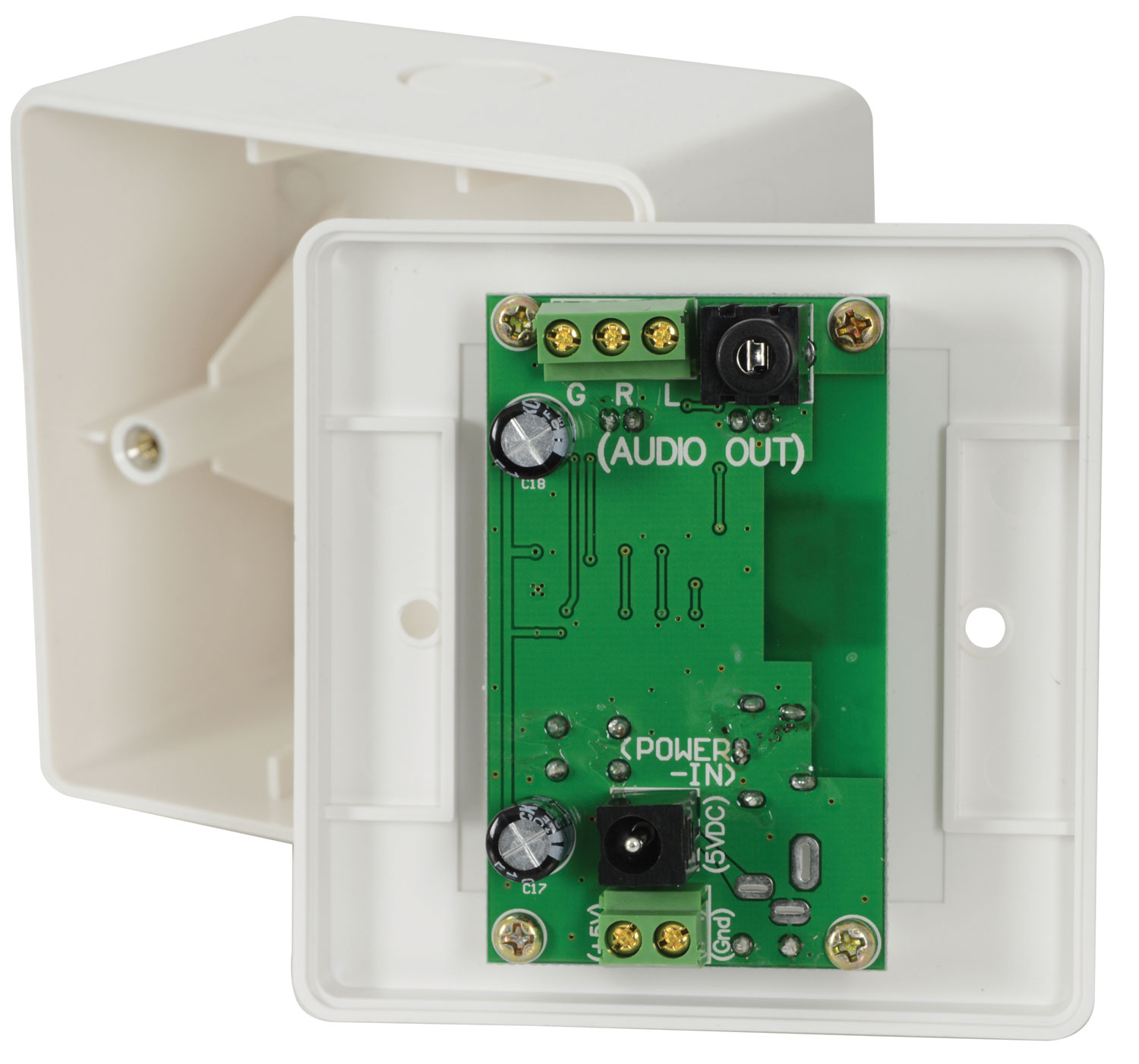

  • Internal terminal block for speaker connection
  • Additional internal 3.5mm AUX out socket
  • Power using included power supply or internal 2-pin screw terminal
  • Bluetooth pairing button
  • Bluetooth status and power LED's

Specification

  • Bluetooth version 3.0 EDR compliant
  • Bluetooth range Up to 10m
  • Audio input Bluetooth or stereo line level (3.5mm jack)
  • Audio output Stereo 3.5mm jack or 3-pin screw terminal
  • Power in 5VDC/1A via UK PSU (supplied) or 2-pin screw terminal
  • Dimensions 87 x 87 x 35 (wallplate only)
  • Weight 48g

Trade information

  122.380UK
Barcode / EAN 5015972183106
Package type Box Plain
Package dimensions 115 x 180 x 80mm
Package weight 0.25kg
Package quantity 1 unit
Carton dimensions 339 x 527 x 203mm
Carton weight 8.50kg
Carton quantity 50 packages

In the box

The box for this item contains :

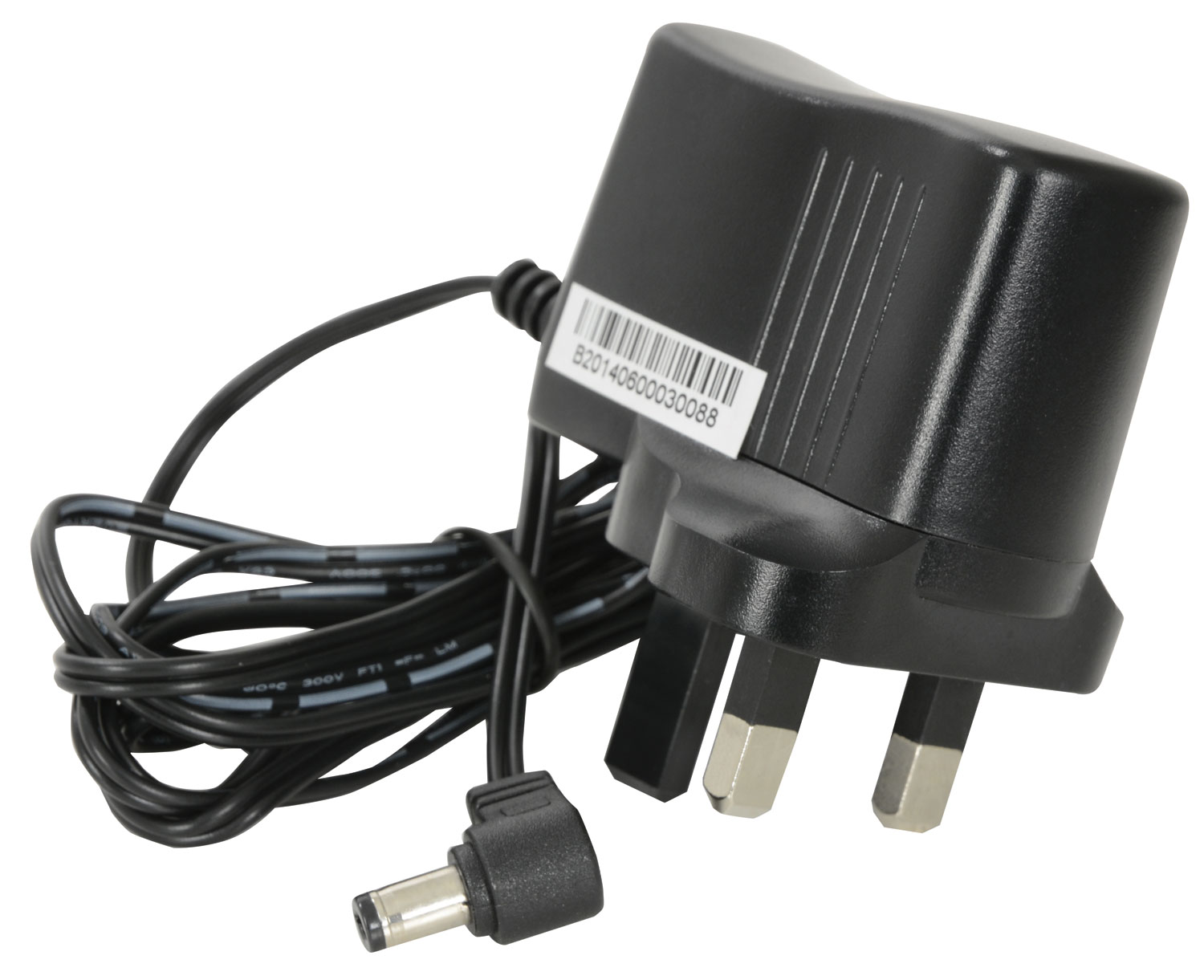

  • Bluetooth receiver wallplate, 50mm standard backbox, UK power supply, 2pcs fixing screws, user guide

Support

Instruction manual
For 122.380UK (495KB)
