CSD Compact Mixers with BT wireless and DSP Effects

170.876UK CSD-6

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V ph...

  • Bluetooth pairing for smartphone or tablet
  • 16 program, 24-bit DSP effects engine
  • Individually switchable +48V phantom power
Description Version Packed
170.875UK
CSD-4 Compact Mixer with BT receiver + DSP Effects
2 mono + 1 stereo Box Printed
170.876UK

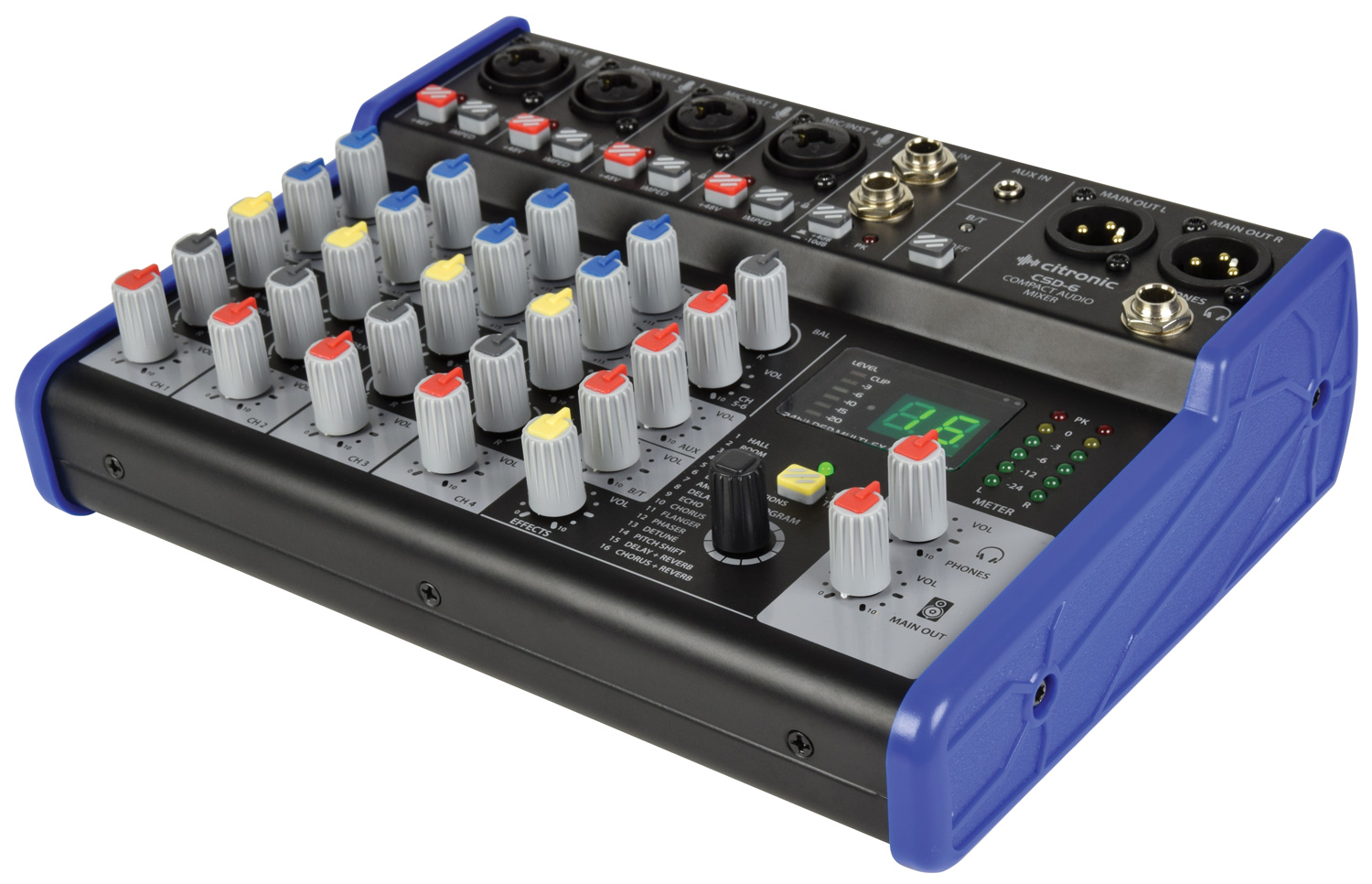

CSD-6 Compact Mixer with BT receiver + DSP Effects
4 mono + 1 stereo Box Printed
170.877UK
CSD-8 Compact Mixer with BT receiver + DSP Effects
6 mono + 1 stereo Box Printed

CSD Compact Mixers with BT wireless and DSP Effects

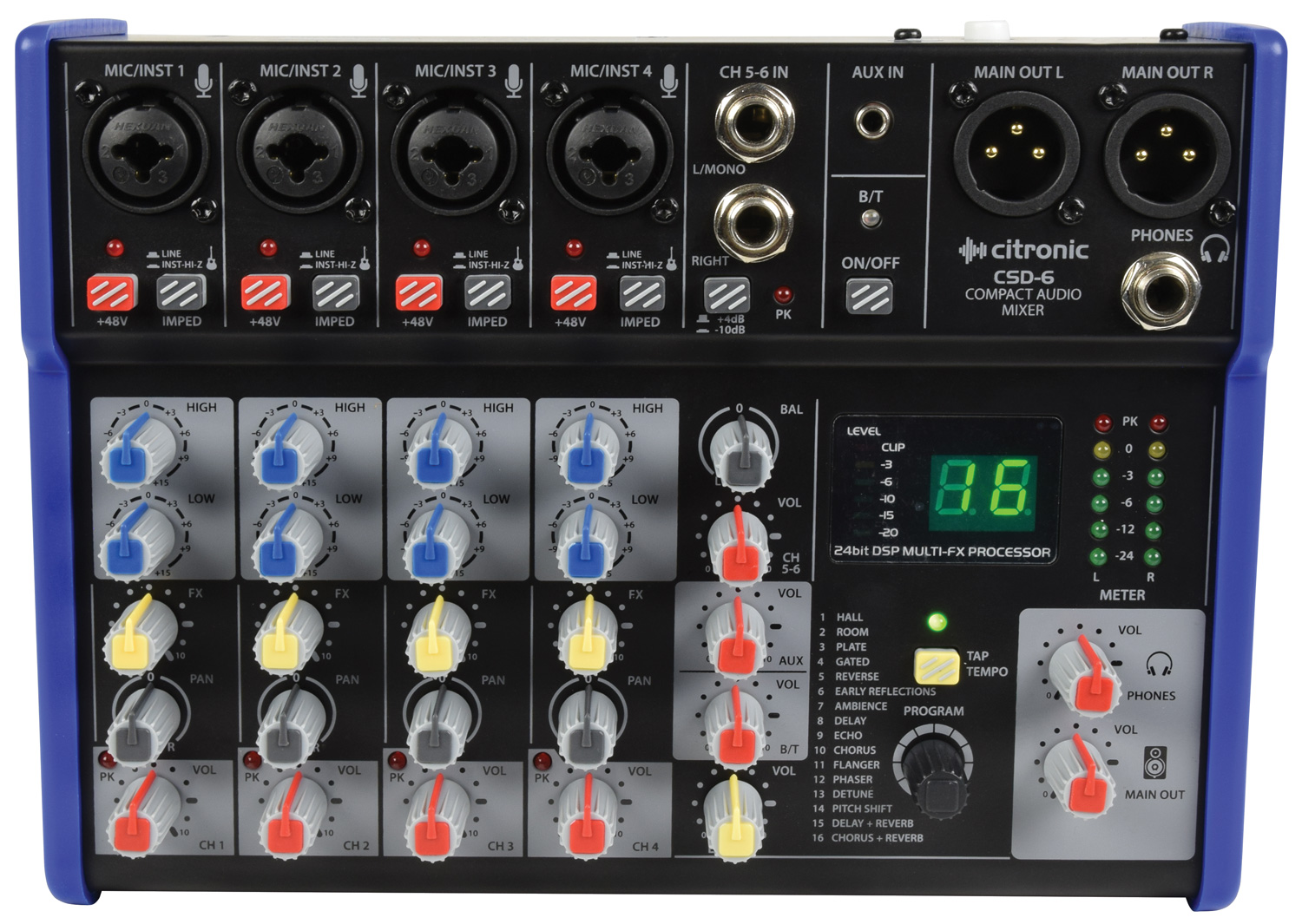

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • Bluetooth pairing for smartphone or tablet
  • 16 program, 24-bit DSP effects engine
  • Individually switchable +48V phantom power
  • Supplied with DC power adaptor
  • Effects 16 program DSP (24-bit sigma-delta, 40kHz)

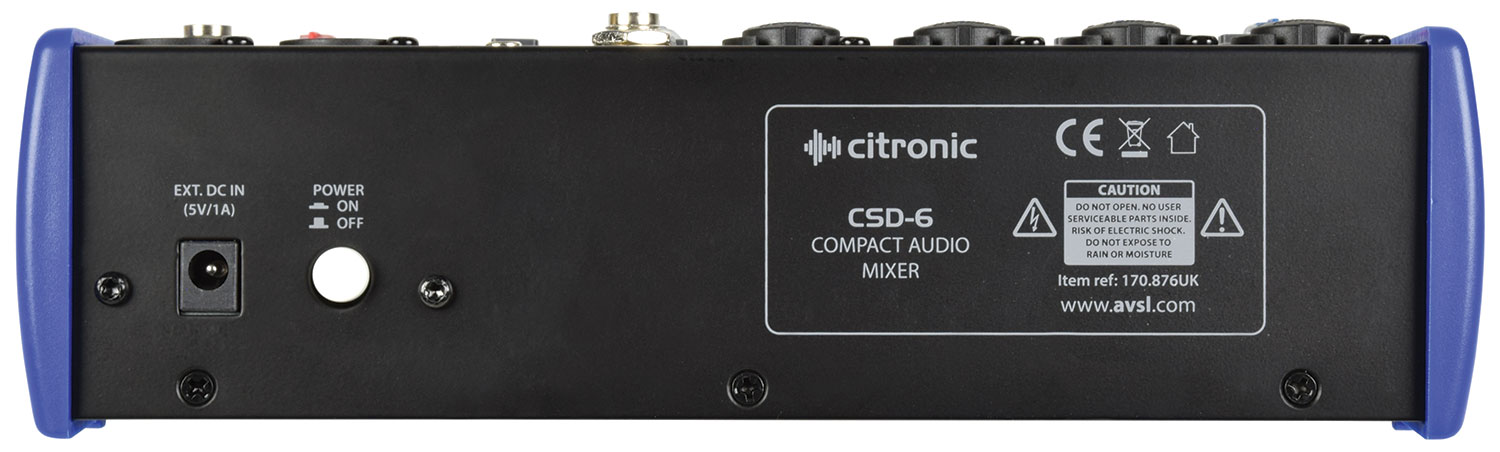

  • Power supply 5Vdc 1A (adaptor included)
  • Output Left + Right balanced XLR
  • Audio source Bluetooth receiver
  • Bluetooth version 2.1 + EDR
  • Power consumption max. 5W
  • EQ: low ±15dB @ 80Hz
  • EQ: high ±15dB @ 12kHz
  • Phantom power +48V individually switchable (XLR inputs only)
  • Input impedance : mic 2k Ohms
  • Input impedance : instrument 1M Ohms
  • Input impedance : line 20k Ohms
  • Frequency response 20Hz - 20kHz (±0.5B)
  • THD +N <0.03% @ 1kHz
  • Dynamic range 102dB
  • Crosstalk : stereo 92dB
  • Output impedance 120 Ohms
  • Max. output level 3Vrms

Versions

  170.875UK 170.876UK 170.877UK
Inputs 2 x combo XLR/jack + stereo jack 4 x combo XLR/jack + stereo jack 6 x combo XLR/jack + stereo jack

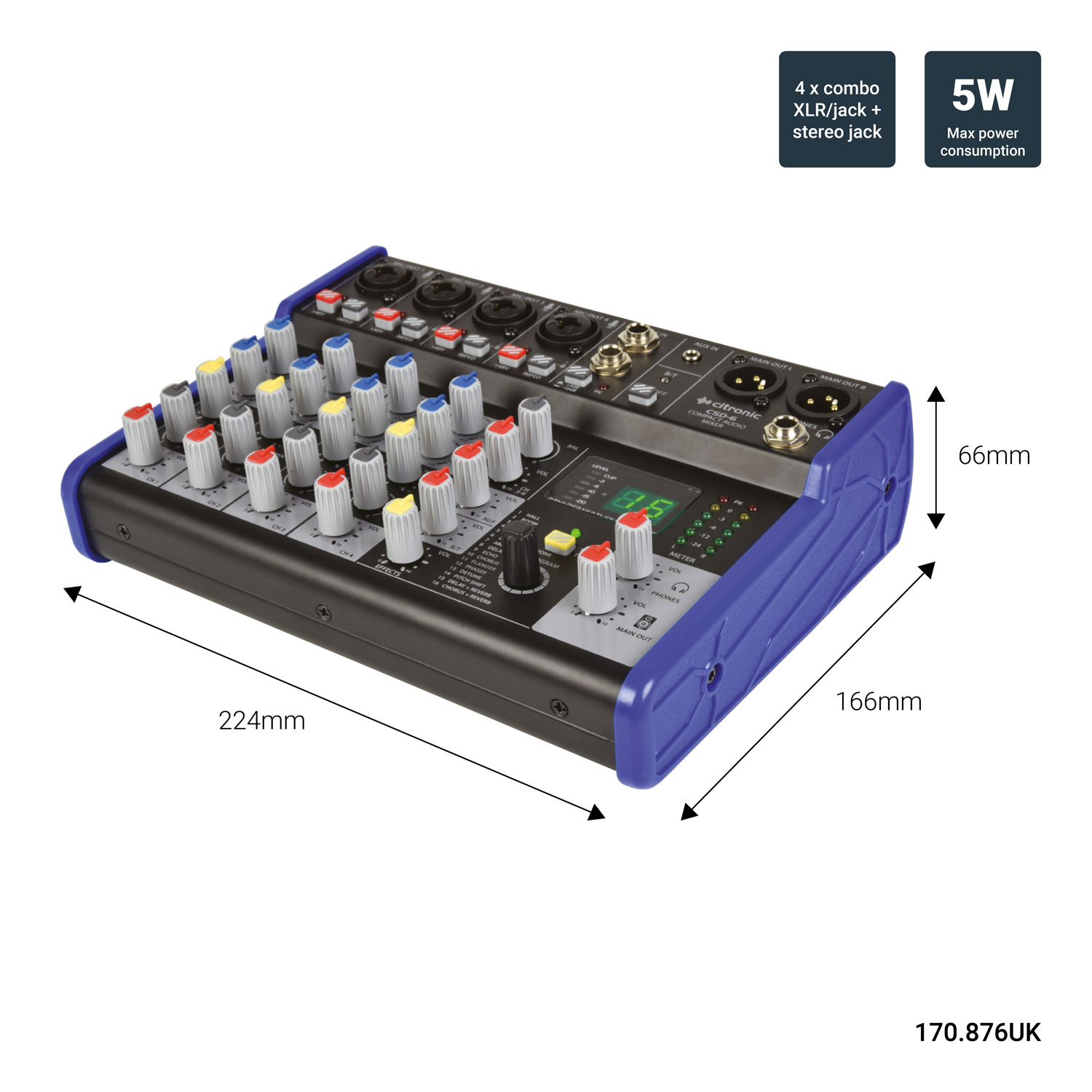

Dimensions 171 x 166 x 66mm 224 x 166 x 66mm 274 x 166 x 66mm
Weight 0.92kg 1.19kg 1.46kg

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

What is a DSP?

Tuesday, 24th March 2020

In the box

The box for this item contains :

  • CSD series compact mixer
  • 5Vdc power adaptor

Downloads

Instruction manual
For 170.876UK (915KB)
UK Declaration of conformity
For 170.876UK (247KB)
EU Declaration of conformity
For 170.876UK (239KB)
