U-MIC USB Dual Neckband UHF Wireless System

171.812UK U-MIC-863.2+864.8-N

Compact and easy to set up UHF wireless microphone set with 2 neckband microphones, 2 beltpack transmitters and single USB receiver. The receiver simply plugs into a USB power supply or USB port fo...

  • 3.5mm to 6.3mm jack lead included
  • Plug-through USB connection for flash drive inputs
  • Both microphones mixed to a single output
Description Version Packed
171.812UK
U-MIC Dual Neckband UHF System 863.2+864.8MHz
U-MIC-863.2+864.8-N Gift Box

U-MIC USB Dual Neckband UHF Wireless System

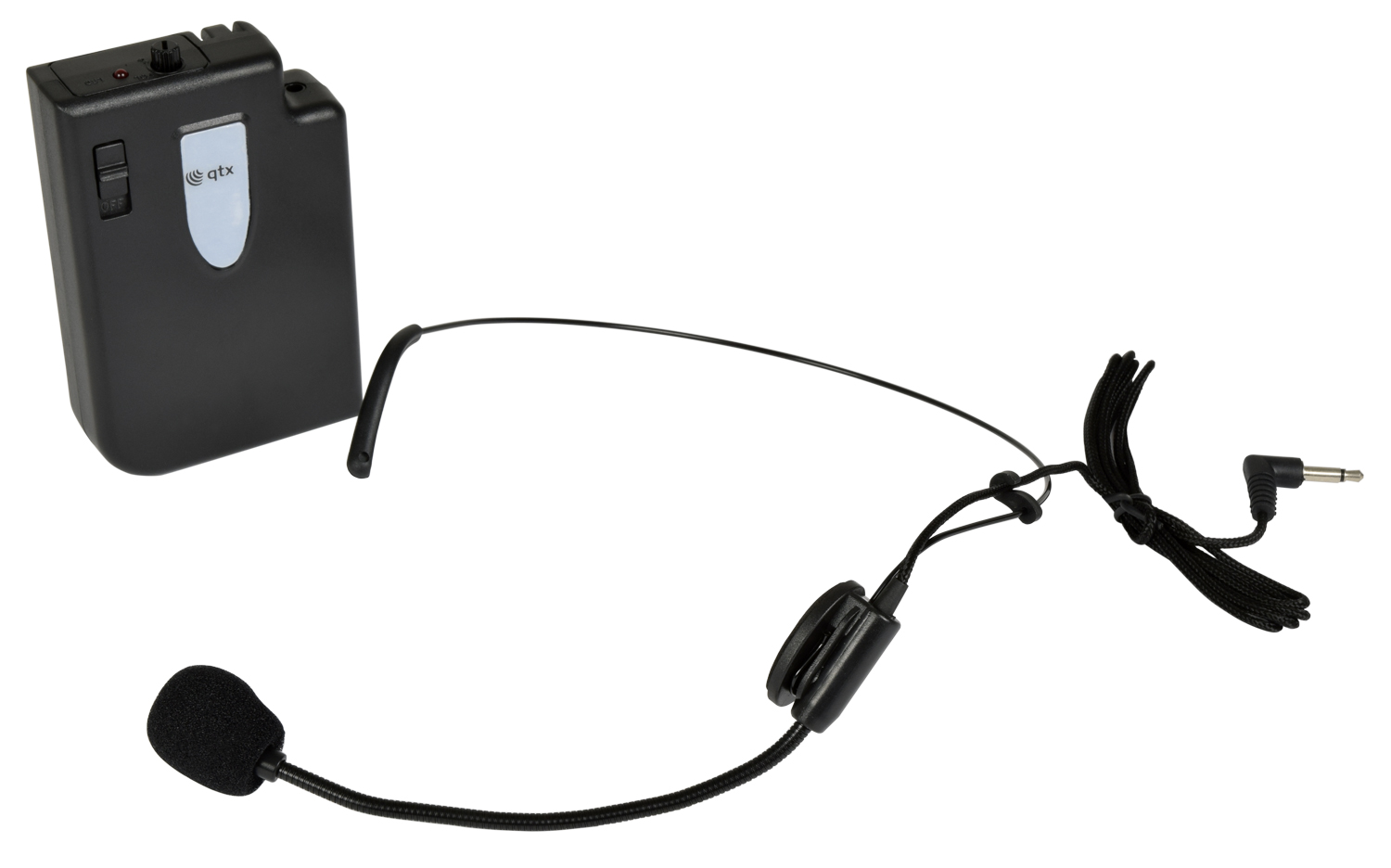

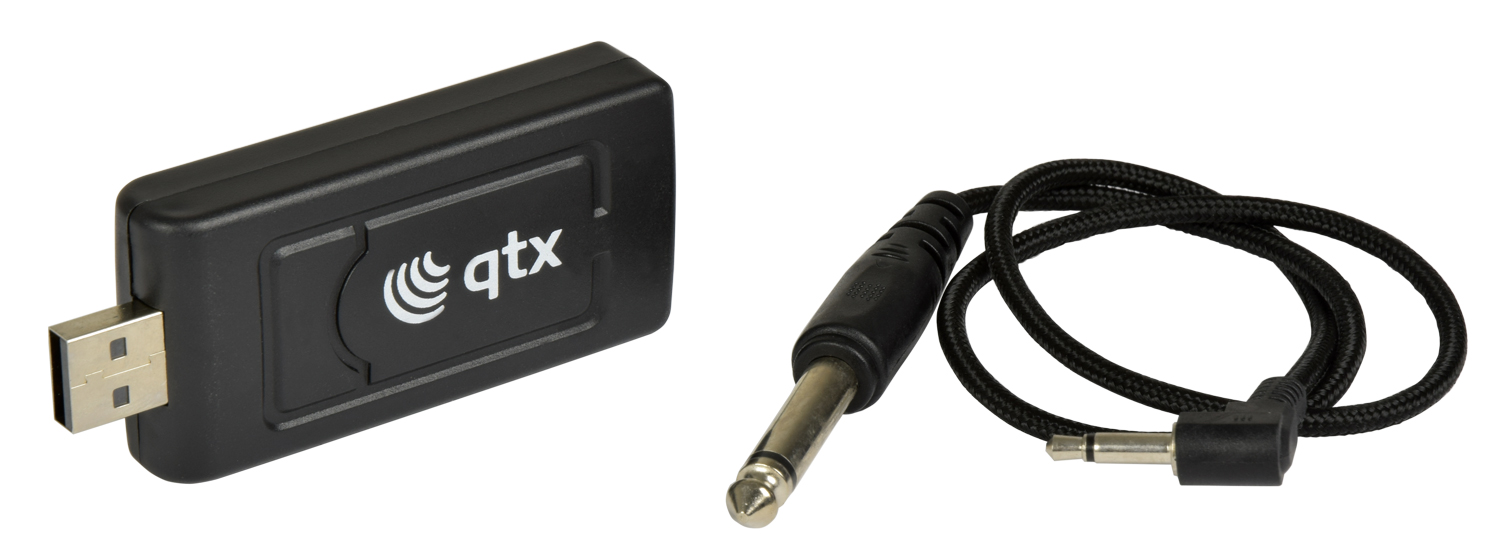

Compact and easy to set up UHF wireless microphone set with 2 neckband microphones, 2 beltpack transmitters and single USB receiver. The receiver simply plugs into a USB power supply or USB port for power and outputs a mix of both microphones to a 3.5mm jack socket. A plug-through USB connection is provided on the receiver to allow the USB port to continue to be used for connection to media or other USB devices (e.g. for a USB flash mp3 player port). The beltpack transmitters are powered by 2 x AA batteries each and operate on 2 UK/EU licence-free UHF frequencies. This system avoids the need for a free-standing or rack-mounted receiver and can operate from a standard USB power supply for ultimate convenience.

  • 3.5mm to 6.3mm jack lead included
  • Plug-through USB connection for flash drive inputs
  • Both microphones mixed to a single output

Specification

  • Power supply USB 5V, 1A (receiver), 2 x AA batteries (each transmitter)
  • Carrier frequencies 863.2MHz + 864.8MHz
  • Frequency response 50Hz - 15kHz
  • Output connection 3.5mm mono jack
  • Wireless range Up to 50m
  • Dimensions : neckband microphone 150 x 120 x 120mm (each)
  • Weight : neckband microphone 21g (each)
  • Dimensions : transmitter 105 x 65 x 30mm (each)
  • Weight : transmitter 67g (each - no battery)
  • Dimensions : receiver 80 x 34 x 15mm
  • Weight : receiver 25g

Trade information

  171.812UK
Barcode / EAN 5015972217924
Package type Gift Box
Package dimensions 115 x 270 x 60mm
Package weight 0.31kg
Package quantity 1 unit
Carton dimensions 290 x 615 x 265mm
Carton weight 8.50kg
Carton quantity 20 packages

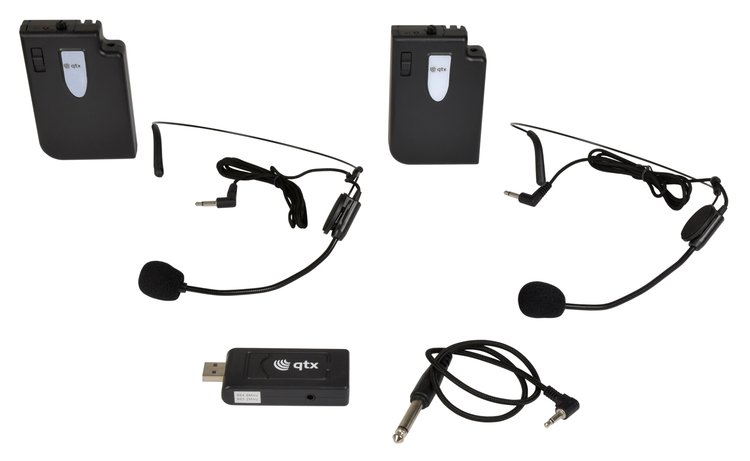

In the box

The box for this item contains :

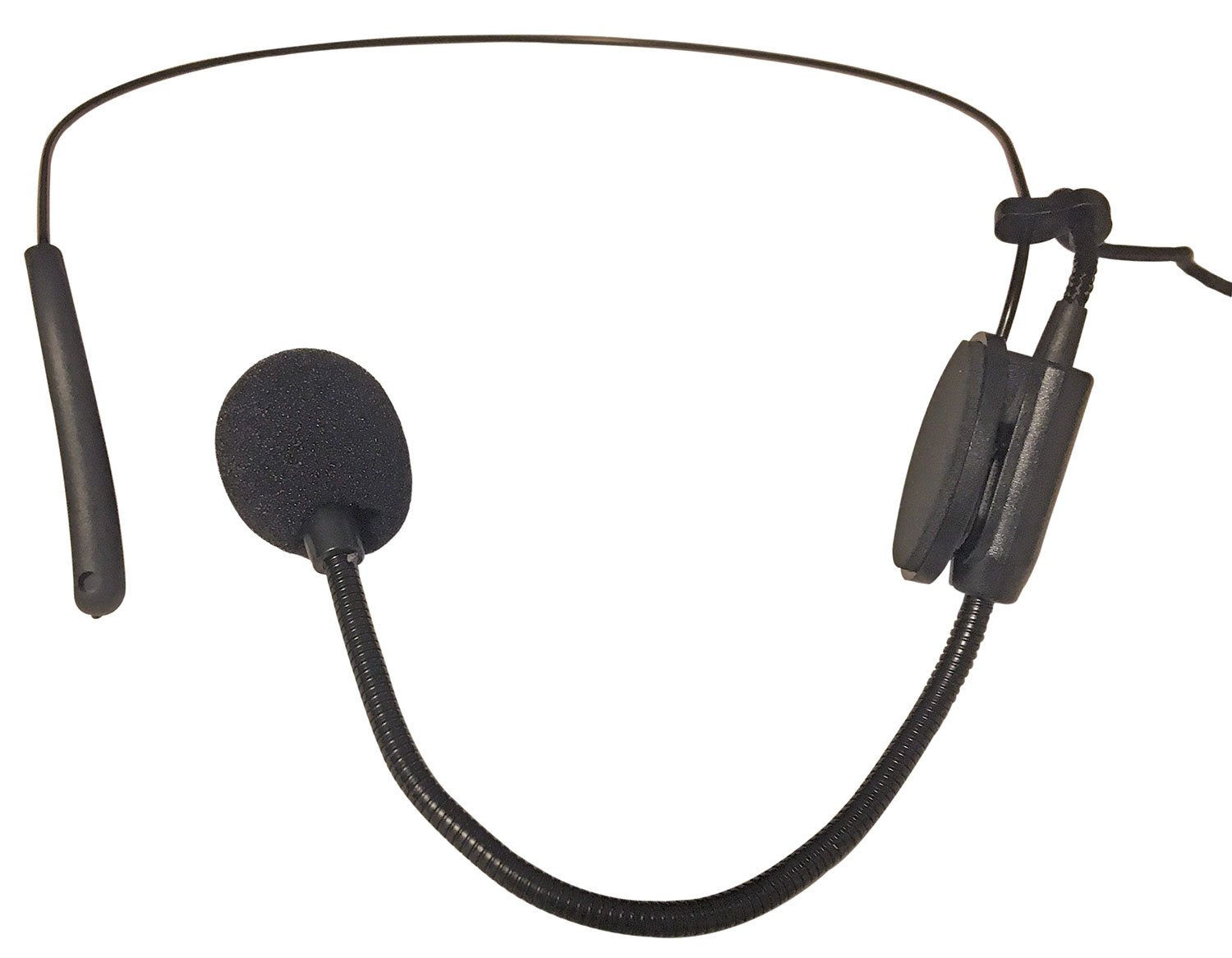

  • 2 x Neckband microphones
  • 2 x beltpack transmitters
  • 1 x USB plug-through receiver
  • 3.5mm to 6.3mm jack lead
  • 4 x AA batteries

Support

Instruction manual
For 171.812UK (158KB)
