NU20 Dual UHF Wireless Microphone Systems

171.926UK NU20-N

Dual wireless microphone system with UHF receiver and 2 handheld or beltpack transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting an...

  • Digital signal path for clean audio output
  • Rack-mounting accessories included
  • Licence free operation in UK & EU
Description Version Packed
171.924UK
NU20 Dual UHF Handheld Microphone System
2 x Handheld Box Label
171.926UK
NU20 Dual UHF Beltpack with Neckband + Lavalier Mic
2 x Neckband / Lapel Box Label

Accessories

Description Version Packed
171.927UK
NU20 Handheld Transmitter 863.8MHz
863.8MHz Box Label
171.928UK
NU20 Handheld Transmitter 864.8MHz
864.8MHz Box Label
171.929UK
NU20 Beltpack Transmitter 863.8MHz
863.8MHz Box Label
171.930UK
NU20 Beltpack Transmitter 864.8MHz
864.8MHz Box Label

NU20 Dual UHF Wireless Microphone Systems

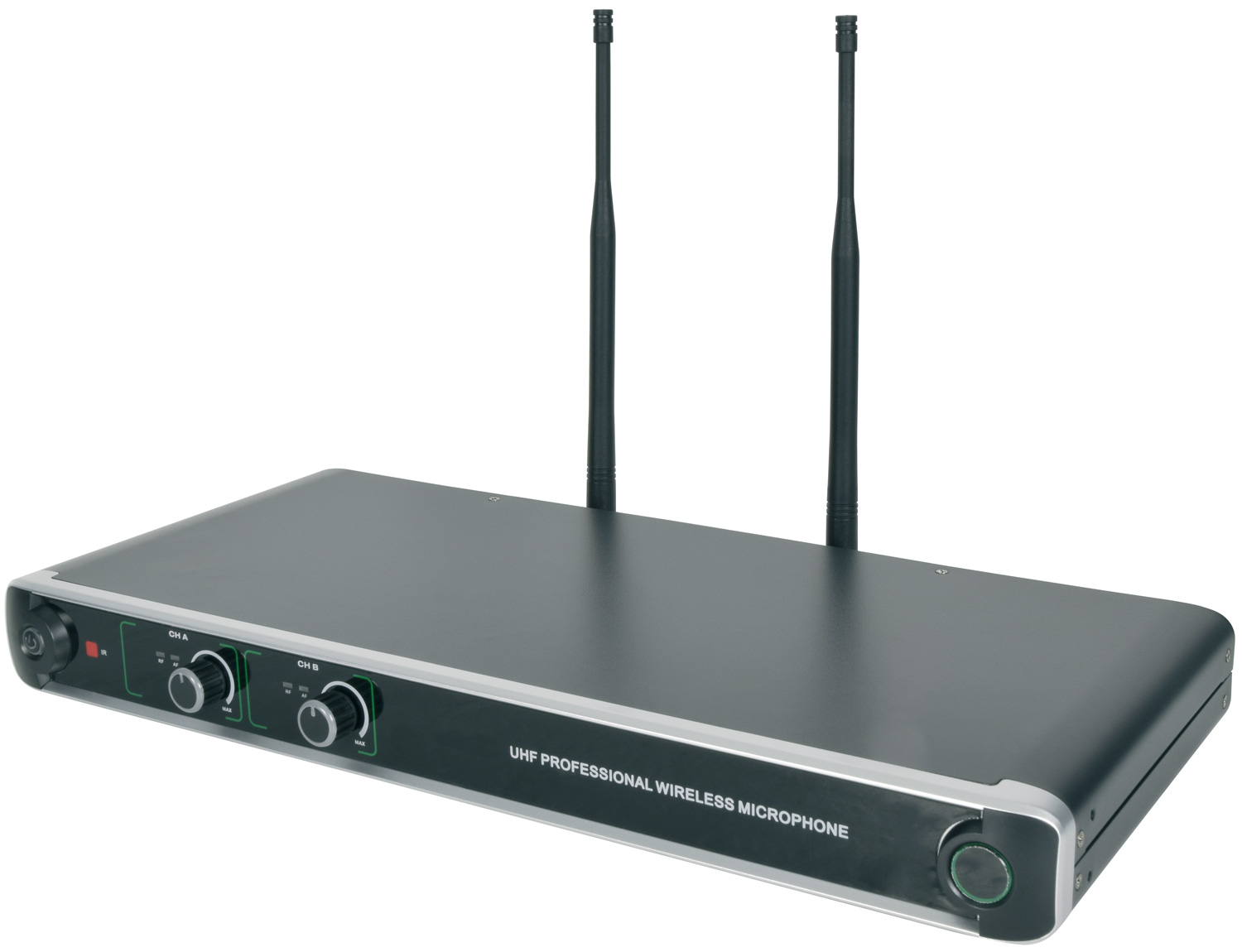

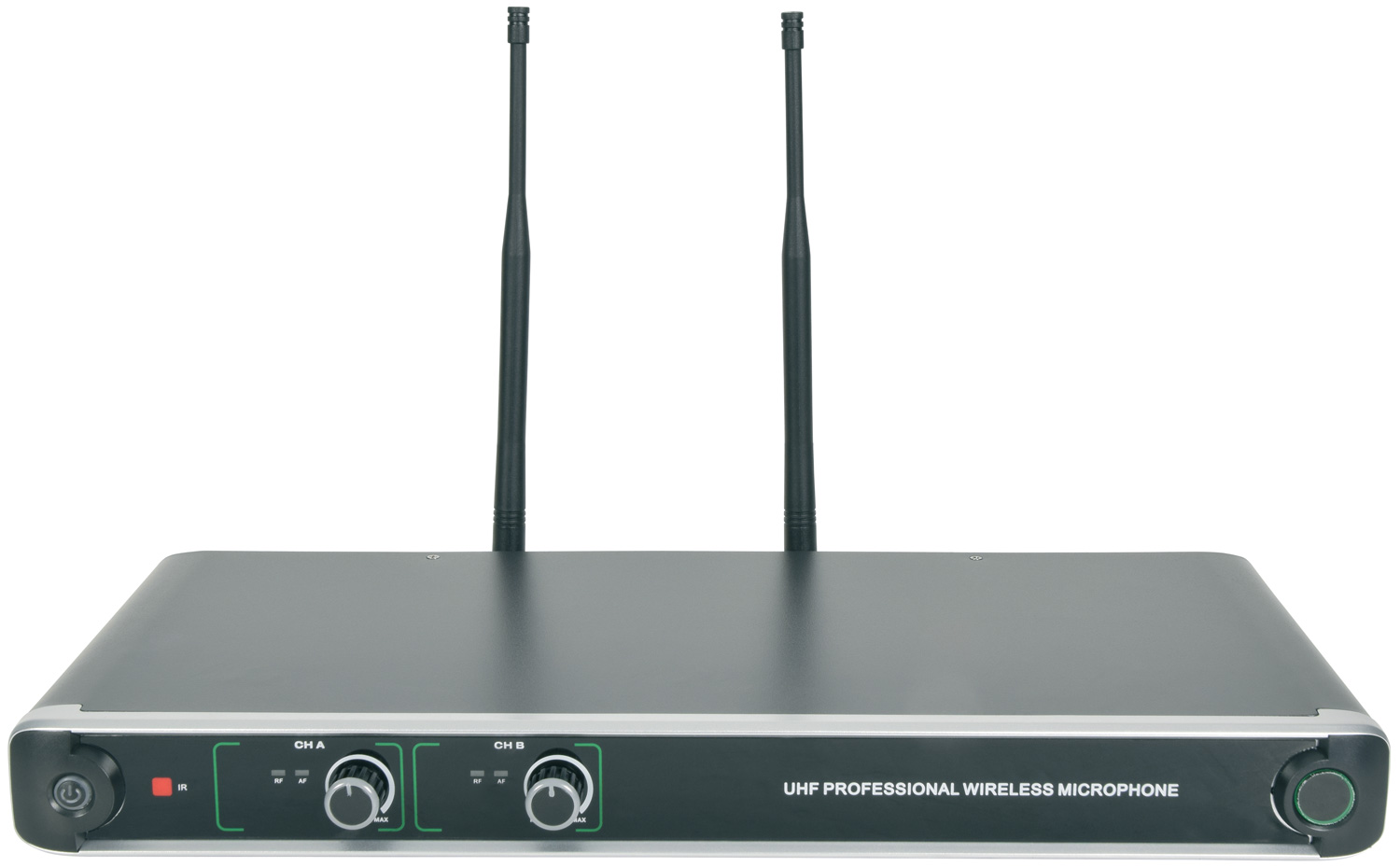

Dual wireless microphone system with UHF receiver and 2 handheld or beltpack transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.

  • Digital signal path for clean audio output
  • Rack-mounting accessories included
  • Licence free operation in UK & EU
  • Supplied with mains adaptor and 4 x AA batteries
  • Power supply 14Vdc 350mA (adaptor included)
  • Carrier frequencies 863.8MHz + 864.8MHz
  • Wireless range Up to 60m
  • Batteries 4 x AA (2 per transmitter)
  • S/N ratio >80dB
  • THD <0.5% @ 1kHz
  • Output impedance 2.2k Ohms
  • Output level 400mV (balanced), 200mV (unbalanced)
  • Frequency response : ±3dB 50Hz-18KHz
  • Dimensions : receiver 409 x 190 x 44mm
  • Weight : receiver 1.37kg

Versions

  171.924UK 171.926UK
Dimensions : handheld transmitter 243 x 48mmØ N/A
Weight : handheld transmitter 238g (no battery) N/A
Dimensions : beltpack transmitter N/A 205 x 68 x 25mm
Weight : beltpack transmitter N/A 76g (no battery)

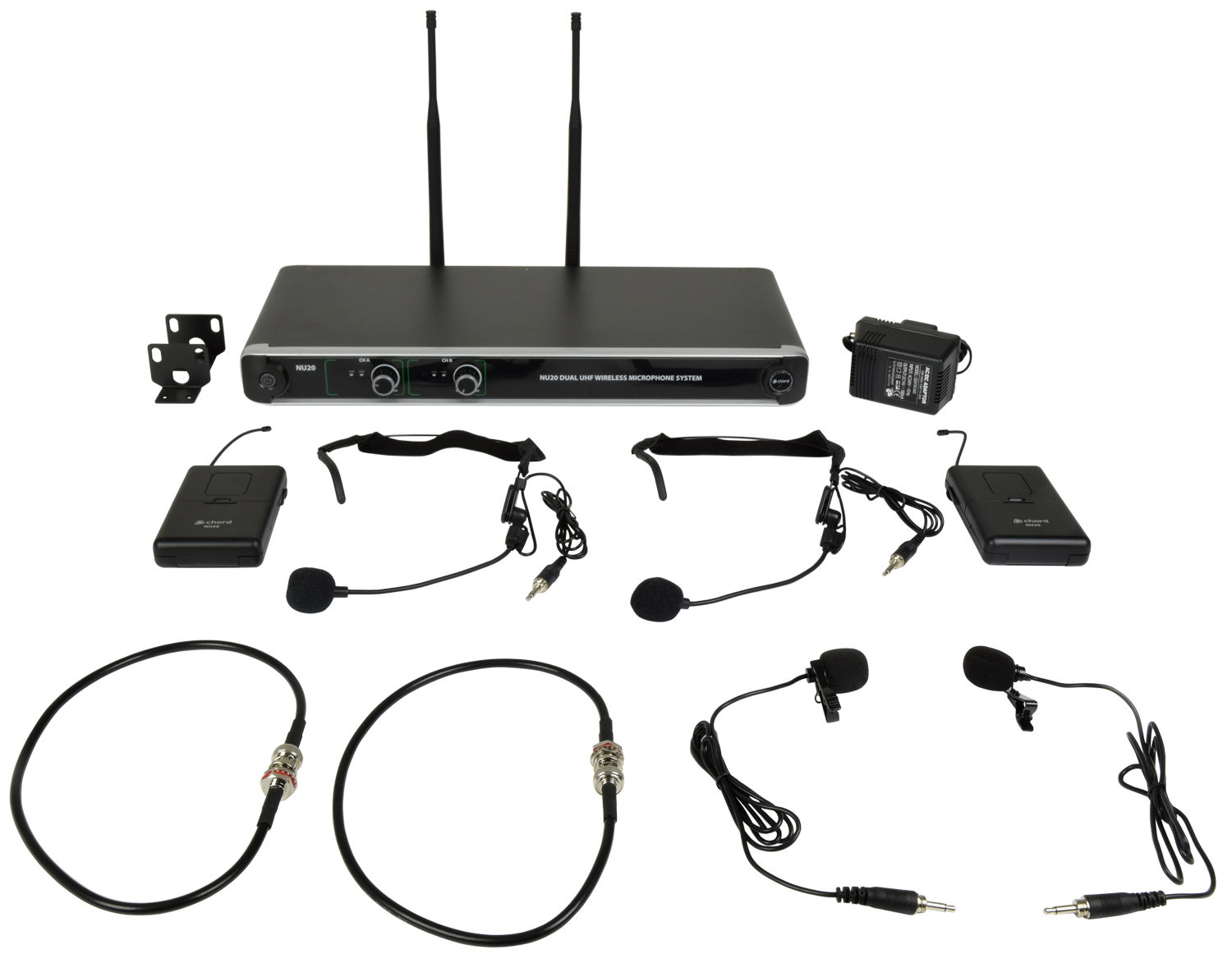

In the box

The box for this item contains :

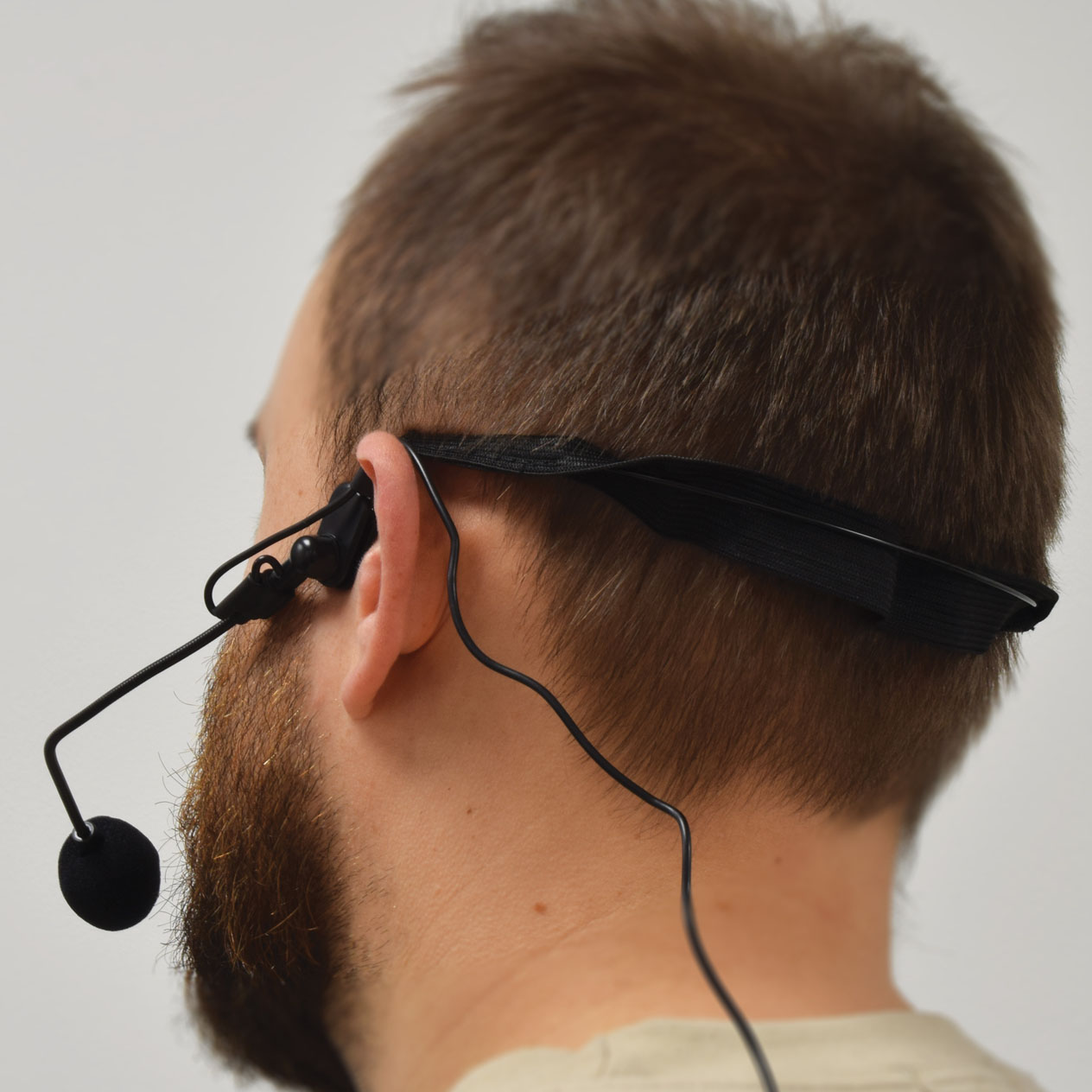

  • 2 x handheld transmitters - or - 2 x beltpacks each with headset and lavalier mic
  • UHF dual channel receiver
  • 2 x UHF antennas
  • 2 x antenna extension leads
  • 2 x rack-mounting ears

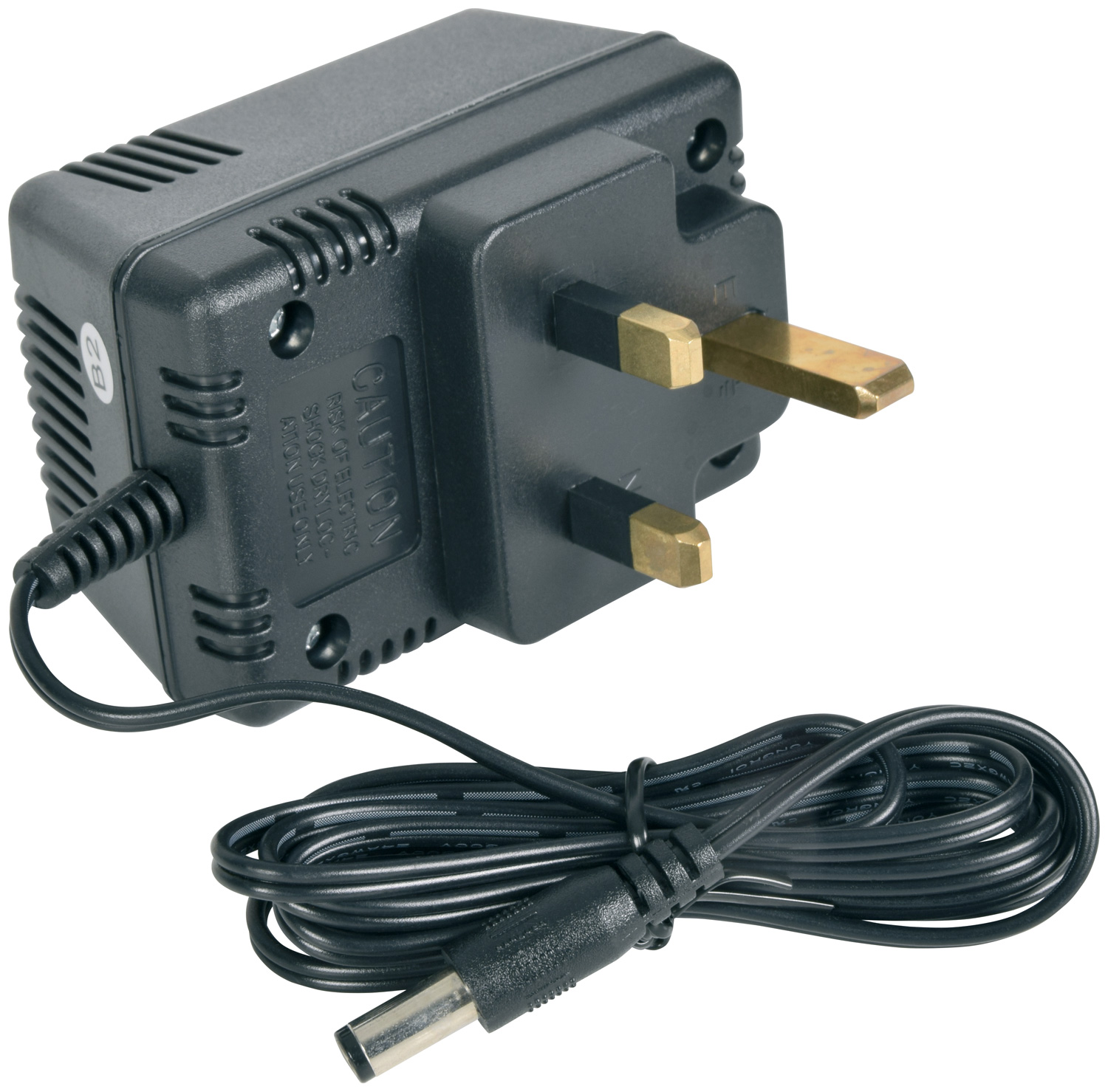

  • 14Vdc power adaptor
  • 4 x AA batteries

Downloads

Instruction manual
For 171.926UK (455KB)
UK Declaration of conformity
For 171.926UK (246KB)
EU Declaration of conformity
For 171.926UK (239KB)
