PL Series 1U Digital Amplifiers
172.111UK
PL720
Super compact and lightweight stereo power amplifiers in a 1U rack-mountable housing. Fully digital architecture provides high power output and efficiency with inbuilt protection circuitry. Signal ...
- Cutting edge class D architecture
- Compact and lightweight
- Fan cooling and internal protection circuitry
| Description | |
|---|---|
|
172.111UK
PL720 Class D Amp 1U 2 x 360W |
PL Series 1U Digital Amplifiers
Super compact and lightweight stereo power amplifiers in a 1U rack-mountable housing. Fully digital architecture provides high power output and efficiency with inbuilt protection circuitry. Signal inputs are balanced combo jack/XLR connectors and speaker outputs are provided as locking SPK or 4mm binding posts. Easy portability makes these amplifiers well-suited for mobile sound systems without compromising quality of the audio output.
- Cutting edge class D architecture
- Compact and lightweight
- Fan cooling and internal protection circuitry

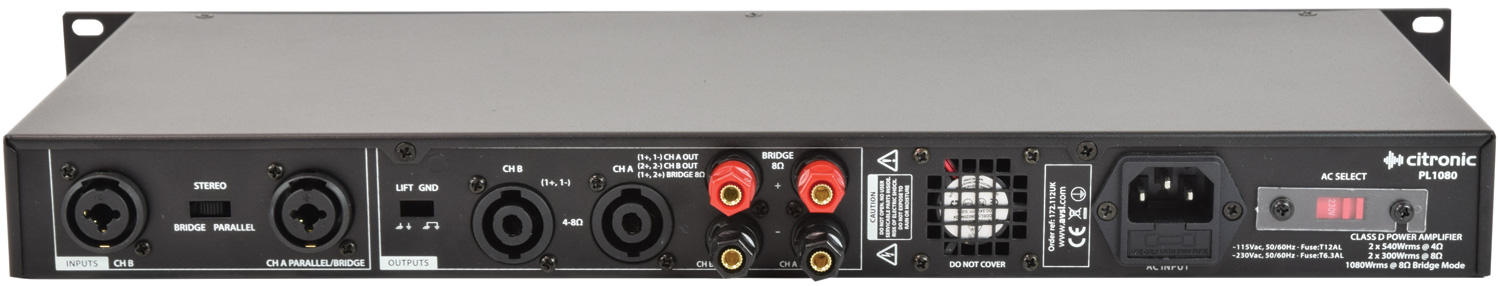

- Input connections Combo jack/XLR balanced (L+R)
- Output connections SPK (L+R) + 4mm binding posts (L+R)
- Frequency response 20Hz - 20kHz (±0.5dB)
- THD +N <0.05%
- Damping factor 300
- S/N ratio (A weighted) : line 100dB
- Slew rate 20V/us
- Input impedance 10k Ohms unbalanced, 20k Ohms balanced
- Output circuit architecture Class D
- Protection Temperature, short circuit, DC, overload
- Indicators Power, signal, clip
- Controls L+R level, power on/off, bridge/parallel/stereo, ground lift
- Dimensions 482 x 180 x 44mm
Versions
| 172.111UK | |
|---|---|
| Power supply | 115/230Vac, 50/60Hz (IEC) |
| Fuse | T5AL (230V) / T10AL (115V) |
| Output power : 4 Ohms | 2 x 360Wrms |
| Output power : 8 Ohms | 2 x 200Wrms |
| Output power : bridged @ 8 Ohms | 720Wrms |
| Weight | 2.6kg |
Support : articles
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :

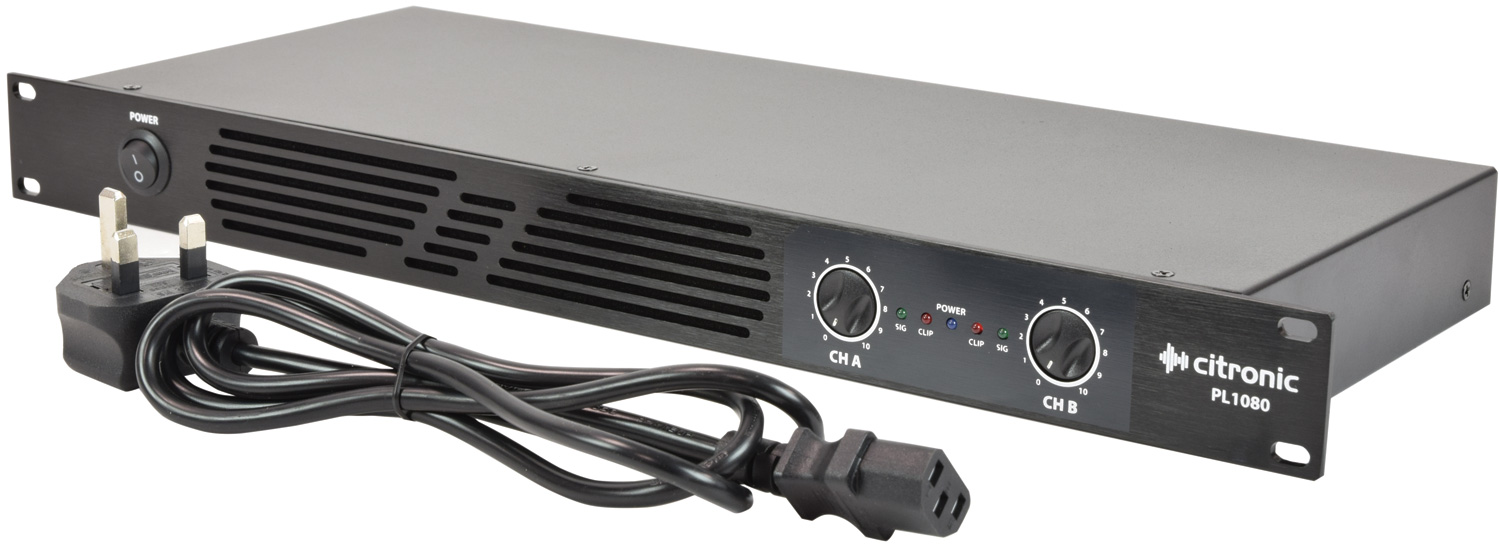

- PL series stereo class D power amplifier
