Reissue Analog Chorus Pedal
173.230UK
ANALOGCHORUS
Reissue series vintage chorus pedal for guitar or bass. The chorus effect produces a ringing modulation which gives the impression of multiple guitars playing in unison with a slight detuning to br...
- Pure analog "bucket-brigade" circuitry
- True bypass hardware switching
- Width, Speed & Blend controls
Reissue Analog Chorus Pedal

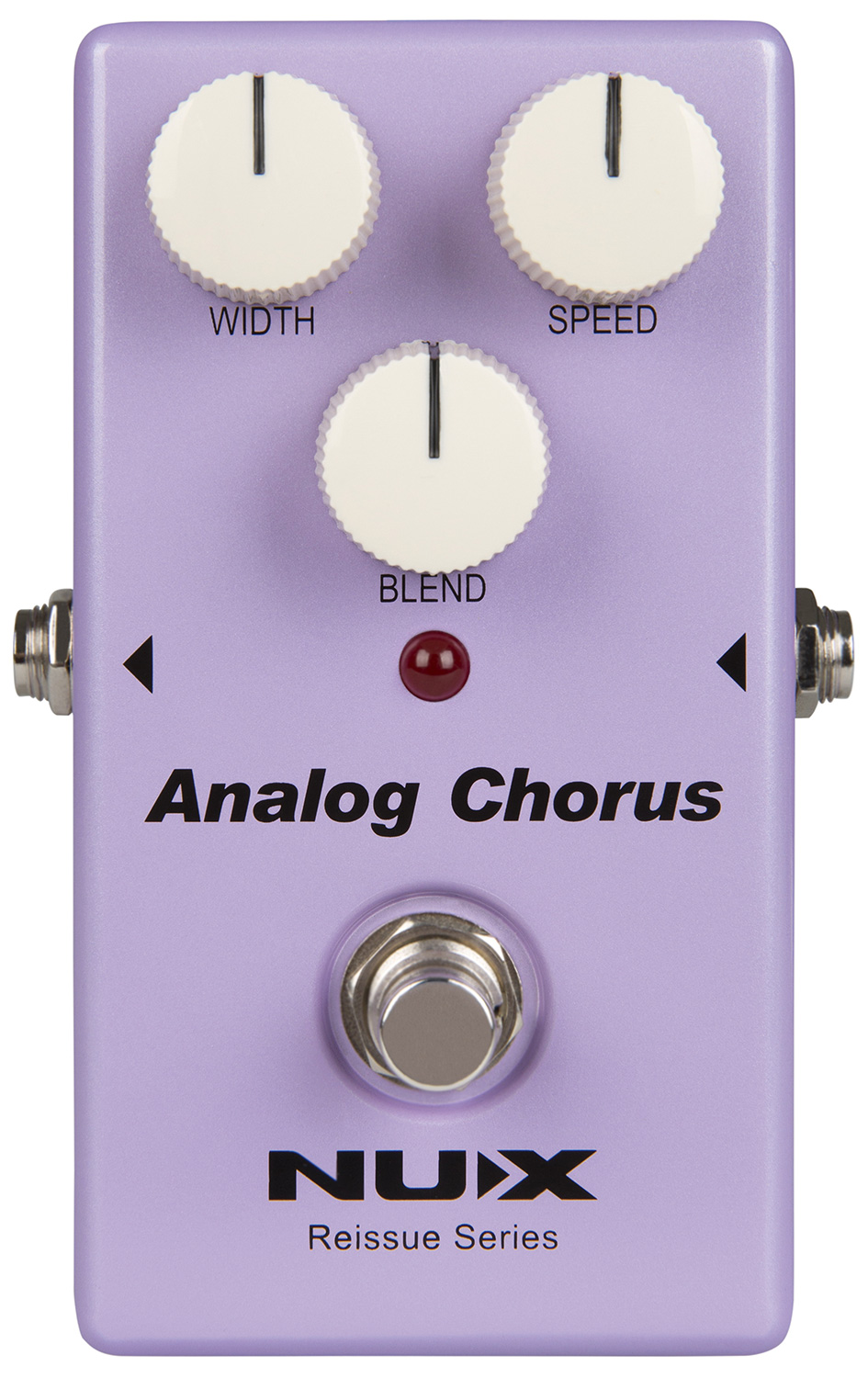

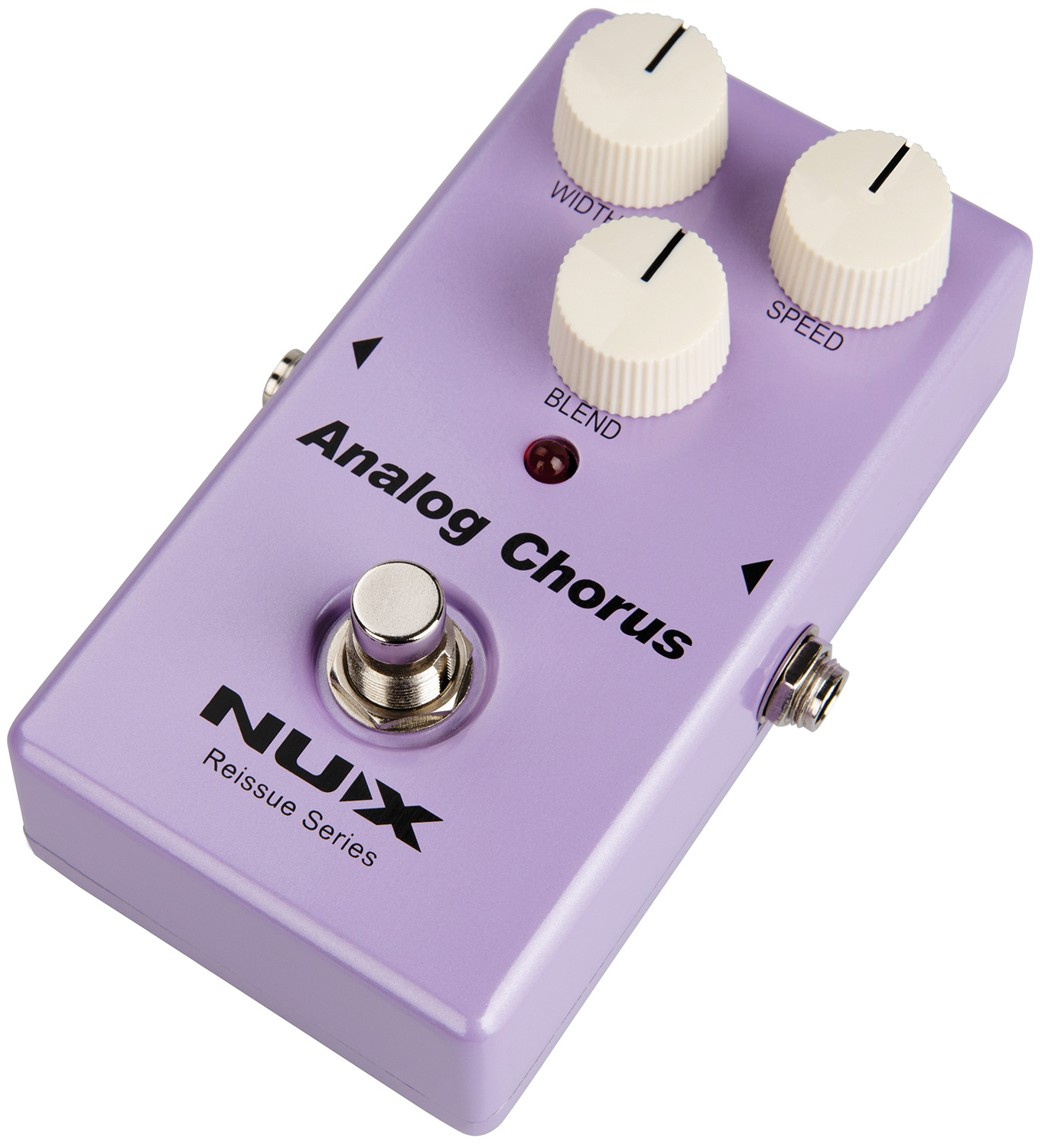

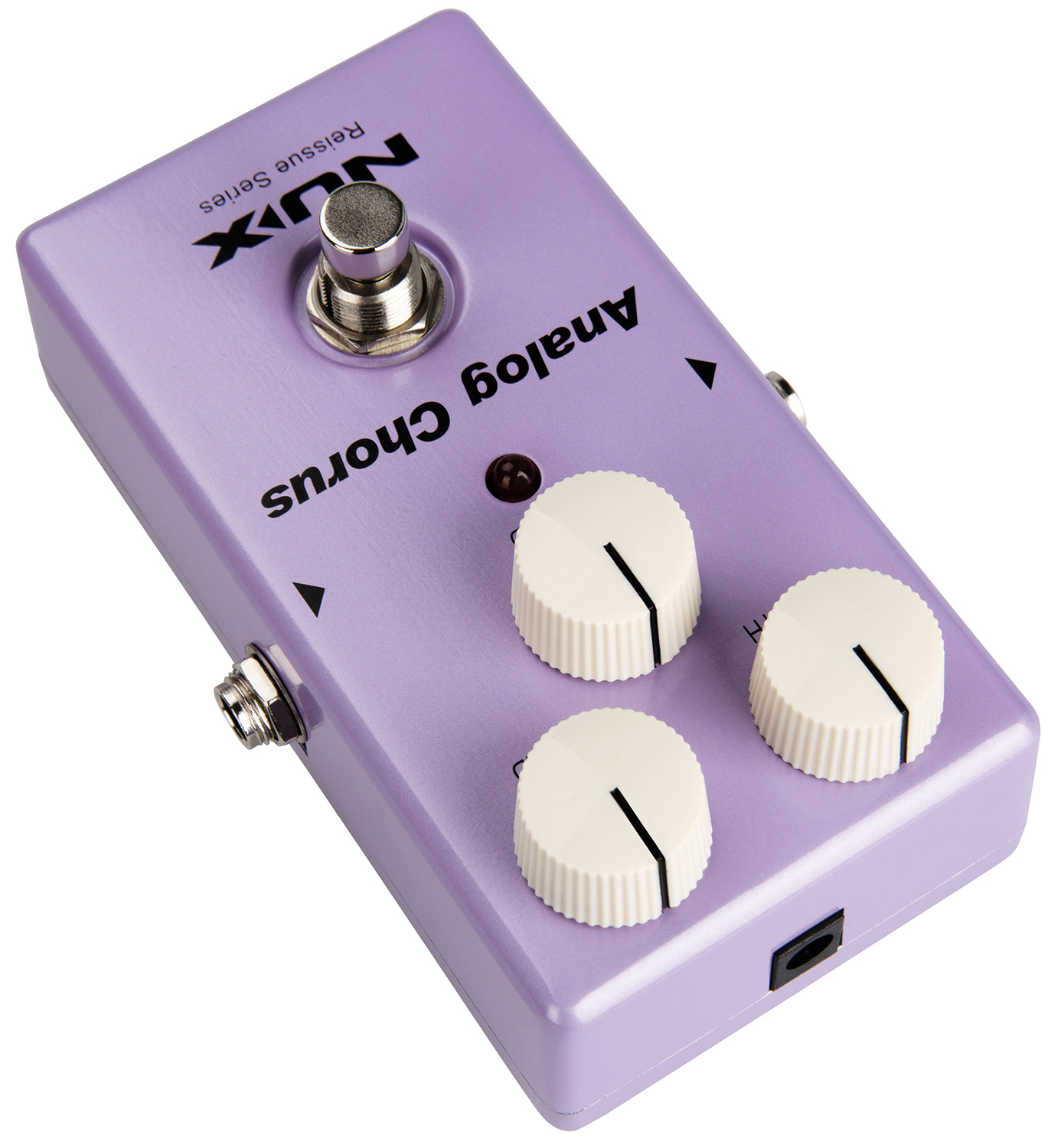

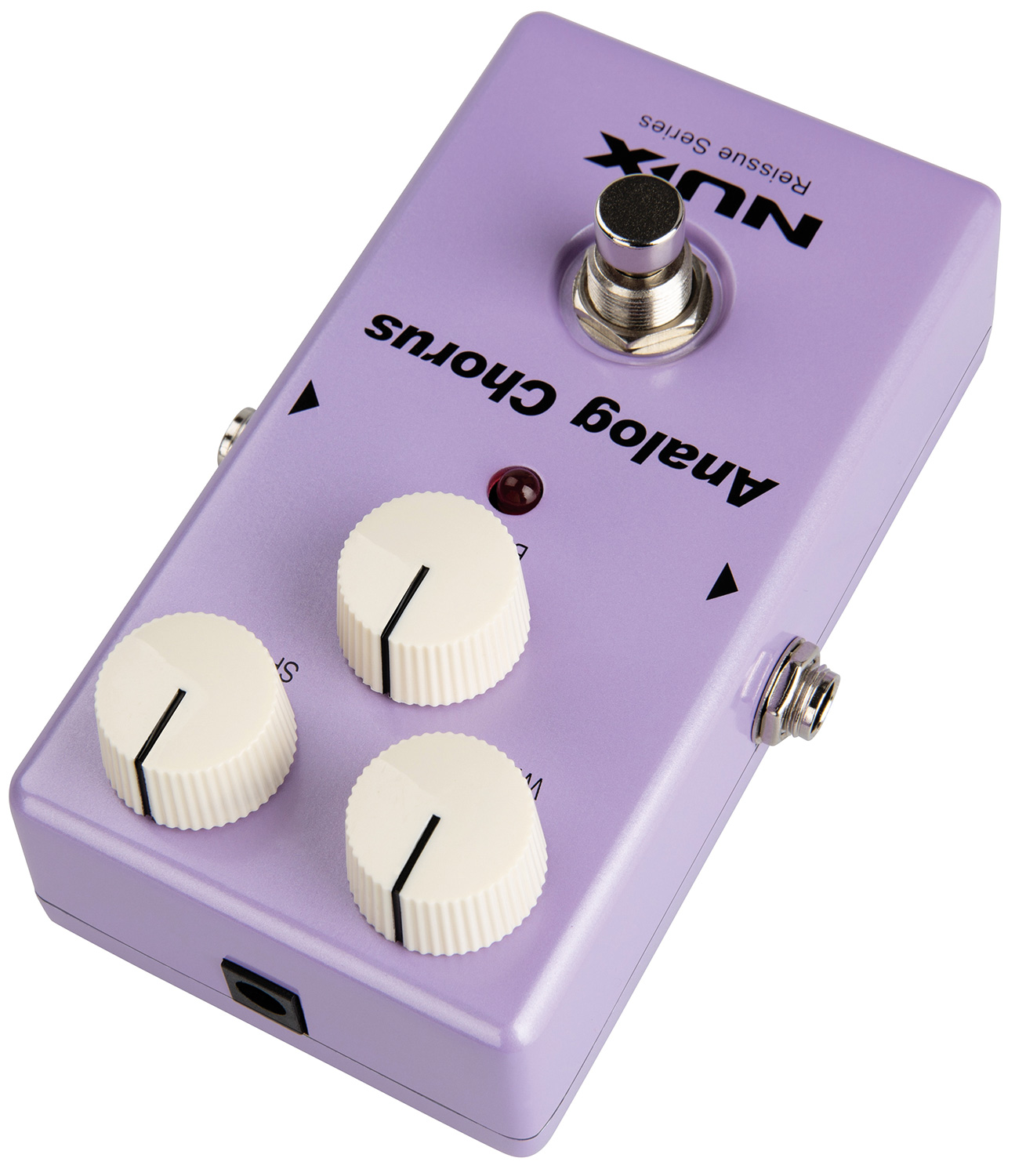

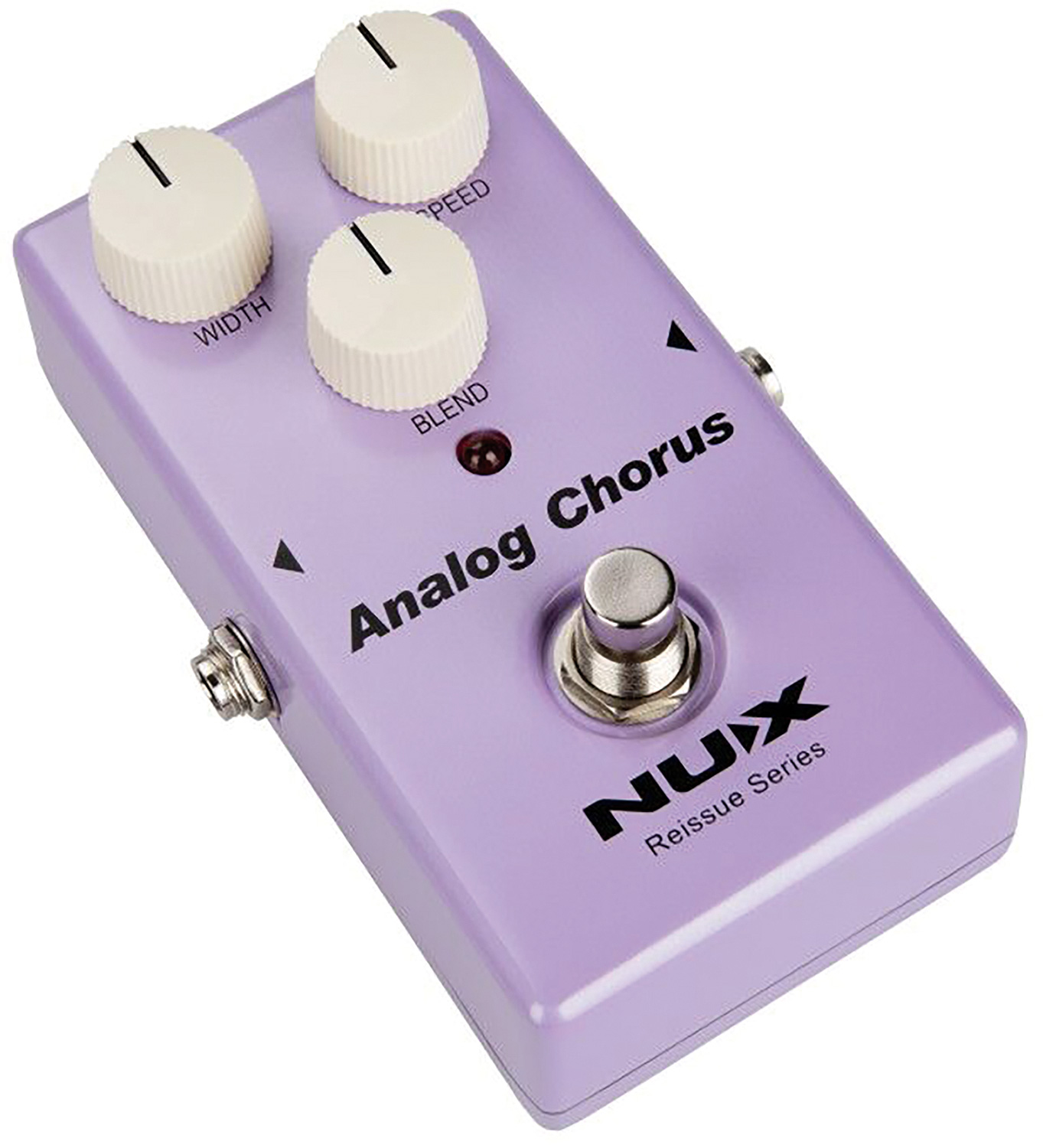

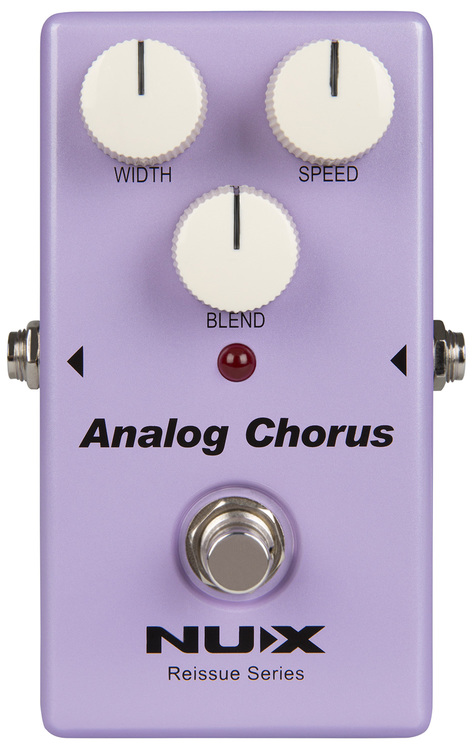

Reissue series vintage chorus pedal for guitar or bass. The chorus effect produces a ringing modulation which gives the impression of multiple guitars playing in unison with a slight detuning to broaden the sound. Vintage style analog circuitry uses BBD chips to deliver a warm tone, reminiscent of many classic guitar tracks from the 1980's and is still as relevant today. A perfect introduction for newcomers to the chorus effect or even for the experienced analog purists.
- Pure analog "bucket-brigade" circuitry
- True bypass hardware switching
- Width, Speed & Blend controls
- Battery 9V PP3 (supplied)
- Power supply Optional 9Vdc 300mA regulated (not supplied)
- Controls Width, Speed, Blend & foot switch
- Input impedance 1M Ohms
- Output impedance 10k Ohms
- Dimensions 121 x 77 x 48mm
- Weight 230g
In the box
The box for this item contains :
- Reissue series analog chorus pedal
- 9V PP3 battery
Downloads
Instruction manual
For 173.230UK (244KB)
For 173.230UK (244KB)
UK Declaration of conformity
For 173.230UK (245KB)
For 173.230UK (245KB)
EU Declaration of conformity
For 173.230UK (238KB)
For 173.230UK (238KB)
