DM-210 Digital Drum Kit

176.302UK DM-210

Complete digital drum outfit with mesh drum pads mounted to an adjustable rack stand. 3 tom pads and 1 snare pad each have dual triggers for side-stick and rim-shot effects. Hi-hat, crash and ride ...

  • All triggers adjustable for sensitivity, crosstalk and gain
  • USB connection for MIDI recording and playback
  • Aux input and inbuilt Bluetooth receiver
Description Version Packed
176.302UK
DM-210 Digital Drum Kit
DM-210 Gift Box

Accessories

Description Version Packed
127.308UK
General Equipment Bag
Poly Bag
421.779UK
Pedal Power Bank 2 x 9V + USB 10Ah
PB-959 Gift Box

DM-210 Digital Drum Kit

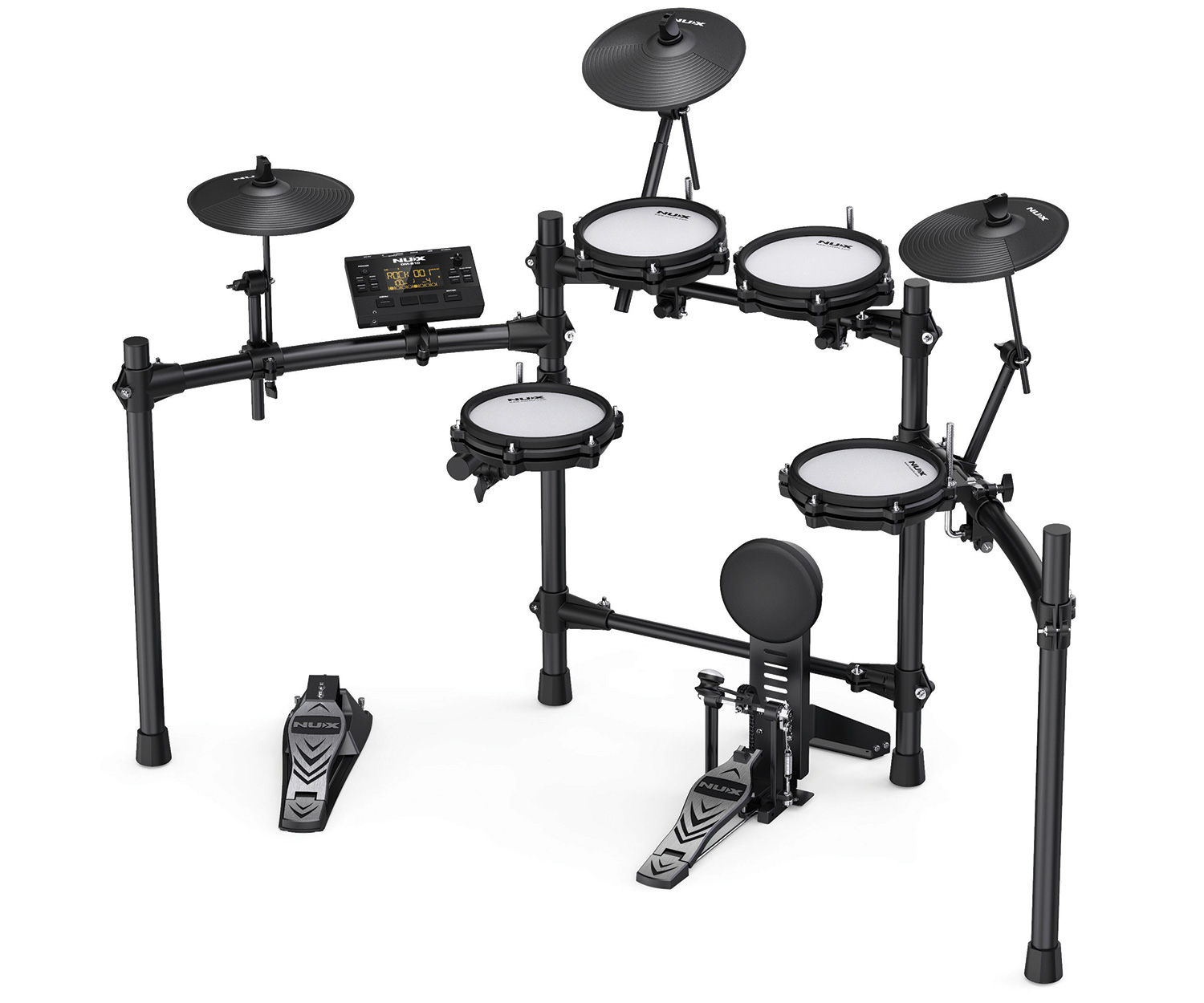

Complete digital drum outfit with mesh drum pads mounted to an adjustable rack stand. 3 tom pads and 1 snare pad each have dual triggers for side-stick and rim-shot effects. Hi-hat, crash and ride pads each have edge and bow-shot zones and can respond to hand chokes for realistic muting. A pressure-sensitive remote pedal performs gradual closing of the hi-hats. A separate kick pad and pedal assembly provide a natural feeling bass drum trigger. All triggers are wired back to the main sound module, which has a large accessible control surface and backlit display. A total of 15 drum sound sets are included with an adjustable reverb effect. Audio 6.3mm jack output to a mixing console or drum amplifier can be either mono or stereo and a separate stereo 3.5mm jack is provided for headphone monitoring. A built-in drum coach function is useful for improving technique from novice to professional standard. The internal adjustable click track or 10 internal demo songs are provided for general jamming. Alternatively, backing tracks may be played via the Aux line input or wireless Bluetooth® connection to play along with your own music. An inbuilt record function is also added to check back on your own playing. The convenience of a minimalist, lightweight kit with the flexibility of multiple sound sets, and still keeping a natural playing experience for real feel and expression.

  • All triggers adjustable for sensitivity, crosstalk and gain
  • USB connection for MIDI recording and playback
  • Aux input and inbuilt Bluetooth receiver
  • Dual zone triggering on snare, tom and cymbal pads
  • Power supply 9Vdc, 200mA (mains adaptor supplied)
  • Inputs Aux 3.5mm stereo jack, Bluetooth, extension cymbal trigger input

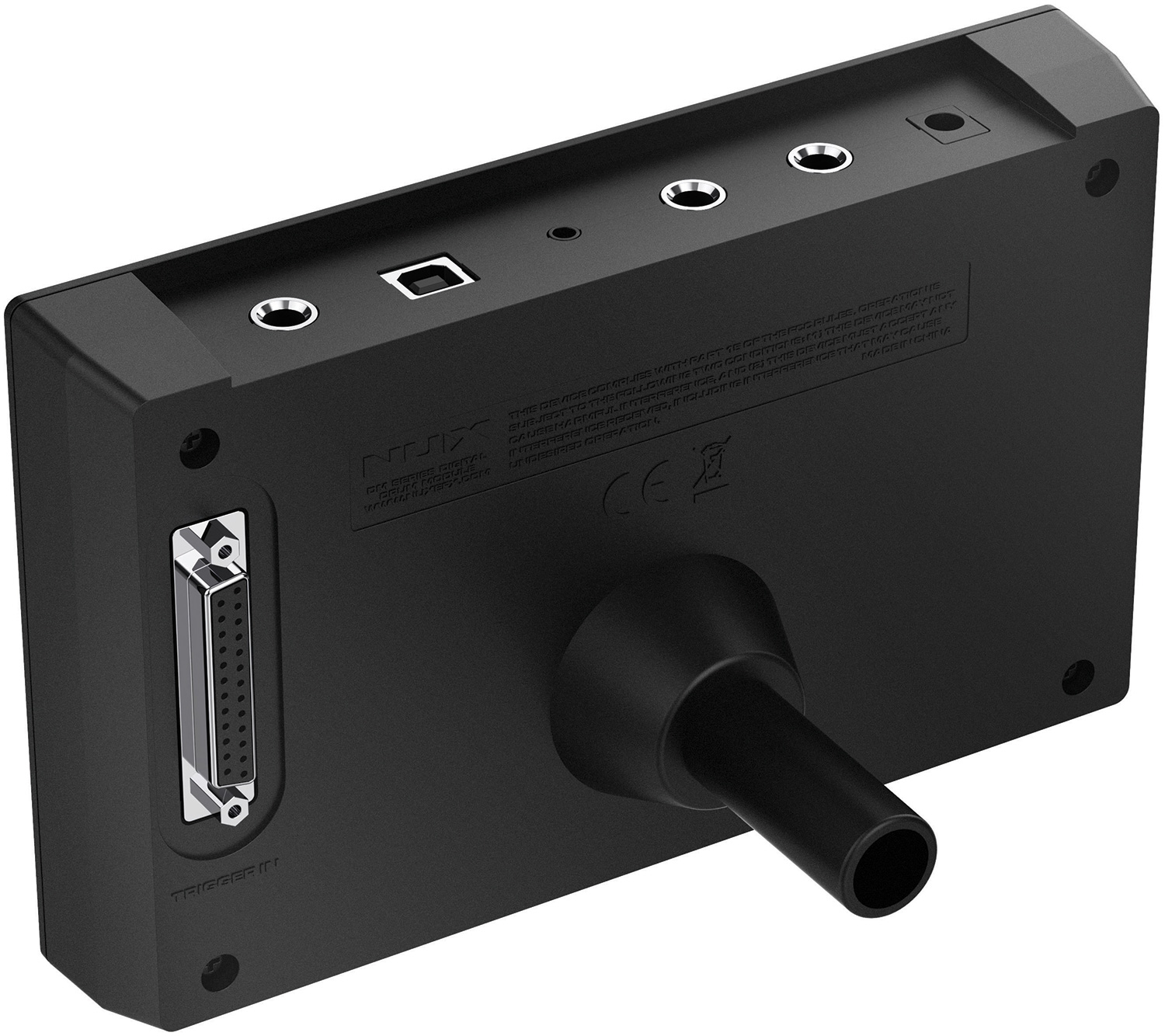

  • Outputs 2 x 6.3mm jack, 3.5mm stereo phones jack, USB
  • Dimensions (assembled) 1300 x 1100 x 1000mm
  • Weight (total) 23kg
  • Dimensions (packed) 935 x 445 x 315mm
  • Pack weight 25kg

In the box

The box for this item contains :

  • Self-assembly drum rack
  • 3 x dual-zone cymbal pads
  • 3 x dual-zone mesh-head tom pads
  • 1 x dual-zone mesh-head snare pad

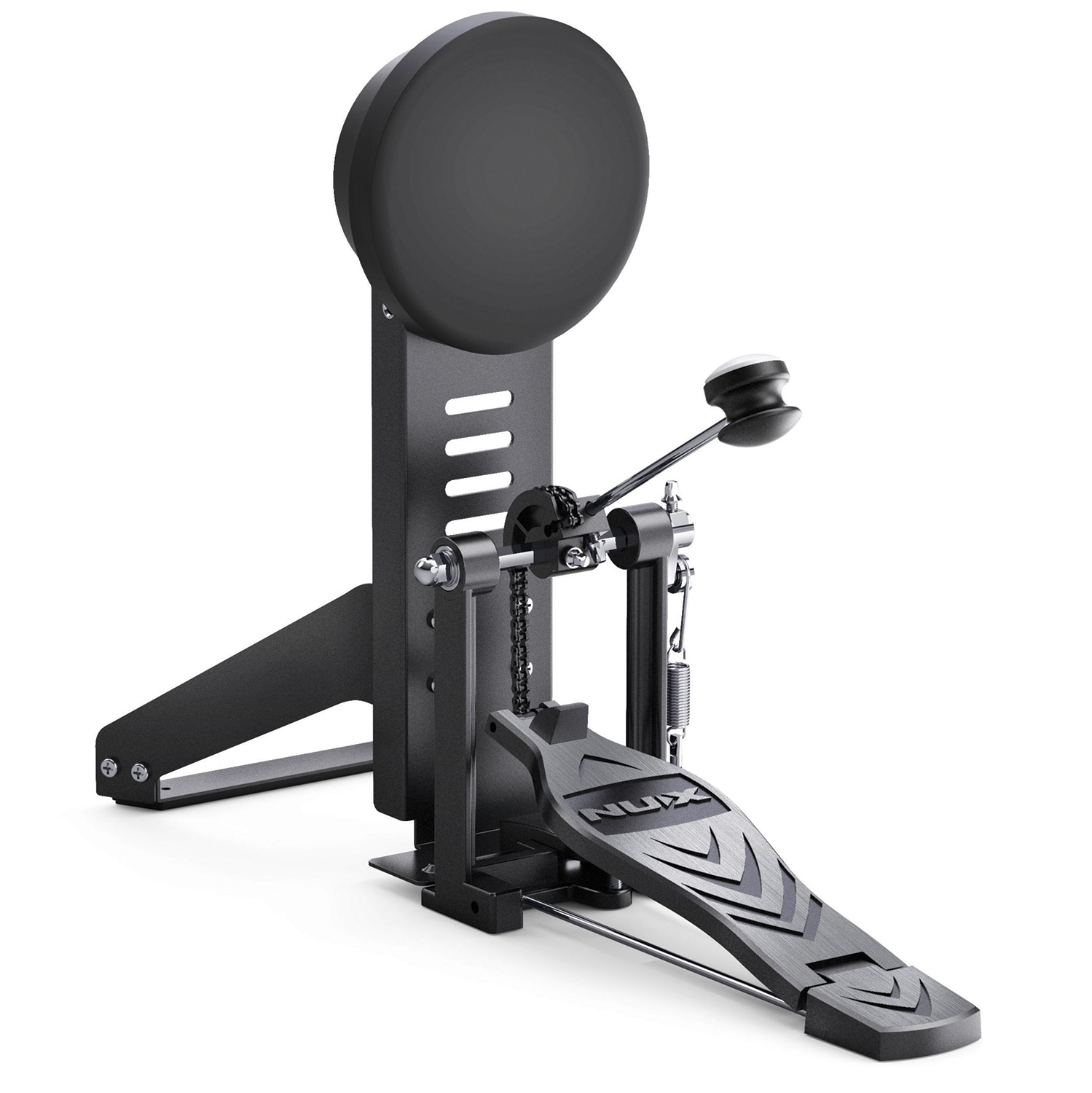

  • Bass drum pad and kick pedal assembly
  • Hi-hat remote pedal

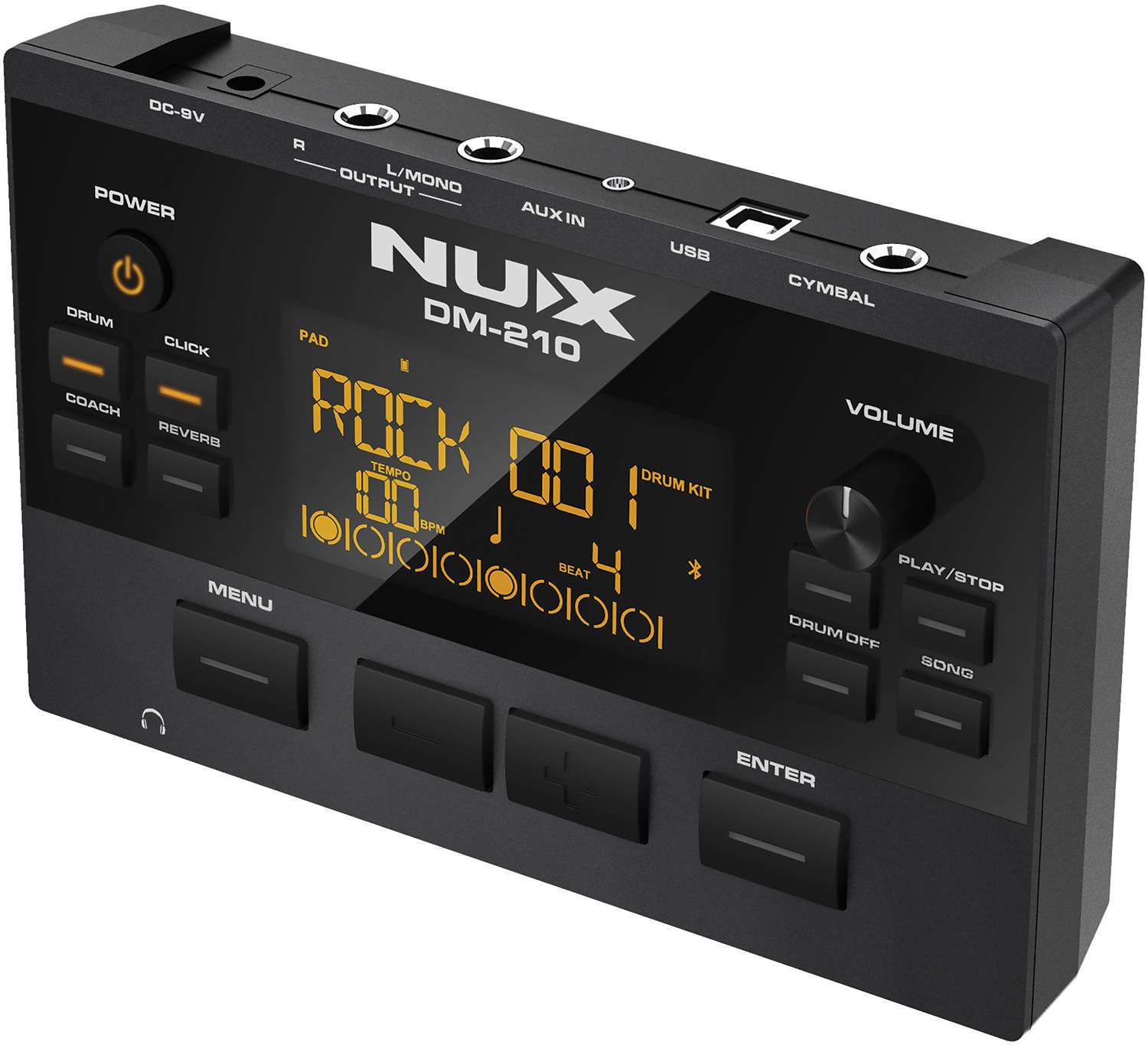

  • DM-210 digital sound module
  • Drum trigger wiring loom
  • 9Vdc power adaptor (UK plug)

Downloads

Instruction manual
For 176.302UK (36.1MB)
UK Declaration of conformity
For 176.302UK (247KB)
EU Declaration of conformity
For 176.302UK (238KB)
