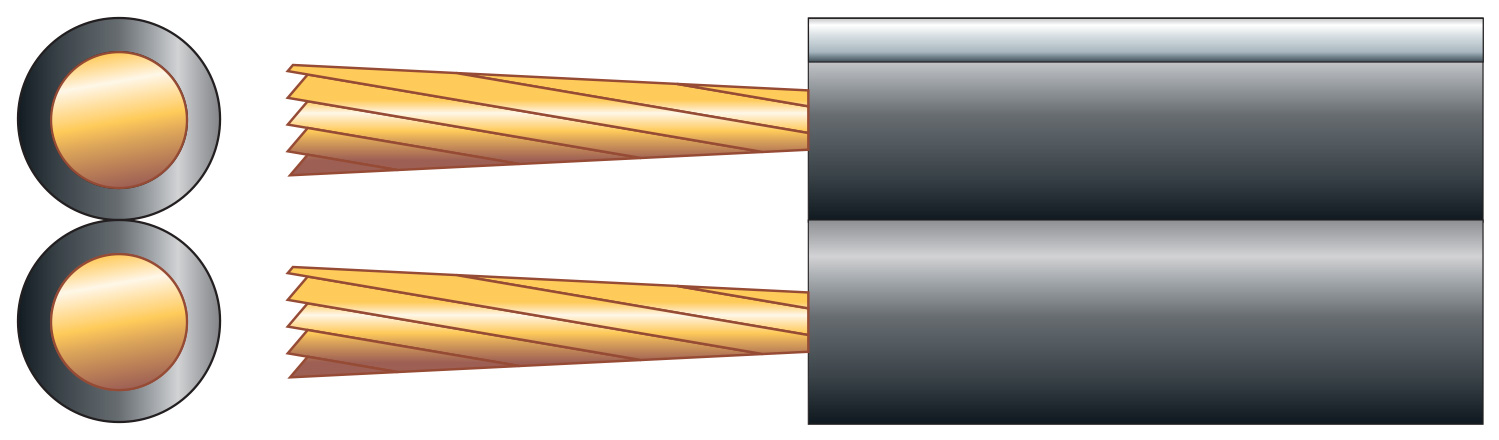

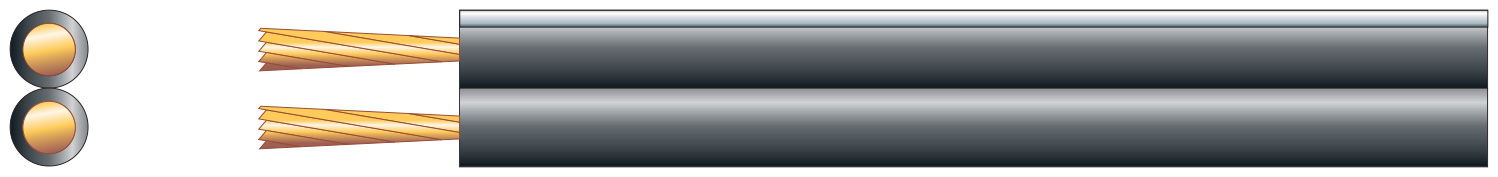

Heavy Duty Figure 8 Speaker Cable

801.699UK

Flexible, heavy duty speaker cable with polarity line indicator.

Description Version Packed
801.513UK
Heavy Duty Fig 8 Speaker Cable, 2 x (42 x 0.18mmØ)
2x42 White 100m Reel
801.516UK
Heavy Duty Fig 8 Speaker Cable, 2 x (42 x 0.18mmØ)
2x42 Black 100m Reel
801.696UK
Heavy Duty Fig 8 Speaker Cable, 2 x (79 x 0.18mmØ)
2x79 White 100m Reel
801.699UK
Heavy Duty Fig 8 Speaker Cable, 2 x (79 x 0.18mmØ)
2x79 Black 100m Reel

Heavy Duty Figure 8 Speaker Cable

Flexible, heavy duty speaker cable with polarity line indicator.

Specification : Common

  • Conductor Copper/Copper Clad Aluminium
  • Length 100m

Specification : Versions

  801.513UK 801.516UK 801.696UK 801.699UK
CSA 1.32mm² 1.32mm² 2.50mm² 2.50mm²
Strands 2 x (22 x 0.18mmØCu + 20 x 0.18mmØCCA) 2 x (22 x 0.18mmØCu + 20 x 0.18mmØCCA) 2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA) 2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA)
Dimensions 4.5 x 9.0mm 4.5 x 9.0mm 5.0 x 10.0mm 5.0 x 10.0mm
Current 13A max. 13A max. 25A max. 25A max.
Sheath White Black White Black
Polarity Black White Black White
Packed quantity 6 reels 6 reels 4 reels 4 reels

Trade information

  801.513UK 801.516UK 801.696UK 801.699UK
Barcode / EAN 5015972050026 5015972050033 5015972050040 5015972050057
Package type Reel Reel Reel Reel
Package dimensions 180 x 180 x 120mm 180 x 180 x 120mm 240 x 240 x 140mm 140 x 240 x 140mm
Package weight 3.75kg 3.75kg 5.50kg 8.60kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 370 x 370 x 270mm 370 x 370 x 270mm 250 x 490 x 160mm 250 x 490 x 160mm
Carton weight 30.50kg 30.50kg 11.00kg 17.20kg
Carton quantity 8 packages 8 packages 2 packages 2 packages
