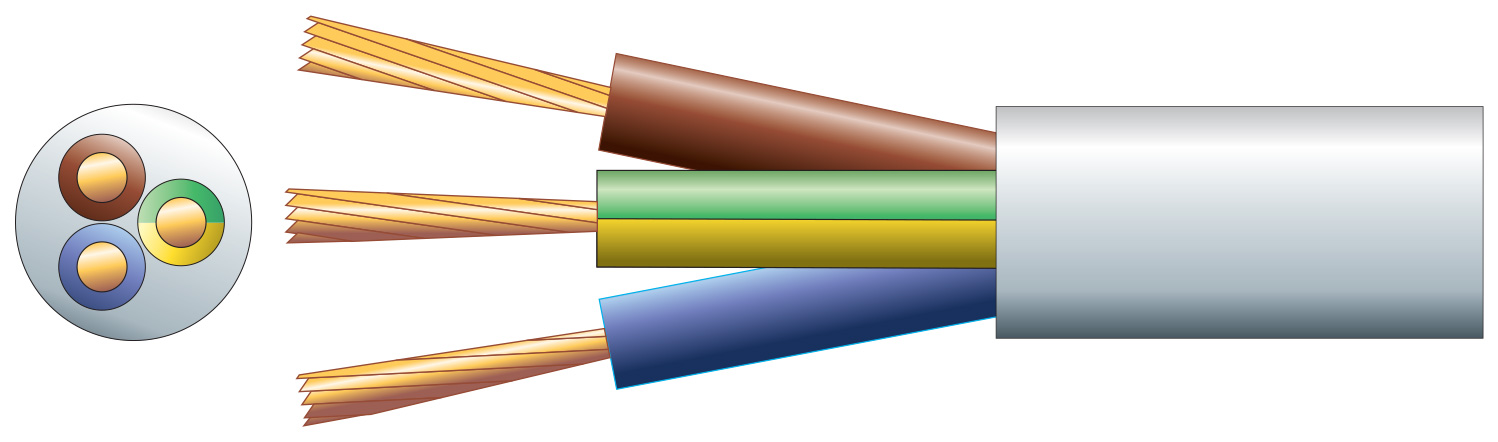

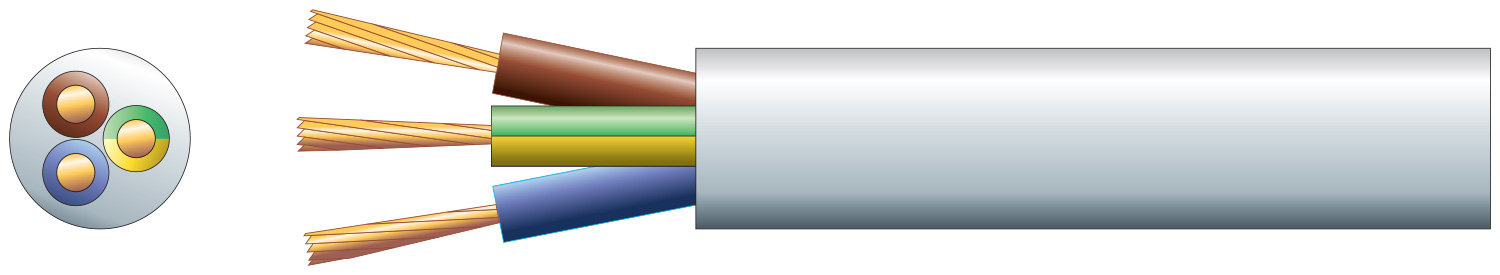

3183Y 3 Core Round PVC, 300/500V, HO5VV-F3, 13A

804.404UK

Round profile mains electric cable. Flexible PVC sheath. Suitable for connection of electrical equipment and most light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer
Description Version Packed
804.404UK
3 core round mains PVC, 3 x 40/0.2mm, 13A, 7.8mmØ, White, 100m 		White 100m Reel

3183Y 3 Core Round PVC, 300/500V, HO5VV-F3, 13A

Round profile mains electric cable. Flexible PVC sheath. Suitable for connection of electrical equipment and most light electrical applications. BSI approved to BS6500, VDE approved.

  • CSA 1.25mm²
  • Strands 3 x 40/0.2mmØ
  • Cable : dimensions 7.8mmØ
  • Packed 1 reel
  • Current 13A max.
  • Length 100m

Versions

  804.404UK
Colour White

Downloads

UK Declaration of conformity
For 804.404UK (248KB)
EU Declaration of conformity
For 804.404UK (236KB)
