Cat5e U/UTP Network Cable

808.001UK

Cat5e oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applica...

  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
Full description Find retailer
Description Version Packed
808.001UK
Cat5e U/UTP Network Cable 305m Grey 		Grey 305m Box Label

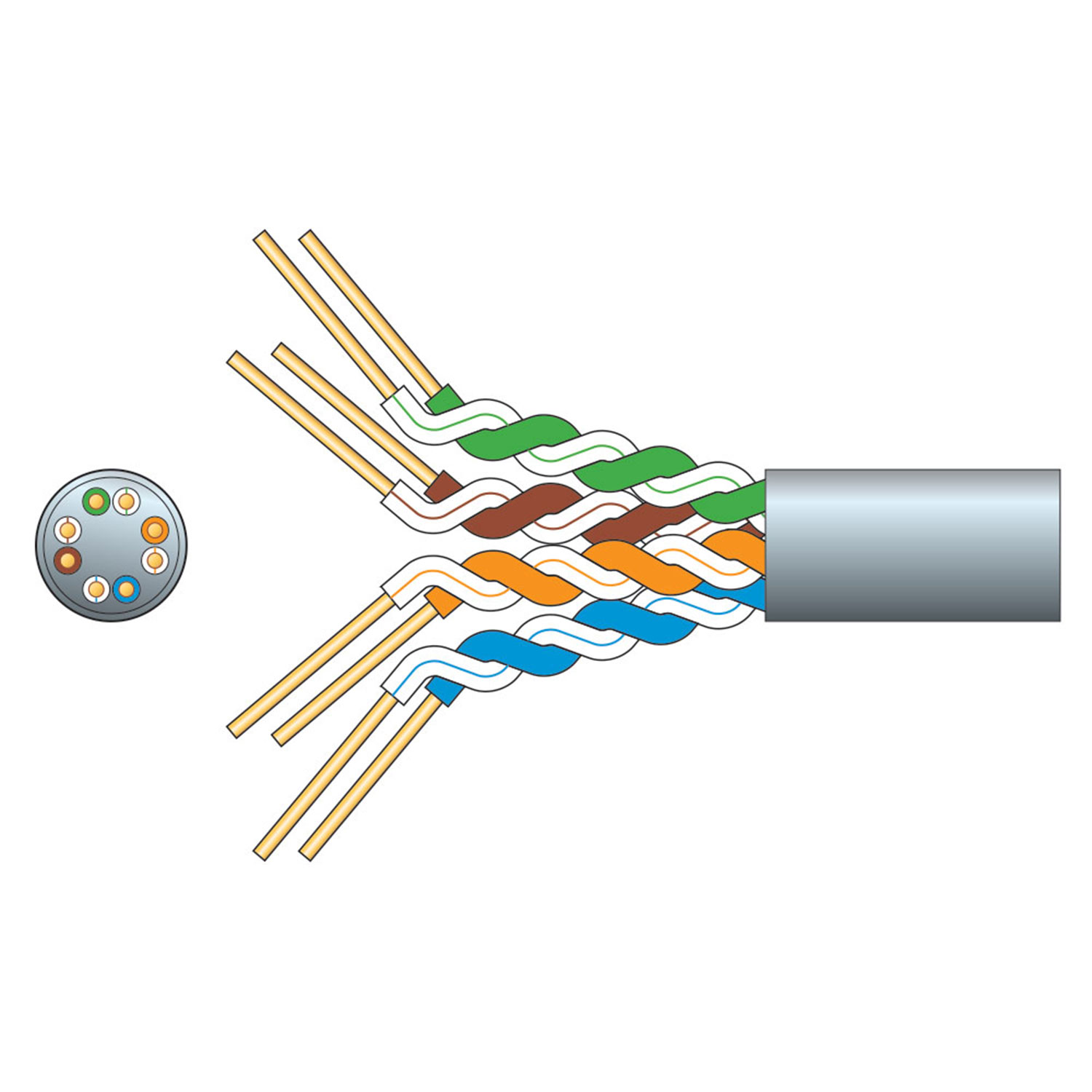

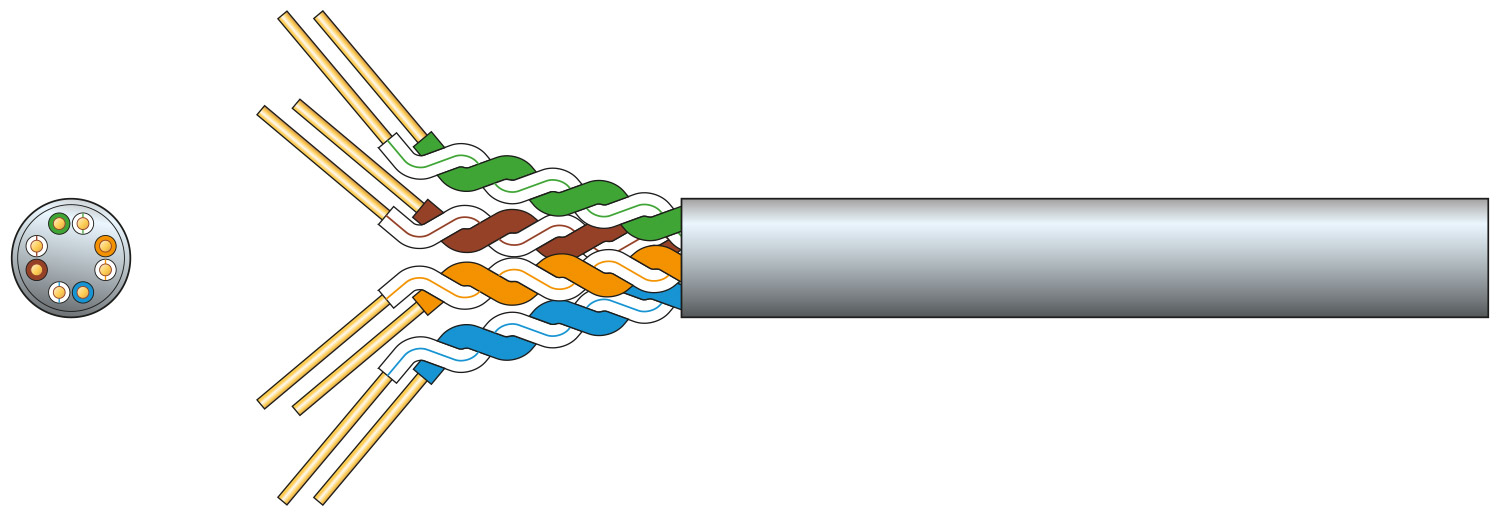

Cat5e U/UTP Network Cable

Cat5e oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
  • Complies to TIA/EIA-568 Cat5e standard
  • HDBaseT Compliant
  • Conductor Solid OFC
  • Strands 8 x 1/0.5mmØ ±2%
  • Conductor CSA 8 x 0.196mm²
  • Cable : diameter 5mmØ
  • Insulation HDPE 0.19mm thickness
  • Sheath PVC 0.5mm thickness
  • Capacitance 4.9nF/100m
  • DC resistance @ 20°C <16.7 Ohms/100m
  • Impedance (1 to 100MHz) 100 Ohms (±15)
  • Return loss >20dB @100m
  • Attenuation <22dB @100m
  • NEXT >35.3dB
  • PSNEXT >32.3dB
  • ELFEXT >23.8dB
  • PSELFEXT >20.8dB
  • Phase delay <570ns
  • Cable colour Grey
  • Length 305m
  • Weight 8.6kg

Downloads

UK Declaration of conformity
For 808.001UK (242KB)
EU Declaration of conformity
For 808.001UK (231KB)
Fluke
Test report
DoP Certification
In relation to the new CPR regulations 1st July 2017
