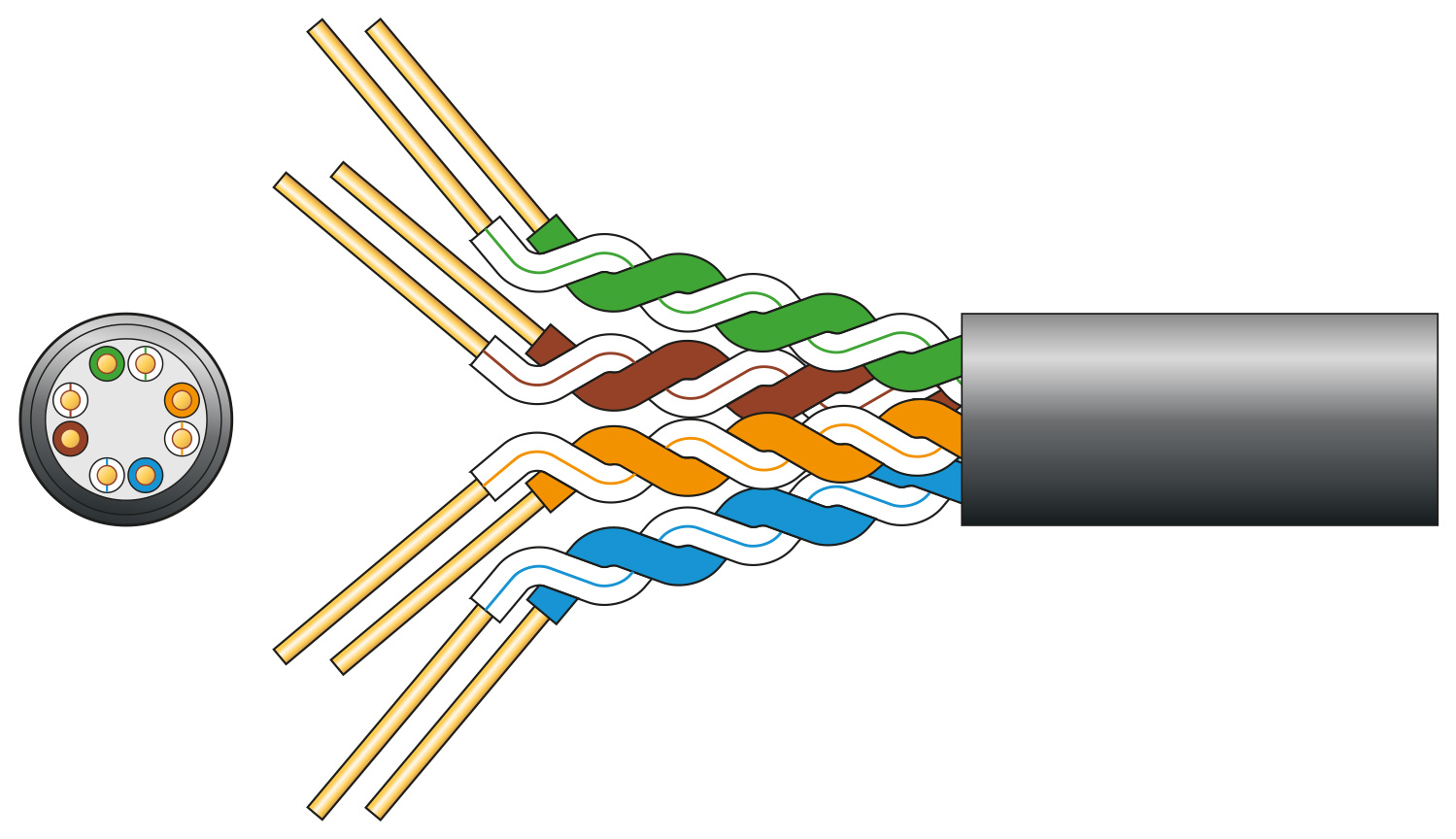

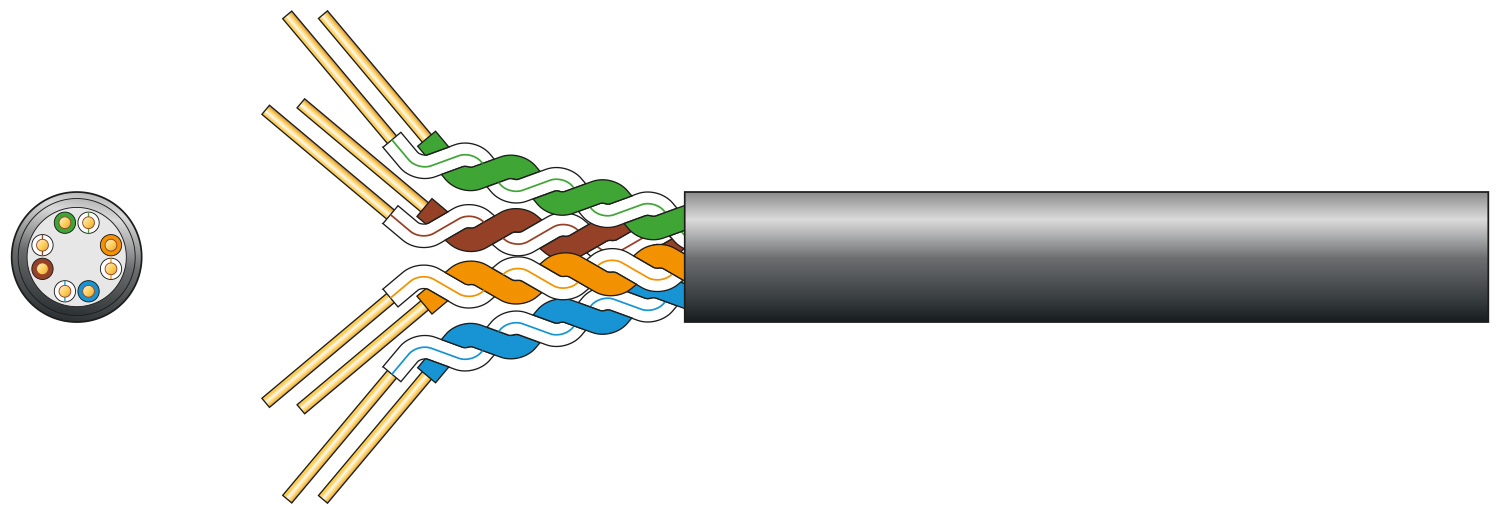

Cat5e U/UTP Outdoor Gel Filled Network Cable

808.009UK

Cat5e oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data tr...

  • LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installation
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
Description Version Packed
808.009UK
Cat5e U/UTP LDPE Gel Filled Network Cable 305m Black
Black 305m Box Label

Cat5e U/UTP Outdoor Gel Filled Network Cable

Cat5e oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installation
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
  • Complies to TIA/EIA-568 Cat5e standard
  • Conductor Solid OFC
  • Strands 8 x 1/0.5mmØ ±2%
  • Conductor CSA 8 x 0.196mm²
  • Cable : diameter 5.5mmØ
  • Insulation HDPE 0.24mm thickness
  • Sheath LDPE 0.55mm thickness
  • Capacitance 4.9nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (1 to 100MHz) 100±15 ohms
  • Return loss >19dB @100MHz
  • Attenuation <22dB @100MHz
  • NEXT >35.3dB
  • PSNEXT >32.3dB
  • ELFEXT >23.8dB
  • PSELFEXT >20.8dB
  • Cable colour Black
  • Length 305m
  • Weight 11kg

Downloads

UK Declaration of conformity
For 808.009UK (244KB)
EU Declaration of conformity
For 808.009UK (233KB)
Fluke
Test Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
