Cat5e U/UTP Outdoor Network Cable

808.010UK

Cat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gig...

  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
Description Version Packed
808.010UK
Cat5e U/UTP Outdoor-305m P/Box Black
Black 305m Box Label

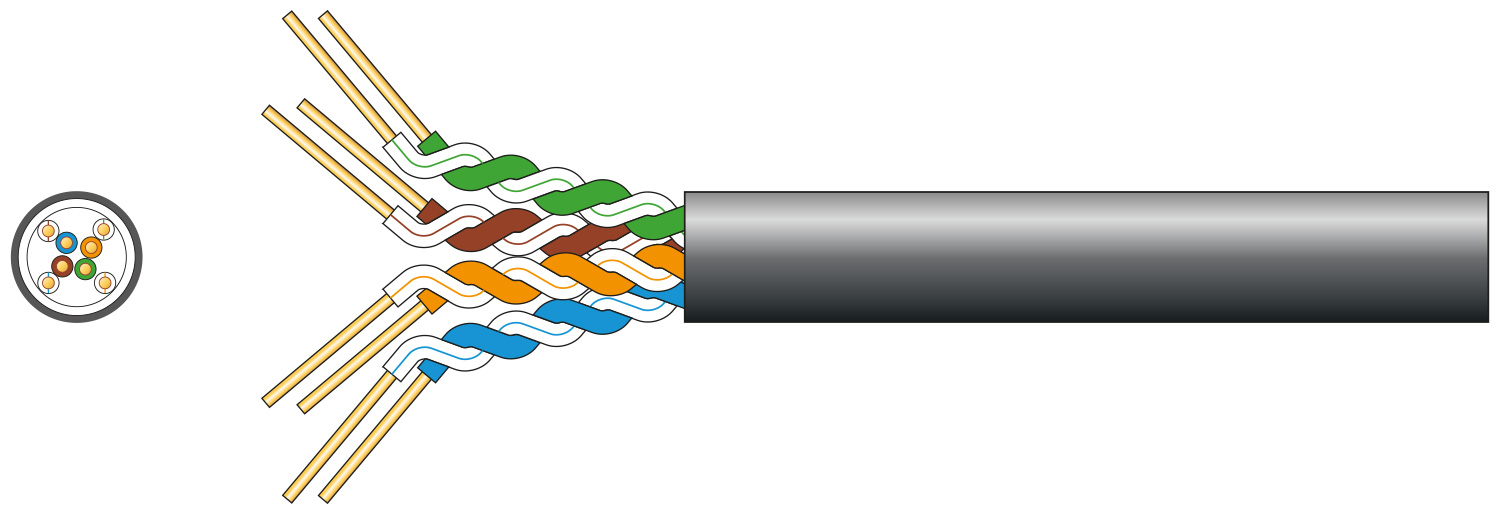

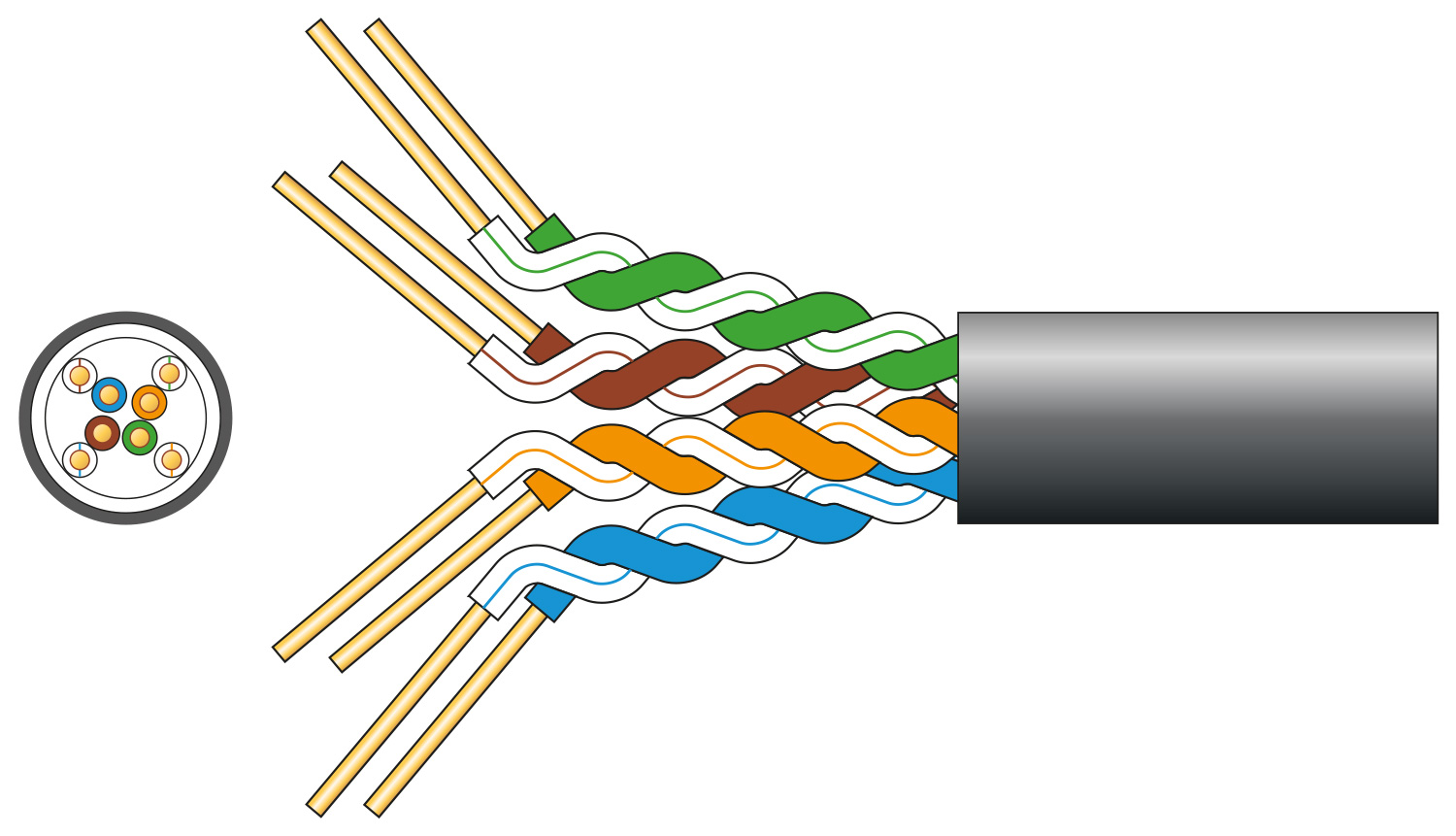

Cat5e U/UTP Outdoor Network Cable

Cat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Complies to TIA/EIA-568-C.2 Cat5e standard
  • Conductor Solid OFC
  • Strands 8 x 1/0.5mmØ ±2%
  • Conductor CSA 8 x 0.196mm² ±2%
  • Cable : diameter 5.2±0.4mmØ
  • Insulation HDPE 0.87±0.03mmØ
  • Sheath LDPE 0.55±0.05mm thickness
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (1 to 100MHz) 100±15 ohms
  • Return loss >20.1dB @ 100MHz
  • Attenuation >22dB @ 100MHz
  • NEXT >35.3dB @ 100MHz
  • Phase delay >537.60ns @ 100MHz
  • PSNEXT >32.3dB @ 100MHz
  • ELFEXT >23.8dB @ 100MHz
  • PSELFEXT >20.8dB @ 100MHz
  • Cable colour Black
  • Cable : length 305±1.5m
  • Weight 8.1Kg

Downloads

UK Declaration of conformity
For 808.010UK (243KB)
EU Declaration of conformity
For 808.010UK (232KB)
DoP Certification
In relation to the new CPR regulations 1st July 2017
