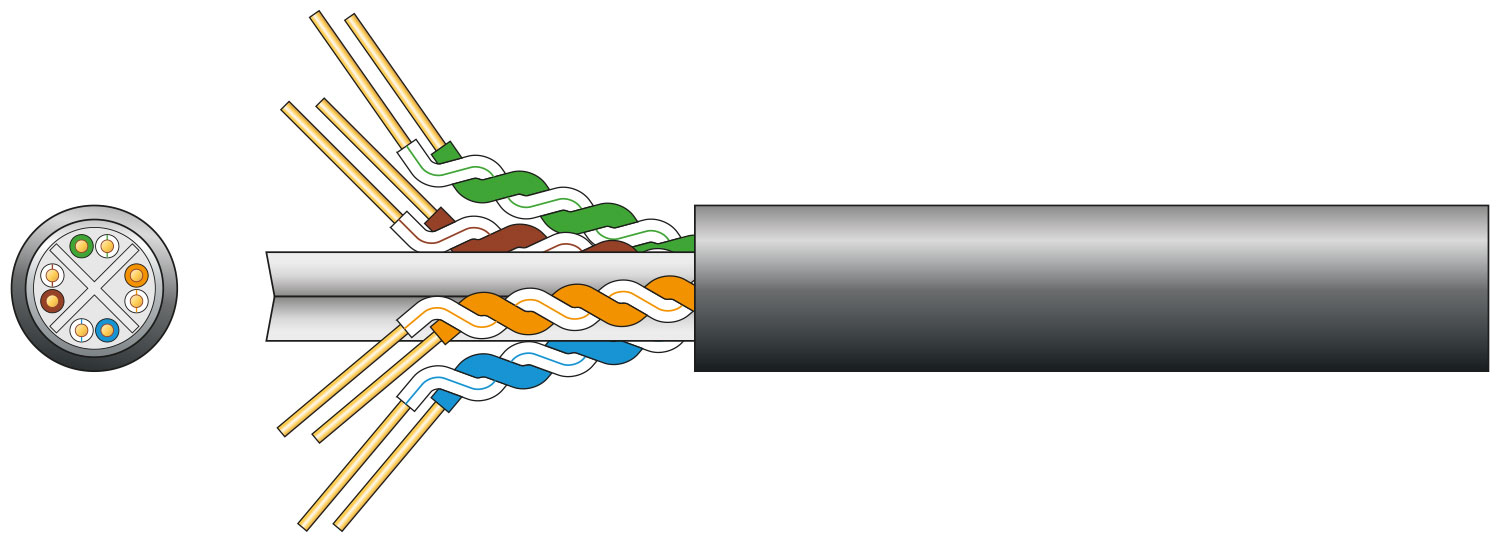

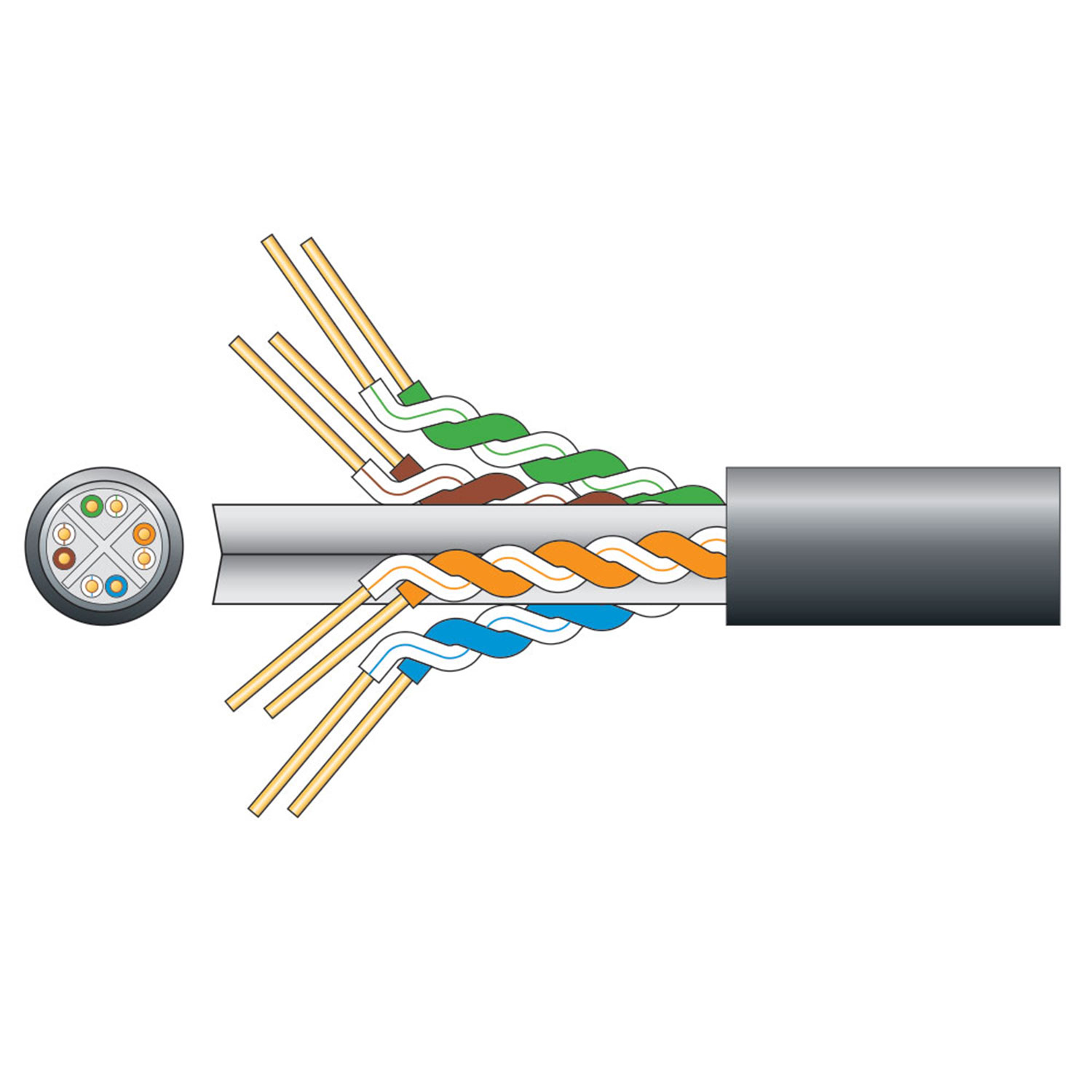

Cat6 U/UTP Outdoor Gel Filled Network Cable

808.012UK

Cat6 oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data...

  • LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installation
  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
Description Version Packed
808.012UK
Cat6 U/UTP LDPE Gel Filled Network Cable 305m Black
Black 305m Reel

Cat6 U/UTP Outdoor Gel Filled Network Cable

Cat6 oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installation
  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • Conductor Solid OFC
  • Strands 8 x 1/0.57mmØ ±2%
  • Conductor CSA 8 x 0.255mm²
  • Cable : diameter 7.1mmØ
  • Insulation HDPE 0.28mm thickness
  • Sheath LDPE 0.6mm thickness
  • Capacitance 6.6nF/100m
  • DC resistance @ 20°C <9.38 Ohms/100m
  • Impedance (100 to 250MHz) 100±15 Ohms
  • Return loss >21dB @100m
  • Attenuation <31.1dB @100m
  • NEXT >35.83dB
  • PSNEXT >32.7dB
  • ELFEXT >16.2dB
  • PSELFEXT >13.2dB
  • Phase delay <521ns
  • Cable colour Black
  • Length 305m
  • Weight 16kg

Downloads

UK Declaration of conformity
For 808.012UK (242KB)
EU Declaration of conformity
For 808.012UK (231KB)
Fluke Test
Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
