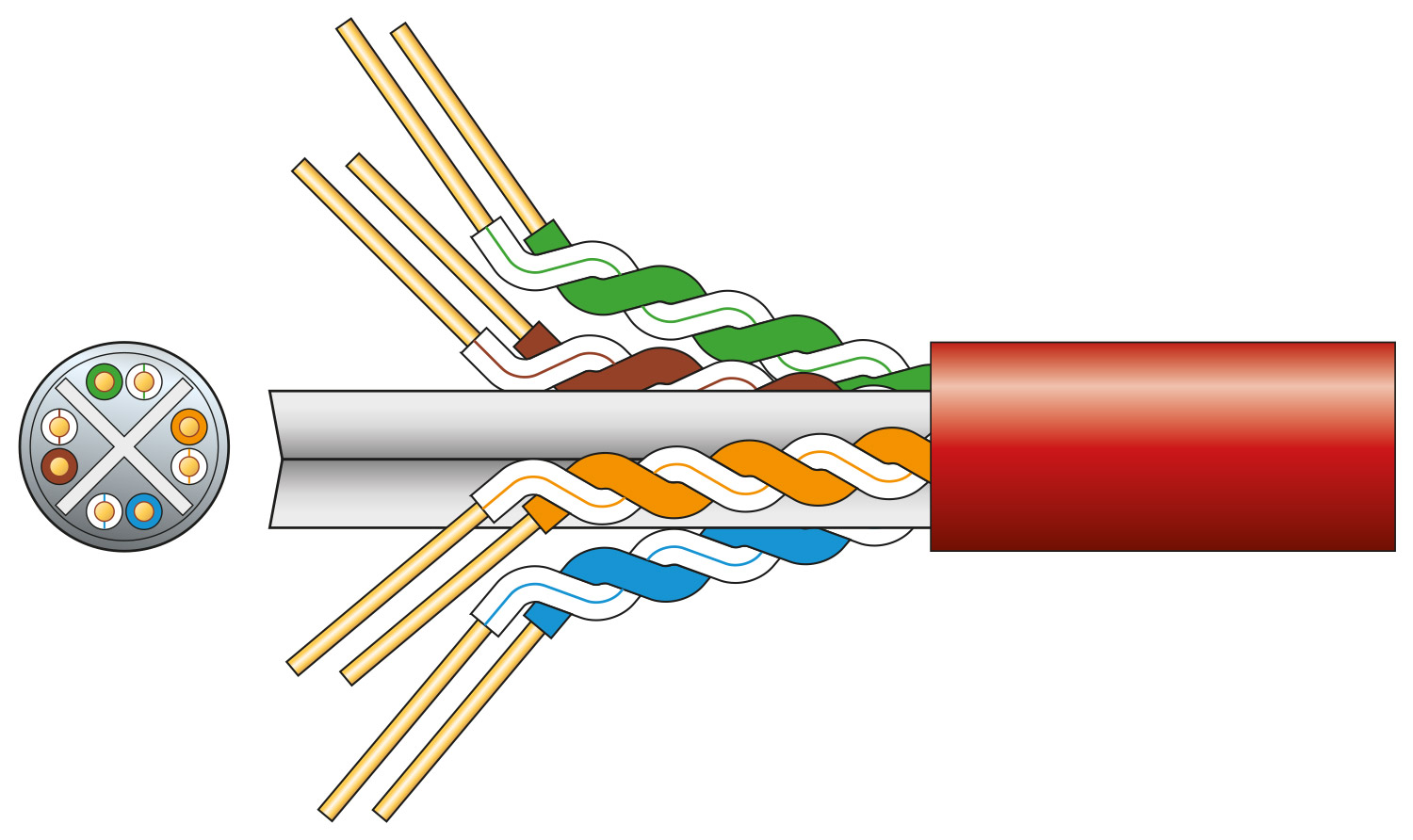

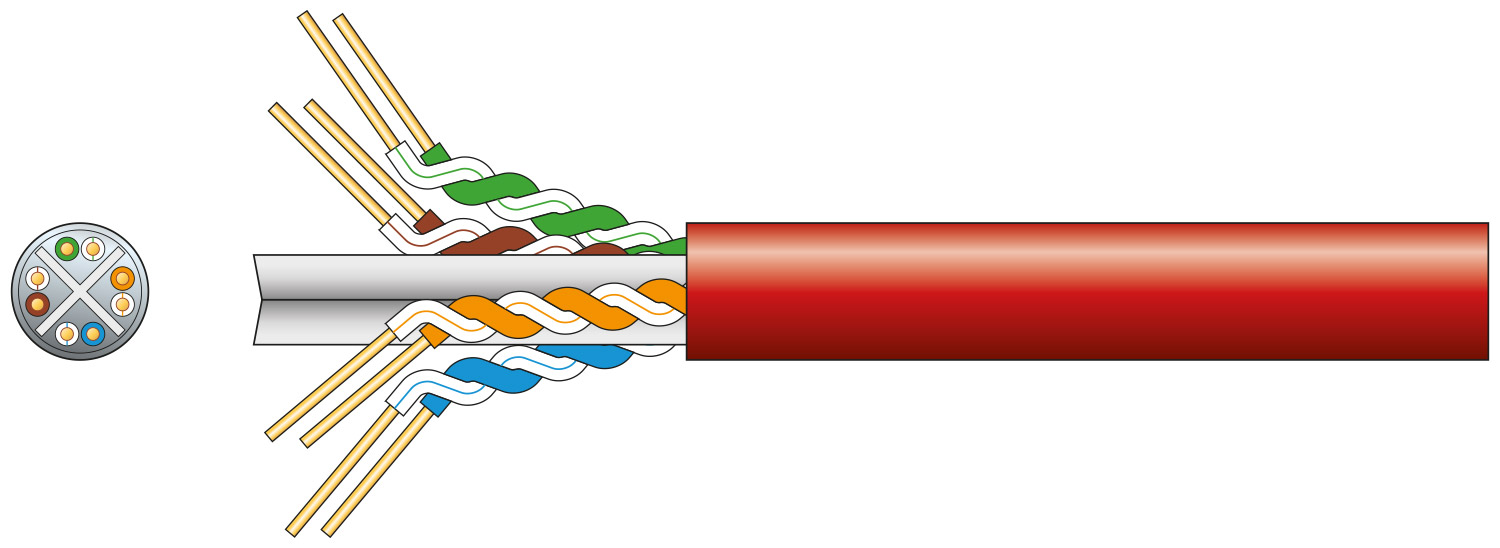

Cat6 U/UTP Network Cable

808.035UK

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applicat...

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
Description Version Packed
808.011UK
Cat6 U/UTP Network Cable 305m Grey
Grey 305m Box Label
808.030UK
Cat6 U/UTP Network Cable 100m Grey
Grey 100m Box Label
808.035UK
Cat6 U/UTP Network Cable 305m Red
Red 305m Box Label
808.036UK
Cat6 U/UTP Network Cable 305m Green
Green 305m Box Label

Cat6 U/UTP Network Cable

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • HDBaseT Compliant
  • Conductor Solid OFC
  • Strands 8 x 1/0.54mmØ ±2%
  • Conductor CSA 8 x 0.229mm²
  • Cable : diameter 5.8mmØ
  • Insulation HDPE 0.195mm thickness
  • Sheath PVC 0.55mm thickness
  • Capacitance 5.2nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (100 to 250MHz) 100±15 ohms
  • Return loss >17.3dB @100m
  • Attenuation <32.8dB @100m
  • NEXT >38.3dB
  • PSNEXT >36.3dB
  • ELFEXT >19.8dB
  • PSELFEXT >16.8dB
  • Phase delay <570ns

Versions

  808.011UK 808.030UK 808.035UK 808.036UK
Cable colour Grey Grey Red Green
Length 305±1.5m 100±0.5m 305±1.5m 305±1.5m
Weight 12.7kg 4.3kg 12.7kg 12.7kg

Downloads

UK Declaration of conformity
For 808.035UK (243KB)
EU Declaration of conformity
For 808.035UK (233KB)
Fluke
Test Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
