Cat6 U/UTP Outdoor Network Cable

808.041UK

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit...

  • Oxygen free solid copper conductor
  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
Description Version Packed
808.040UK
Cat6 U/UTP Outdoor Network Cable 100m Black
Black 100m Outdoor Box Printed
808.041UK
Cat6 U/UTP Outdoor Network Cable 305m Black
Black 305m Outdoor Box Printed

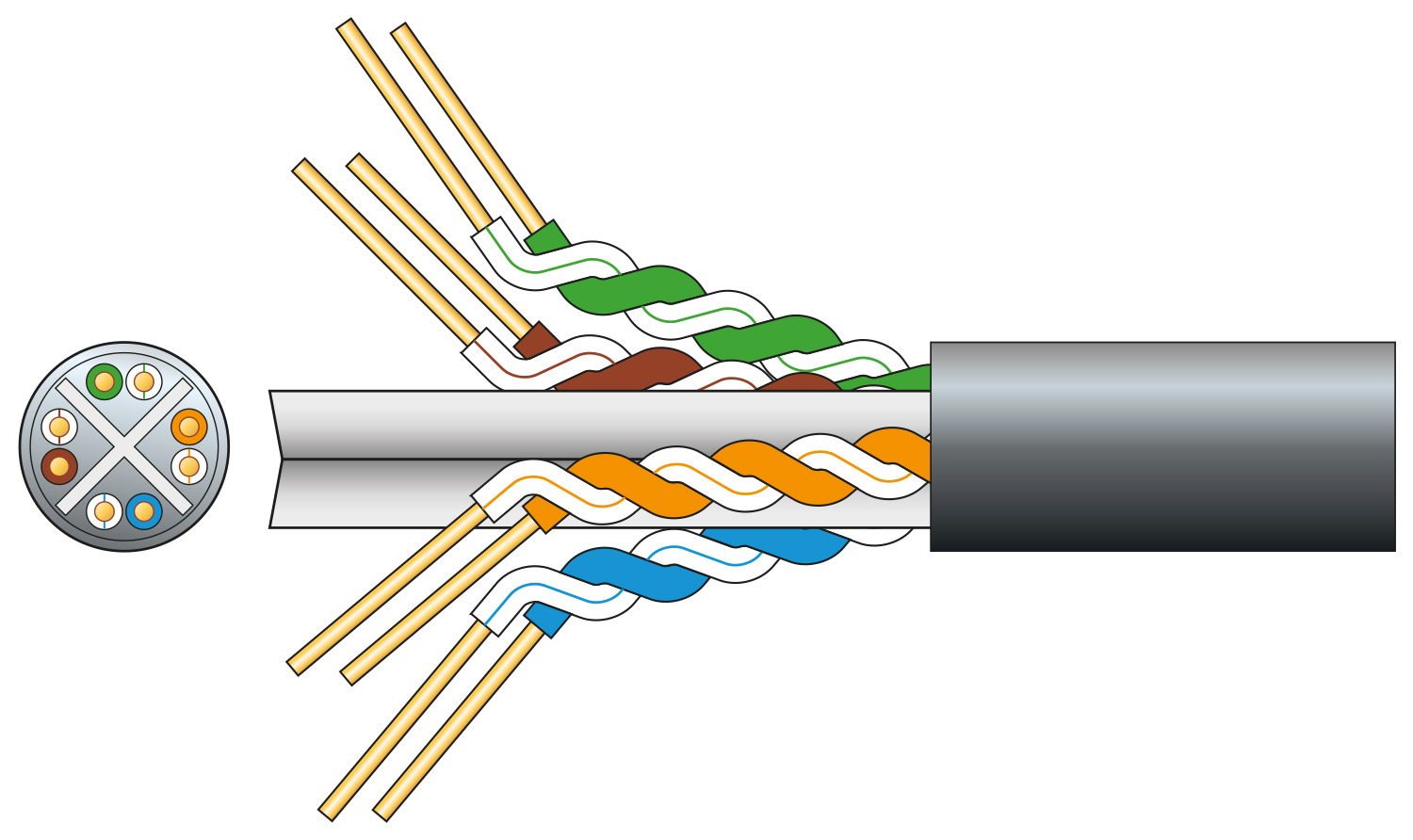

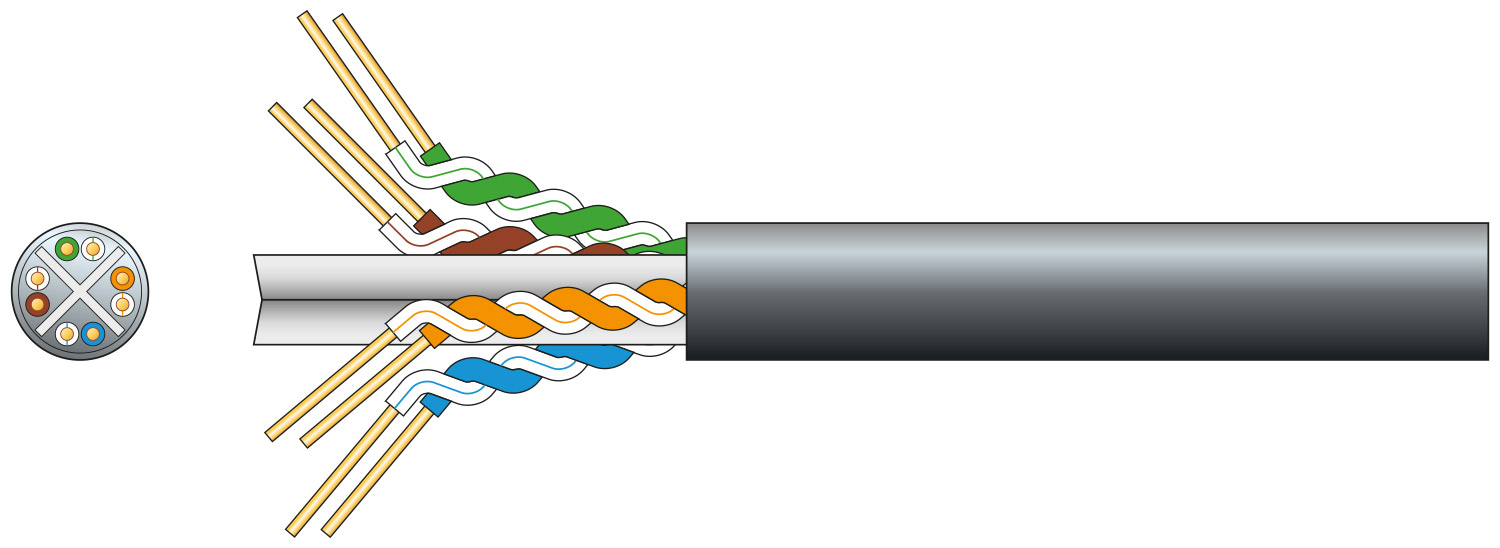

Cat6 U/UTP Outdoor Network Cable

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.

  • Oxygen free solid copper conductor
  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard

Specification : Common

  • Conductor Solid OFC
  • Strands 8 x 0.53mmØ ±2%
  • Cable : diameter 6.0±0.05mm
  • Insulation HDPE 0.93±0.05mm
  • Sheath LDPE 0.55±0.05mm thickness
  • DC resistance @ 20°C <9.38 ohms/100m
  • Impedance (1 to 250MHz) 100±15 ohms
  • Return loss >20.1dB @ 100MHz
  • Attenuation >19.8dB @ 100MHz
  • NEXT >44.3dB @ 100MHz
  • Phase delay >537.60ns @ 100MHz
  • PSNEXT >42.3dB @ 100MHz
  • ELFEXT >27.8dB @ 100MHz
  • PSELFEXT >24.8dB @ 100MHz
  • Cable colour Black

Specification : Versions

  808.040UK 808.041UK
Cable : length 100±0.5m 305±1.5m
Weight 4.3kg 12.7kg

Trade information

  808.040UK 808.041UK
Barcode / EAN 5015972202005 5015972202029
Package type Box Printed Box Printed
Package dimensions 280 x 280 x 120mm 405 x 405 x 210mm
Package weight 4.30kg 12.70kg
Package quantity 1 unit 1 unit
Carton dimensions 295 x 575 x 260mm 450 x 430 x 430mm
Carton weight 21.00kg 25.40kg
Carton quantity 4 packages 2 packages
