100 Volt Line Transformers

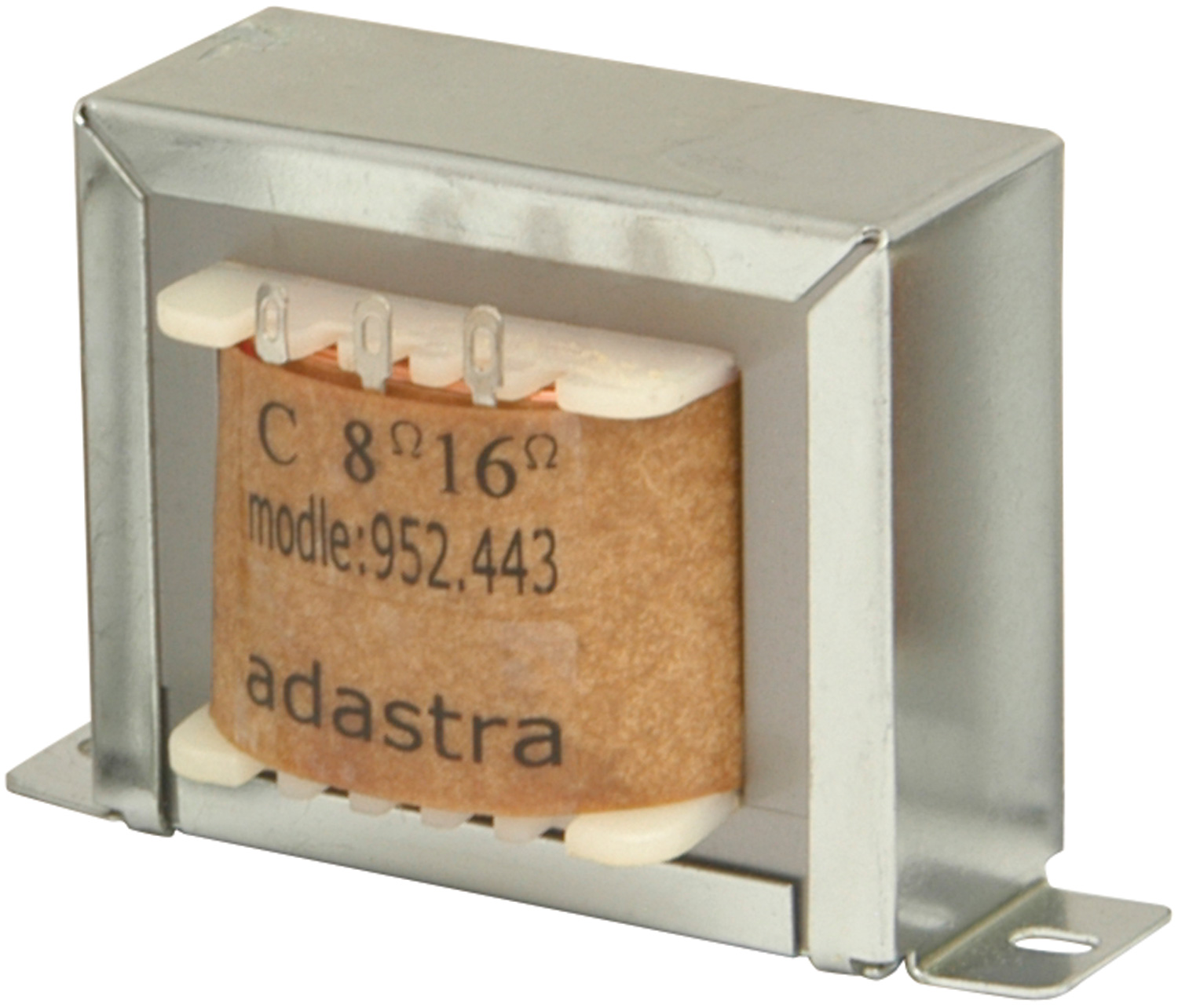

952.443UK T30-V

A range of 100V line matching transformers. They are used to convert low impedance speakers (8 or 16 ohms) to allow them to be used in 100V PA installations where long runs of cable are used.

Full description Find retailer
Description Version Packed
952.443UK
100V line transformer, 1.9, 3.75, 7.5, 15, 30W 		30W Box Label
952.446UK
100V line transformer, 5, 10, 15, 20, 30, 40W 		40W Box Label

100 Volt Line Transformers

A range of 100V line matching transformers. They are used to convert low impedance speakers (8 or 16 ohms) to allow them to be used in 100V PA installations where long runs of cable are used.

Versions

  952.443UK 952.446UK
Mounting centres - -
Tappings 1.9, 3.75, 7.5, 15, 30W 5, 10, 15, 20, 30, 40W
Impedance : 100V 5.26k, 2.66k, 1.33k, 666, 333 Ohms
Dimensions 91 x 57 x 57mm 91 x 60 x 58mm
Weight 805g 933g

Downloads

UK Declaration of conformity
For 952.443UK (243KB)
EU Declaration of conformity
For 952.443UK (231KB)
