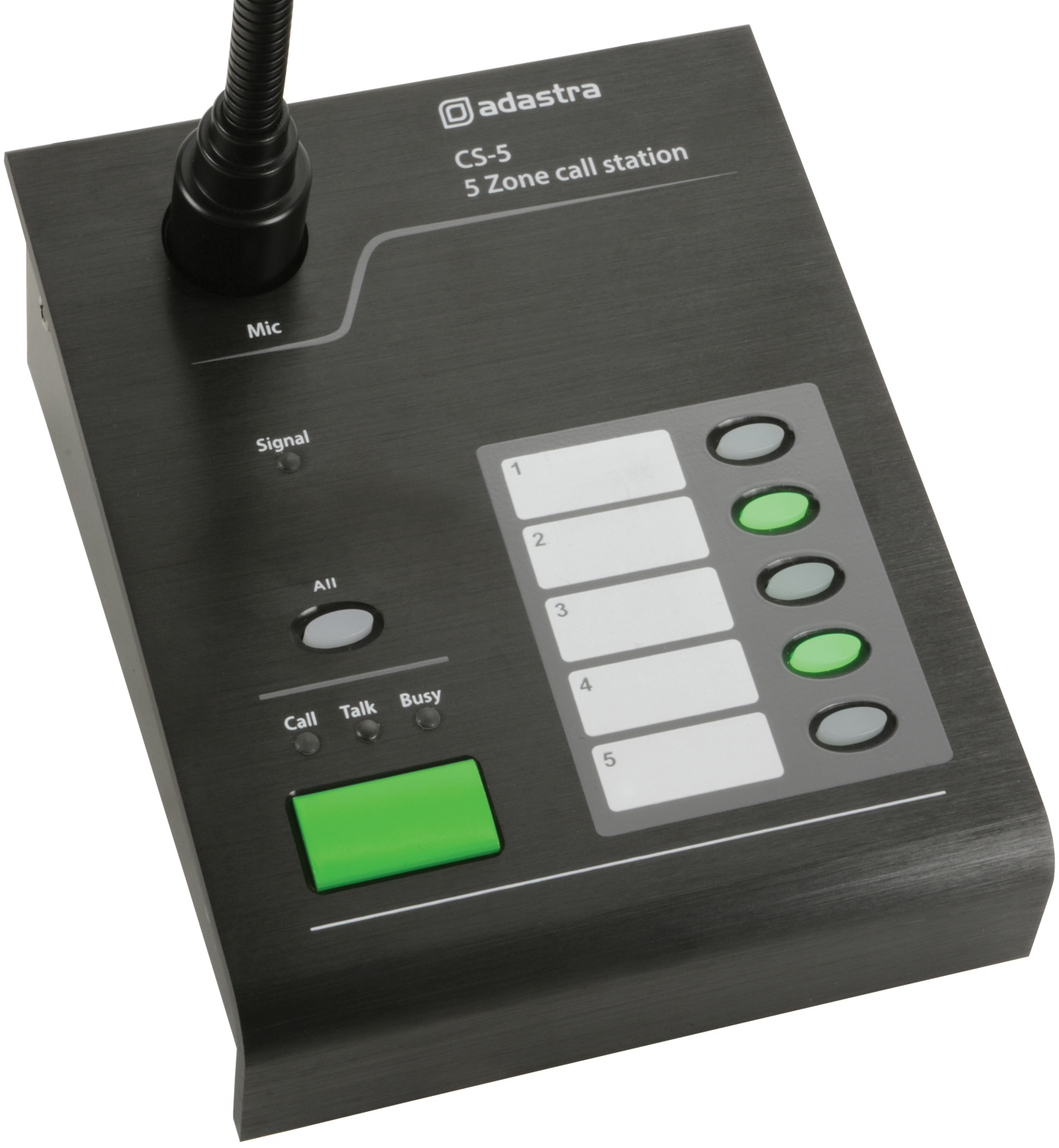

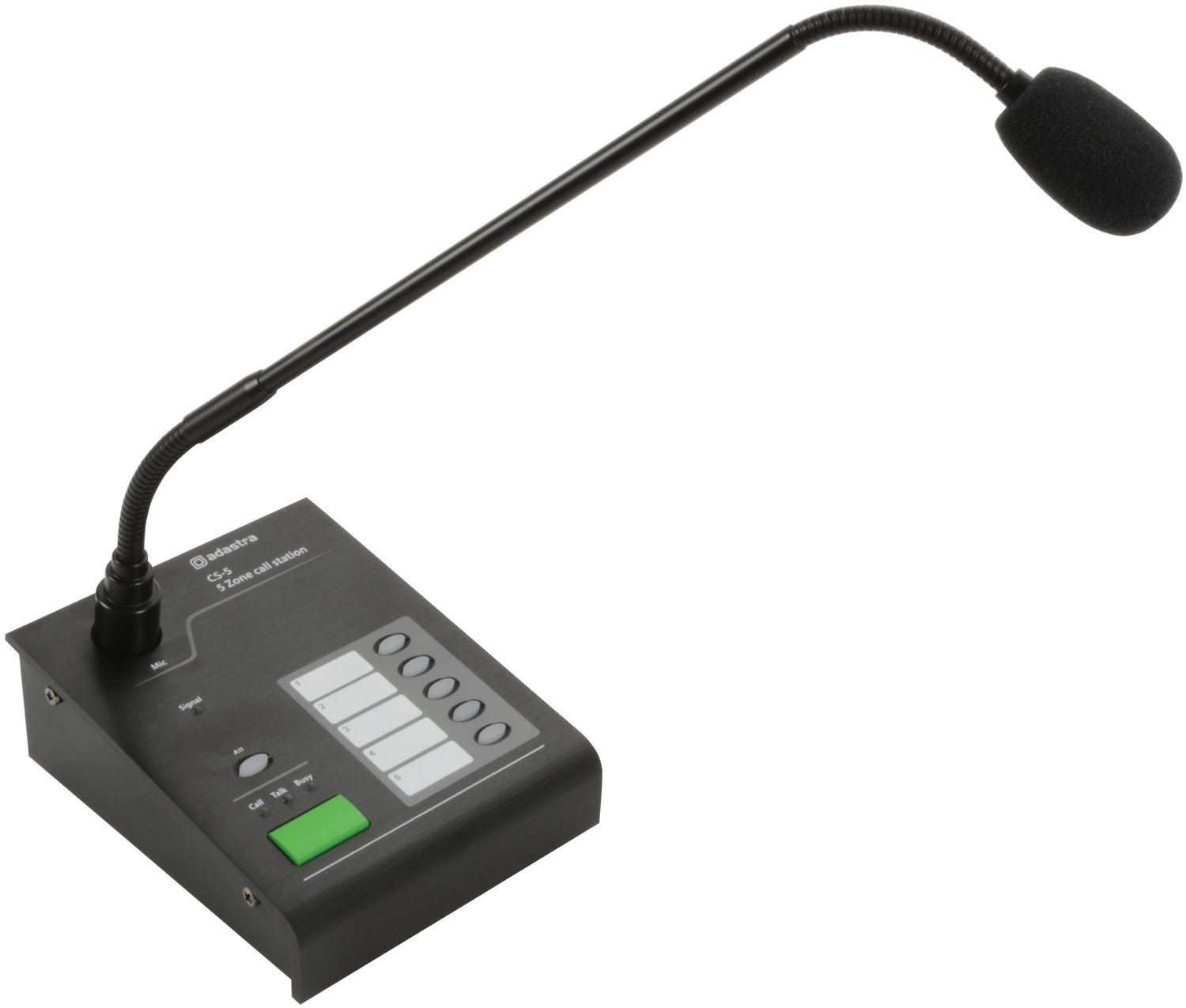

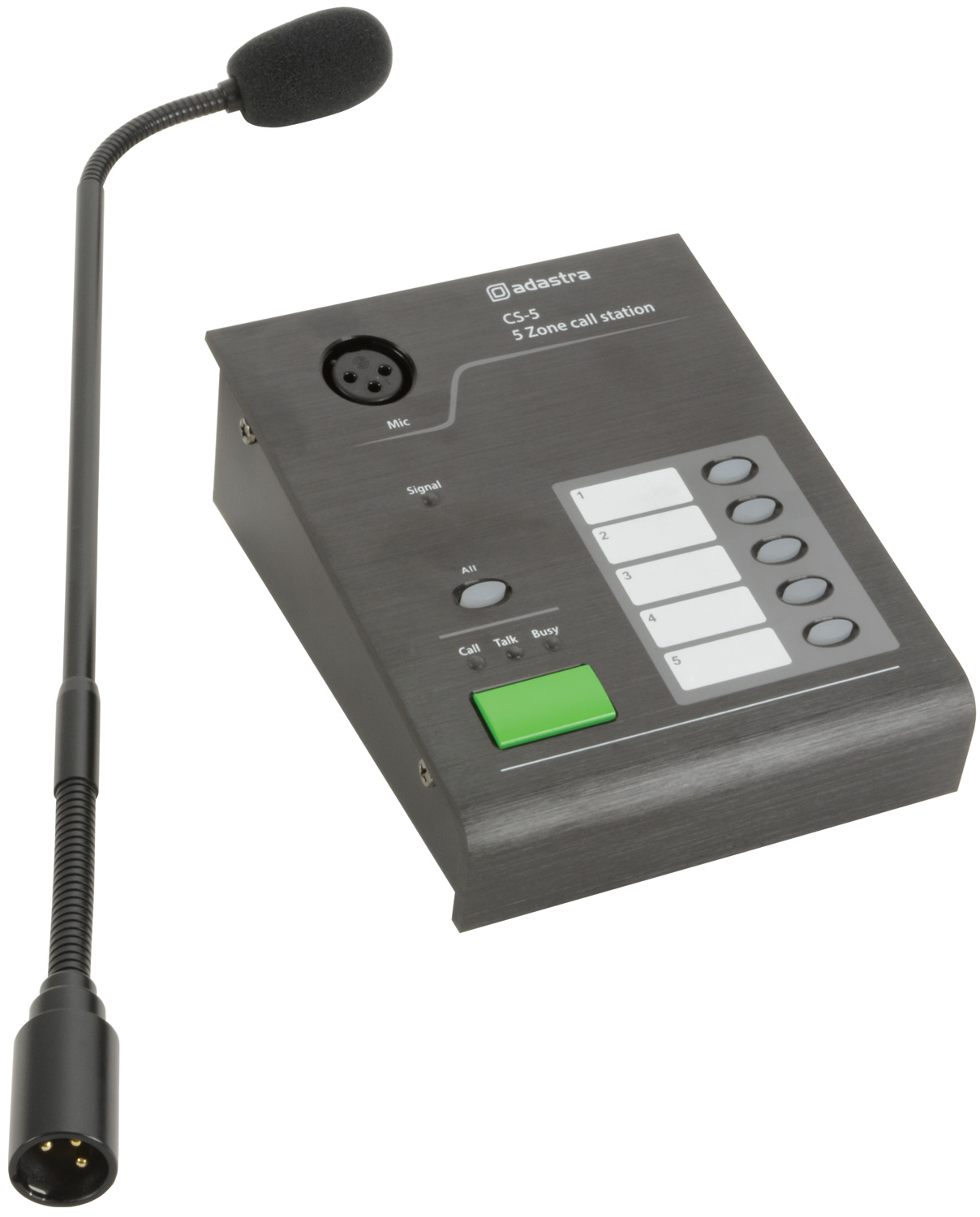

CS-5 Call Station for RZ45 Audio Matrix

953.049UK CS-5

A paging microphone with call station base, to be used with the RZ45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to...

  • For use with the RZ45 audio matrix (953.045UK sold separately)
  • Assignable to individual or multiple zones
  • 8 selectable chime settings
Full description Find retailer
Description Version Packed
953.049UK
CS-5 Call Station for RZ45 Matrix 		Box Label

CS-5 Call Station for RZ45 Audio Matrix

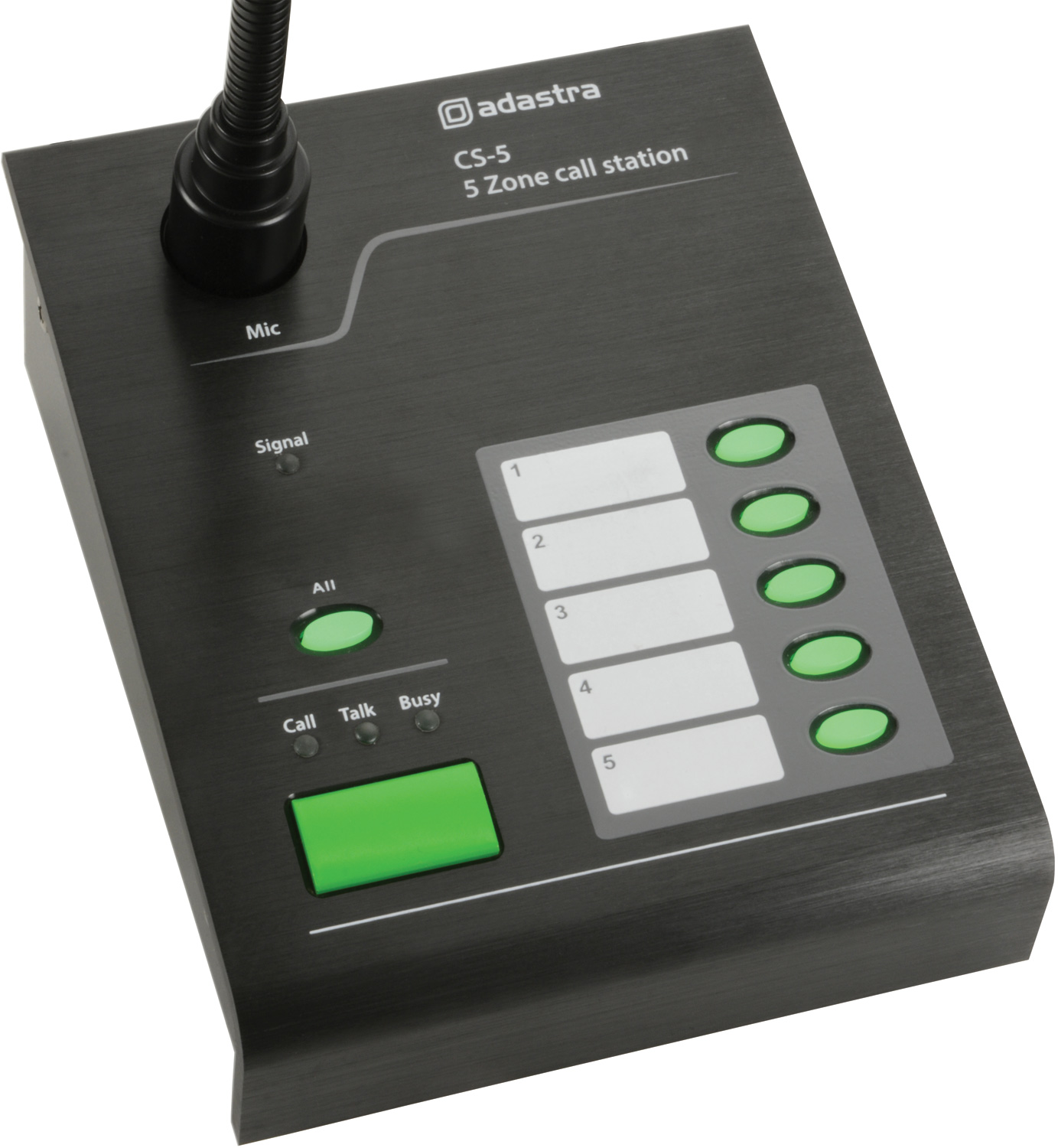

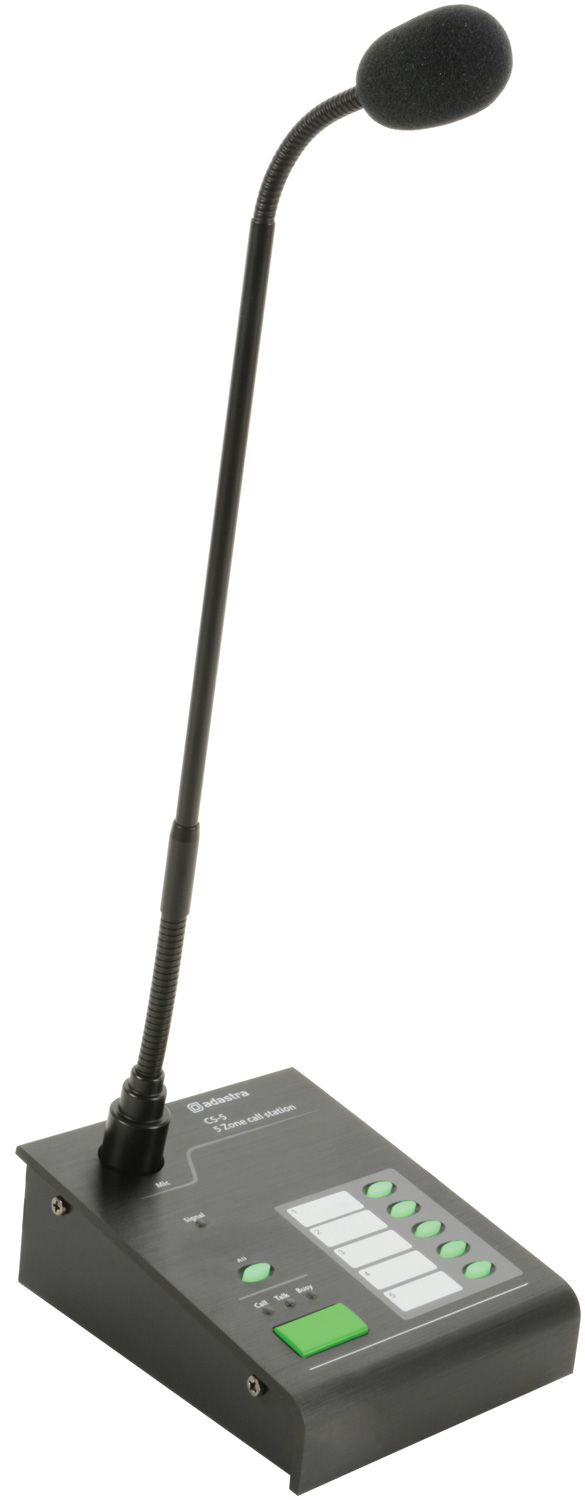

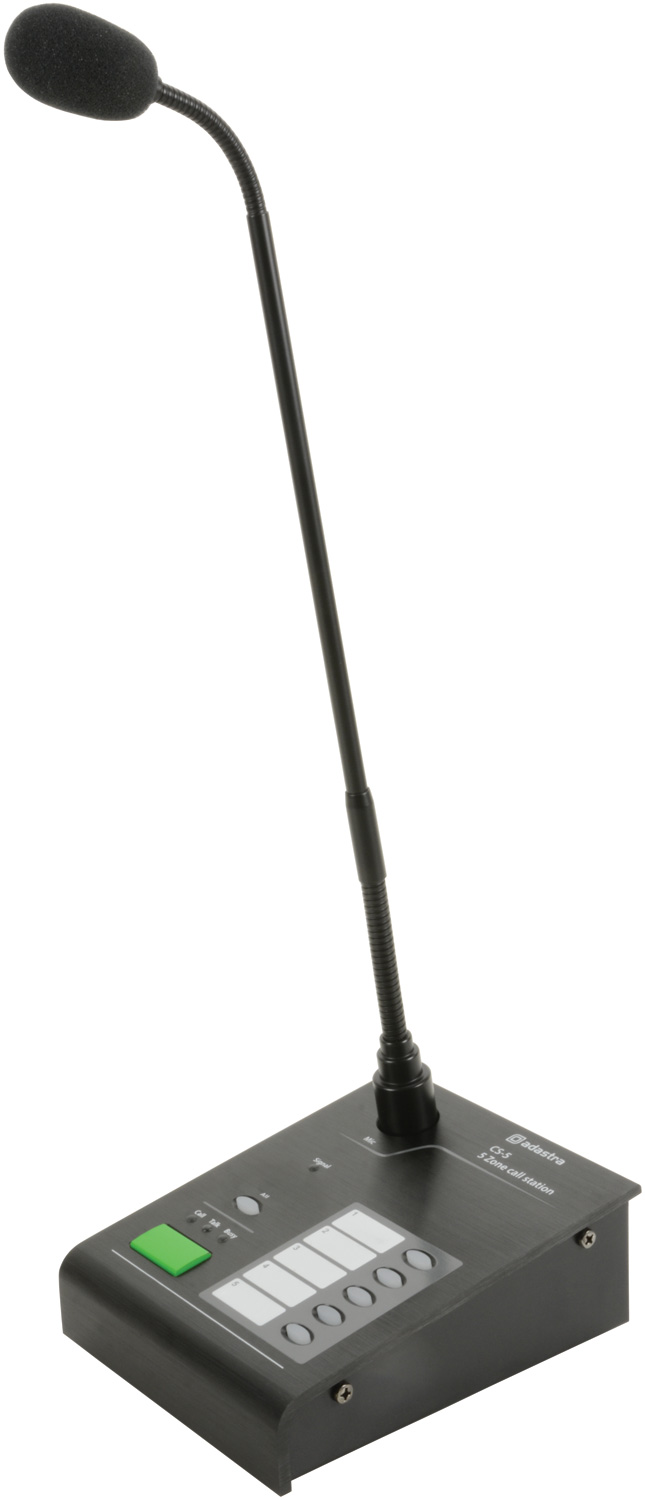

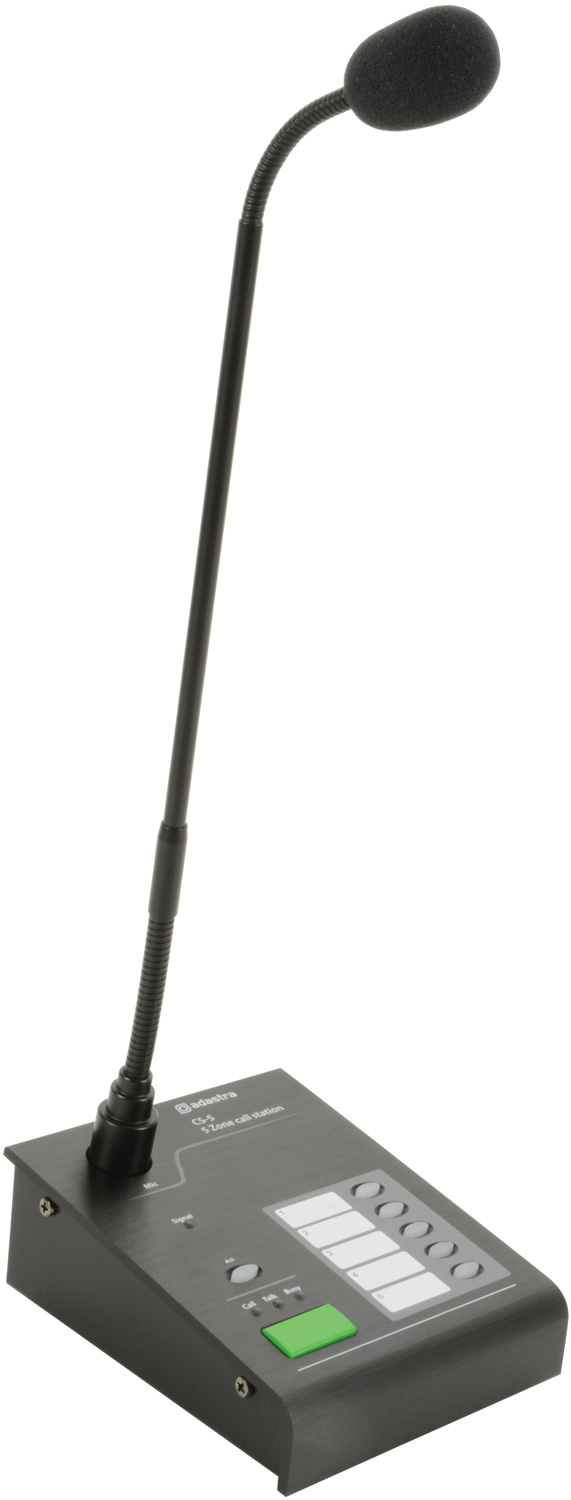

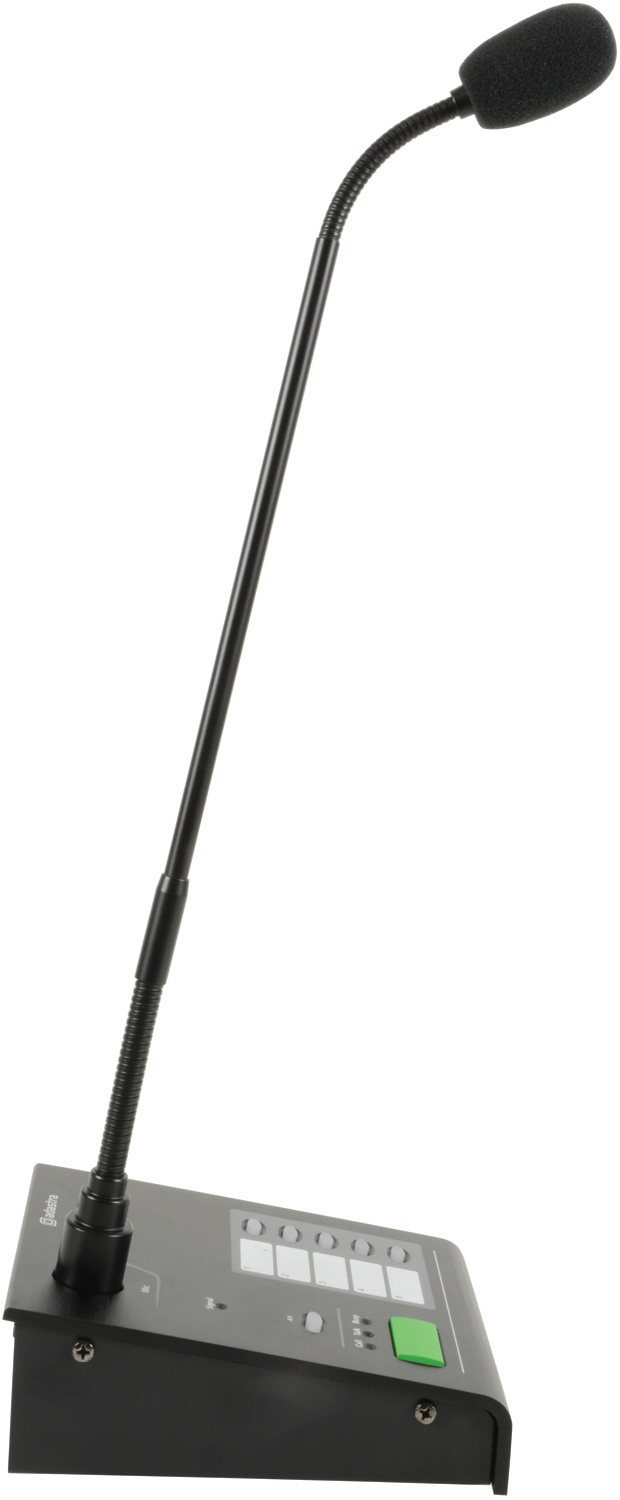

A paging microphone with call station base, to be used with the RZ45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an aux audio input for pre-recorded messages and alerts. Includes an RJ45 patch cable to connect the mic and audio matrix, conveniently passing signal and power via one CAT5 lead.

  • For use with the RZ45 audio matrix (953.045UK sold separately)
  • Assignable to individual or multiple zones
  • 8 selectable chime settings
  • 3.5mm aux input
  • Up to 1km remote wiring over CAT5
  • Supplied with 1m RJ45 patch lead
  • Power supply 24Vdc, 500mA from RJ45 or optional adaptor
  • Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
  • Capsule Back electret condenser
  • Polar pattern Cardioid
  • Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

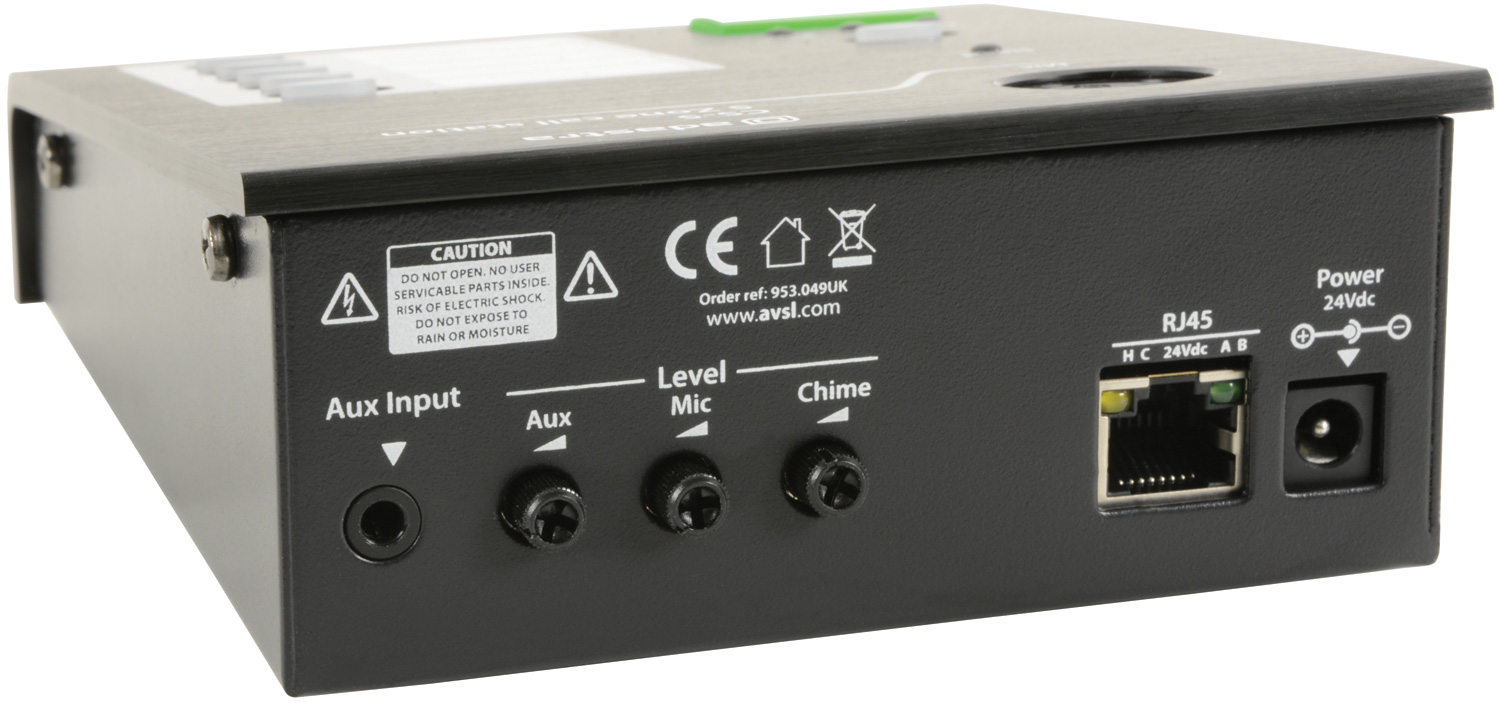

  • Connectors XLR, RJ45 to RZ45, 24Vdc power jack, 3.5mm aux in
  • Frequency response : -3dB 150Hz - 22kHz
  • Input level Mic: -46dBV, Aux: -10dBV
  • Input impedance Mic: 600 Ohms, Aux: 50k Ohms
  • Output level 10dBV
  • Output impedance : balanced 600 Ohms
  • S/N ratio -60dB (all channels selected)
  • Interface RS-485 control
  • Zone assign 5 zones, any combination
  • Dimensions 460 x 140 x 115mm
  • Weight 670g

Support : articles

Dynamic vs condenser microphones

The way that a microphones picks up sound determines how useful the resulting audio output is for different applications. There are 2 main types of capsule used in microphones – dynamic and condenser.

Friday, 3rd March 2017

In the box

The box for this item contains :

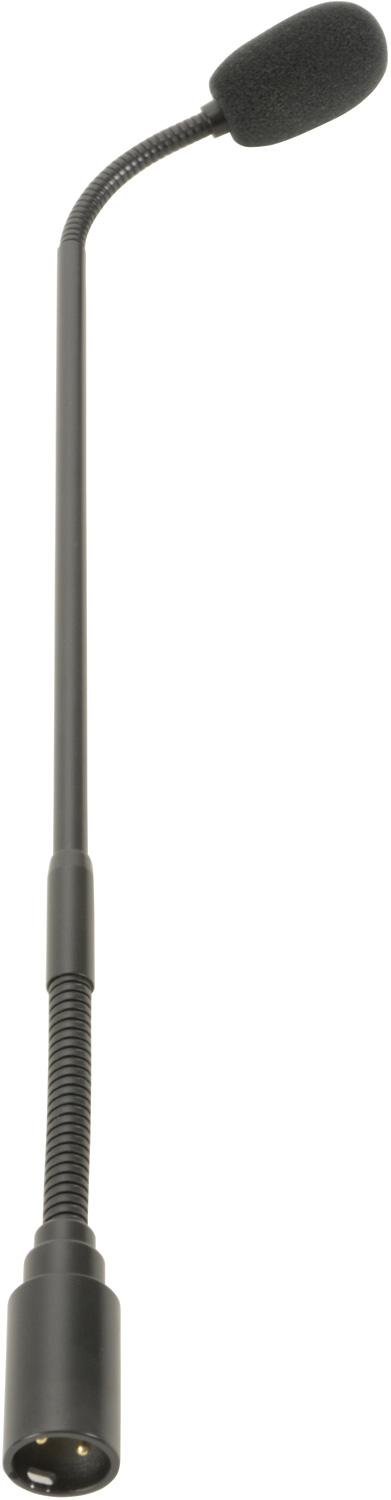

  • Gooseneck condenser microphone
  • Call station base

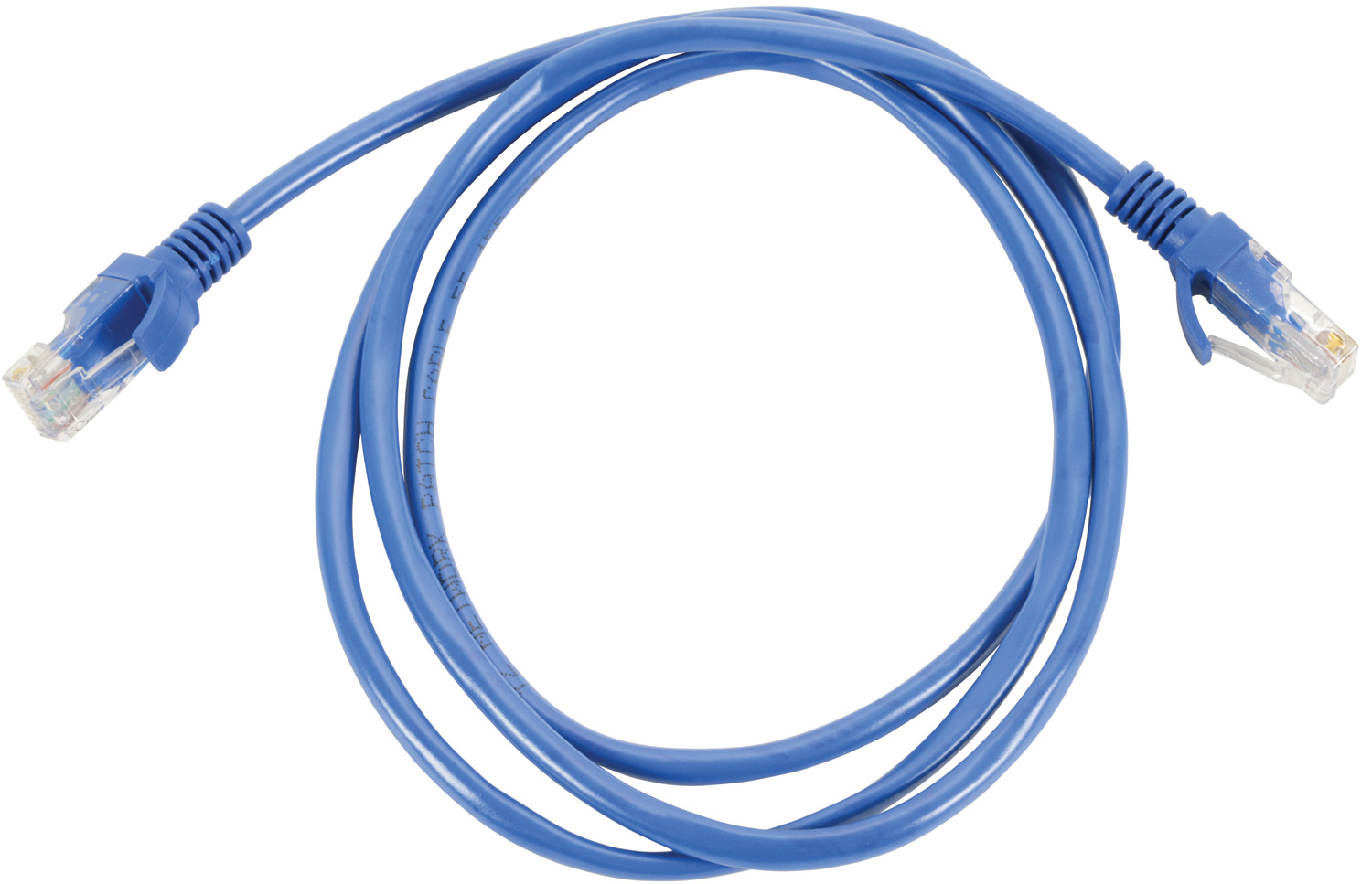

  • 1m CAT5 lead

Downloads

Instruction manual
For 953.049UK (146KB)
UK Declaration of conformity
For 953.049UK (249KB)
EU Declaration of conformity
For 953.049UK (236KB)
