5 Channel 100V Line Mixer Amplifier with CD/USB/SD/FM
953.141UK
RMC120
100V line mixer-amplifier with integral sound source. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line ...
- 5 input channels
- USB/SD/FM audio player
- Slot load player for standard audio CDs
| Description | |
|---|---|
|
953.141UK
RMC120 mixer-amp 120W with CD/USB/SD/FM |

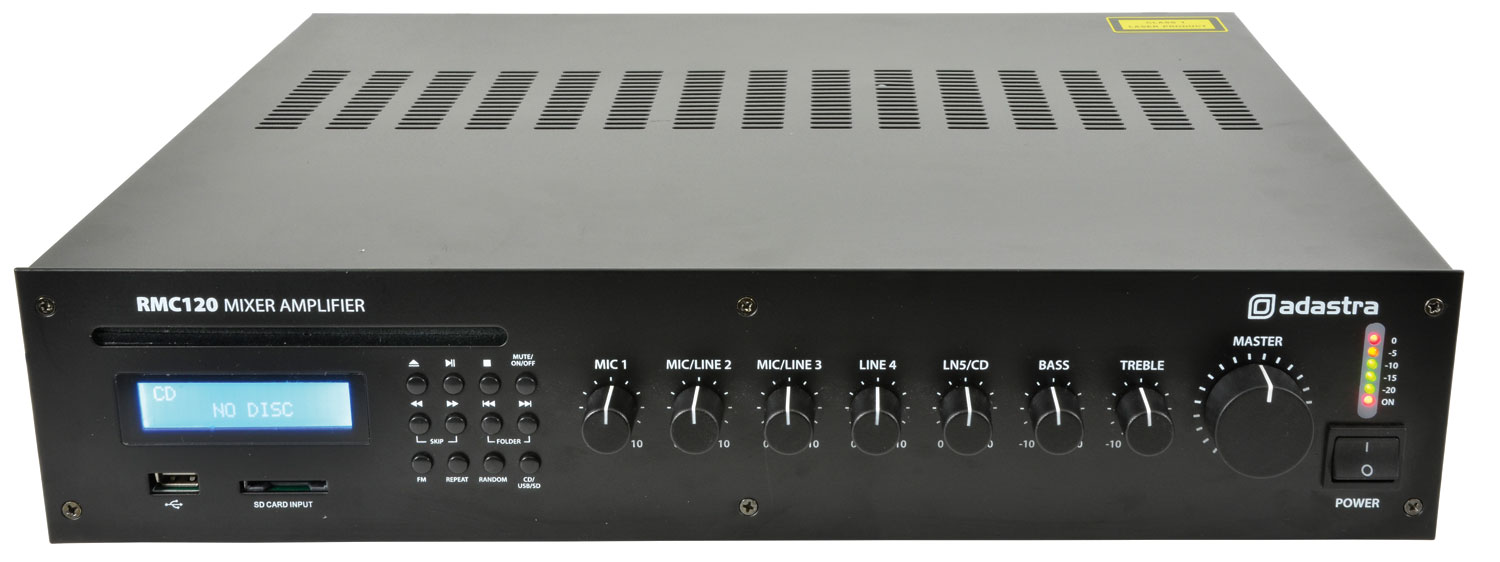

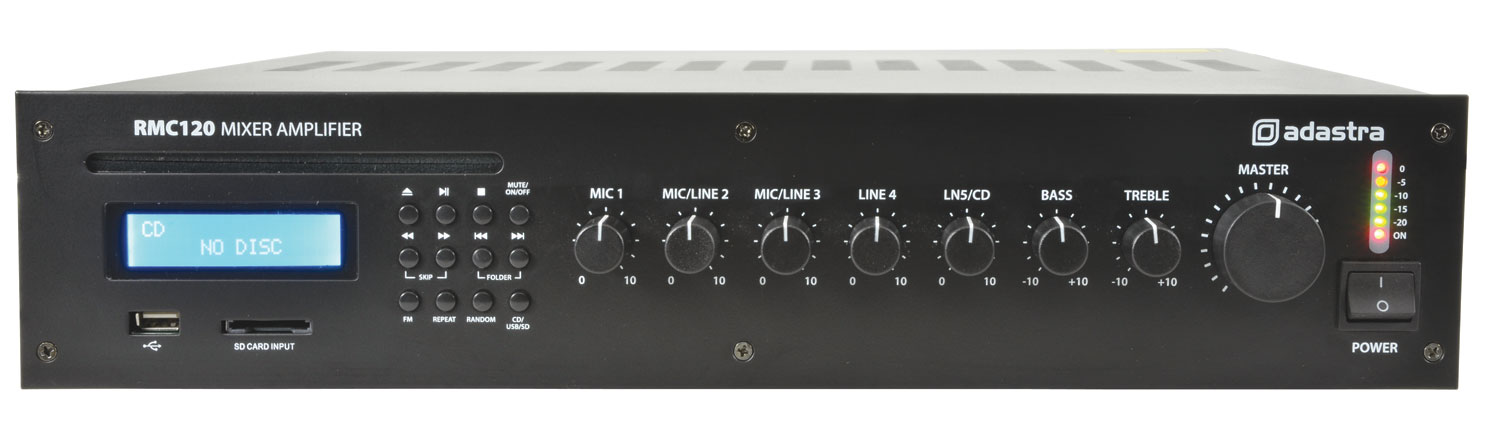

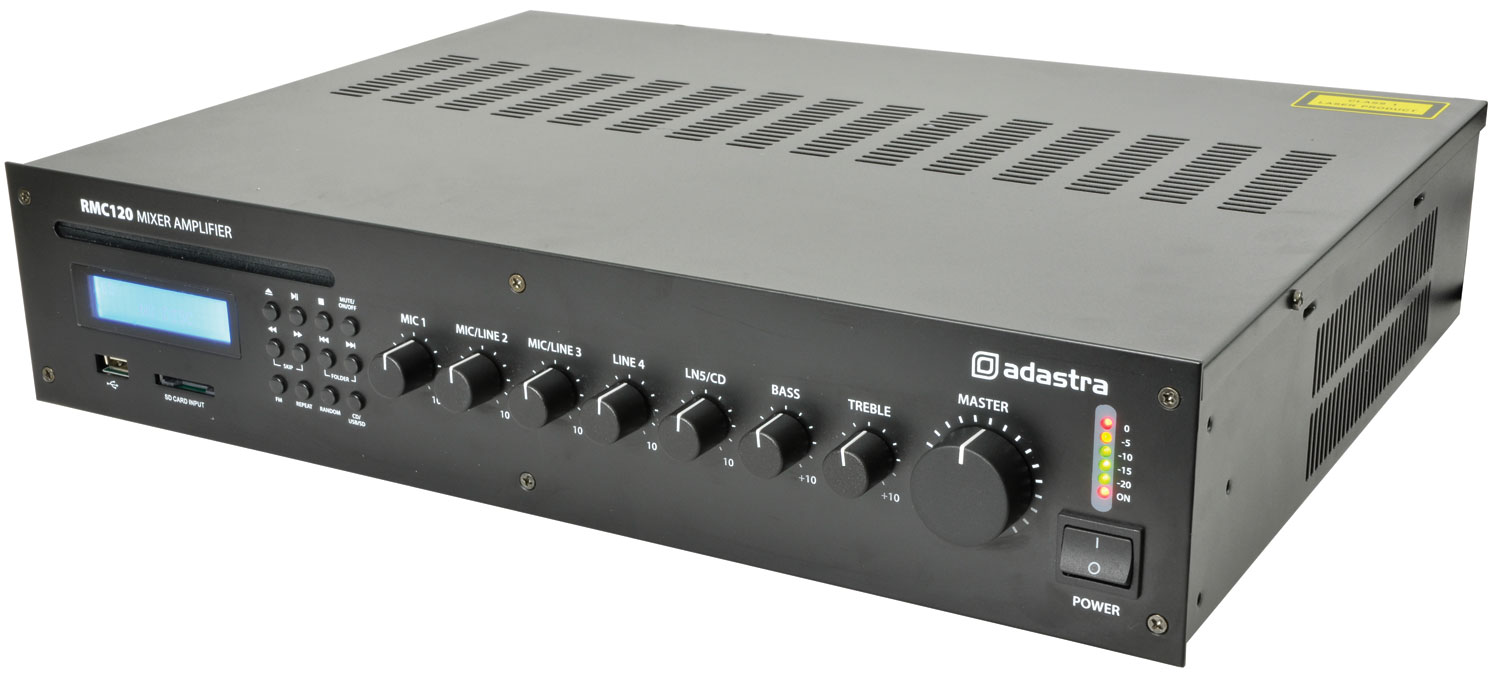

5 Channel 100V Line Mixer Amplifier with CD/USB/SD/FM
100V line mixer-amplifier with integral sound source. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A built-in CD player provides audio playback alongside a USB/SD media player with an integral FM radio tuner. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.
- 5 input channels
- USB/SD/FM audio player
- Slot load player for standard audio CDs
- External D.C. power option
- 8 Ohms or 100V line speaker output
- 2U 19" rack mountable
- Supplied with rack-mount ears
- Power supply 110/240Vac, 50/60Hz (IEC)
- DC power 24Vdc (screw terminals)
- Power : output 120Wrms
- Output : signal 2 x RCA
- Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced) -53dBV
- Input impedance : mic 1 5k Ohms
- Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-5 1k Ohms

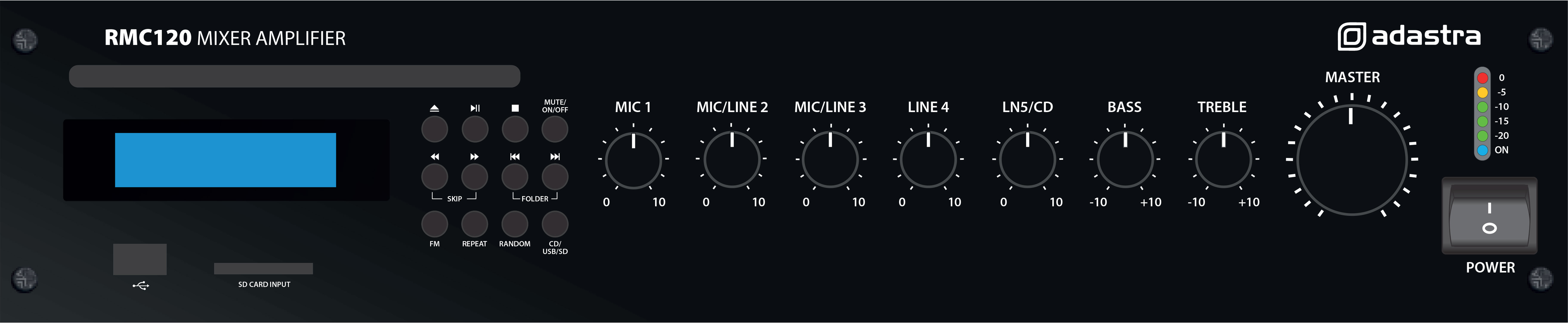

- Controls Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume
- Audio source Integral CD player & USB/SD/FM module
- Equalizer : bass 100Hz ±10dB
- Equalizer : treble 10kHz ±10dB

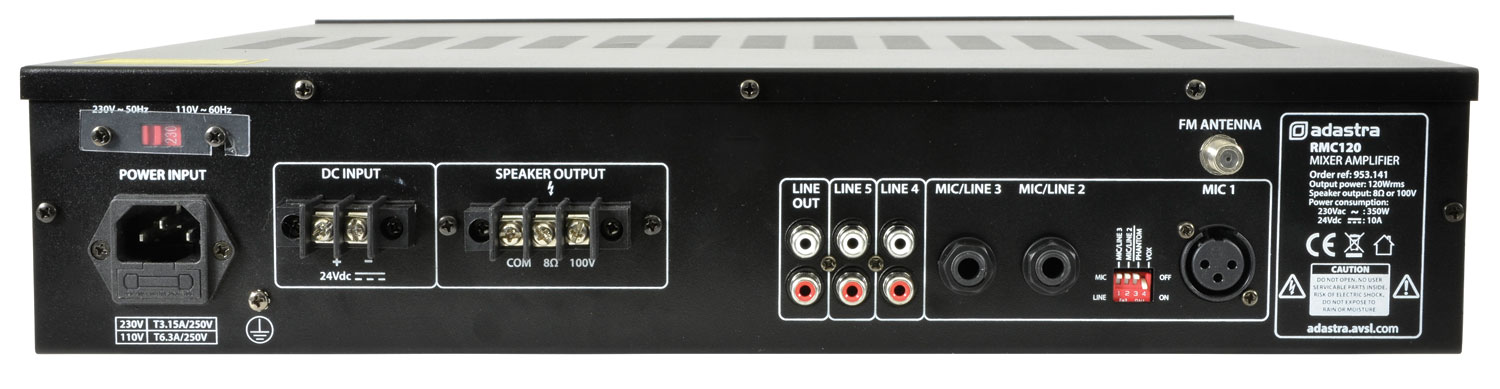

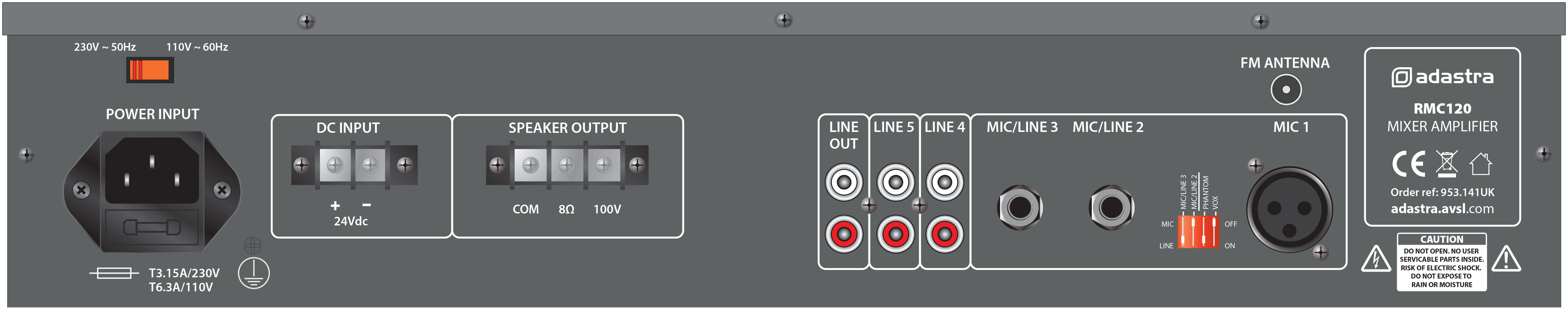

- Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
- Outputs : speaker 100V / 8 Ohms / COM terminals
- Phantom power +20V (MIC 1 input)
- THD <1.0%
- Dimensions 433 x 320 x 89mm
- Weight 9kg
