RM series 5-channel 100V mixer amplifier

953.213UK RM60

A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options in...

  • 2U 19" rack mountable (rack ears supplied)
  • XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
  • 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
Description Version Packed
953.213UK
RM60 Mixer-Amplifier 100V
60W Box Printed
953.214UK
RM120 Mixer-Amplifier 100V
120W Box Printed
953.215UK
RM240S Mixer-Amplifier 100V
240W Box Printed
953.216UK
RM360S Mixer-Amplifier 100V
360W Box Printed

RM series 5-channel 100V mixer amplifier

A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered.

  • 2U 19" rack mountable (rack ears supplied)
  • XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
  • 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
  • Switchable ‘voiceover’ feature
  • Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner
  • 100V line or 4-16 ohm speaker output
  • 24V emergency mute contacts
  • Option for mains or 24Vdc power
  • Editable Bluetooth ID for unique pairing

Specification : Common

  • Mains power 110/240Vac, 50/60Hz (IEC)
  • DC power 24Vdc (screw terminals)
  • Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced) -53dBV
  • Input impedance : mic 1 5k Ohms
  • Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
  • Input impedance : inputs 2-5 1k Ohms
  • Line output RCA
  • Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equalizer : bass 100Hz ±10dB
  • Equalizer : treble 10kHz ±10dB
  • Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power +20V (mic 1 input)
  • Audio source USB/SD player, FM tuner and Bluetooth receiver
  • Emergency control 24V contacts - mute all except Mic.1 when triggered
  • Bluetooth version 2.1
  • THD <1.0%

Specification : Versions

  953.213UK 953.214UK 953.215UK 953.216UK
Power : output 60Wrms 120Wrms 240Wrms 360Wrms
Speaker : outputs 100V / 8 Ohms / COM terminals 100V / 8 Ohms / COM terminals 4 x 100V zone / 8 Ohms / COM terminals 4 x 100V zone / 8 Ohms / COM terminals
Speaker switching N/A N/A Zones 1, 2, 3, 4, All Zones 1, 2, 3, 4, All
Weight 5.98kg 8.36kg 9.62kg 12.68kg
Dimensions 433 x 320 x 89mm 433 x 320 x 89mm 433 x 320 x 89mm 433 x 410 x 89mm

Trade information

  953.213UK 953.214UK 953.215UK 953.216UK
Barcode / EAN 5015972192702 5015972192726 5015972192733 5015972192764
Package type Box Printed Box Printed Box Printed Box Printed
Package dimensions 390 x 535 x 133mm 390 x 535 x 133mm 390 x 535 x 133mm 460 x 525 x 125mm
Package weight 5.98kg 8.36kg 9.62kg 14.98kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 448 x 550 x 291mm 448 x 550 x 291mm 448 x 550 x 291mm 475 x 540 x 148mm
Carton weight 11.96kg 16.72kg 19.24kg 15.50kg
Carton quantity 2 packages 2 packages 2 packages 1 package

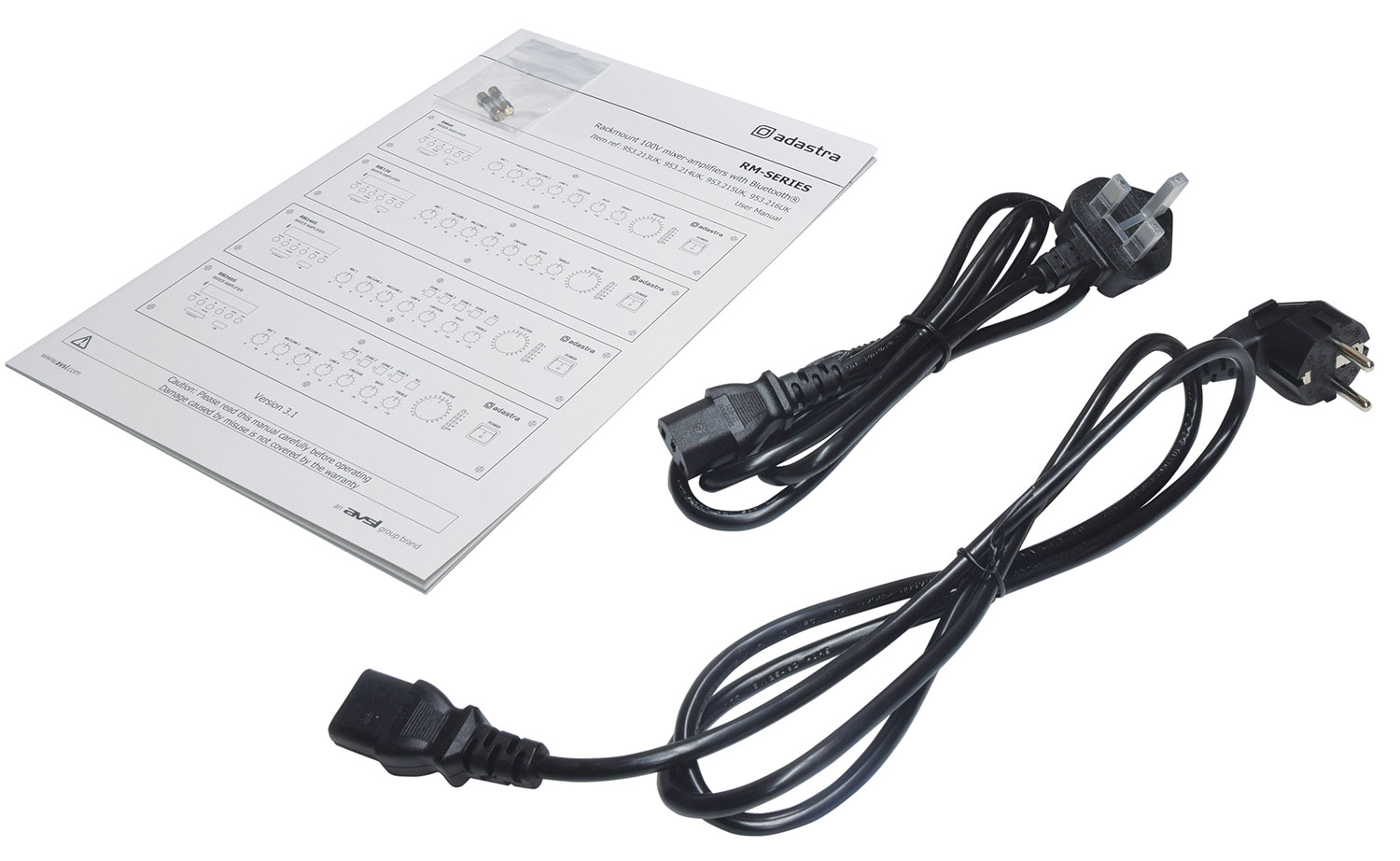

In the box

The box for this item contains :

  • 100V mixer-amplifier
  • Rack-mounting ears & hardware
  • IEC power lead(s)

Support

Instruction manual
For 953.215UK (533KB)
Instruction manual
For 953.214UK (533KB)
Instruction manual
For 953.213UK (533KB)
Instruction manual
For 953.216UK (533KB)
