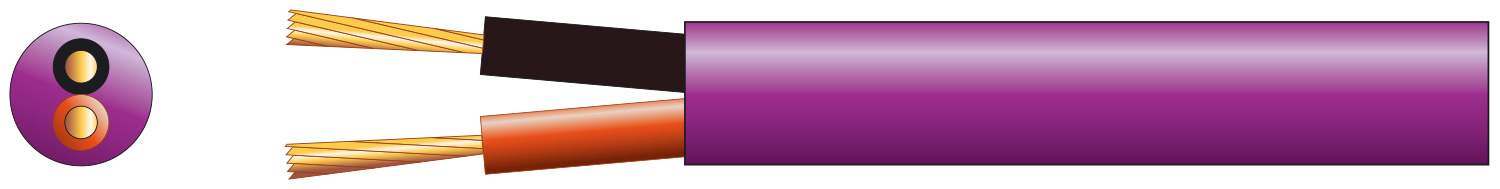

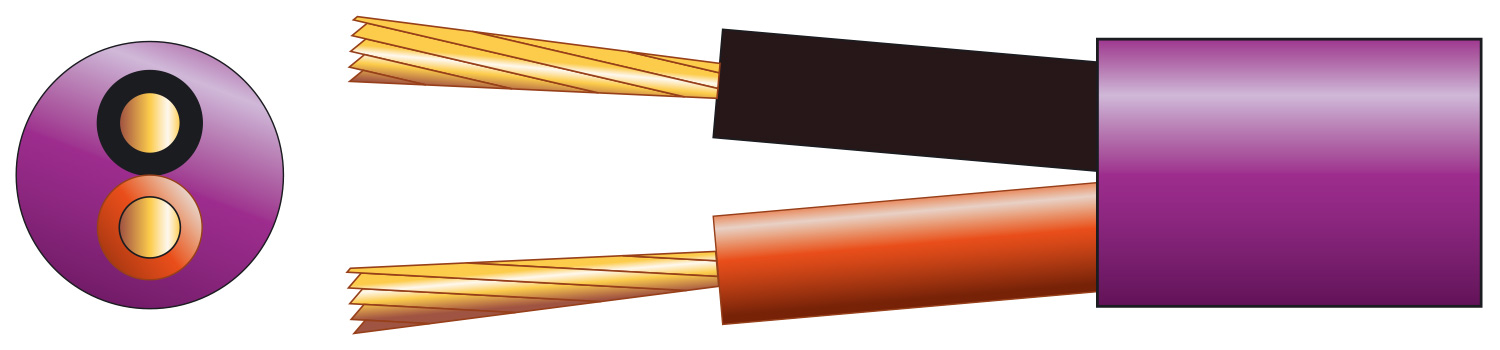

Hi Flex Double Insulated Low Smoke Speaker Cable

807.101UK

Highly flexible double insulated low smoke zero halogen speaker cables with oxygen free copper and CCA conductors. Ideal for small and large installations.

  • Low smoke zero halogen sheath material compliant to RoHS, minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • Oxygen free copper and CCA conductors for high quality audio transmission
Description Version Packed
807.096UK
Hi Flex Double Insulated Speaker cable, 2 x (24 x 0.2mmØ) LSZH
2x24 LSZH Purp 100m Reel
807.106UK
Hi Flex Double Insulated Speaker cable, 2 x (24 x 0.2mmØ) LSZH
2x24 LSZH Blk 100m Reel
807.107UK
Hi Flex Double Insulated Speaker cable, 2 x (24 x 0.2mmØ) LSZH
2x24 LSZH Wht 100m Reel
807.100UK
Hi Flex Double Insulated Speaker cable, 2 x (48 x 0.2mmØ) LSZH
2x48 LSZH Purp 100m Reel
807.101UK
Hi Flex Double Insulated Speaker cable, 2 x (79 x 0.2mmØ) LSZH
2x79 LSZH Purp 100m Reel

Hi Flex Double Insulated Low Smoke Speaker Cable

Highly flexible double insulated low smoke zero halogen speaker cables with oxygen free copper and CCA conductors. Ideal for small and large installations.

  • Low smoke zero halogen sheath material compliant to RoHS, minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • Oxygen free copper and CCA conductors for high quality audio transmission
  • Length 100m

Versions

  807.096UK 807.106UK 807.107UK 807.100UK 807.101UK
Sheath Purple LSZH Black LSZH White LSZH Purple LSZH Purple LSZH
CSA 2 x 0.75mm² 2 x 0.75mm² 2 x 0.75mm² 2 x 1.5mm² 2 x 2.5mm²
Strands 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA) 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA) 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA) 2 x (24 x 0.2mmØ Cu + 24 x 0.2mmØ CCA) 2 x (39 x 0.2mmØ Cu + 40 x 0.2mmØ CCA)
Dimensions 7mmØ 7mmØ 7mmØ 8mmØ 10mmØ
Current 6A max. 6A max. 6A max. 8A max 14A max
Packed 2 reels 2 reels 2 reels 2 reels 1 reel

Downloads

UK Declaration of conformity
For 807.101UK (242KB)
EU Declaration of conformity
For 807.101UK (235KB)
