Tri-Bar: 3 Segment 18x 3W RGB LED Wall Bar

151.593UK Tri-Bar

LED beam and effects bar with 18 high output RGB LEDs to provide colour washes and moving patterns against walls, ceilings or even floors. The 3 groups of 6 LEDs can be controlled by auto or sound ...

  • 18 high output tri-colour COB LEDs
  • 16 Automatic modes that can be tailored to your requirements using additional speed and strobe settings
  • 2 Sound to light modes with additional microphone sensitivity adjustment
Full description Find retailer
Description Version Packed
151.593UK
Tri-Bar: 3 Segment 18x 3W RGB LED Wall Bar 		Box Label

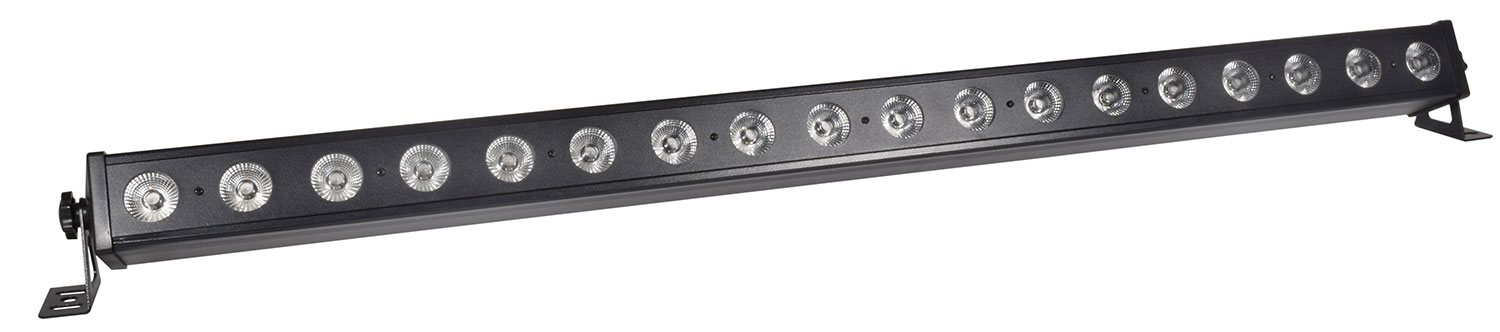

Tri-Bar: 3 Segment 18x 3W RGB LED Wall Bar

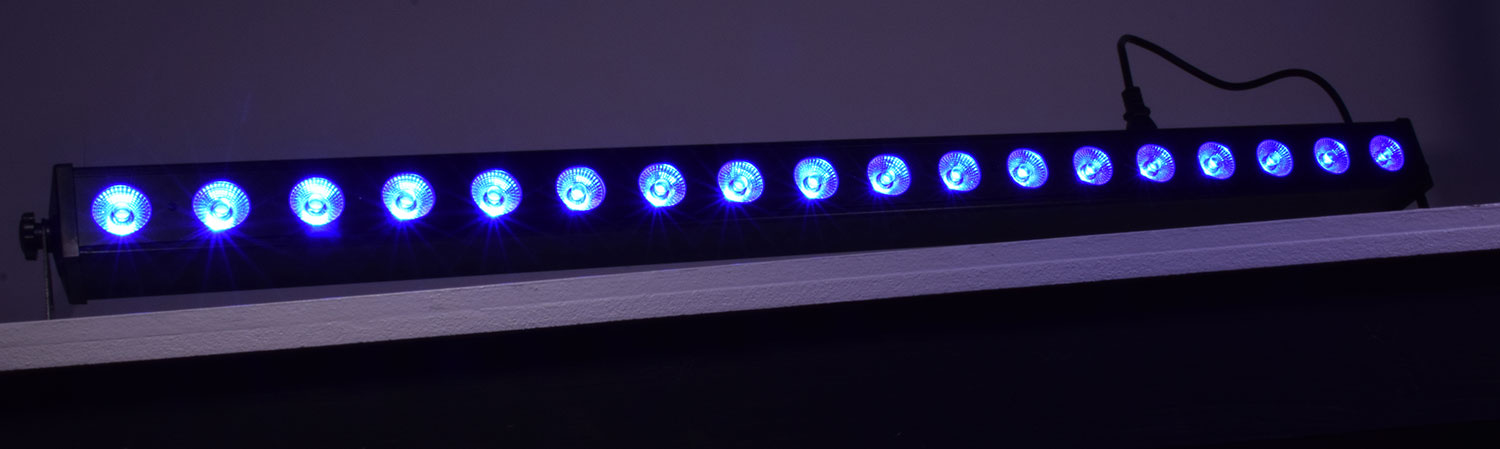

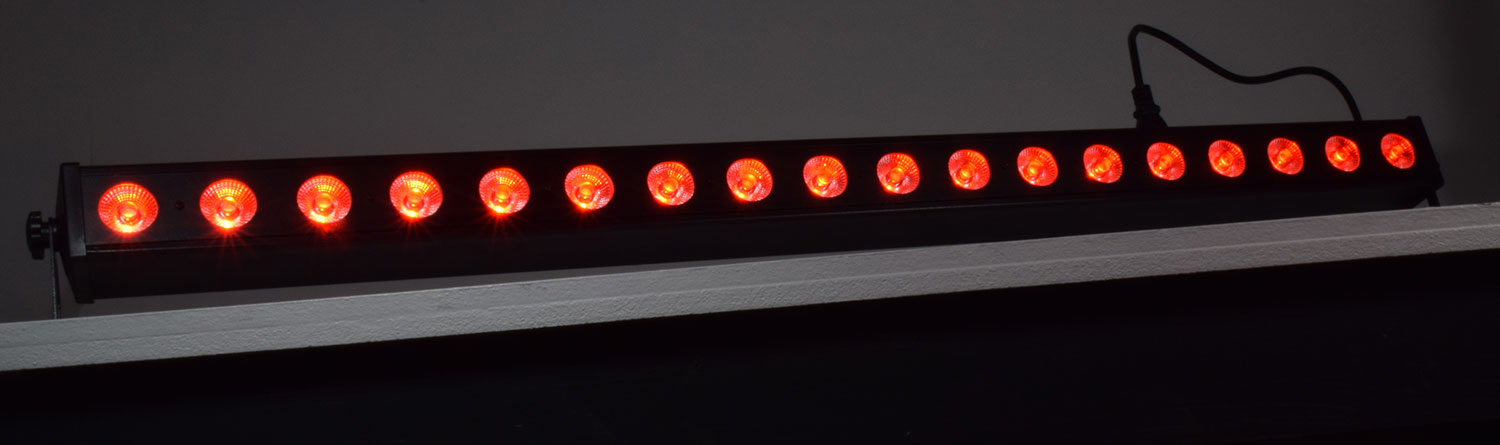

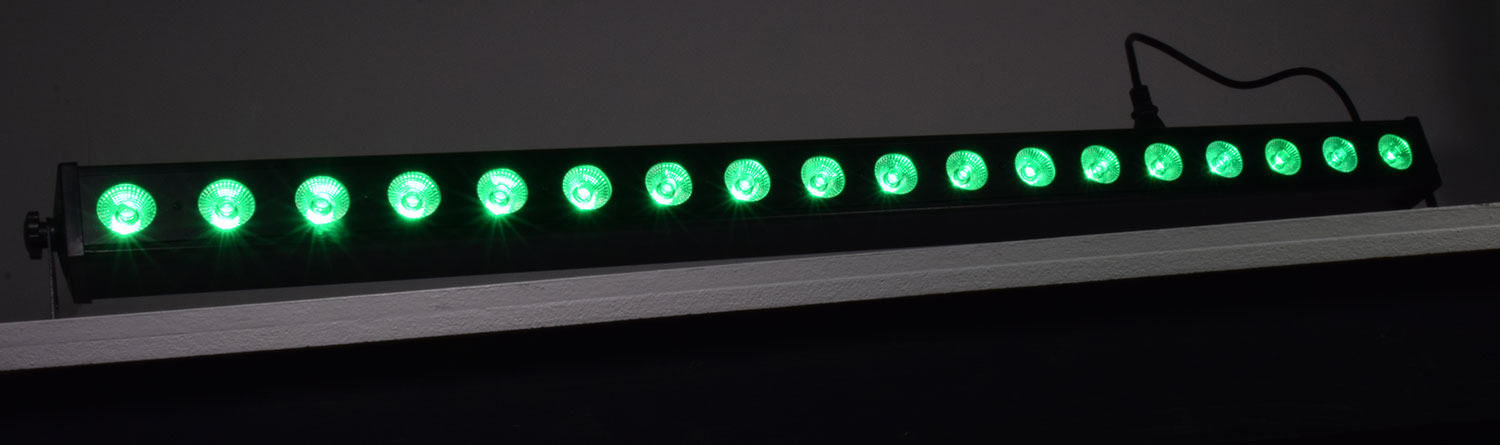

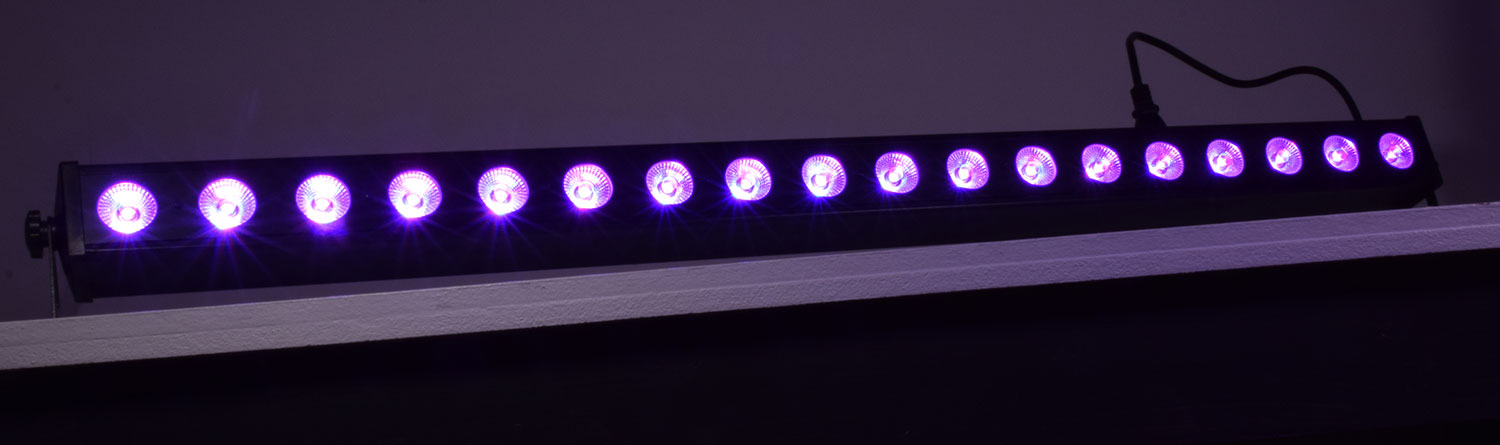

LED beam and effects bar with 18 high output RGB LEDs to provide colour washes and moving patterns against walls, ceilings or even floors. The 3 groups of 6 LEDs can be controlled by auto or sound activated modes from preset internal colour sequences. Alternatively the bar can be operated remotely by DMX in either 3, 7 or 13 channel modes and connected to more units if a larger effect is needed. Supplied with tilt-adjustable brackets for mounting to a wall or ceiling.

  • 18 high output tri-colour COB LEDs
  • 16 Automatic modes that can be tailored to your requirements using additional speed and strobe settings
  • 2 Sound to light modes with additional microphone sensitivity adjustment
  • 3, 7 or 13 channel DMX modes

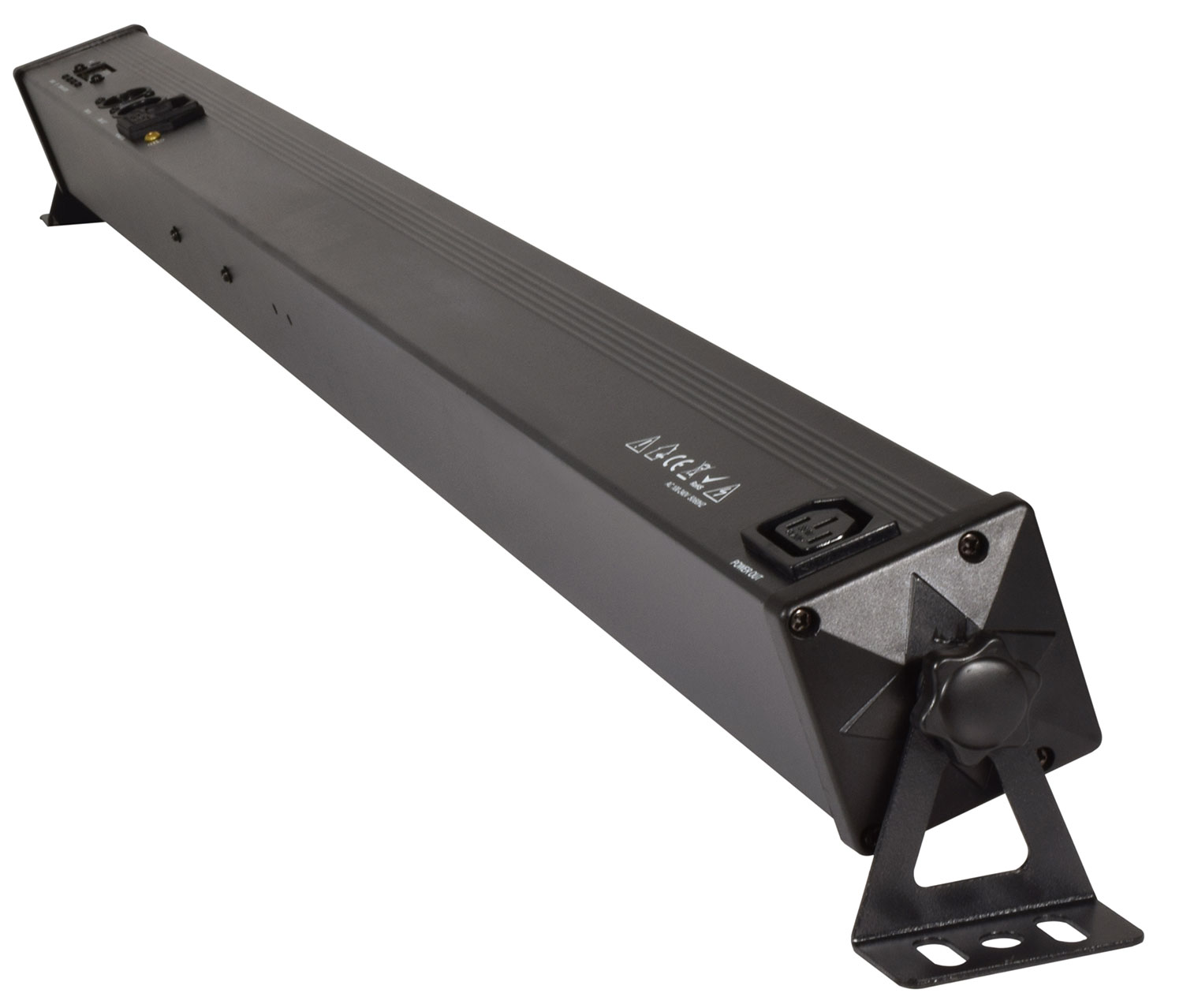

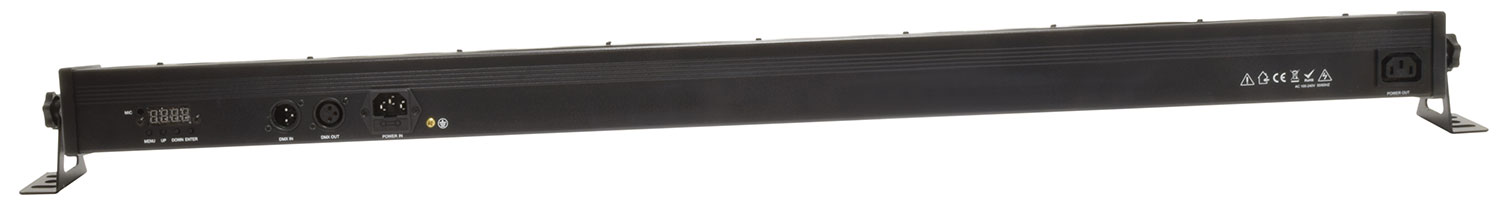

  • Supplied with end mounting brackets
  • Power supply 110-240Vac, 50/60Hz (IEC)
  • Power consumption 60W
  • Fuse F3A
  • LED : type 3W RGB 3-in-1 COB
  • LED : quantity 18
  • Beam angle 45°
  • Modes Static colour, colour change, colour fade, auto, sound active, DMX, master/slave
  • DMX channels 3, 7 or 13
  • Dimensions 1150 x 60 x 60mm
  • Weight 1.85kg

In the box

The box for this item contains :

  • Tri-Bar main unit
  • IEC mains power lead (1.2m)
  • Adjustable end mounting brackets
  • User guide

Downloads

Instruction manual
For 151.593UK (193KB)
UK Declaration of conformity
For 151.593UK (250KB)
EU Declaration of conformity
For 151.593UK (240KB)
