U-PAD Compact Mixer with USB Interface

170.879UK U-PAD

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the X...

  • High quality digital stereo input and output via USB
  • Studio quality balanced analogue inputs & outputs
  • Individually switchable +48V phantom power
Full description Find retailer
Description Version Packed
170.879UK
U-PAD Compact Mixer with USB Audio Interface 		Box Label

U-PAD Compact Mixer with USB Interface

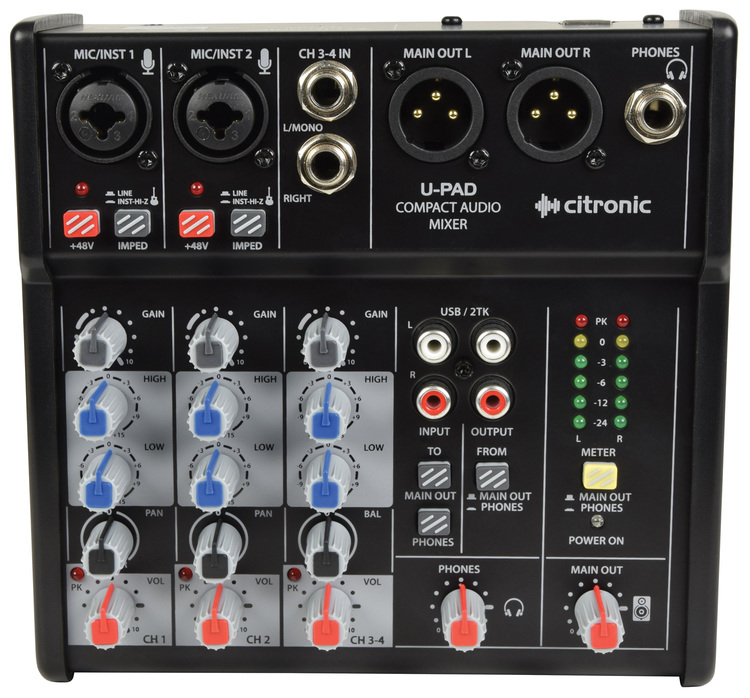

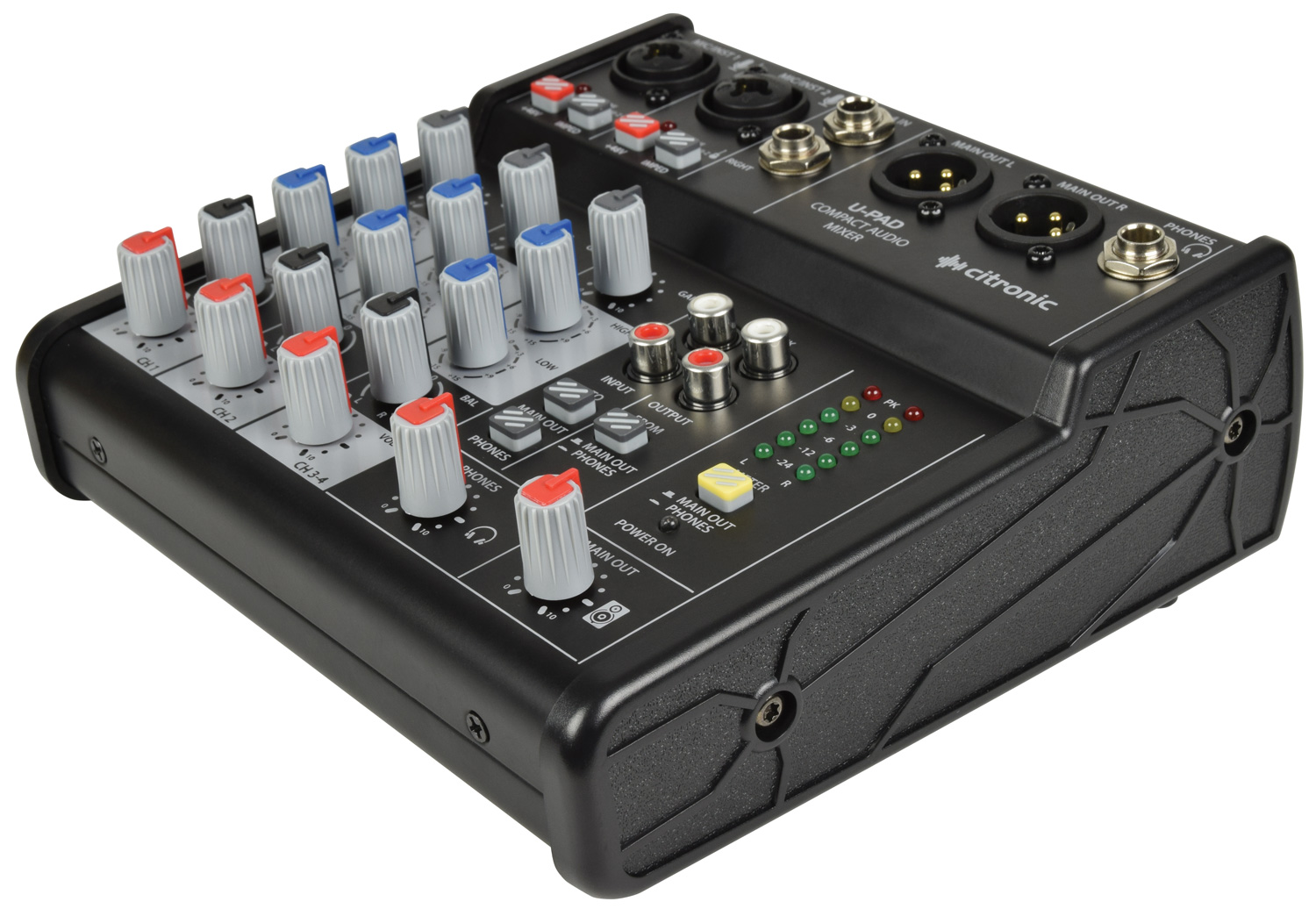

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.

  • High quality digital stereo input and output via USB
  • Studio quality balanced analogue inputs & outputs
  • Individually switchable +48V phantom power
  • Supplied with USB lead for power and PC/Mac connection

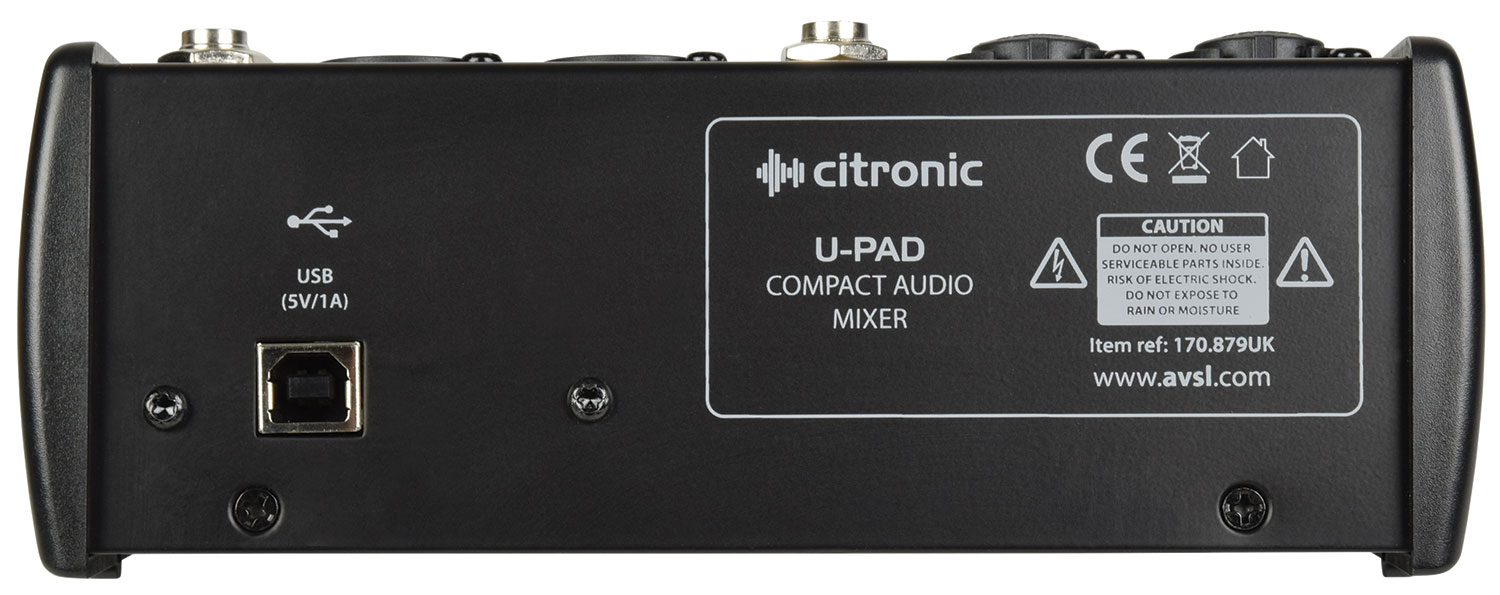

  • Power supply 5.5Vdc (USB)
  • USB computer interface Duplex stereo in/out AD/DA
  • Output Left + Right balanced XLR (analogue)
  • Phantom power +48V individually switchable (XLR inputs only)
  • Gain -14 to +40dB
  • EQ: low ±15dB @ 80Hz
  • EQ: high ±15dB @ 12kHz
  • Input impedance : mic 2k Ohms
  • Input impedance : instrument 1M Ohms
  • Input impedance : line 20k Ohms
  • Frequency response 20Hz - 20kHz (±0.5B)
  • Sampling format 24-bit, 96kHz max.
  • THD +N <0.03% @ 1kHz
  • Dynamic range 102dB
  • Crosstalk : stereo 92dB
  • Output impedance 120 Ohms

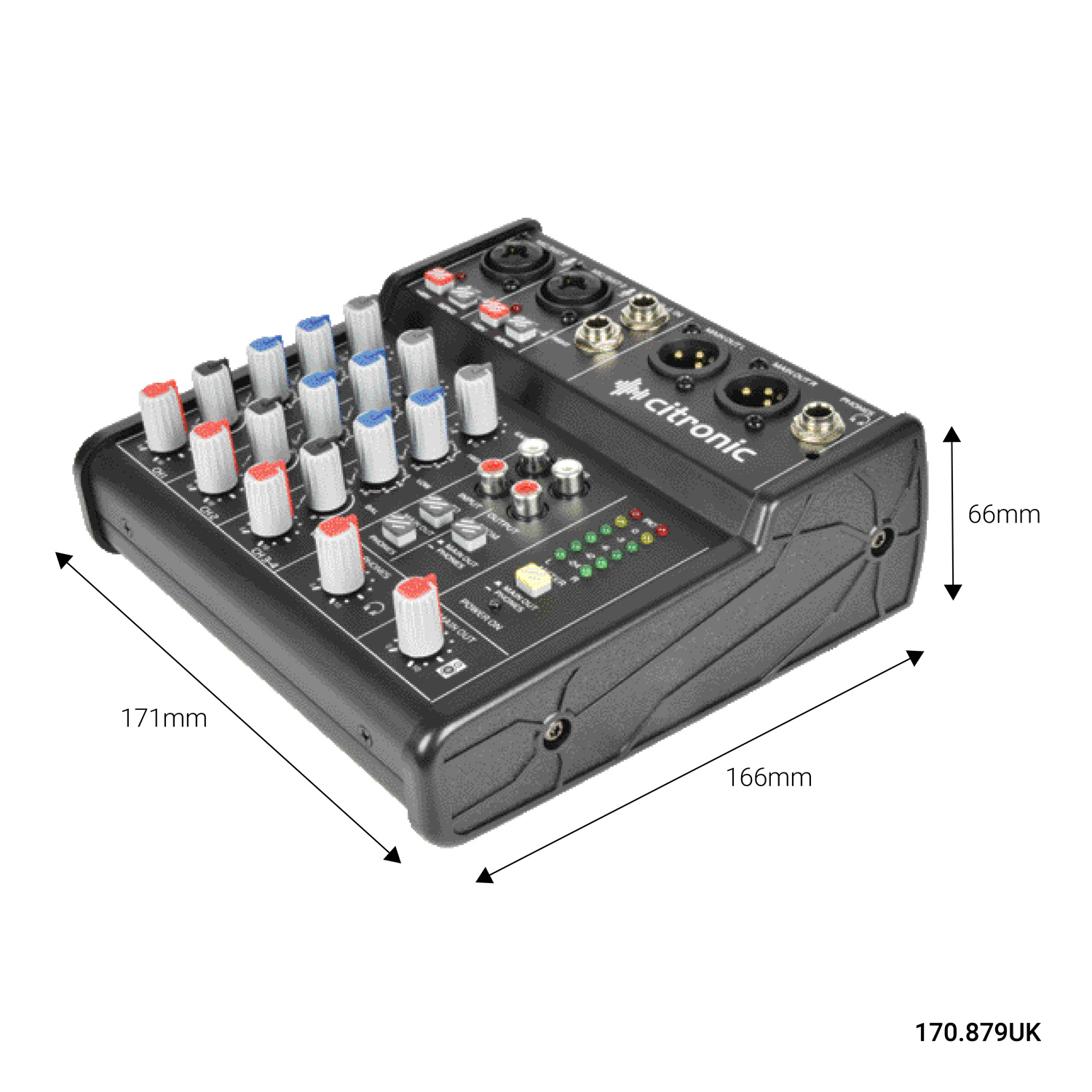

  • Dimensions 171 x 166 x 66mm
  • Weight 900g

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

In the box

The box for this item contains :

  • U-PAD compact USB mixer

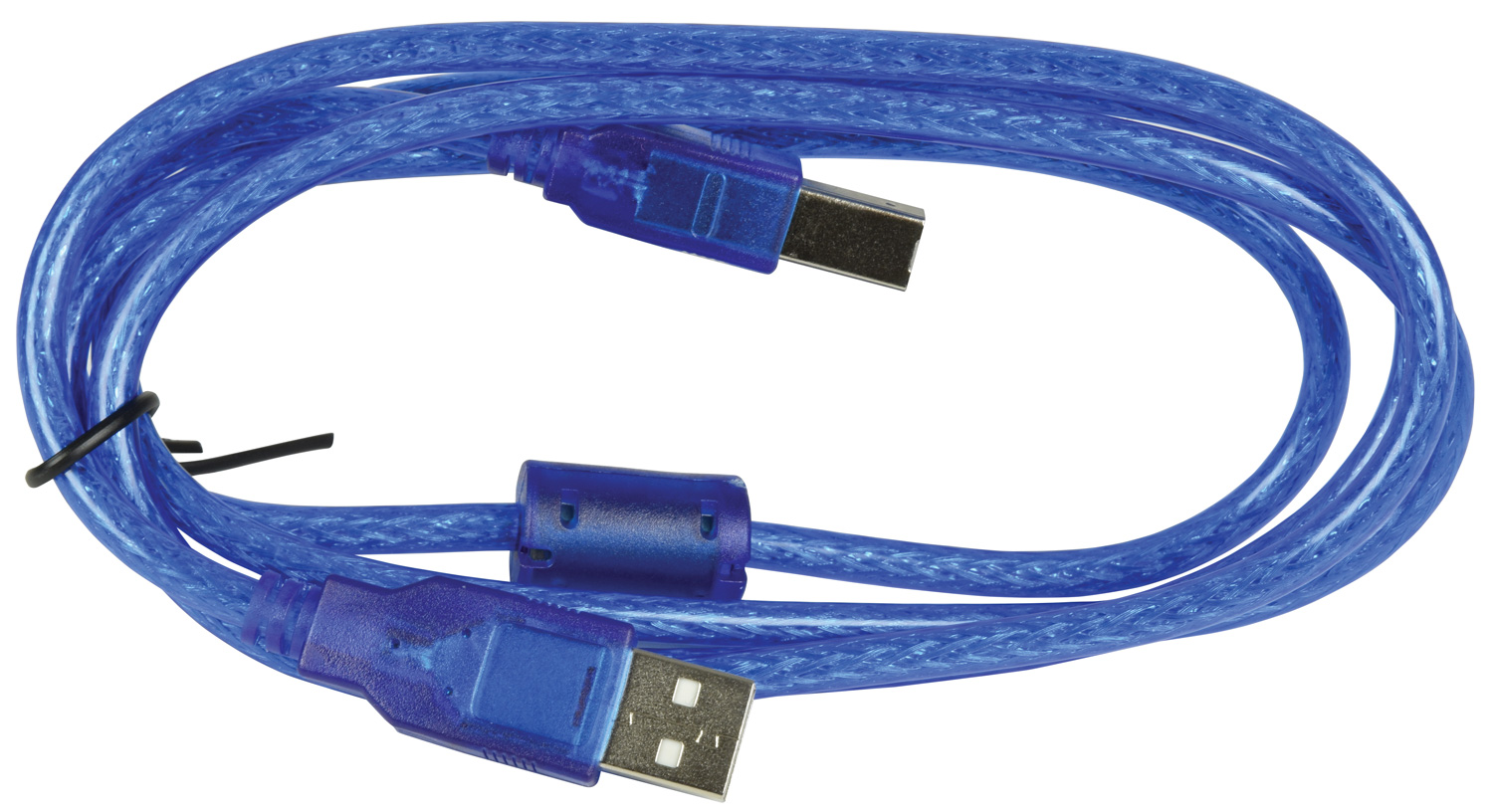

  • USB A to B lead

Downloads

Instruction manual
For 170.879UK (384KB)
UK Declaration of conformity
For 170.879UK (249KB)
EU Declaration of conformity
For 170.879UK (241KB)
