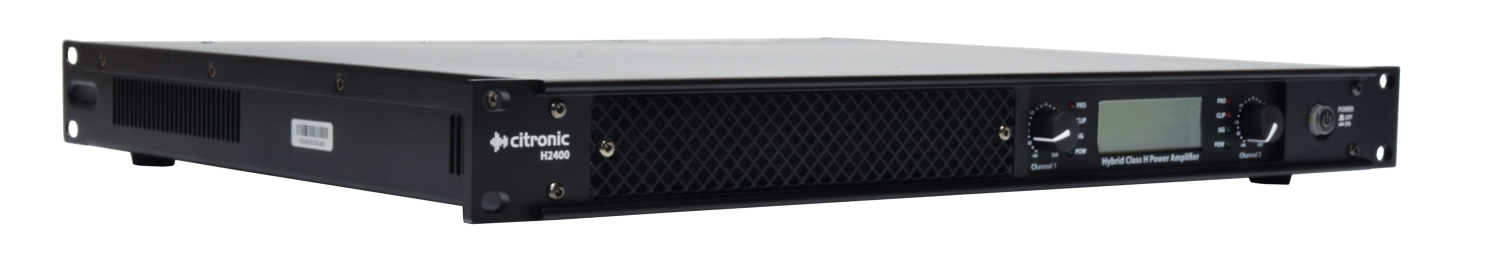

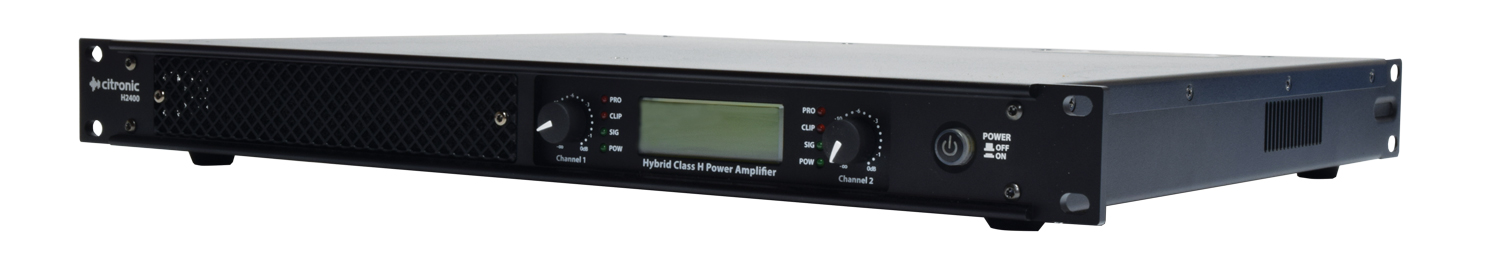

Hybrid Class-H Power Amplifiers

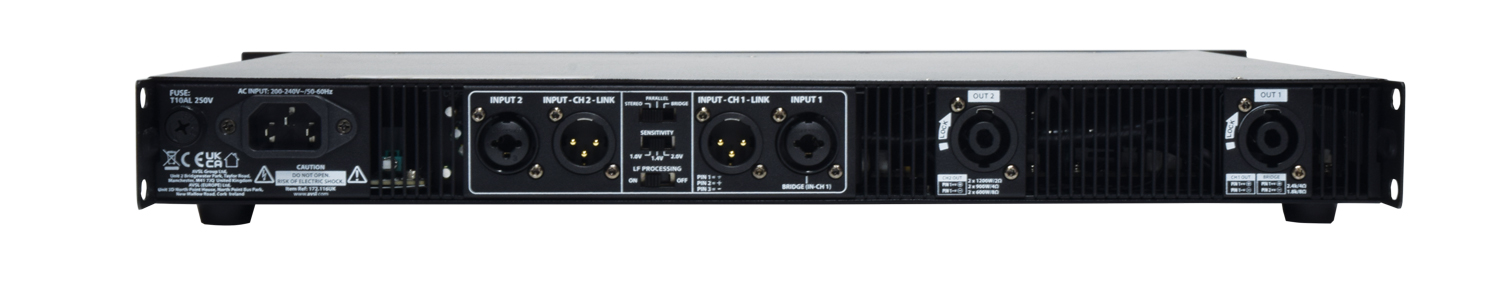

Lightweight power amplifiers in a 1U rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-AB output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

  • Hybrid class-H circuit design
  • Digitally controlled and monitored power section
  • Industry standard Class-AB bi-polar output stage

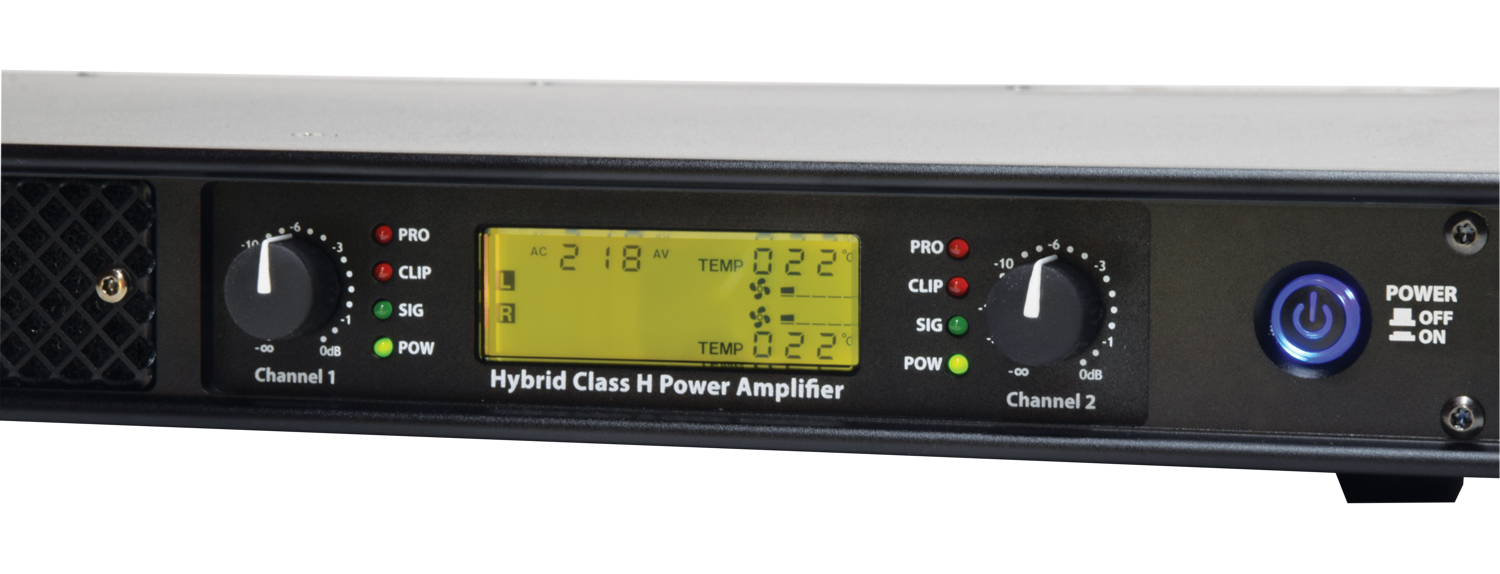

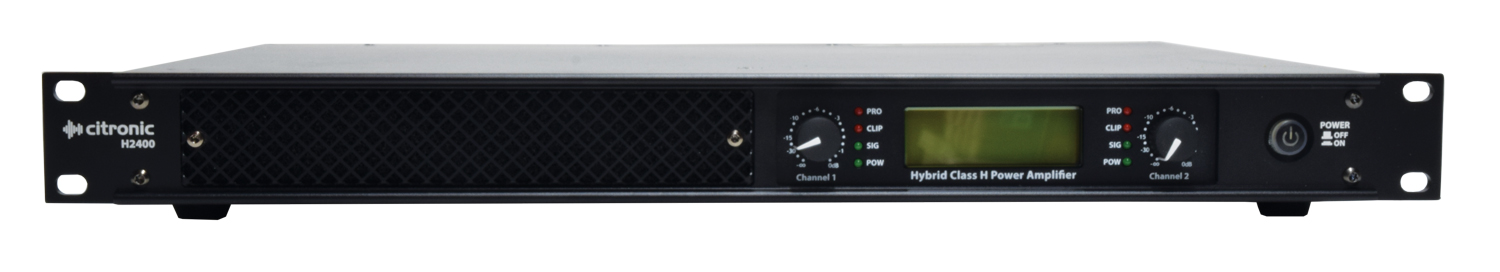

  • Backlit LCD status display
  • Full internal thermal and overload protection
  • Stable down to 2 Ohms (4 Ohms bridged)
  • Power supply 200-240Vac, 50Hz (IEC)
  • Amplifier : construction Hybrid Class-H
  • Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting.
  • Frequency response 20Hz-20KHz ±0.5dB
  • THD +N 0.2%
  • S/N ratio -95dB
  • Damping factor >700
  • Input sensitivity 1.0V - 1.4V - 2.0V switchable
  • Input impedance 20K? (balanced),10K? (unbalanced)
  • Dimensions 483 x 361 x 44 mm (1U)

Versions

  172.116UK 172.124UK
Fuse T6AL 250V T8AL 250V
Power rms @ 8 Ohms 2 x 450W 2 x 600W
Power rms @ 4 Ohms 2 x 650W 2 x 900W
Power rms @ 2 Ohms 2 x 800W (40ms burst 1kHz sine) 2 x 1200W (40ms burst 1kHz sine)
Power rms bridge @ 8 Ohms 1200W 1800W
Power rms bridge @ 4 Ohms 1600W (40ms burst 1kHz sine) 2400W (40ms burst 1kHz sine)
Weight 6.8kg 7.0kg
