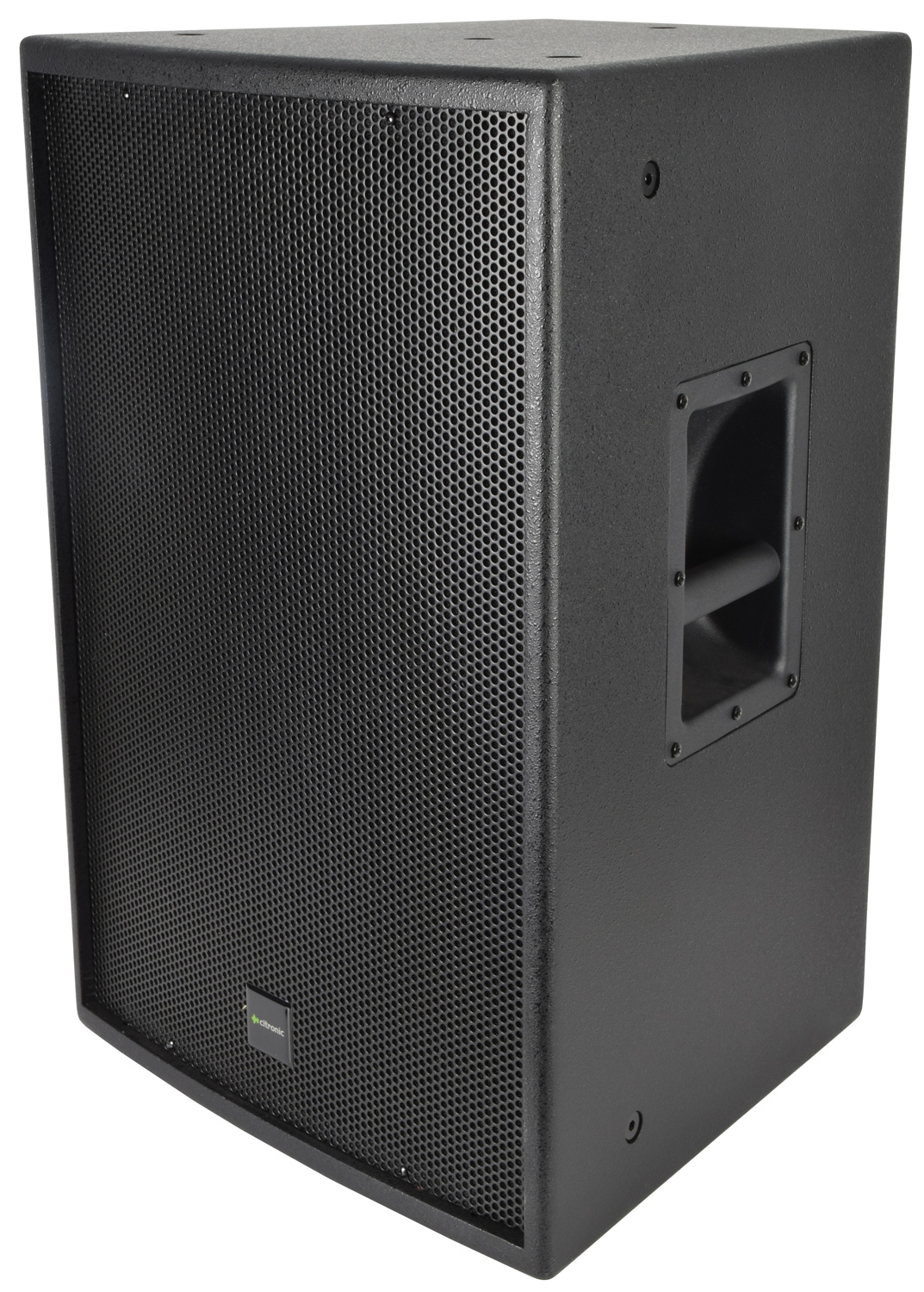

CS Series Wooden Installation Speakers

178.682UK CS-1245B

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam ...

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction
Full description Find retailer
Description Version Packed
178.671UK
CS-610B Passive Speaker Black 		6" Black Box Plain
178.672UK
CS-610W Passive Speaker White 		6" White Box Plain
178.674UK
CS-810B Passive Speaker Black 		8" Black Box Plain
178.675UK
CS-810W Passive Speaker White 		8" White Box Plain
178.677UK
CS-1035B Passive Speaker Black 		10" Black Box Plain
178.678UK
CS-1035W Passive Speaker White 		10" White Box Plain
178.682UK
CS-1245B Passive Speaker Black 		12" Black Box Plain
178.685UK
CS-1560B Passive Speaker Black 		15" Black Box Plain

CS Series Wooden Installation Speakers

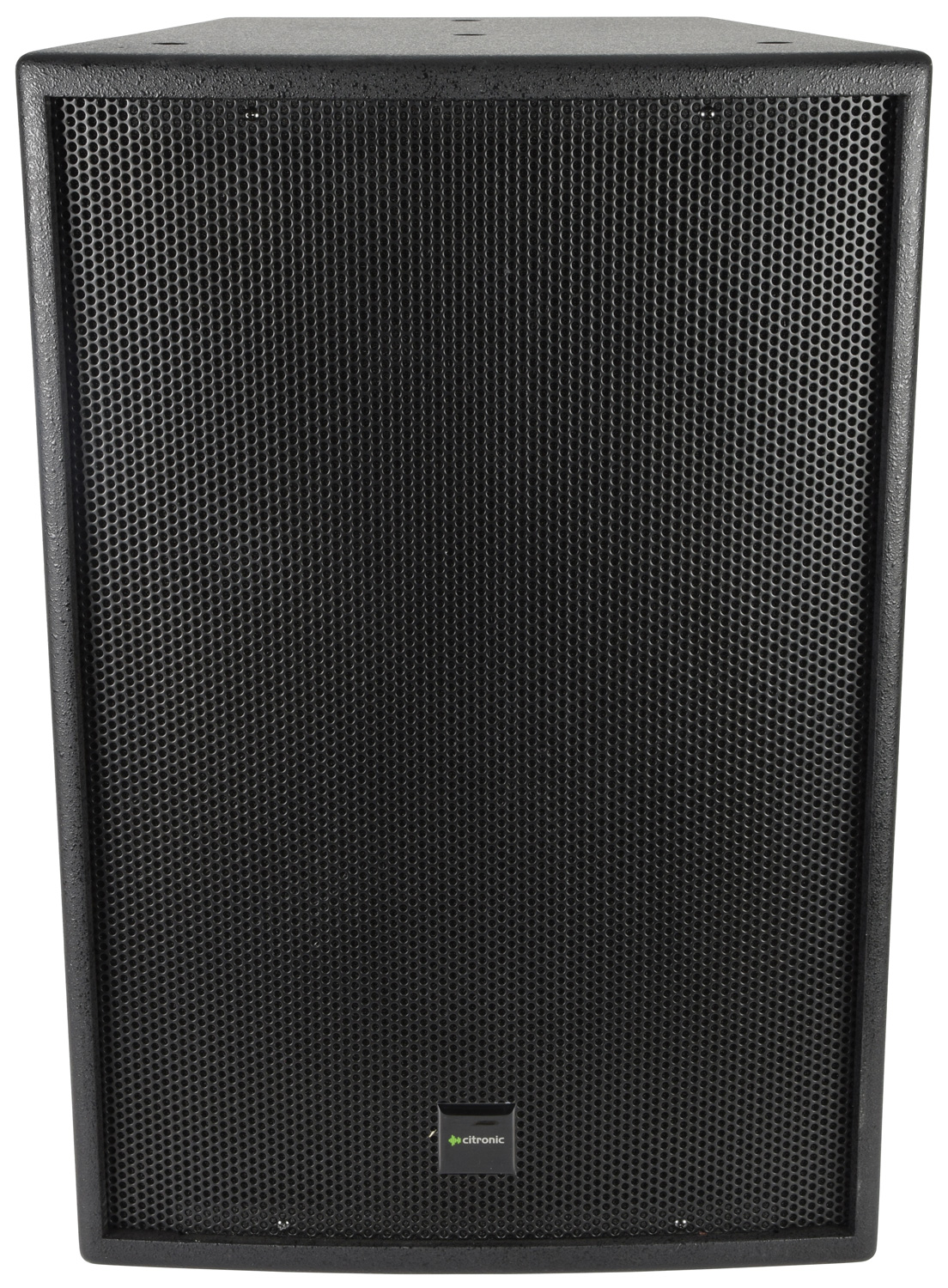

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam backed steel grilles. Fitted with steel U brackets and mounting hardware for convenient and neat installation. Understated minimalist design with premium quality performance.

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction
  • Supplied with adjustable U-brackets
  • CS-610 and CS-810 VESA mount compatible

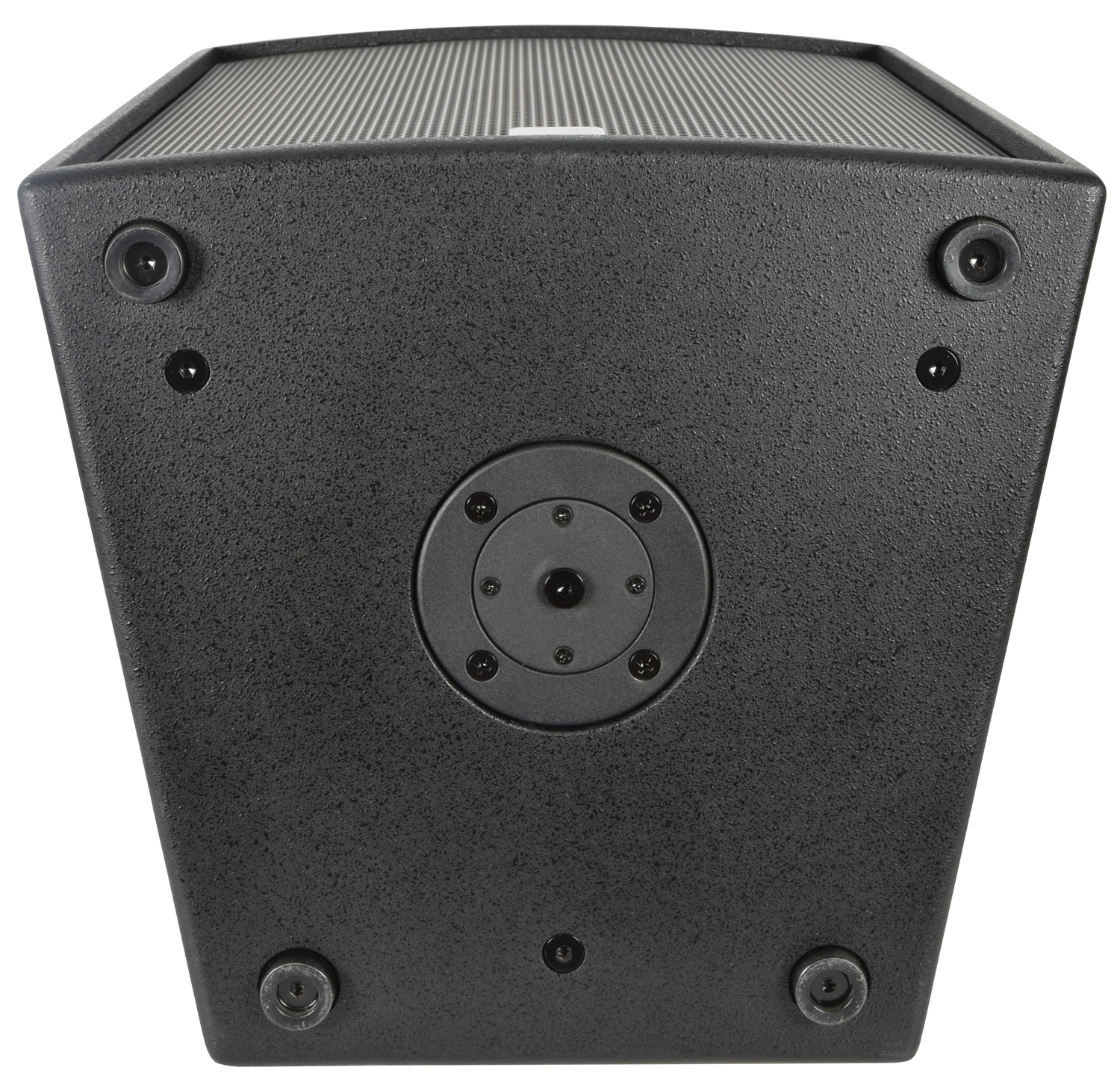

  • 10", 12" and 15" models fitted with 35mm pole mount socket

Specification : Common

  • Impedance 8 Ohms
  • Housing material Birch Plywood

Specification : Versions

  178.671UK 178.672UK 178.674UK 178.675UK 178.677UK 178.678UK 178.682UK 178.685UK
Crossover frequency 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 2.5kHz (12dB/oct) 2.5kHz (12dB/oct)
Model CS-610B CS-610W CS-810B CS-810W CS-1035B CS-1035W CS-1245B CS-1560B
Power : rms 100W 100W 100W 100W 350W 350W 450W 600W
Configuration 150mm (6") & 0.5" dome tweeter 150mm (6") & 0.5" dome tweeter 200mm (8") & CD horn 200mm (8") & CD horn 250mm (10") & CD horn 250mm (10") & CD horn 300mm (12") & CD horn 380mm (15") & CD horn
Dispersion 120° x 30° (H x V) 120° x 30° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 90° x 60° (H x V) 90° x 80° (H x V)
Finish Black White Black White Black White Black Black
Hardware U bracket + VESA75 threaded inserts 4mm U bracket + VESA75 threaded inserts 4mm U bracket + VESA100 threaded inserts 4mm U bracket + VESA100 threaded inserts 4mm U bracket + 35mm pole mount socket U bracket + 35mm pole mount socket U bracket + 35mm pole mount socket U bracket + 35mm pole mount socket
Frequency response 80Hz - 20kHz 80Hz - 20kHz 70Hz - 20kHz 70Hz - 20kHz 75Hz - 20kHz 75Hz - 20kHz 48Hz - 20kHz 45Hz - 20kHz
SPL @ 1W/1m 93dB 93dB 93dB 93dB 95dB 95dB 98dB 100dB

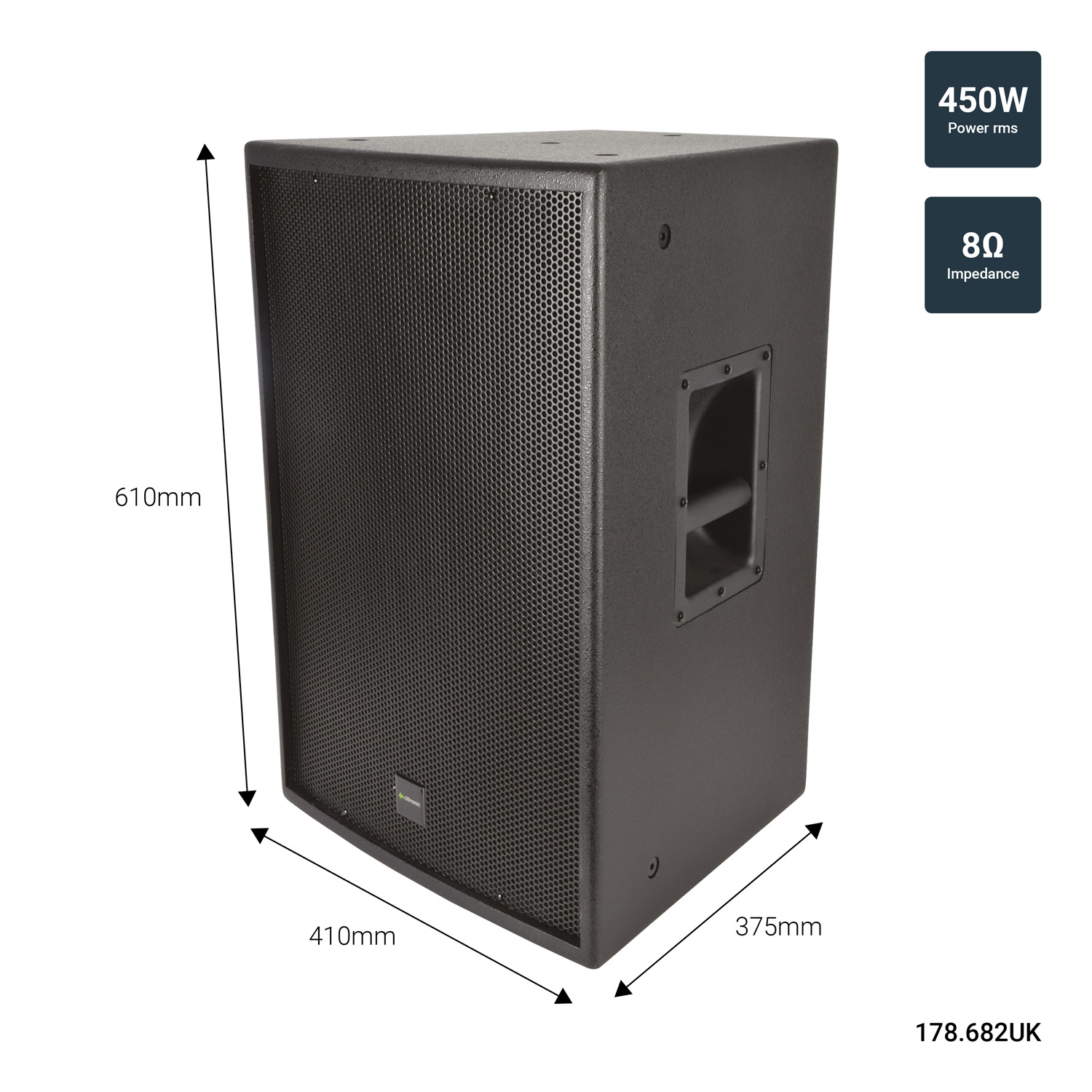

Dimensions 300 x 225 x 215mm 300 x 225 x 215mm 410 x 280 x 250mm 410 x 280 x 250mm 470 x 325 x 310mm 470 x 325 x 310mm 610 x 410 x 375mm 715 x 485 x 400mm
Weight 5.0kg 5.0kg 8.9kg 8.9kg 15.6kg 15.6kg 22.5kg 30.0kg

Trade information

  178.671UK 178.672UK 178.674UK 178.675UK 178.677UK 178.678UK 178.682UK 178.685UK
Barcode / EAN 5015972203965 5015972203996 5015972204016 5015972204023 5015972204054 5015972204061 5015972208601 5015972208656
Package type Box Plain Box Plain Box Plain Box Plain Box Plain Box Plain Box Plain Box Plain
Package dimensions 295 x 368 x 287mm 295 x 368 x 287mm 355 x 472 x 322mm 355 x 472 x 322mm 402 x 543 x 383mm 402 x 543 x 383mm 530 x 710 x 486mm 530 x 710 x 486mm
Package weight 5.50kg 5.00kg 9.00kg 8.90kg 15.60kg 15.60kg 22.50kg 22.50kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 295 x 368 x 287mm 295 x 368 x 287mm 355 x 472 x 322mm 355 x 472 x 322mm 402 x 543 x 383mm 402 x 543 x 383mm 530 x 710 x 486mm 530 x 710 x 486mm
Carton weight 5.50kg 5.00kg 9.50kg 8.90kg 15.60kg 15.60kg 22.50kg 22.50kg
Carton quantity 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package

In the box

The box for this item contains :

  • 1 x CS series wooden speaker cabinet
  • 1 x Adjustable U bracket
