RZ45 Remote Zone Audio Matrix with Bluetooth

953.045UK RZ45

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remo...

  • Up to 5 remotely operated zones
  • Remote wiring via standard network type cable
  • 4 selectable input sources or local audio to any zone
Description Version Packed
953.045UK
RZ45 Remote Zone Audio Matrix
Box Label

Accessories

Description Version Packed
953.050UK
TR86 Touch Wall Remote for RZ45 Audio Matrix
Box Label
853.081UK
RACK-IT Wall / Counter Mounting Brackets 1U - pair
1U Box Label

RZ45 Remote Zone Audio Matrix with Bluetooth

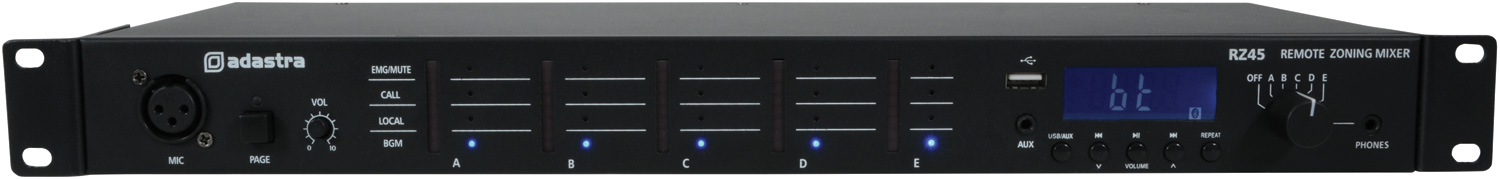

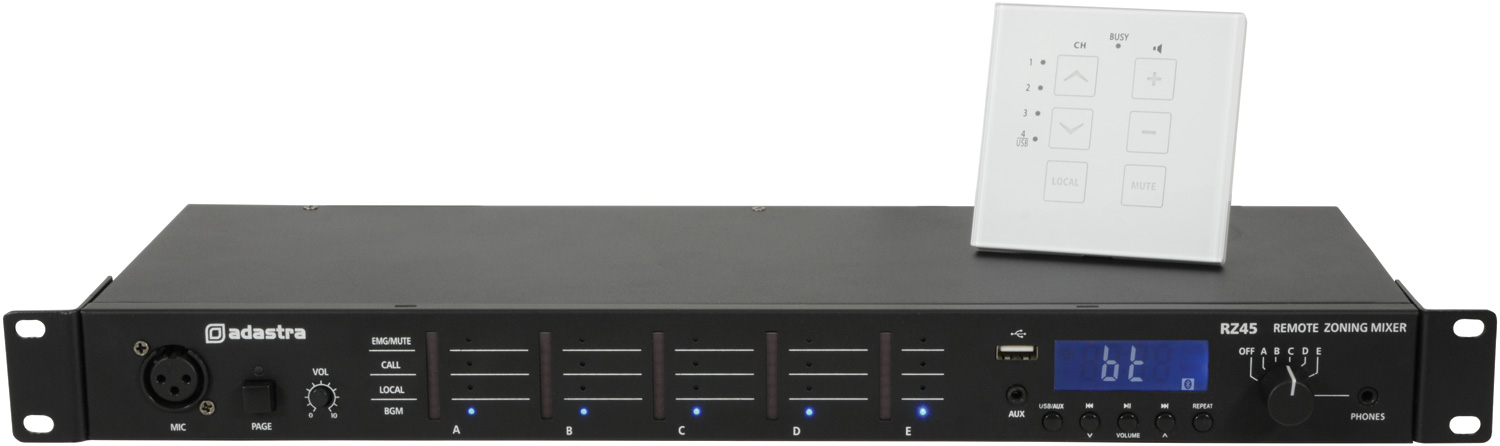

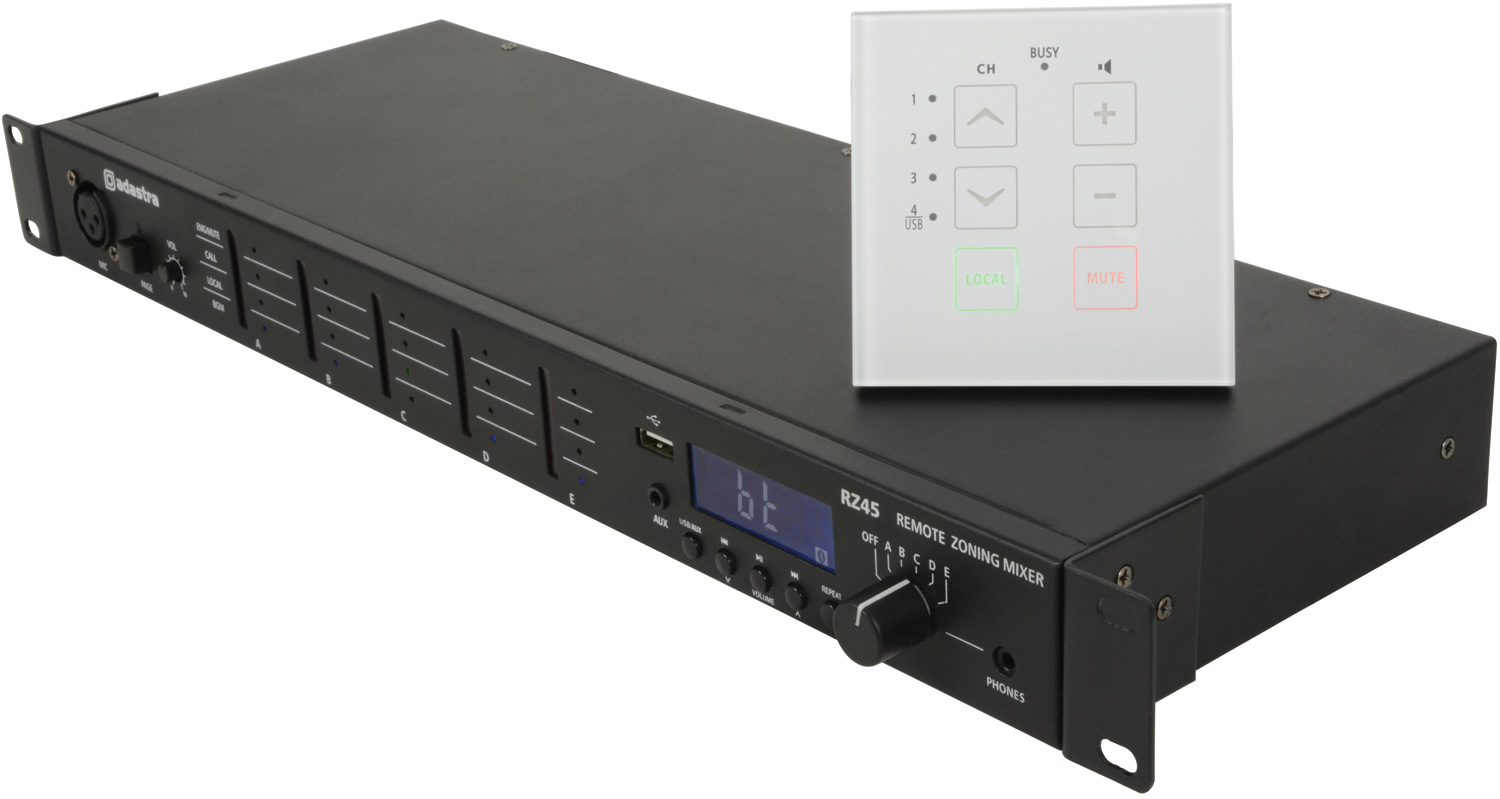

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.

  • Up to 5 remotely operated zones
  • Remote wiring via standard network type cable
  • 4 selectable input sources or local audio to any zone
  • Inbuilt USB/BT audio player
  • Emergency mute and audio in contacts
  • Supplied with one touch remote wall plate (expandable up to 5)
  • Bluetooth with programmable ID
  • Power supply 100-240Vac, 50/60Hz (IEC lead included)
  • Fuse T1AL
  • Audio source USB/Bluetooth media player
  • Bluetooth version v2.0

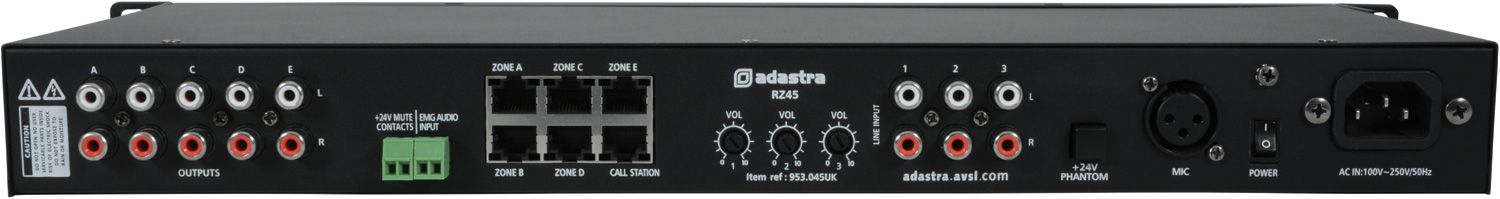

  • Inputs Paging mic. (XLR) + 3 x stereo line (RCA)
  • Microphone : input sensitivity -41dBV
  • Line input : sensitivity -12.5dBV
  • Call station input : sensitivity +4dBV
  • Emergency control 24V mute contacts and emergency audio input
  • EMG input: sensitivity -10dBV
  • Signal to noise ratio : mic 65dB
  • Signal to noise ratio : line 73dB
  • Outputs 5 x stereo zones (RCA)
  • Output impedance : line 600 ohms
  • THD +N <0.1% @ 1kHz
  • Monitor outputs Stereo 3.5mm headphone jack (assignable)
  • Phantom power +24V switchable for paging mic.

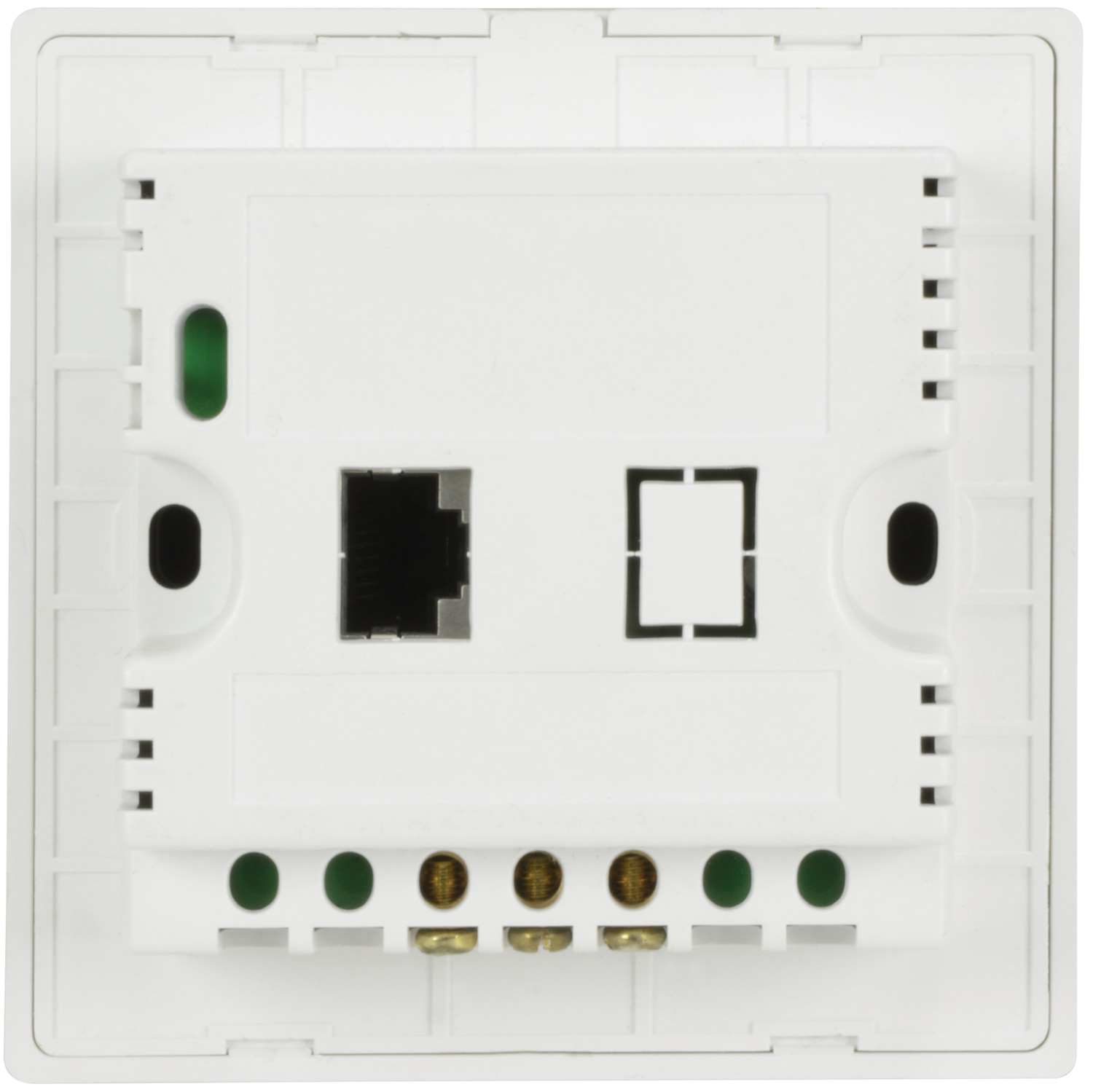

  • Remote control connection 8P8C (RJ45)
  • Frequency response : ±3dB 20Hz - 20kHz
  • Attenuation -30dB (paging)
  • Dimensions 483 x 177 x 44mm
  • Weight 1.76kg

Support : articles

Zoning Systems

Zoning systems are flexible sound systems that provide control for the sound that is delivered to different areas, called “zones”.

Friday, 28th February 2020

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

Wireless Audio

A description of various wireless technologies available to musicians, presenters and performers

Thursday, 2nd March 2023

In the box

The box for this item contains :

  • RZ45 remote zone audio matrix unit
  • TR86 remote touch panel
  • 8-core RJ45 remote panel lead
  • IEC mains power lead(s)

Videos

953.045UK - RZ45 Remote Zone Audio Matrix with Bluetooth®y

Downloads

Instruction manual
For 953.045UK (515KB)
UK Declaration of conformity
For 953.045UK (251KB)
EU Declaration of conformity
For 953.045UK (238KB)
