Mains Power Leads UK Plug - Hot IEC Plug 10A

114.061UK

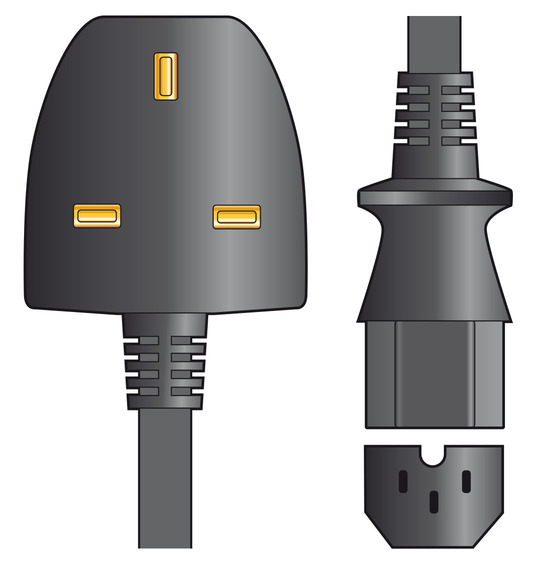

10A UK 3 pin plug to IEC C13 female plug, 3 core hot mains power lead, suitable for connecting electronic equipment with a heating filament or for use in a heated environment.

  • Heat resistant rubber coated for use up to 90°C
  • BSI 1363 approved plug fused at 10A
  • 3 core BSI approved rubber cable
Full description Find retailer
Description Version Packed
114.061UK
Mains Power Lead UK Plug - IEC Hot Plug 1.0m 		1.0m/Black Bag Sealed
114.063UK
Mains Power Lead UK Plug - IEC Hot Plug 2.0m 		2.0m/Black Bag Sealed

Mains Power Leads UK Plug - Hot IEC Plug 10A

10A UK 3 pin plug to IEC C13 female plug, 3 core hot mains power lead, suitable for connecting electronic equipment with a heating filament or for use in a heated environment.

  • Heat resistant rubber coated for use up to 90°C
  • BSI 1363 approved plug fused at 10A
  • 3 core BSI approved rubber cable
  • Suitable for appliances rated up to 2300W
  • Max. current 10A
  • Max. power 2300W
  • Colour Black
  • Cable : specification 3 x 0.75mmØ

Versions

  114.061UK 114.063UK
Length 1.0m 2.0m
Weight 149g 216g

Downloads

UK Declaration of conformity
For 114.061UK (244KB)
EU Declaration of conformity
For 114.061UK (234KB)
