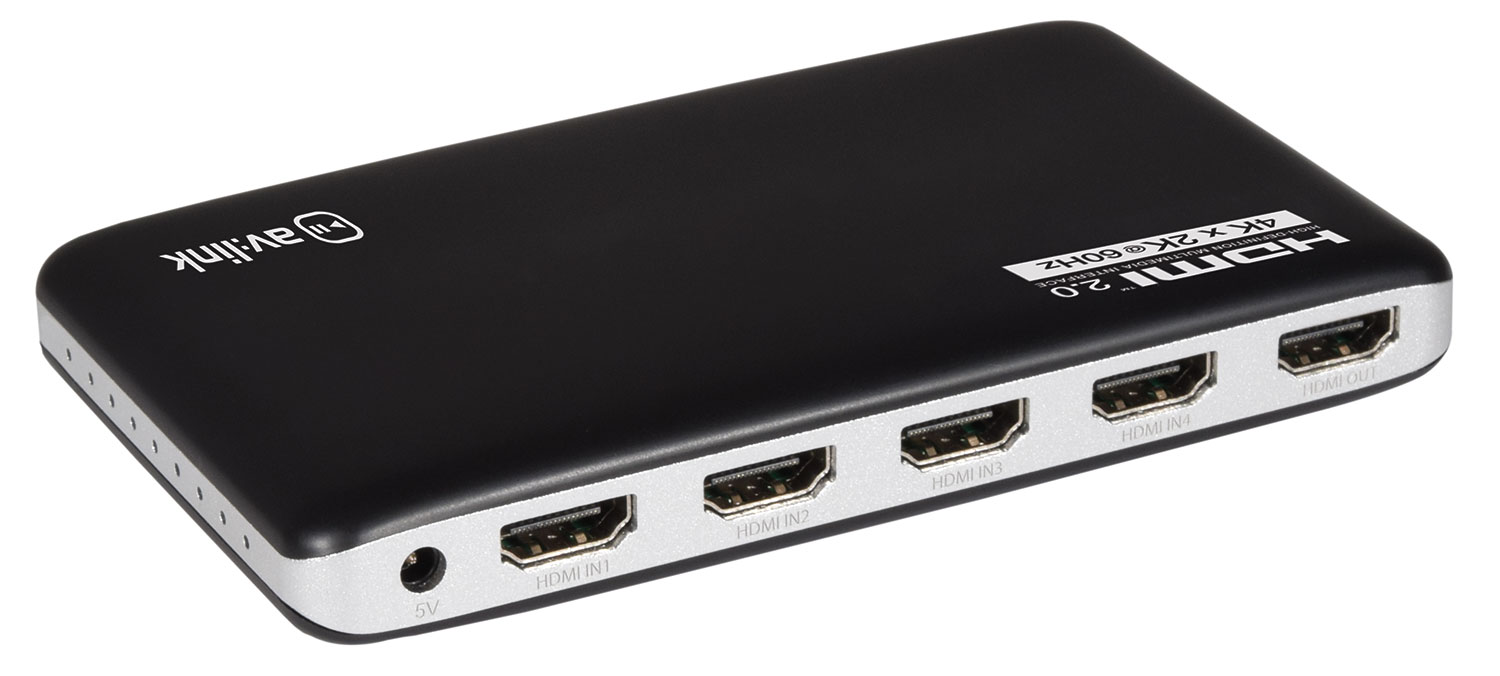

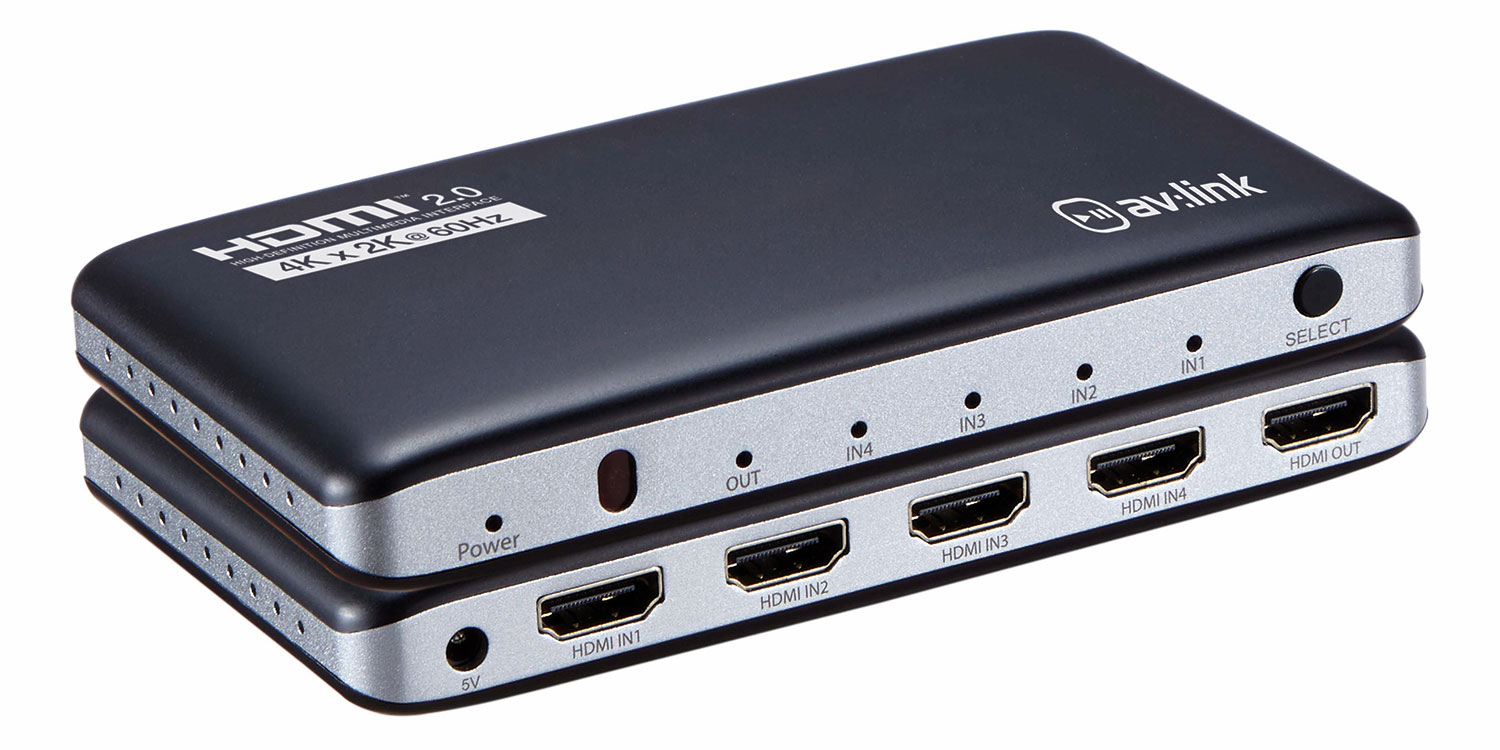

4K HDMI 2.0 Switch with Remote Control

128.842UK HDM41v2.0

Stylish, slimline HDMI switches that allow a single display to be connected to multiple HDMI sources and selected using the IR remote control or button on the unit. Gold plated connections ensure o...

  • Supports HDMI v2.0 resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
  • Sleek, modern design with tough plastic and metal chassis
  • Gold plated HDMI connections for optimum signal transfer
Description Version Packed
128.841UK
HDMI V2.0 4K Switch 3x1
3x1 Gift Box
128.842UK
HDMI V2.0 4K Switch 4x1
4x1 Gift Box

4K HDMI 2.0 Switch with Remote Control

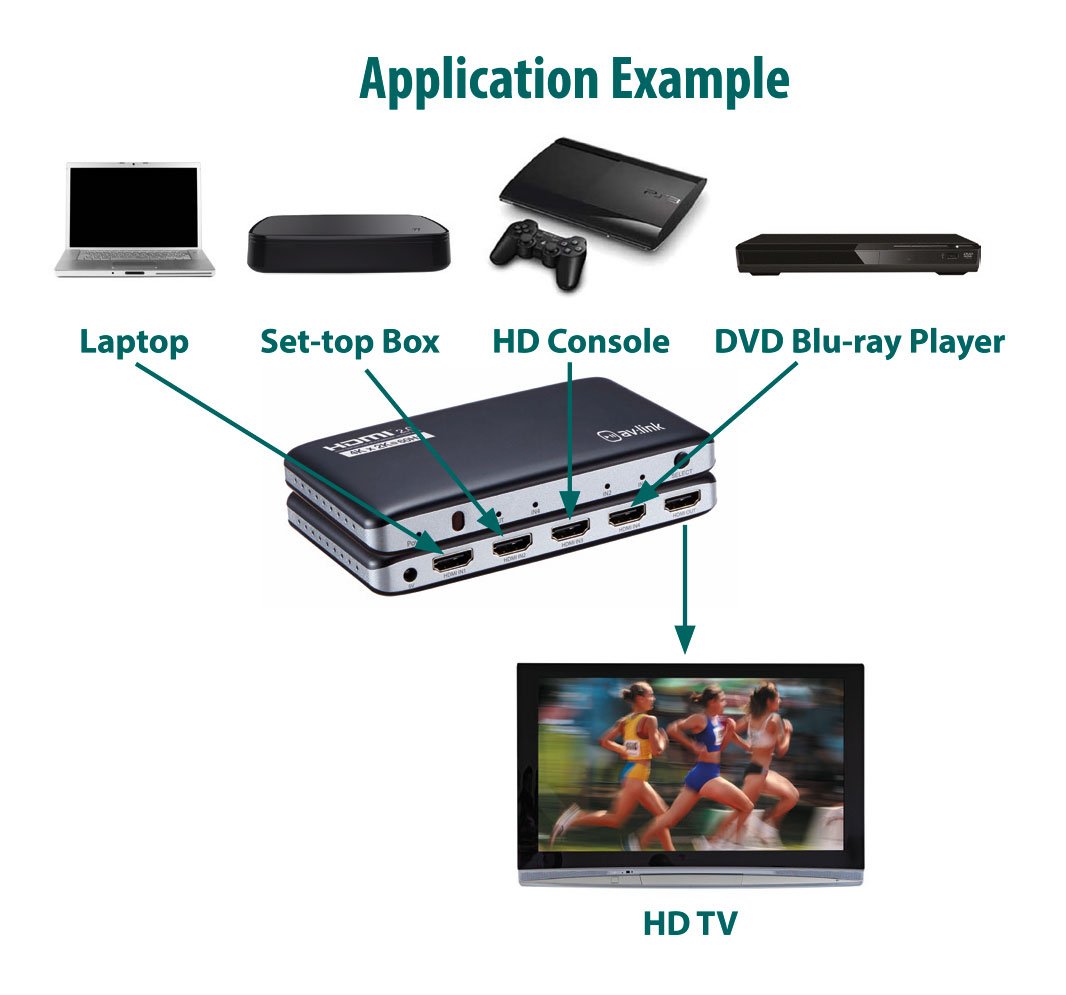

Stylish, slimline HDMI switches that allow a single display to be connected to multiple HDMI sources and selected using the IR remote control or button on the unit. Gold plated connections ensure optimum signal transfer and the LEDs on the front of the unit inform you as to which of the inputs are live at any one time. This updated version has a smart switching function and will support HDMI v2.0 signals, compatible with the latest 4K digital TV boxes producing 3840 x 2160 @ 60Hz resolutions.

  • Supports HDMI v2.0 resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
  • Sleek, modern design with tough plastic and metal chassis
  • Gold plated HDMI connections for optimum signal transfer
  • Smart switching function, automatically switches to latest live input
  • Supports DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD audio formats

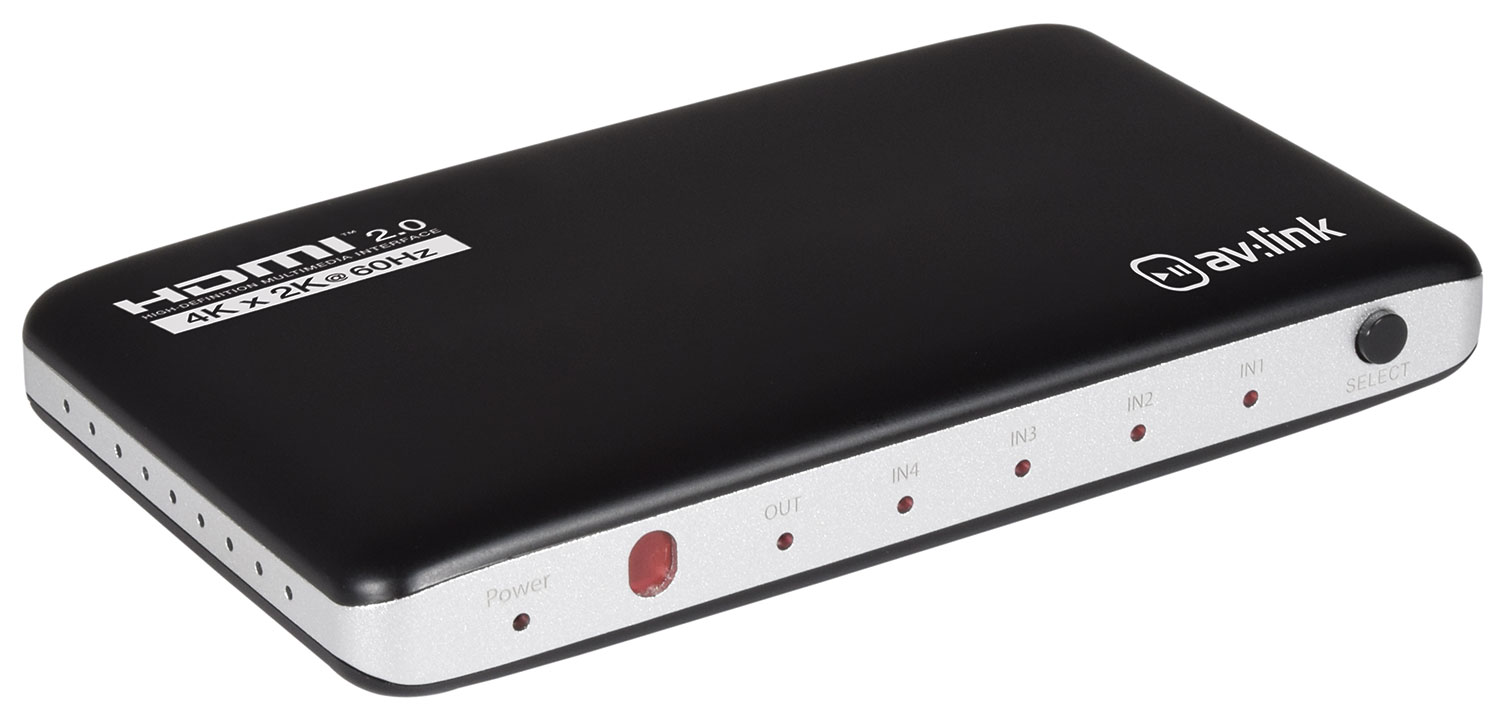

  • Front LEDs indicate power and live inputs
  • Supplied with IR remote control and UK mains adaptor
  • HDMI version v2.0b
  • Video resolution Up to 3840 x 2160 @ 60Hz
  • Display colours 24/30/36 bit deep colour
  • Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
  • Max. bandwidth 600MHz
  • Max. working current 350mA
  • Transmission distance 16m max 4K @ 30Hz and FHD or 8m max 4K @ 60Hz
  • Operating temperature range -15°C to +55°C
  • Battery : remote CR2025 (supplied)
  • Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A

Versions

  128.841UK 128.842UK
Input connections 3x HDMI 4x HDMI
Max. baud rate 6x3Gbps 6Gbps
Dimensions 102 x 79 x 22mm 136 x 80 x 22mm
Weight 90g 118g

In the box

The box for this item contains :

  • 4K HDMI switch

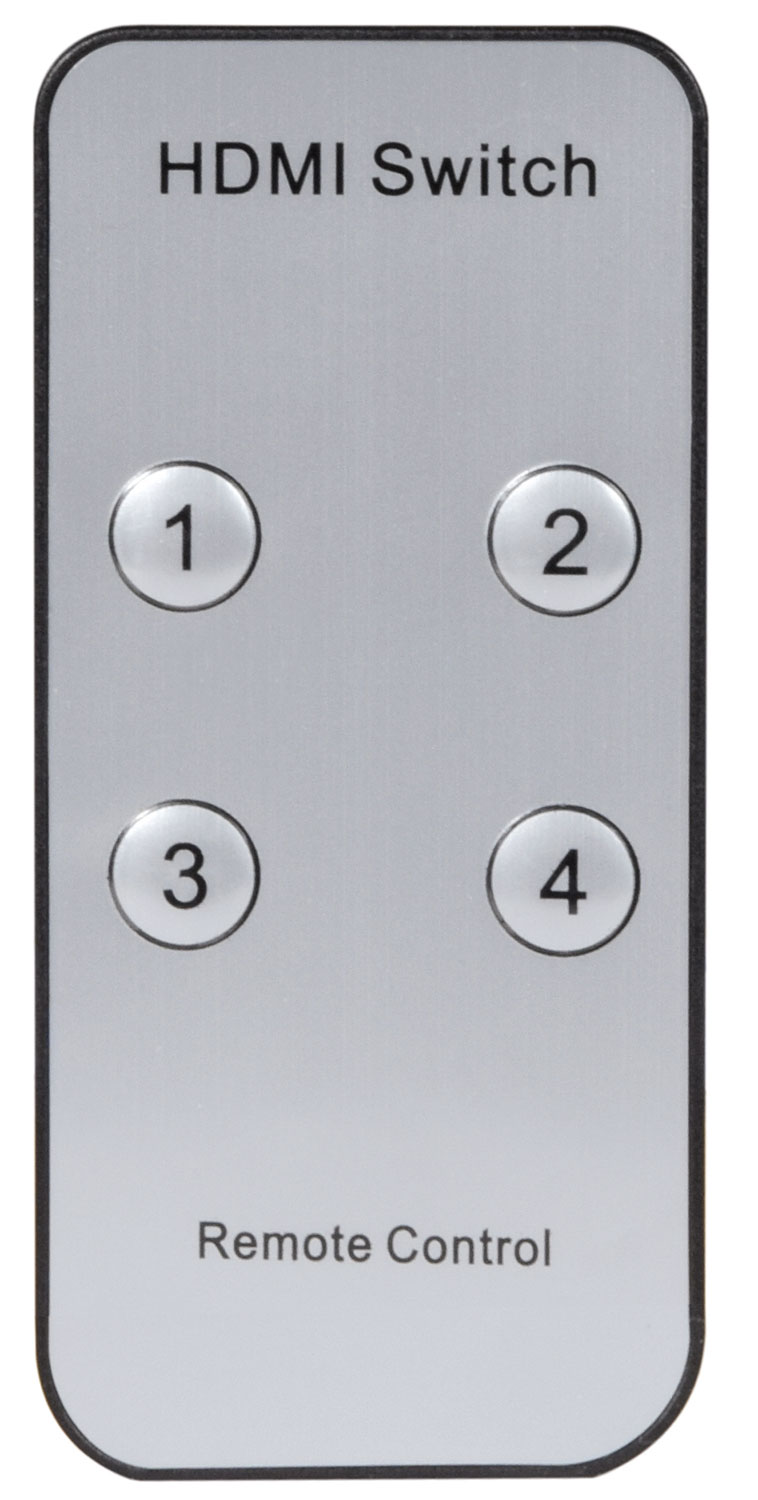

  • IR remote control
  • UK power adaptor
  • User guide

Downloads

Instruction manual
For 128.842UK (198KB)
UK Declaration of conformity
For 128.842UK (246KB)
EU Declaration of conformity
For 128.842UK (236KB)
