12-24V RGB DMX Controller 3x8A

153.777UK

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGB LED tape. This model can drive 8A/channel and it simply assigns a co...

  • 3 channel DMX control for RGB colour mixing
  • 256 levels of brightness
  • Up to 8A output per channel
Description Version Packed
153.777UK
12-24V RGB DMX Controller
RGB 3x8A Box Label

12-24V RGB DMX Controller 3x8A

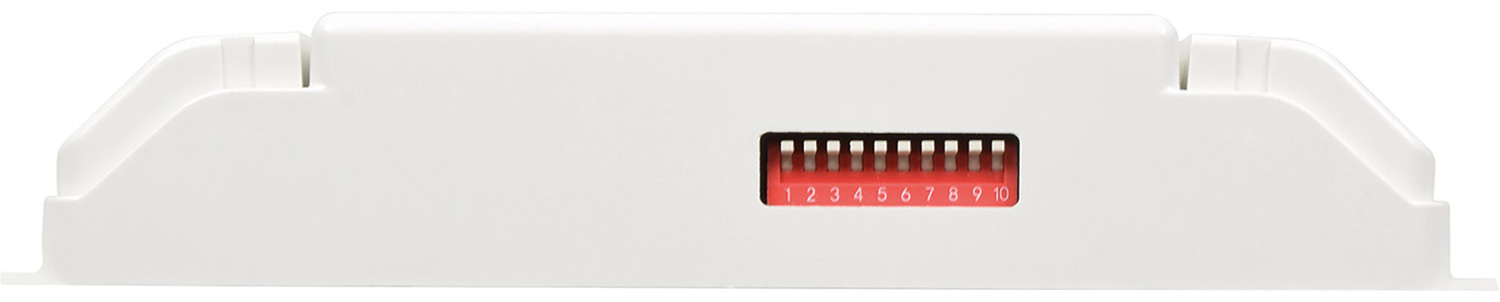

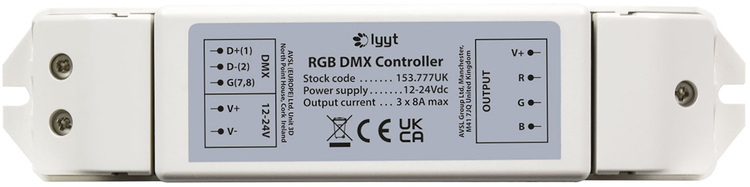

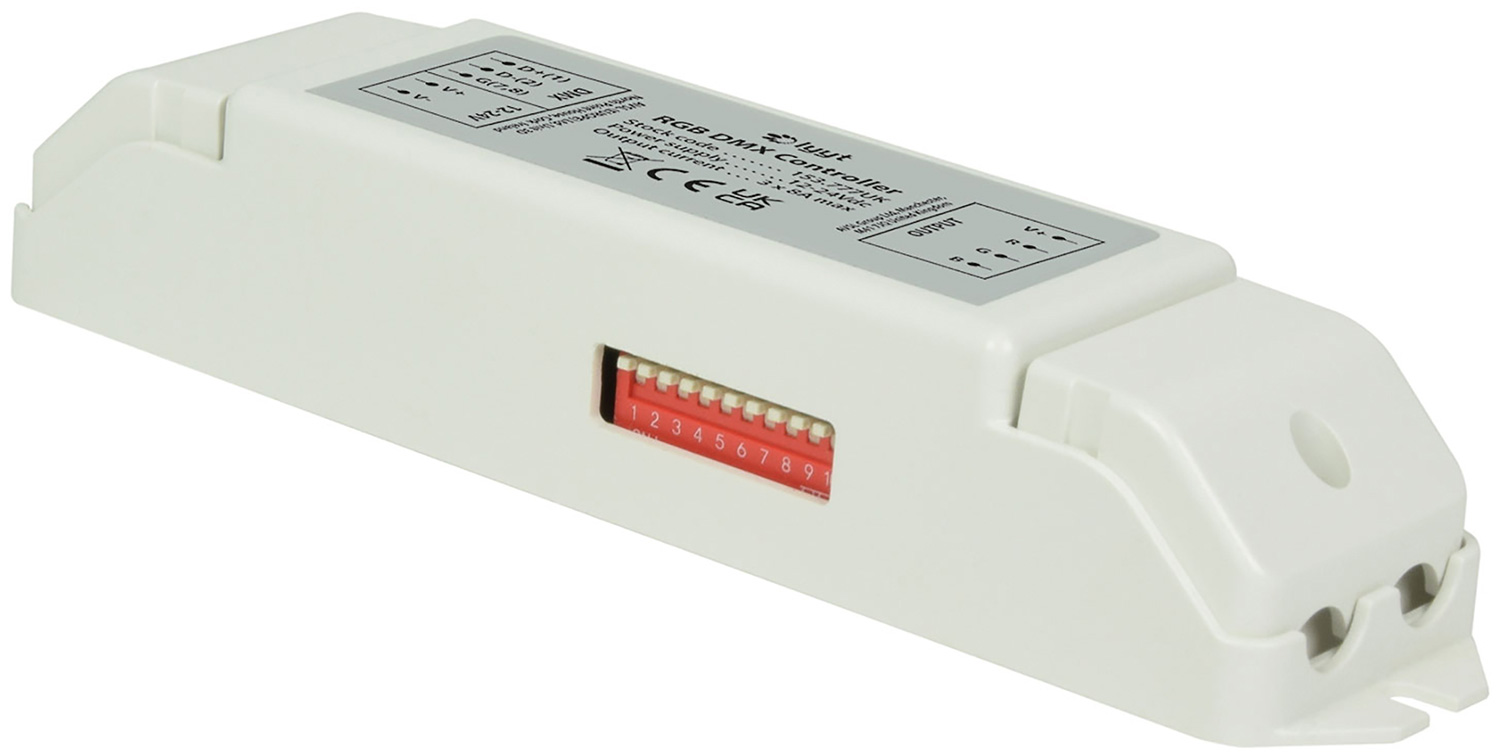

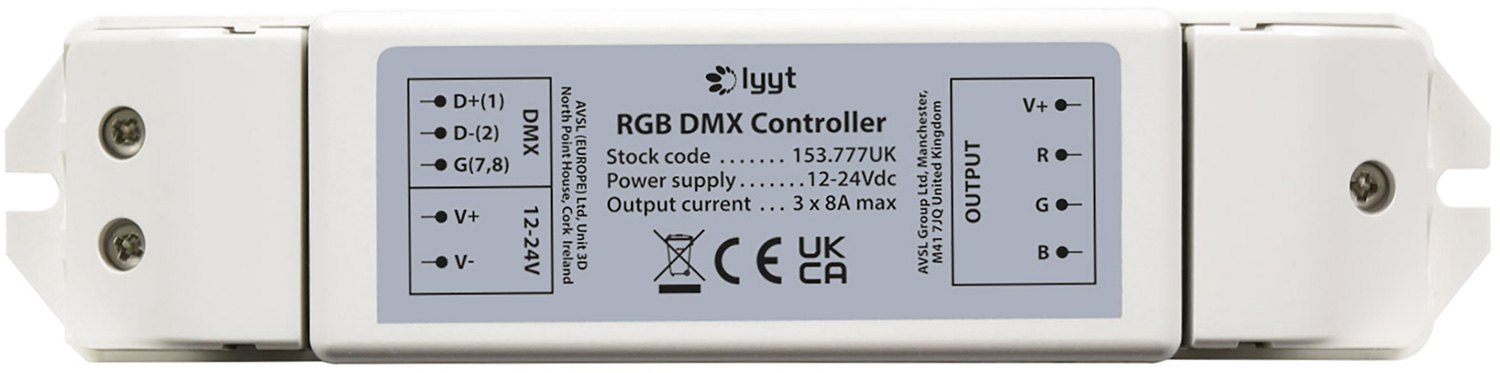

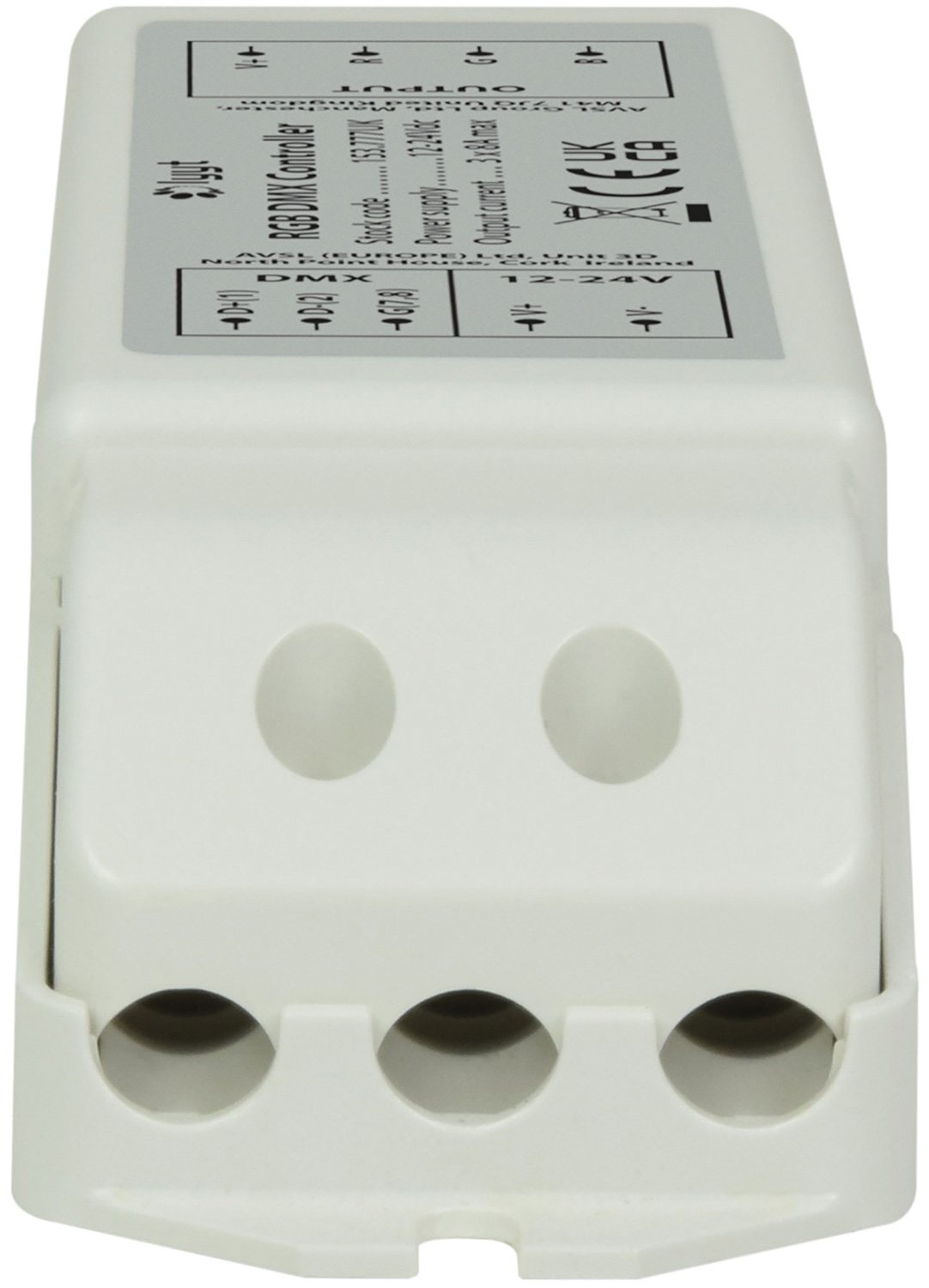

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGB LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 3 channel DMX control of Red, Green and Blue output

  • 3 channel DMX control for RGB colour mixing
  • 256 levels of brightness
  • Up to 8A output per channel
  • 12V or 24V operation
  • Screw terminal DMX input
  • Power supply 12-24Vdc
  • Power : max. ?288W/12V?576W/24V
  • Current consumption 24A max.
  • DMX channels 3
  • Output current 3 x 8A max.
  • Power connection Screw terminals
  • Output Blue, Red, Green, V+
  • Working temperature -20?50?
  • IP rating IP20
  • Dimensions 170 x 30 x 40mm
  • Weight 92g

In the box

The box for this item contains :

  • RGB DMX Controller

Downloads

UK Declaration of conformity
For 153.777UK (248KB)
EU Declaration of conformity
For 153.777UK (236KB)
