CSM Compact Mixers With USB / Bluetooth
170.871UK
CSM-4
Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V ph...
- Integral USB multi-format audio player
- BT wireless connectivity
- Digital delay effect for vocals or instruments
CSM Compact Mixers With USB / Bluetooth

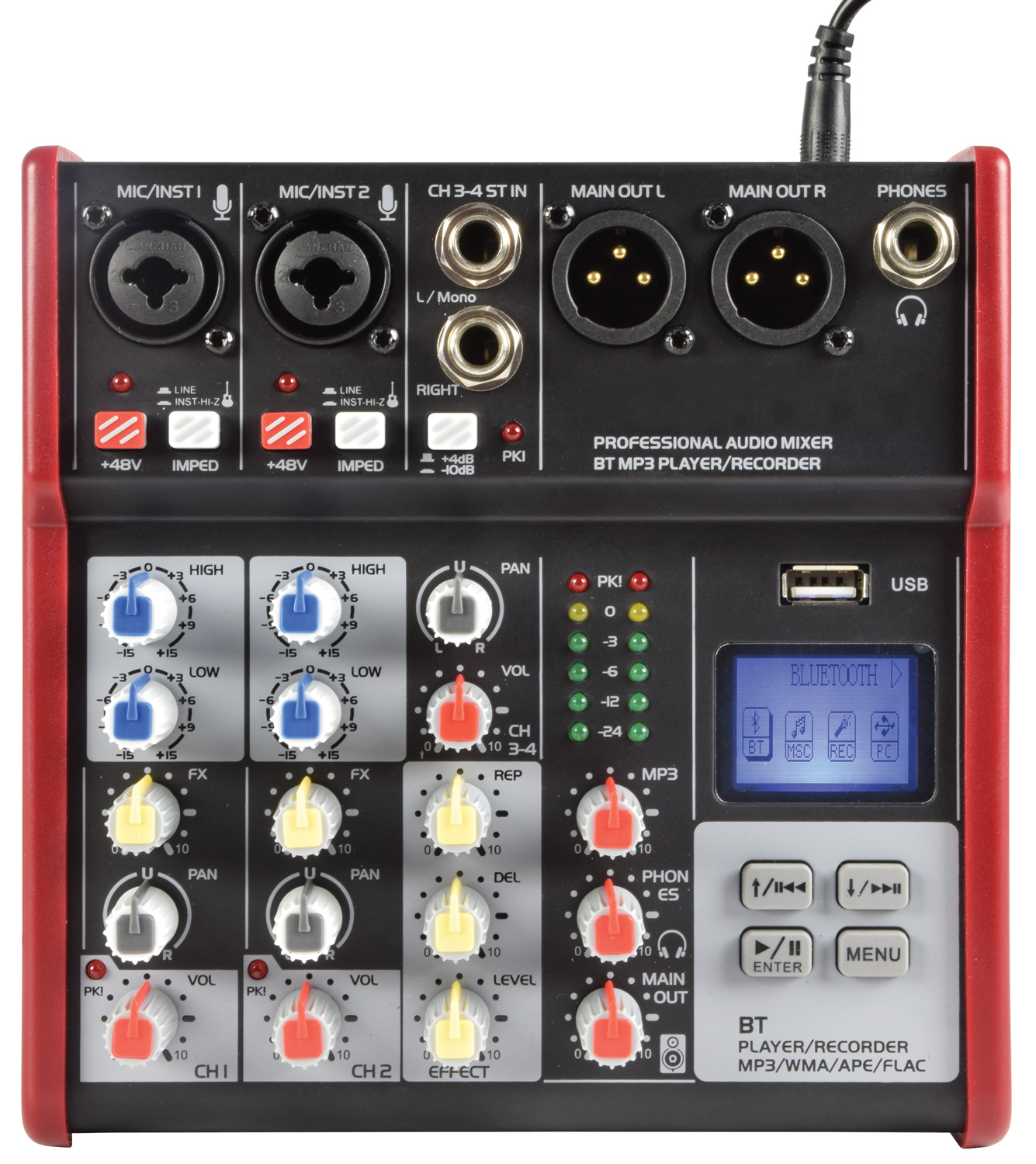

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
- Integral USB multi-format audio player
- BT wireless connectivity
- Digital delay effect for vocals or instruments
- Individually switchable +48V phantom power
- Built in record function
- Supplied with DC power adaptor
Specification : Common

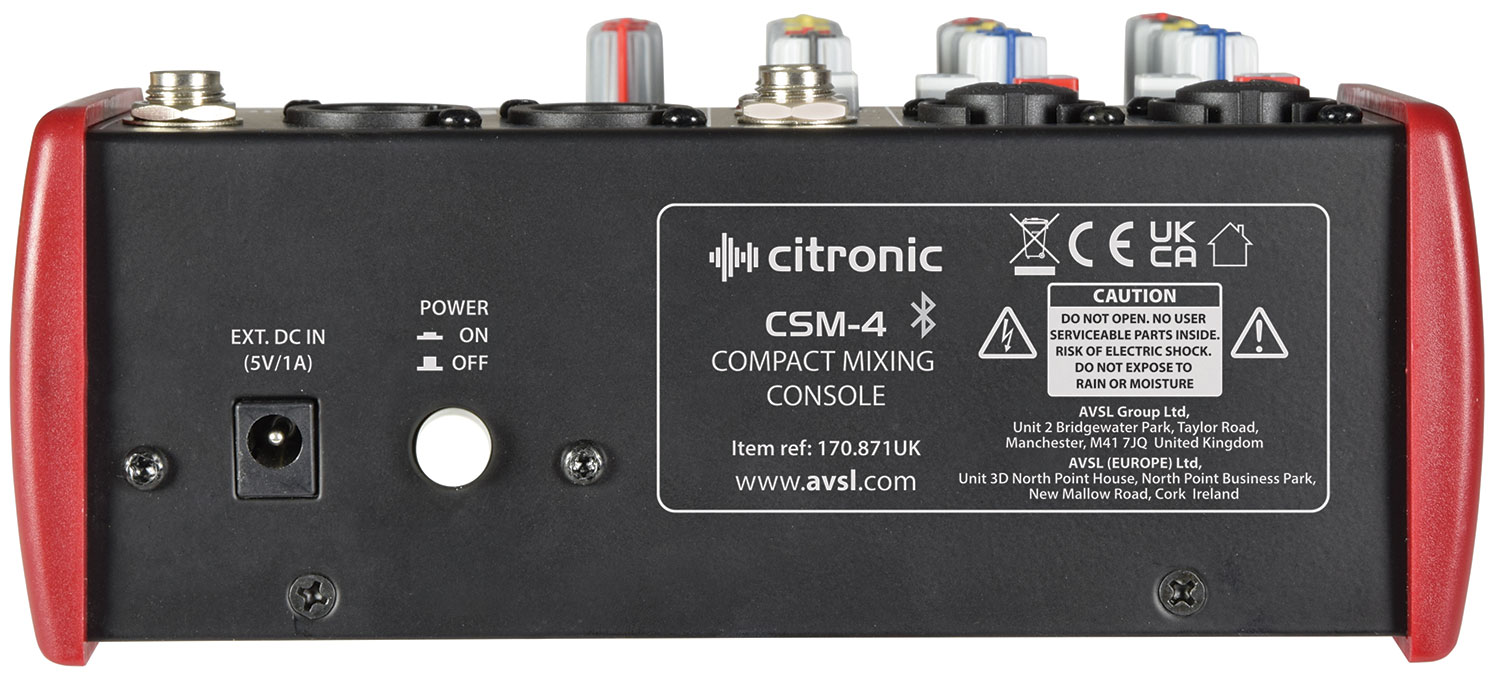

- Power supply 5Vdc 1A (adaptor included)
- Power consumption max. 5W
- Gain -14 to +40dB
- EQ: low ±15dB @ 80Hz
- EQ: high ±15dB @ 12kHz
- Phantom power +48V individually switchable (XLR inputs only)
- Input impedance : mic 2k Ohms
- Input impedance : instrument 1M Ohms
- Input impedance : line 20k Ohms
- Audio source Internal USB player/recorder & BT receiver
- Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
- Bluetooth version 2.1 + EDR
- Frequency response 20Hz - 20kHz (±0.5B)
- THD +N <0.03% @ 1kHz
- Dynamic range 102dB
- Crosstalk : stereo 92dB
- Output Left + Right balanced XLR
- Output impedance 120 Ohms
- Max. output level 3Vrms
Specification : Versions
| 170.871UK | 170.872UK | 170.873UK | |
|---|---|---|---|
| Inputs | 2 x combo XLR/jack + stereo jack | 4 x combo XLR/jack + stereo jack | 6 x combo XLR/jack + stereo jack |

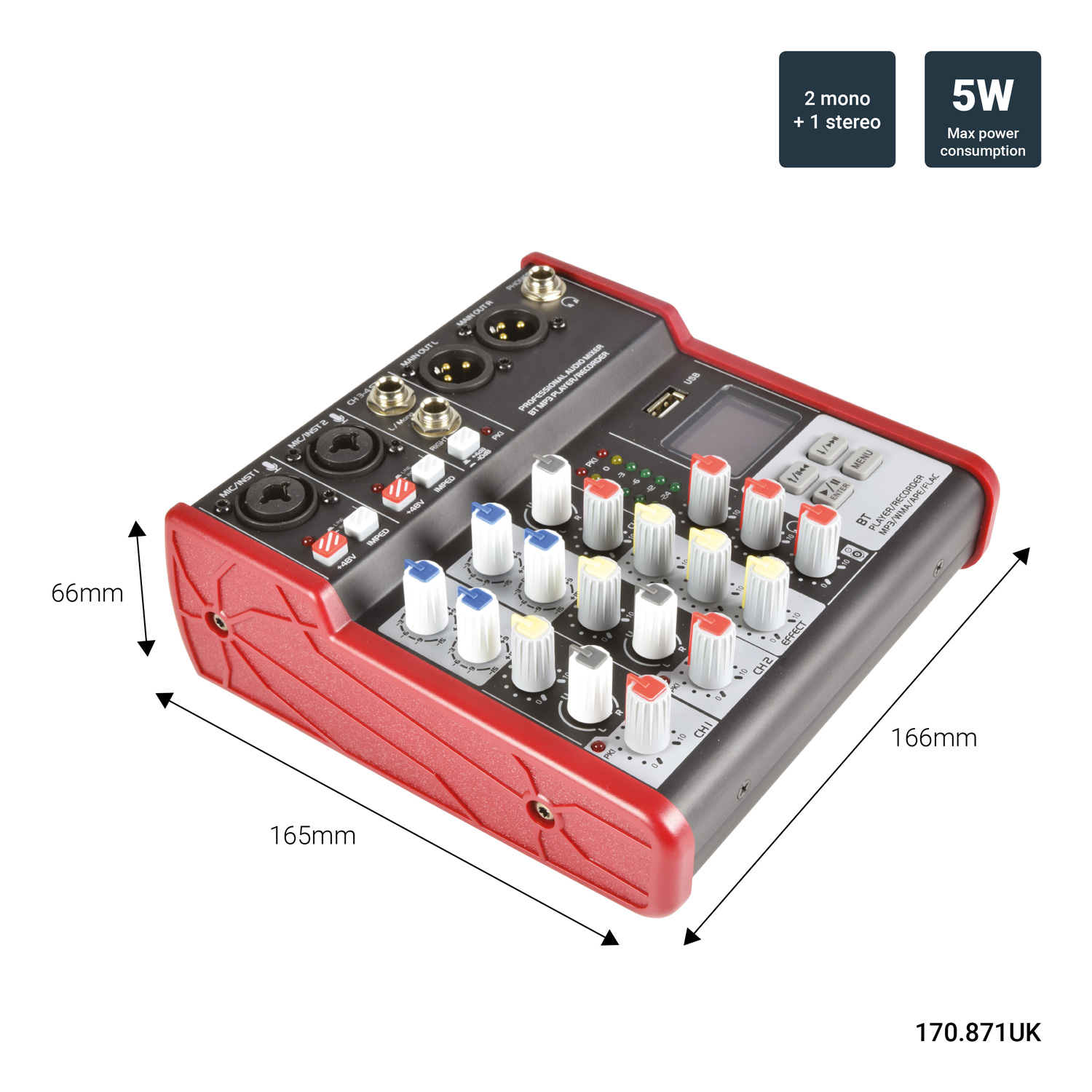

| Dimensions | 166 x 165 x 66mm | 220 x 165 x 66mm | 274 x 165 x 66mm |
| Weight | 0.89kg | 1.17kg | 1.45kg |
Trade information
| 170.871UK | 170.872UK | 170.873UK | |
|---|---|---|---|
| Barcode / EAN | 5015972207093 | 5015972207109 | 5015972210185 |
| Tariff code | 8519890000 | 8519890000 | 8519890000 |
| Country of Origin | CN | CN | CN |
| Package type | Box Printed | Box Printed | Box Printed |
| Package dimensions | 208 x 300 x 87mm | 208 x 345 x 87mm | 208 x 390 x 87mm |
| Package weight | 1.21kg | 1.52kg | 1.83kg |
| Package quantity | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 445 x 465 x 320mm | 445 x 465 x 365mm | 425 x 400 x 400mm |
| Carton weight | 14.00kg | 13.00kg | 15.50kg |
| Carton quantity | 10 packages | 8 packages | 8 packages |
| Pack paper weight | 0.18kg | 0.19kg | 0.22kg |
| Pack plastic weight | 0.05kg | 0.06kg | 0.07kg |
In the box
The box for this item contains :
- CSM series compact mixer
- 5Vdc power adaptor
