CSM Compact Mixers With USB / Bluetooth

170.873UK CSM-8

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V ph...

  • Integral USB multi-format audio player
  • BT wireless connectivity
  • Digital delay effect for vocals or instruments
Description Version Packed
170.871UK
CSM-4 Mixer with USB / Bluetooth Player
2 mono + 1 stereo Box Printed
170.872UK
CSM-6 Mixer with USB / Bluetooth Player
4 mono + 1 stereo Box Printed
170.873UK

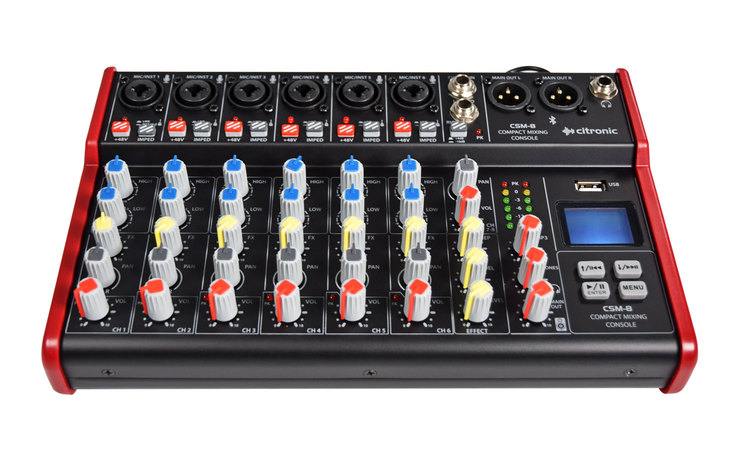

CSM-8 Mixer with USB / Bluetooth Player
6 mono + 1 stereo Box Printed

CSM Compact Mixers With USB / Bluetooth

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • Integral USB multi-format audio player
  • BT wireless connectivity
  • Digital delay effect for vocals or instruments
  • Individually switchable +48V phantom power
  • Built in record function
  • Supplied with DC power adaptor
  • Power supply 5Vdc 1A (adaptor included)
  • Phantom power +48V individually switchable (XLR inputs only)
  • Audio source Internal USB player/recorder & BT receiver
  • Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
  • Power consumption max. 5W
  • Gain -14 to +40dB
  • EQ: low ±15dB @ 80Hz
  • EQ: high ±15dB @ 12kHz
  • Input impedance : mic 2k Ohms
  • Input impedance : instrument 1M Ohms
  • Input impedance : line 20k Ohms
  • Bluetooth version 2.1 + EDR
  • Frequency response 20Hz - 20kHz (±0.5B)
  • THD +N <0.03% @ 1kHz
  • Dynamic range 102dB
  • Crosstalk : stereo 92dB

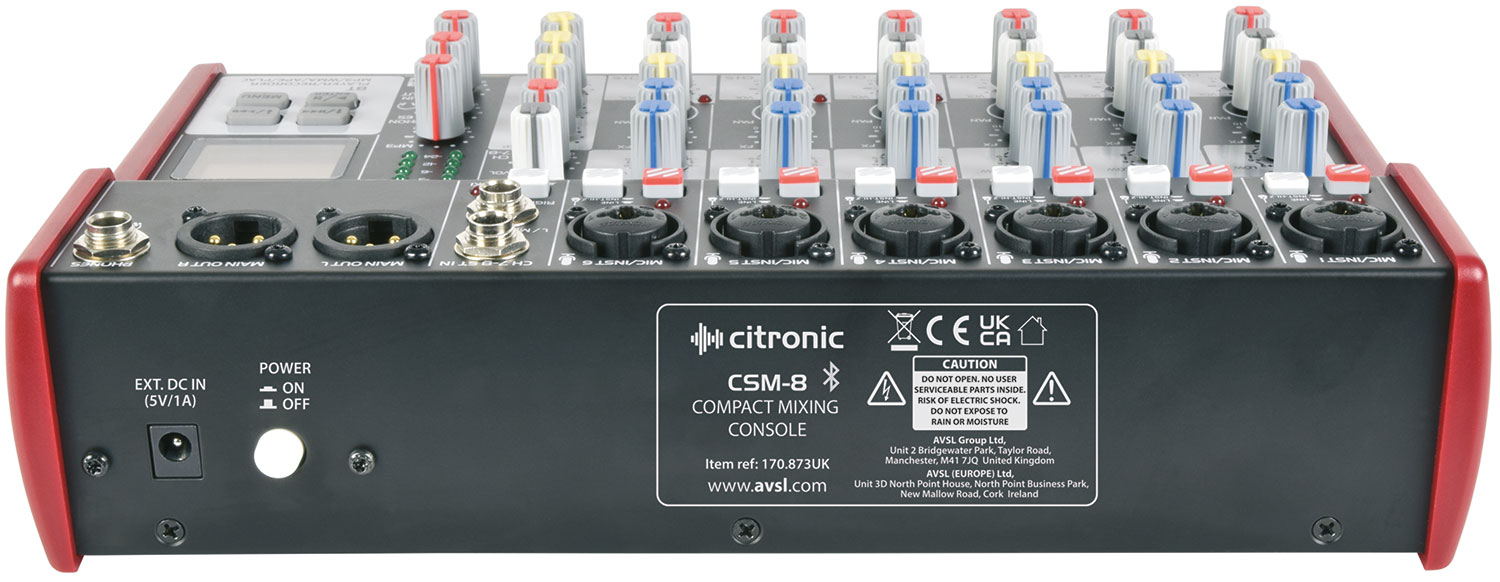

  • Output Left + Right balanced XLR
  • Output impedance 120 Ohms
  • Max. output level 3Vrms

Versions

  170.871UK 170.872UK 170.873UK
Inputs 2 x combo XLR/jack + stereo jack 4 x combo XLR/jack + stereo jack 6 x combo XLR/jack + stereo jack
Dimensions 166 x 165 x 66mm 220 x 165 x 66mm 274 x 165 x 66mm
Weight 0.89kg 1.17kg 1.45kg

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

In the box

The box for this item contains :

  • CSM series compact mixer
  • 5Vdc power adaptor

Downloads

Instruction manual
For 170.873UK (683KB)
UK Declaration of conformity
For 170.873UK (247KB)
EU Declaration of conformity
For 170.873UK (239KB)
