Busker PA with VHF Mics & Media Player
178.868UK
BUSKER-15
Complete portable PA unit in a sturdy cabinet with front mounted control panel. The built-in amplifier operates from mains or internal rechargeable battery to power a main driver and compression dr...
- Built-in trolley
- Integral USB/SD media player with FM tuner
- Bluetooth connectivity
- Internal rechargeable battery
- Built-in VHF microphone(s)
| Description | |
|---|---|
|
178.864UK
Busker-10 PA + 1 x VHF mics + USB/SD/FM/BT |
|
178.866UK
Busker-12 PA + 2 x VHF mics + USB/SD/FM/BT |
|
178.868UK
Busker-15 PA + 2 x VHF mics + USB/SD/FM/BT |
Accessories
| Description | |
|---|---|
|
178.871UK
Headset for Busker, Quest & PAL - 174.1MHz |
|
178.873UK
Handheld for Busker, Quest & PAL portable PA - 174.1MHz |
|
178.872UK
Headset for Busker, Quest & PAL - 175.0MHz |
|
178.874UK
Handheld for Busker, Quest & PAL portable PA - 175.0MHz |
Busker PA with VHF Mics & Media Player
Complete portable PA unit in a sturdy cabinet with front mounted control panel. The built-in amplifier operates from mains or internal rechargeable battery to power a main driver and compression driven horn unit. Handheld VHF microphones are included (1 for Busker-10 or 2 for Busker-12/15) with 2 further wired mic inputs at the rear, auxiliary line input, musical instrument input and B/T wireless receiver. Internal audio source is provided by an integral USB/SD/FM media player. The cabinet is fitted with a carrying handle and 35mm pole mount and a retractable trolley handle and rear wheels provide easy portability.
- VHF handheld microphones included
- Echo effect for microphones
- Integral USB/SD/FM media player
- B/T wireless pairing

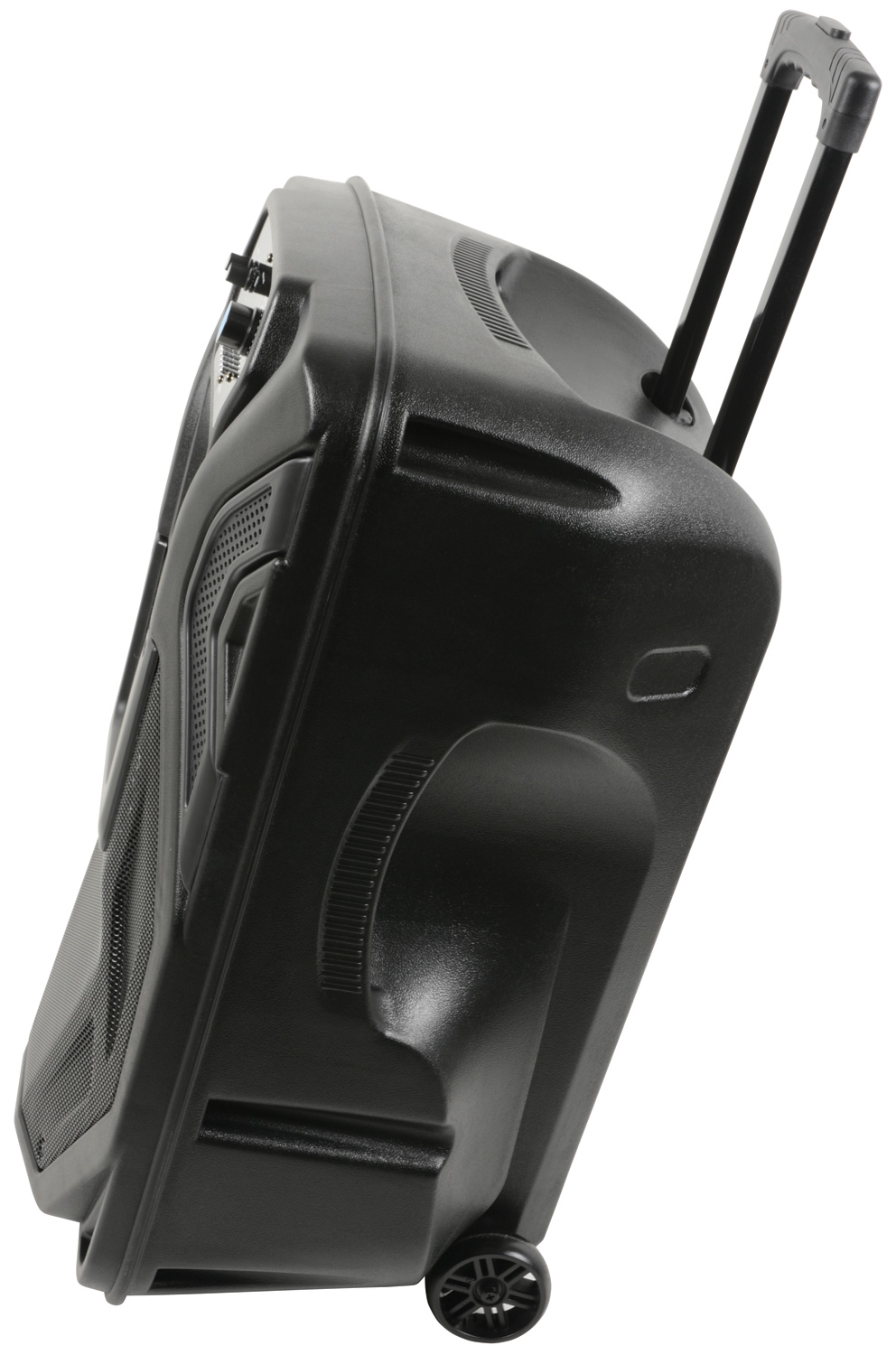

- Built-in trolley facility with retractable handle
- Integral carry handles and 35mm pole mount socket
- Switchable Microphone 'voice-over' Function
- Power supply 230Vac, 50Hz (IEC), 12Vdc or internal battery
- Impedance : loudspeaker 4 Ohms
- HF driver : type Compression driver
- Battery life Up to 6 hours
- Recharge time 8 hours
- Controls : front panel VHF mic volume(s), Media volume, Media transport controls

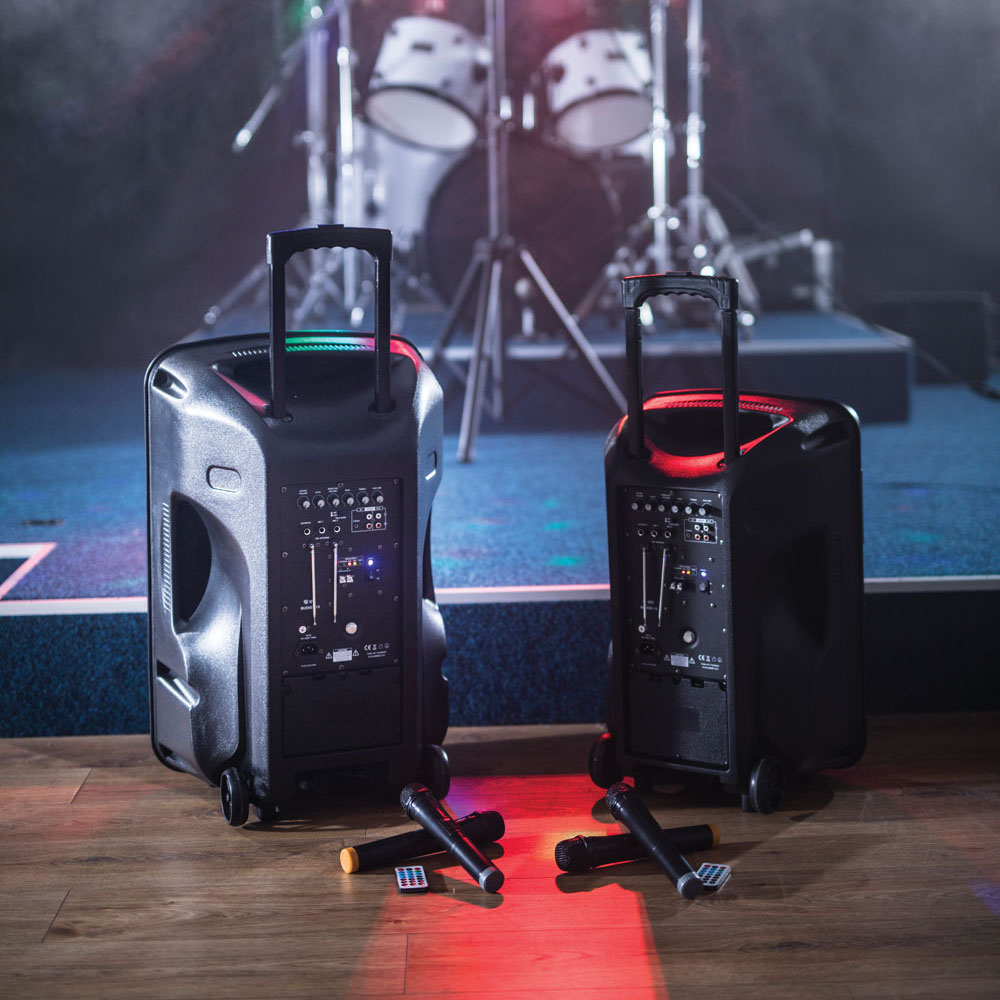

- Controls : rear panel Guitar volume, Echo, Wired mic volume, Bass, Treble, Master
- Inputs Wired mic (jack), Guitar (jack), Aux (RCA & mini jack)
- Line output RCA
- B/T wireless version 2.3
Versions
| 178.864UK | 178.866UK | 178.868UK | |
|---|---|---|---|
| Power : output | 60W | 80W | 100W |
| Frequency response | 50Hz - 18kHz | 50Hz - 16kHz | 50Hz - 16kHz |
| SPL @ 1W/1m | 92dB | 94dB | 96dB |
| Main driver | 250mmØ (10") | 300mmØ (12") | 380mmØ (15") |
| Wireless microphone frequencies | 174.1MHz | 174.1MHz + 175.0MHz | 174.1MHz + 175.0MHz |
| Dimensions | 525 x 330 x 290mm | 590 x 375 x 325mm | 720 x 470 x 450mm |
| Weight | 9.45kg | 12.00kg | 14.50kg |
| Battery type | 12V 4.5Ah rechargeable sealed lead-acid | 12V 7Ah rechargeable sealed lead-acid | 12V 7Ah rechargeable sealed lead-acid |
Support : articles
In the box
The box for this item contains :
- Busker portable PA unit
- Mains IEC lead
- Handheld VHF microphones
