Classic Audio Lead 3.5mm Stereo Jack Plug - 6.3mm Mono Jack Plug
190.231UK
MP3-JK
A durable, high quality, shielded audio lead; ideal for connecting an mp3 player, smartphone, tablet or laptop to a mixer or active speaker. Left and right signals are summed to mono. Features pro...
- Sums left & right signals to mono
| Description | |
|---|---|
|
190.231UK
Classic Audio Lead 3.5mm Jack - 6.3mm Jack 1.5m |

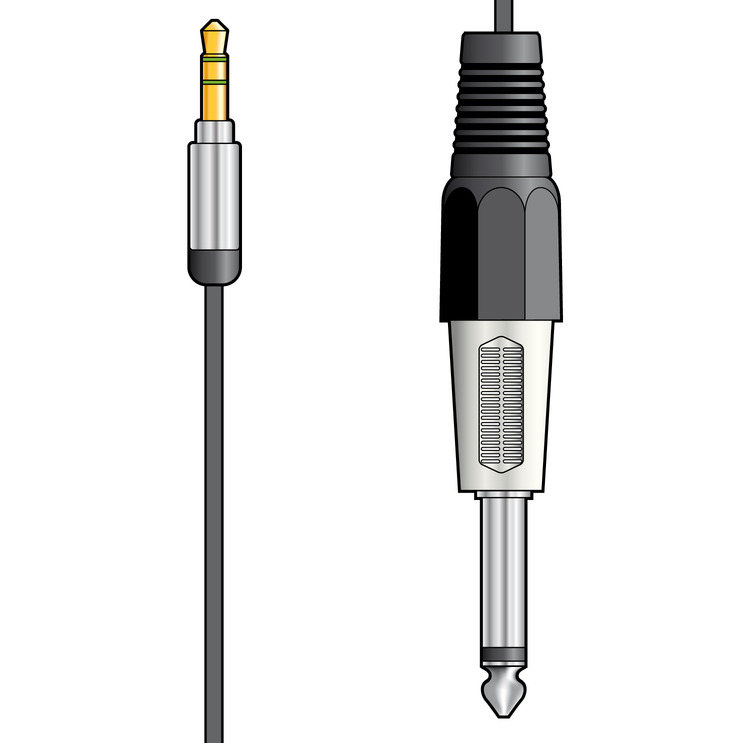

Classic Audio Lead 3.5mm Stereo Jack Plug - 6.3mm Mono Jack Plug
A durable, high quality, shielded audio lead; ideal for connecting an mp3 player, smartphone, tablet or laptop to a mixer or active speaker. Left and right signals are summed to mono. Features pro quality, die-cast 6.3mm mono jack and 3.5mm stereo jack plugs for exceptional sound and reliability. Made with high-grade cable; pure copper conductors and cotton-reinforcement; soft-grip, anti-tangle, rubberised jacket; and machine-soldered connections.
- Sums left & right signals to mono
- Cable : diameter 3.5mmØ
- Conductors centre - 10 x 0.1mmØ Cu
- Conductors shielding - 28 x 0.1mmØ Cu
- Cable : length 1.5m
- Pin-out Tip + Ring summed to mono
Versions
| 190.231UK | |
|---|---|
| Connectors | 3.5mm stereo jack to 6.3mm mono jack |
