Economy Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid

808.127UK

75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and b...

  • Solid CCS conductor
  • Foam filled PE dielectric
  • Binded aluminium screen
Description Version Packed
808.127UK
Eco Twin RG6 Foamed PE Coaxial Cable with Al Braid - 100m Black
Black 100m Reel
808.128UK
Eco Twin RG6 Foamed PE Coaxial Cable with Al Braid - 100m White
White 100m Reel
808.129UK
Eco Twin RG6 Foamed PE Coaxial Cable with Al Braid - 250m Black
Black 250m Reel

Economy Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid

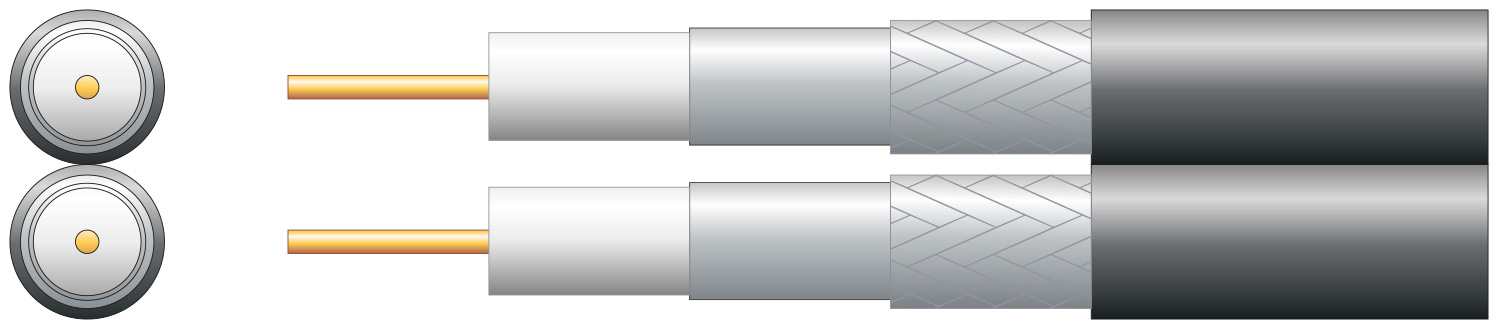

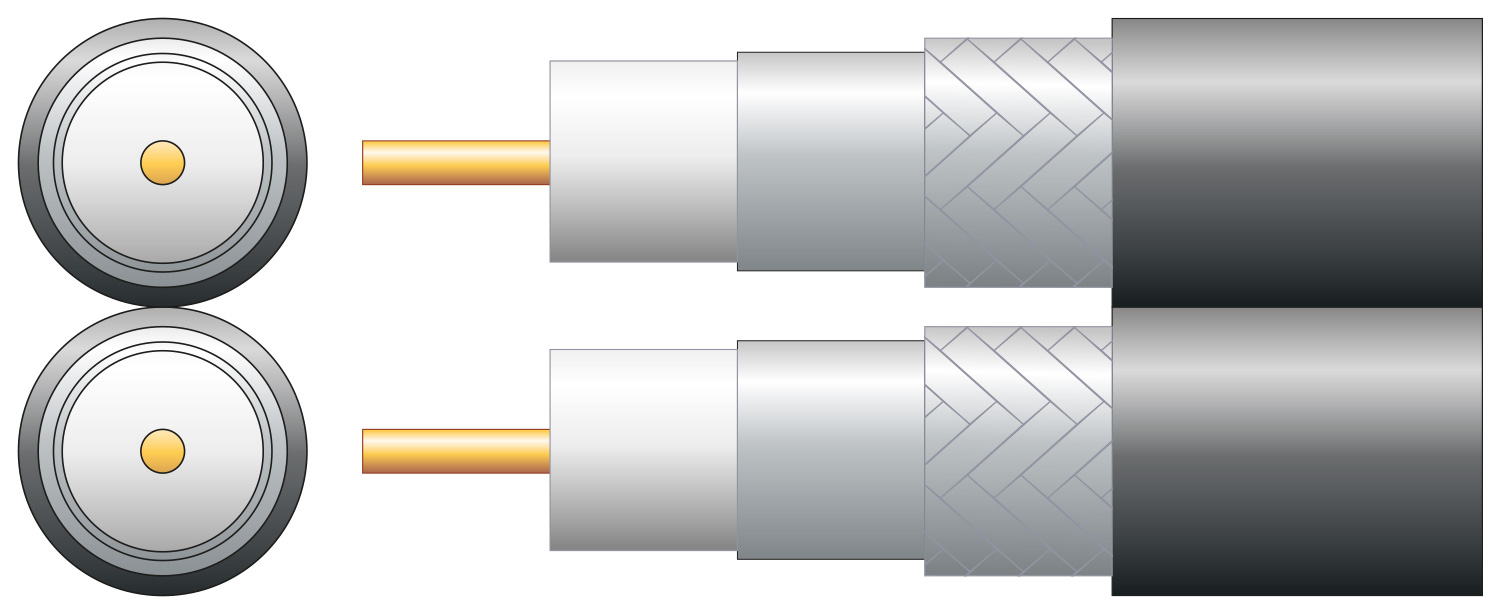

75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.

  • Solid CCS conductor
  • Foam filled PE dielectric
  • Binded aluminium screen
  • Aluminium braid
  • Supplied in 100m or 250m reel with metric cut markers
  • CSA 2 x 0.79mm²
  • Conductor diameter 2 x 1mmØ
  • Conductor material Solid CCS
  • Braid 2 x 64/0.12mmØ
  • Braid material Aluminium
  • Screen Aluminium / PET foil
  • Dielectric 4.6mmØ foam PE
  • Cable : diameter 2 x 6.6mmØ
  • Impedance 75 Ohms
  • Capacitance 54pF/m
  • Velocity factor 83%
  • Return loss 5-400MHz 24dB min./100m
  • Return loss 450-1000MHz 20dB min./100m
  • Return loss 1000-2150MHz 16dB min./100m
  • Attenuation @ 5MHz 2.8dB max./100m
  • Attenuation @ 50MHz 5.1dB max./100m
  • Attenuation @ 100MHz 6.9dB max./100m
  • Attenuation @ 200MHz 10.1dB max./100m
  • Attenuation @ 400MHz 14.9dB max./100m
  • Attenuation @ 860MHz 20.1dB max./100m
  • Attenuation @ 1000MHz 22.2dB max./100m
  • Attenuation @ 1750MHz 29.6dB max./100m
  • Attenuation @ 2150MHz 33.3dB max./100m

Versions

  808.127UK 808.129UK 808.128UK
Length 100m 250m 100m
Weight 7.7kg 19.3kg 7.7kg
Colour Black Black White

Downloads

UK Declaration of conformity
For 808.127UK (241KB)
EU Declaration of conformity
For 808.127UK (233KB)
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
