WA-215 Wall Mount Amplifier + Media Player with Bluetooth
953.132UK
WA-215
Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm b...
- Supplied with 57mm back box and IR remote control handset.
- 60mm backlit LCD display
- Wipe clean touch control panel
| Description | |
|---|---|
|
953.132UK
WA-215 Wall Amp with USB/microSD player, FM + Bluetooth |
WA-215 Wall Mount Amplifier + Media Player with Bluetooth

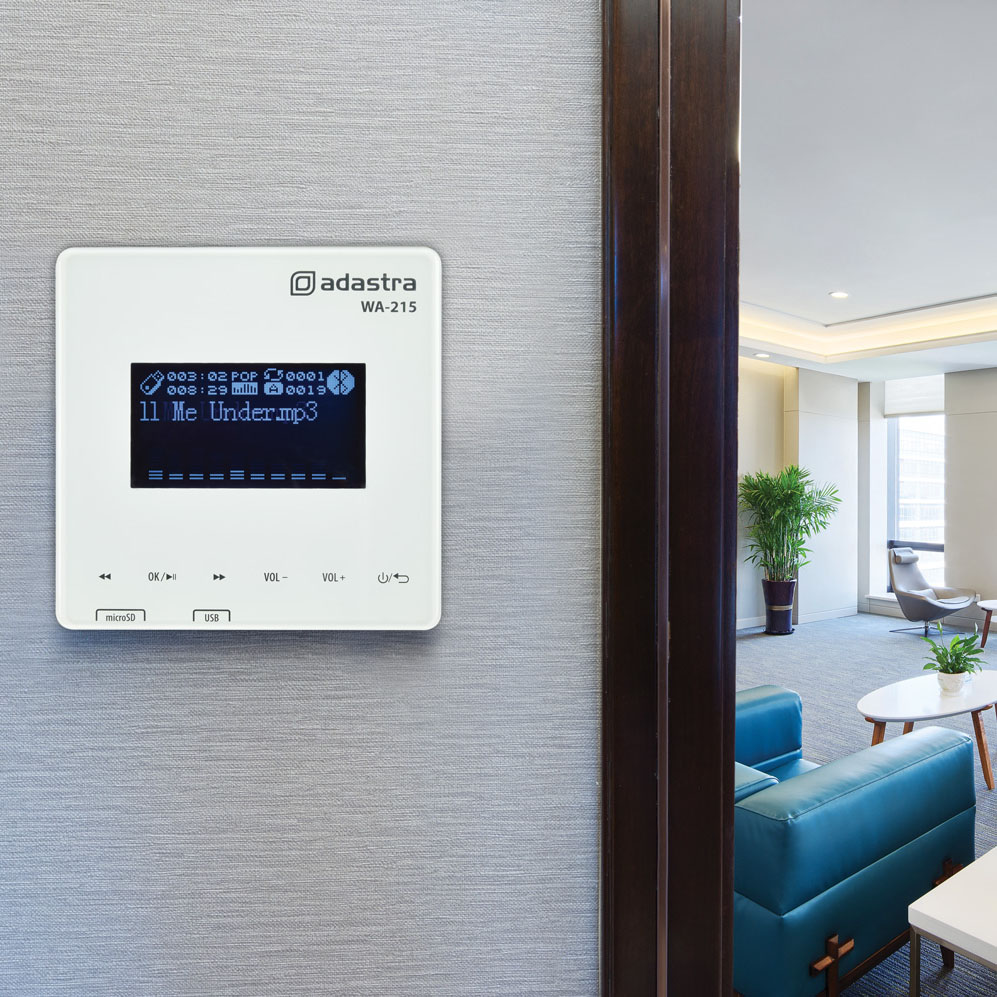

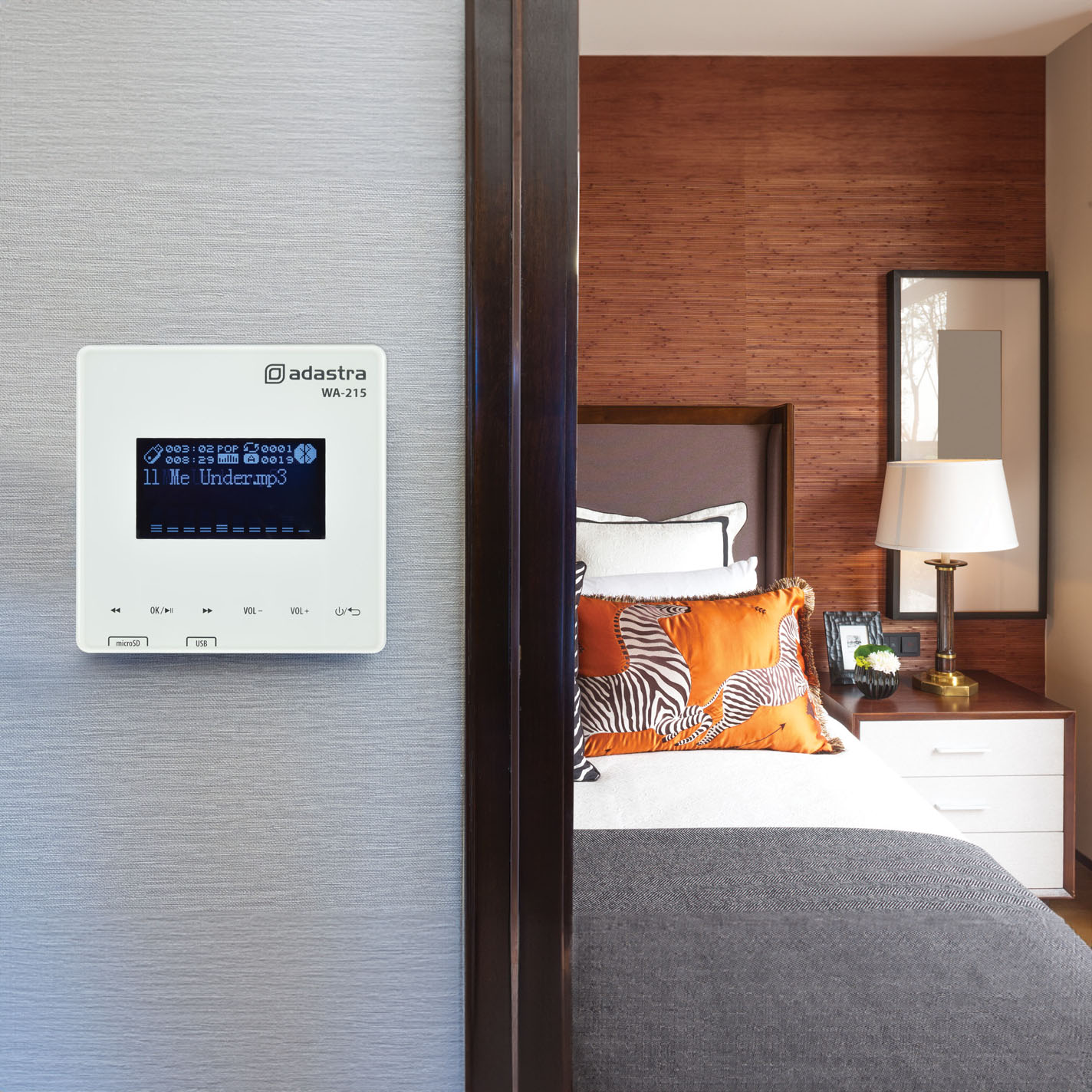

Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-215 has an inbuilt USB/MicroSD audio player, an FM tuner and Bluetooth receiver. Key functions are operated from the front touch panel or by using the supplied IR remote control. Connections for 2 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. Trigger contacts are also included for media playback and in internal doorbell sound. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.
- Supplied with 57mm back box and IR remote control handset.
- 60mm backlit LCD display
- Wipe clean touch control panel
- Built in USB/microSD player and FM tuner
- Bluetooth connectivity
- Power supply 100-240Vac, 50/60Hz (euroblock terminals)
- Output 2 x 15W @ 8 ohms (euroblock terminals)
- Audio source USB / microSD player, FM tuner and Bluetooth receiver
- Auxiliary input Left + right line in (euroblock terminals)
- Audio format mp3, wma, wav
- FM : tuning range 87.5 - 108MHz
- Bluetooth range Up to 10m
- Bluetooth version 4.1
- Frequency response 20Hz - 20kHz (±3dB)
- THD <0.03% at 1kHz, 1W
- S/N ratio >98dB
- Trigger Remote playback and door bell (euroblock terminals)
- Mounting depth 47mm (with adequate ventilation), 57mm back box supplied
- Dimensions 86 x 86 x 50mm
- Weight 150g
Support : articles
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
Wireless Audio
A description of various wireless technologies available to musicians, presenters and performers
In the box
The box for this item contains :
- WA-215 wall mount amplifier + media player
- I.R. remote control handset
