Bluetooth Receiver Wallplate and Backbox

122.380UK

Introduction

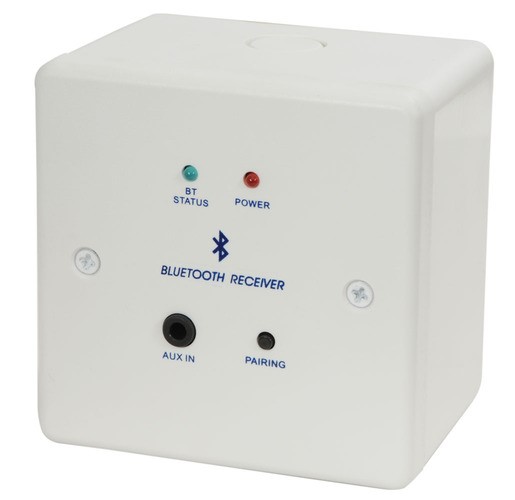

A Bluetooth receiver conveniently housed in a standard 1gang plastic wallplate which allows connection of Bluetooth enabled devices such as smartphones, tablets, iPods etc. Ideal for use in classrooms, boardrooms, kitchens or home studies, the unit comes supplied with a UK power supply and a 50mm back-box for easy installation.

Bluetooth Pairing Instructions

For first time pairing to a new device, press and hold the Pairing button for around 5 seconds until the BT status light on the unit flashes quickly.
Open the Bluetooth device list on your smart device and select the pairing name “Music BT”.
When the device is connected the BT status light on the unit stays illuminated.
The pairing timeout limit is 90 seconds. If pairing has timed out, press and hold the Pairing button again for 1 second to re-enter pairing mode.
To turn the unit on and off, press and hold the Pairing button again for around 3 seconds.
When you turn the unit on any previously connected smart devices will automatically repair provided, they are within the 10m transmission range and set as discoverable.

NOTE: the unit can only be connected to one smart device at any time and will automatically repair with the closest device.

Bluetooth LED Status

Pairing mode: Fast flash (approx. 1 every second)
Discoverable mode: Slow flash (approx. 1 every 5 seconds)
Paired mode: LED on

In the box

Bluetooth receiver wallplate
50mm Standard backbox
UK Power supply
2pcs Fixing screws
User guide

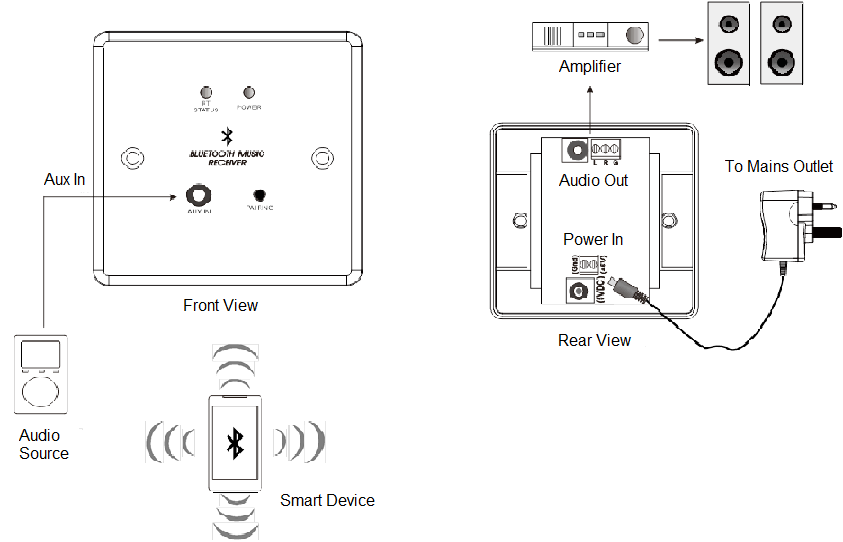

Connection Diagram

Specification

Specification	Value
Bluetooth version	5.0
Bluetooth range	Up to 10m (in clear line of sight)
Audio input	Bluetooth or stereo line level (3.5mm jack)
Audio output	Stereo 3.5mm jack or 3-pin screw terminal
Power in	5VDC/1A via UK PSU (supplied) or 2-pin screw terminal
Dimensions	87 x 87 x 35 (wallplate only)
Weight	48g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
