DERBY9
DERBY9: LED Light Effect
151.605UK
Introduction

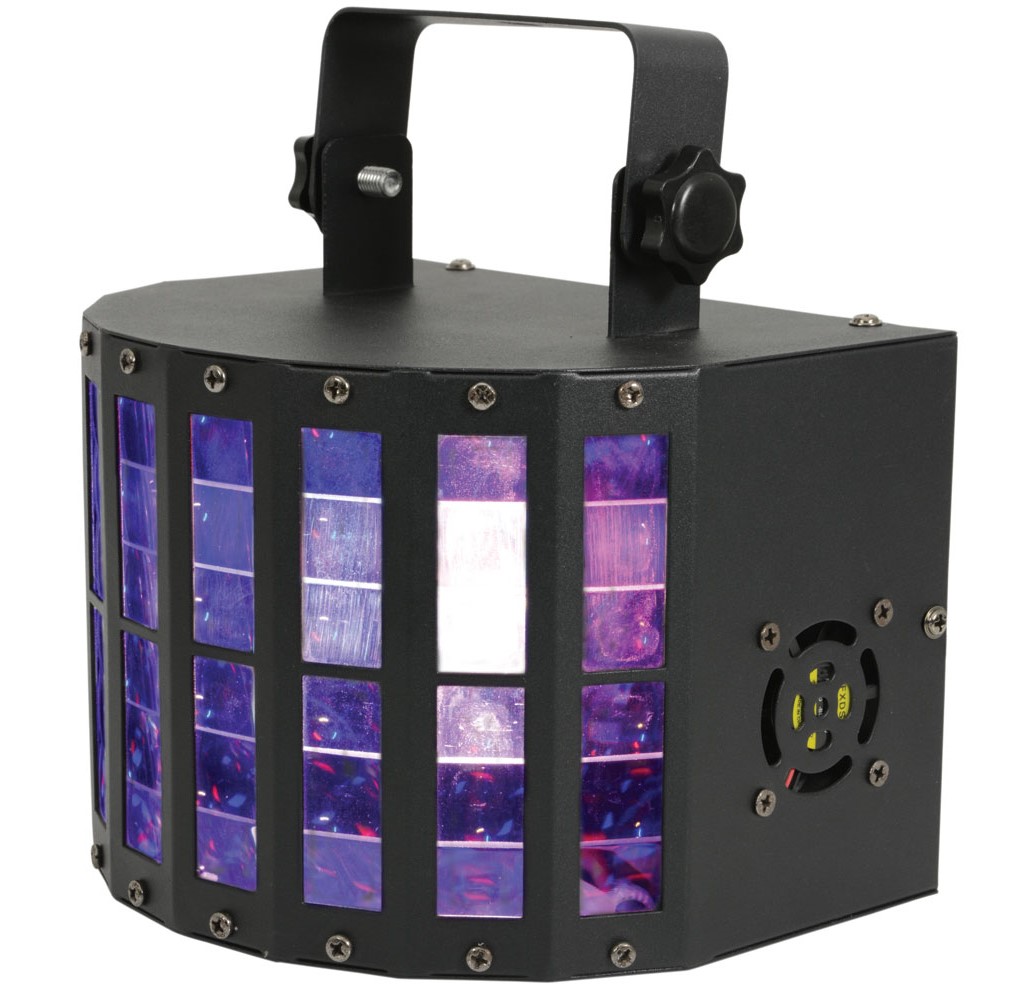

Thank you for choosing the Derby 9, a classic multi-colour derby effect with multiple beams twisting in formation. Nine different coloured 3 Watt LEDs deliver vivid coloured patterns, split through precision optics for wide area coverage. Control via DMX512 or infra-red remote control for auto program or sound activation offers versatile operation modes for mobile discos, stage shows may form part of a larger lighting installation.
In The Box
Your Derby 9 should arrive with you in a single carton in good condition. The carton should contain
1 x main unit with bracket, 1x remote control, 1 x UK IEC mains lead and 1 x manual.
Warning
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.
Placement
- Use the included mounting bracket to fix to a stand or lighting truss.
- Use secondary safety fixings if mounting overhead.
- Keep away from damp or dusty environments.
- Ensure adequate air-flow around the fixture housings.
- Ensure adequate access to controls and connections.
Cleaning
- Use a soft cloth with a neutral detergent to clean the casing as required.
- Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups.
- Do not use strong solvents for cleaning the unit.

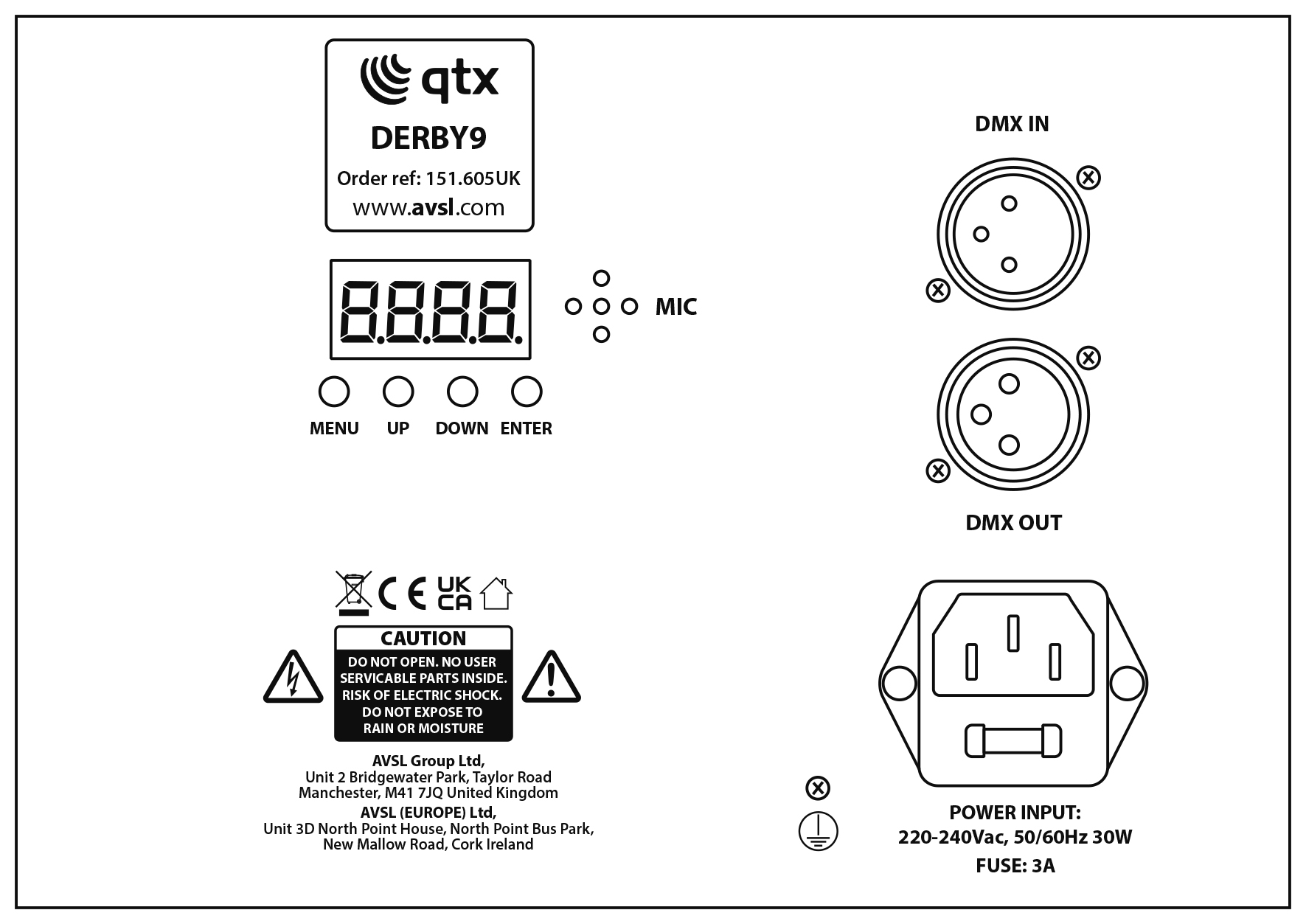

Rear Panel Controls
- LCD display
- Manual control buttons
- Microphone
- DMX input
- DMX output
- IEC mains socket
Manual Control Menu
Press the “MENU” button to enter the settings menu.
Press “UP” and “DOWN” buttons to navigate through various setting functions.
Press “ENTER” button to save the desired setting.
| Mode | Function | Motor Speed | Control Effects |
|---|---|---|---|
| A1 | Red + blue + warm white – ON/motor speed from slow to fast | ||
| A2 | Amber + cool white + yellow – ON/motor speed from slow to fast | ||
| A3 | Green + purple + UV – ON/motor speed from slow to fast | ||
| A4 | Auto | 1 to 9 | 9 Colour jump change/motor speed from slow to fast |
| A5 | 3 Colour jump change/motor speed from slow to fast | ||
| A6 | Gradual change 1/motor speed from slow to fast/with no strobe effects | ||
| A7 | Gradual change 2/motor speed from slow to fast/inc. strobe effects | ||
| S1 | Sound | 0 to 20 | Sound mode/colour change/including strobe effects/light on/black out |
| S2 | Sound mode/colour change/motor speed from fast to slow | ||
| SA | 1 to 10 | Sound mode | |
| S3 | 1 to 20 | Sound mode | |
| FL | 1 to 9 | Strobe mode | |
| SLAU | --- | Slave mode | |
| A001 | 001 to 512 | DMX control |
Remote Control

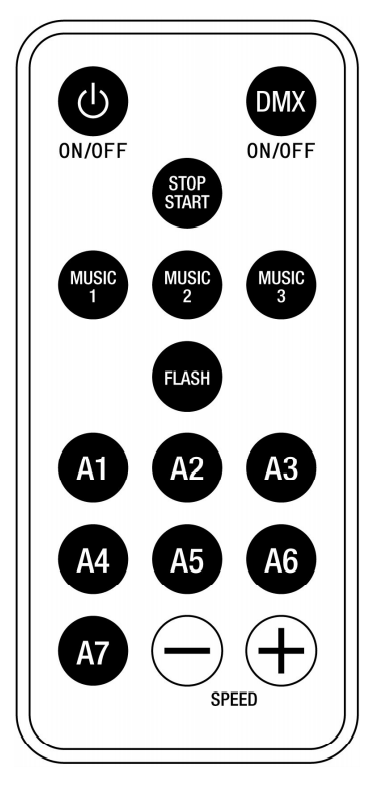

The Derby 9 is supplied with an I.R. remote control for quick access to most of the basic functions of the unit. This must be aimed at the front of the unit where there is a remote receiver and has a maximum range of approximately 4m. Controls are listed on the layout drawing below.
DMX Mode
The Derby 9 can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the “UP” and “DOWN” buttons and “ENTER” to confirm.
This unit has 7 DMX channels as indicated in the table below:
| Channel | Function | DMX | Description |
|---|---|---|---|
| CH1 | Master dimmer | 0-7 | Blackout |
| 8-255 | 0-100% linear dimmer | ||
| CH2 | Red/blue/warm | 0-7 | Blackout |
| white group | 8-255 | 0-100% linear dimmer | |
| CH3 | Amber/yellow | 0-7 | Blackout |
| Cool white group | 8-255 | 0-100% linear dimmer | |
| CH4 | Green/purple | 0-7 | Blackout |
| UV group | 8-255 | 0-100% linear dimmer | |
| CH5 | Strobe | 0-10 | No strobe |
| 11-255 | Strobe (6 different speeds) | ||
| 0-5 | Motor stop | ||
| CH6 | Motor | 6-127 | Static position |
| 128-255 | Oscillation (9 different speeds) | ||
| 0-9 | Manual channels 1-6 available | ||
| CH7 | Choose program | 10-39 | A1 - red/blue/warm white - ON/motor speed from slow to fast |
| 40-69 | A2 - amber/cool white/yellow - ON/motor speed from slow to fast | ||
| 70-99 | A3 - green/purple/UV - ON/motor speed from slow to fast | ||
| 100-129 | A4 - 9 colour jump change/motor speed from slow to fast | ||
| 130-159 | A5 - 3 colour jump change/motor speed from slow to fast | ||
| CH7 | Choose program | 160-189 | Gradual change 1/motor speed from slow to fast/with no strobe effects |
| 190-219 | Gradual change 2/motor speed from slow to fast/including strobe effects | ||
| 220-249 | S1 - sound mode 1 | ||
| 250-255 | S2 - sound mode 2 |
Troubleshooting
| No power (mains) | Check mains voltage is correct and outlet is switched on |
|---|---|
| Check IEC lead and fuse (if fuse continually blows, refer to your dealer) | |
| No light output | Check control panel mode settings |
| Check DMX settings from controller (dimmer levels, blackout etc.) | |
| Unresponsive to DMX | Check that unit is in DMX mode and ensure DMX address remains lit to confirm receiving DMX signal |
| Check DMX controller is not set to black out | |
| Check DMX controller is on correct fixture/page | |
| Check master dimmer value | |
| Check correct DMX address is set | |
| Check DMX connection and leads | |
Overheating/ cutting out |
Ensure adequate ventilation and unit is not too close to a heat source |
Specification
| Specification | Value |
|---|---|
| Power supply | 220-240Vac, 50/60Hz (IEC) |
| Power consumption | 30W |
| Fuse | F3AL |
| LED : quantity | 9 x 3W |
| LED : colour | Red, green, blue, amber, yellow, purple, WW, CW, UV |
| DMX connection | 3-pin XLR in & out |
| DMX channels | 7 |
| Battery : remote | CR2025 (not supplied) |
| Dimensions | 200 x 162 x 140mm |
| Weight | 1.1kg |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
