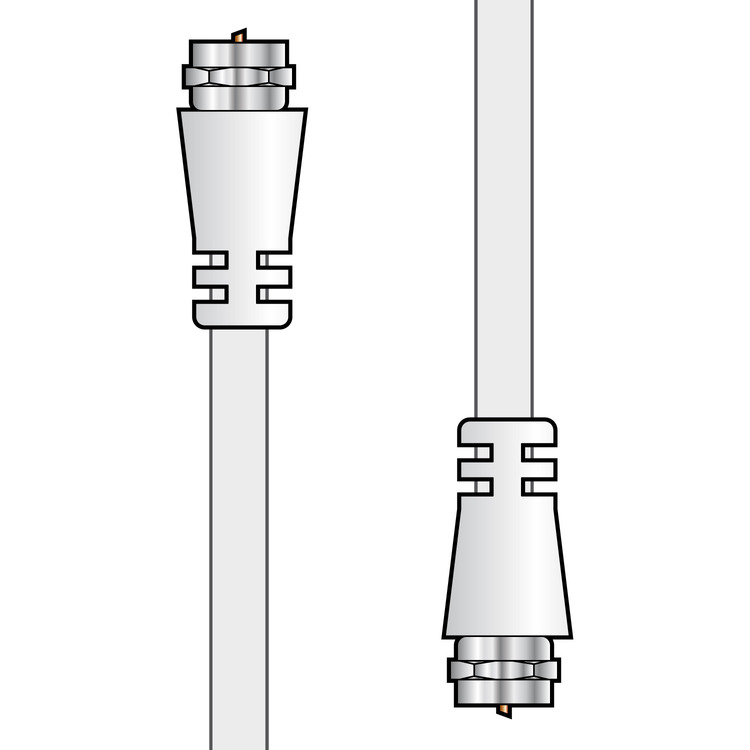

Coaxial F-type Plug to Plug Leads

112.030UK

Standard coaxial F-type plug to plug leads.

  • Supplied in retail friendly sealed bag
Full description Find retailer
Description Version Packed
112.030UK
Coaxial F-type plug to plug lead 2.0m 		White 2.0m Bag Sealed
112.032UK
Coaxial F-type plug to plug lead 4.0m 		White 4.0m Bag Sealed
112.034UK
Coaxial F-type plug to plug lead 10.0m 		White 10.0m Bag Sealed

Coaxial F-type Plug to Plug Leads

Standard coaxial F-type plug to plug leads.

  • Supplied in retail friendly sealed bag

Specification : Common

  • Cable : diameter 4.5mm
  • Impedance 75?
  • Core diameter 0.5mmØ
  • Braid 16 x 0.10mm

Specification : Versions

  112.030UK 112.032UK 112.034UK
Cable : length 2.0m 4.0m 10.0m
Weight 120g 220g 520g

Trade information

  112.030UK 112.032UK 112.034UK
Barcode / EAN 5015972123225 5015972123256 5015972123287
Package type Bag Sealed Bag Sealed Bag Sealed
Package dimensions 120 x 225 x 14mm 160 x 225 x 20mm 185 x 280 x 27mm
Package weight 0.05kg 0.23kg 0.53kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm
Carton weight 10.00kg 14.15kg 21.50kg
Carton quantity 120 packages 60 packages 40 packages
Pack plastic weight 0.01kg 0.01kg 0.01kg

Alternative

115.030UK
Essential Coaxial F-type Plug to Plug Lead 2.0m
White 2.0m
Essential coaxial F-type plug to plug lead for connecting cable and satellite systems.
