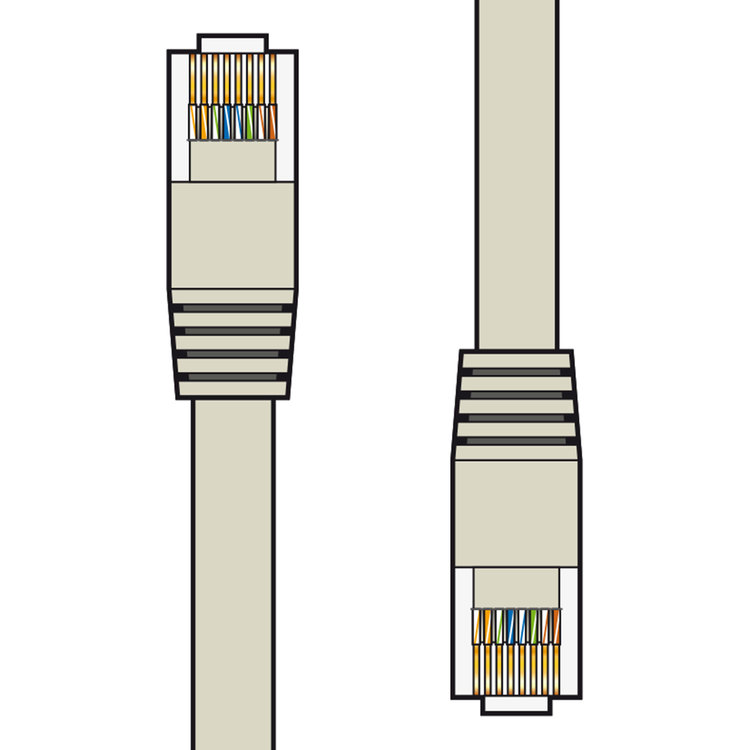

Cat6 UTP RJ45 Ethernet Patch Cables
113.132UK
High performance, snag-less Cat6 Ethernet patch cables designed for outstanding uniform impedance, very low return loss and a higher signal-to-noise ratio.
- Stranded copper 7*0.18mm 25AWG conductor
- Supports frequencies of up to 250 MHz and suitable for high-speed data transmission of up to 1,000Mbps (1Gbps)
- Compatible with PCs, printers, servers, routers, switch boxes and more, while remaining fully backwards compatible with your existing network
| Description | |
|---|---|
|
113.130UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 1.0m |
|
113.132UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 2.0m |
|
113.134UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 3.0m |
|
113.136UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 5.0m |
|
113.138UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 10.0m |
|
113.140UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 15.0m |
|
113.142UK
Cat6 Patch Lead UTP RJ45 plug to RJ45 plug 20.0m |
Cat6 UTP RJ45 Ethernet Patch Cables
High performance, snag-less Cat6 Ethernet patch cables designed for outstanding uniform impedance, very low return loss and a higher signal-to-noise ratio.
- Stranded copper 7*0.18mm 25AWG conductor
- Supports frequencies of up to 250 MHz and suitable for high-speed data transmission of up to 1,000Mbps (1Gbps)
- Compatible with PCs, printers, servers, routers, switch boxes and more, while remaining fully backwards compatible with your existing network
- Supplied in retail friendly sealed bag
Specification : Common
- Core diameter 7*0.18mm
- Overall diameter 7.0mm
Specification : Versions
| 113.130UK | 113.132UK | 113.134UK | 113.136UK | 113.138UK | 113.140UK | 113.142UK | |
|---|---|---|---|---|---|---|---|
| Colour | Grey | Grey | Grey | Grey | Grey | Grey | Grey |
| Length | 1.0m | 2.0m | 3.0m | 5.0m | 10.0m | 15.0m | 20.0m |
| Weight | 20g | 35g | 40g | 90g | 150g | 220g | 380g |
Trade information
| 113.130UK | 113.132UK | 113.134UK | 113.136UK | 113.138UK | 113.140UK | 113.142UK | |
|---|---|---|---|---|---|---|---|
| Barcode / EAN | 5015972202777 | 5015972202784 | 5015972202791 | 5015972202807 | 5015972202814 | 5015972202821 | 5015972204184 |
| Tariff code | 8544429090 | 8544429090 | 8544429090 | 8544429090 | 8544429090 | 8544429090 | 8544429090 |
| Country of Origin | CN | CN | CN | CN | CN | CN | CN |
| Package type | Bag Sealed | Bag Sealed | Bag Sealed | Bag Sealed | Bag | Bag | Bag |
| Package dimensions | 120 x 225 x 15mm | 120 x 225 x 15mm | 160 x 225 x 18mm | 160 x 225 x 25mm | 160 x 225 x 28mm | 185 x 280 x 42mm | 185 x 280 x 60mm |
| Package weight | 0.03kg | 0.05kg | 0.08kg | 0.12kg | 0.23kg | 0.35kg | 0.45kg |
| Package quantity | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 360 x 440 x 280mm | 360 x 440 x 280mm | 360 x 440 x 280mm | 360 x 440 x 280mm | 360 x 440 x 280mm | 360 x 440 x 280mm | 360 x 440 x 280mm |
| Carton weight | 7.50kg | 6.80kg | 7.70kg | 8.30kg | 9.70kg | 11.20kg | 4.50kg |
| Carton quantity | 150 packages | 75 packages | 60 packages | 40 packages | 25 packages | 20 packages | 5 packages |
| Pack plastic weight | 0.01kg | 0.06kg | 0.01kg | 0.01kg | 0.01kg | 0.01kg | 0.01kg |
