Mains Power Leads UK - IEC 10A

114.019UK

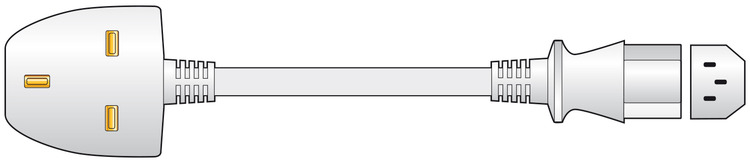

UK 3 pin plug to IEC C13 female plug 3 cores mains power lead, suitable for connecting power to general electronic equipment up to 2300W (10A).

  • BS 1363 approved plug
  • 3 core BSI approved cable
  • 10A fused plug
Full description Find retailer
Description Version Packed
114.003UK
Power Lead UK Plug - IEC Black 1.0m 		1.0m/Black Bag Sealed
114.015UK
Power Lead UK Plug - IEC White 1.0m 		1.0m/White Bag Resealable
114.005UK
Power Lead UK Plug - IEC Black 1.5m 		1.5m/Black Bag
114.007UK
Power Lead UK Plug - IEC Black 2.0m 		2.0m/Black Bag
114.017UK
Power Lead UK Plug - IEC White 2.0m 		2.0m/White Bag Resealable
114.009UK
Power Lead UK Plug - IEC Black 3.0m 		3.0m/Black Bag
114.011UK
Power Lead UK Plug - IEC Black 5.0m 		5.0m/Black Bag Sealed
114.019UK
Power Lead UK Plug - IEC White 5.0m 		5.0m/White Bag Sealed
114.013UK
Power Lead UK Plug - IEC Black 10.0m 		10.0m/Black Bag Sealed

Mains Power Leads UK - IEC 10A

UK 3 pin plug to IEC C13 female plug 3 cores mains power lead, suitable for connecting power to general electronic equipment up to 2300W (10A).

  • BS 1363 approved plug
  • 3 core BSI approved cable
  • 10A fused plug
  • Suitable for appliances rated up to 2300W

Specification : Common

  • Max. current 10A
  • Max. power 2300W

Specification : Versions

  114.003UK 114.015UK 114.005UK 114.007UK 114.017UK 114.009UK 114.011UK 114.019UK 114.013UK
Colour Black White Black Black White Black Black White Black
Cable : specification 3 x 0.75mmØ 3 x 0.75mmØ 3 x 0.75mmØ 3 x 0.75mmØ 3 x 0.75mmØ 3 x 1mmØ 3 x 1mmØ 3 x 1mmØ 3 x 1mmØ
Length 1.0m 1.0m 1.5m 2.0m 2.0m 3.0m 5.0m 5.0m 10.0m
Weight 142g 142g 172g 211g 211g 308g 496g 496g 1.125kg

Trade information

  114.003UK 114.015UK 114.005UK 114.007UK 114.017UK 114.009UK 114.011UK 114.019UK 114.013UK
Barcode / EAN 5015972177860 5015972177921 5015972177877 5015972177884 5015972177938 5015972177891 5015972177907 5015972177945 5015972177914
Package type Bag Sealed Bag Resealable Bag Bag Bag Resealable Bag Bag Sealed Bag Sealed Bag Sealed
Package dimensions 180 x 225 x 50mm 180 x 225 x 50mm 180 x 225 x 55mm 180 x 225 x 55mm 180 x 225 x 55mm 180 x 280 x 60mm 180 x 280 x 55mm 250 x 380 x 50mm 250 x 380 x 65mm
Package weight 0.15kg 0.15kg 0.18kg 0.22kg 0.22kg 0.32kg 0.51kg 0.51kg 1.13kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 395 x 420 x 300mm 394 x 420 x 300mm 394 x 420 x 300mm 394 x 420 x 300mm 394 x 420 x 30mm 350 x 420 x 250mm 394 x 420 x 300mm 350 x 420 x 250mm 394 x 420 x 300mm
Carton weight 15.90kg 15.90kg 17.15kg 18.40kg 18.40kg 15.40kg 21.50kg 15.40kg 10.00kg
Carton quantity 100 packages 100 packages 90 packages 80 packages 80 packages 50 packages 40 packages 40 packages 8 packages
Pack plastic weight 0.01kg 0.07kg 0.01kg 0.01kg 0.01kg 0.01kg 0.02kg 0.02kg 0.02kg
