Tetra: LED Moonflower + Ripple + Strobe/UV + Laser Effect
151.608UK
TETRA
The Tetra is a 4-in-1 DMX light effect built into a single compact housing. A moonflower effect produces a wide pattern of colour from six 3W LEDs, countered with an RGBW aqua ripple effect. At the...
- Auto, sound-activated, master-slave or DMX control
- 4 impressive light effects in one compact fixture
- Supplied with mounting bracket
| Description | |
|---|---|
|
151.608UK
Tetra LED Moonflower + Wave + Strobe/UV + Laser Effect |
Tetra: LED Moonflower + Ripple + Strobe/UV + Laser Effect

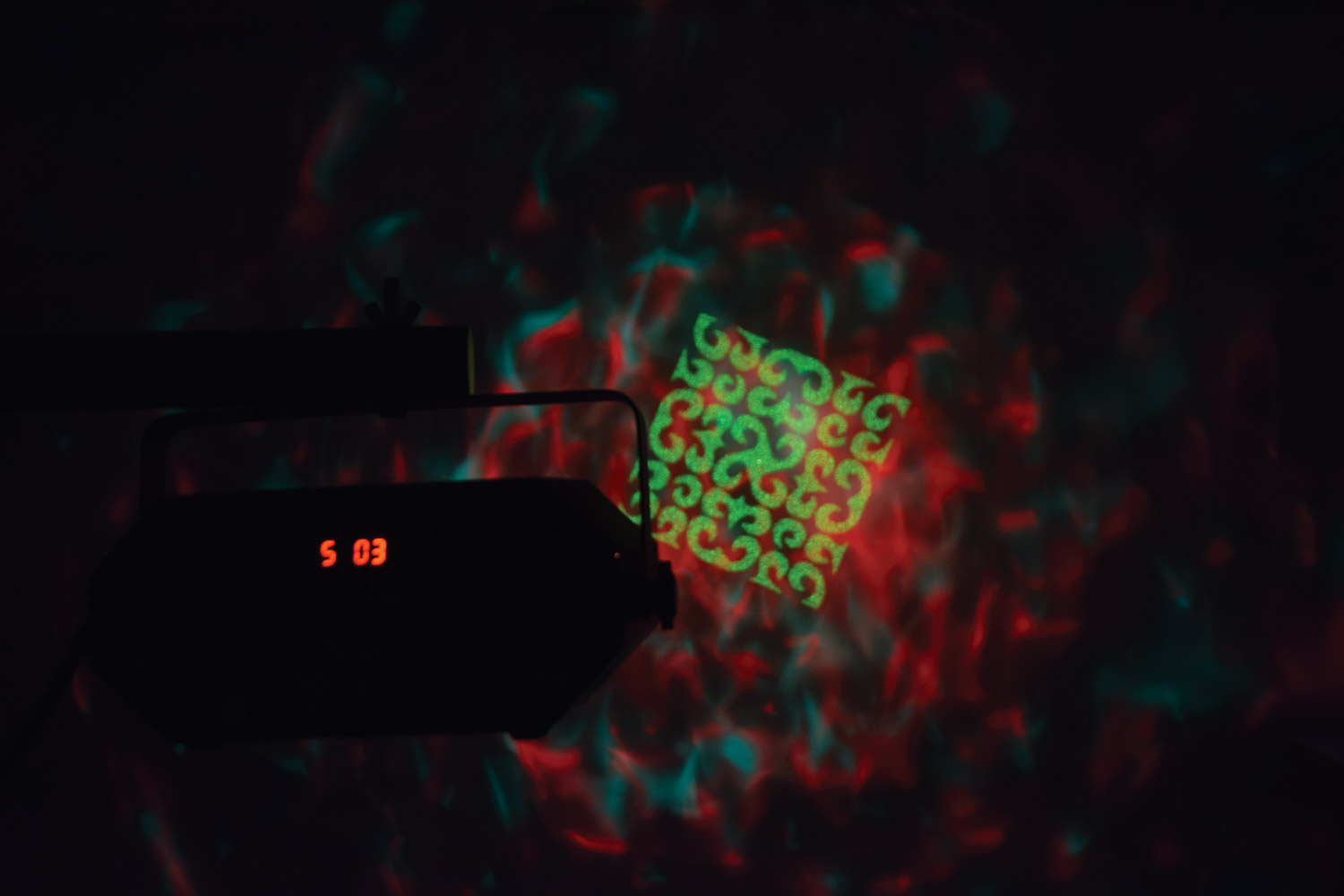

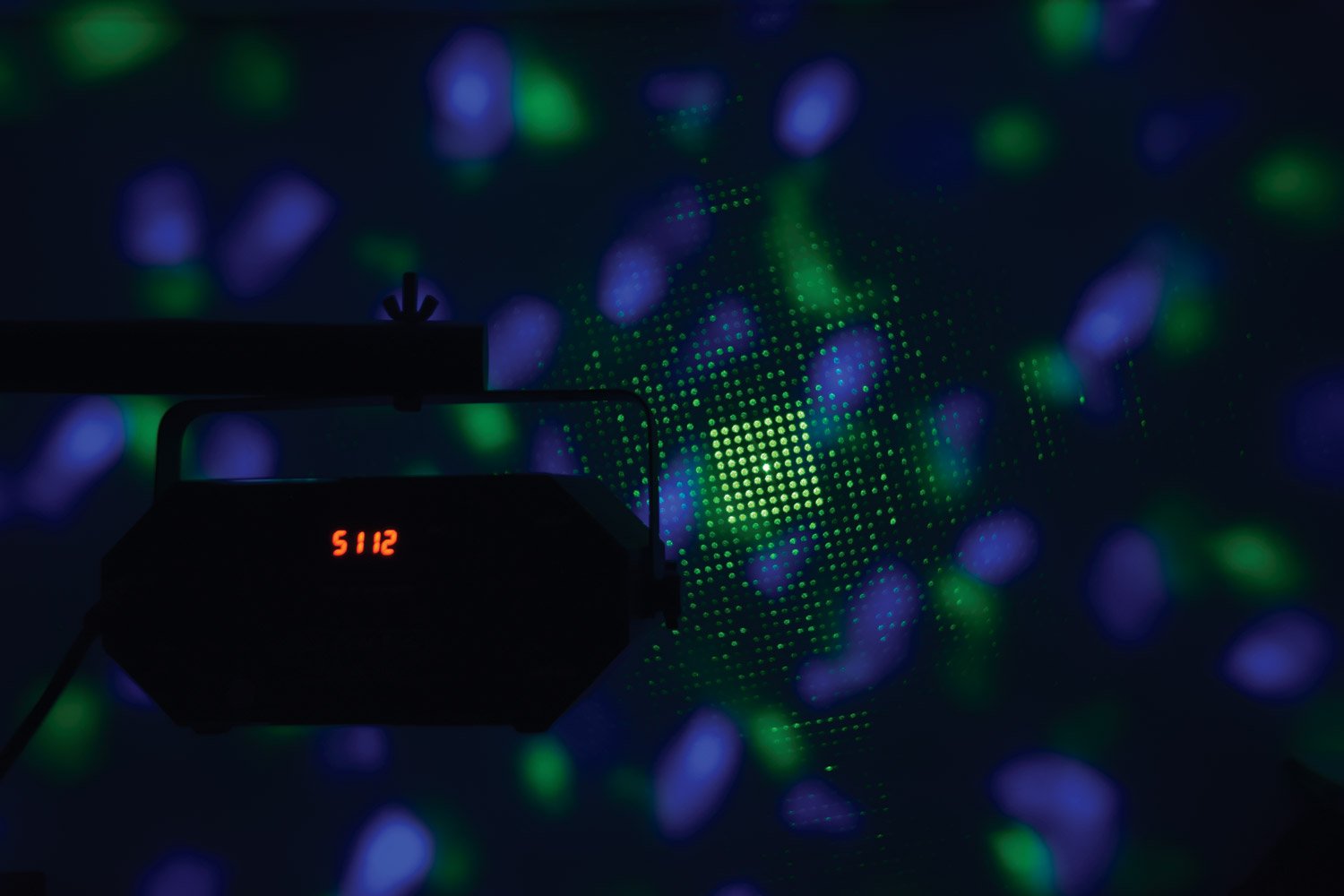

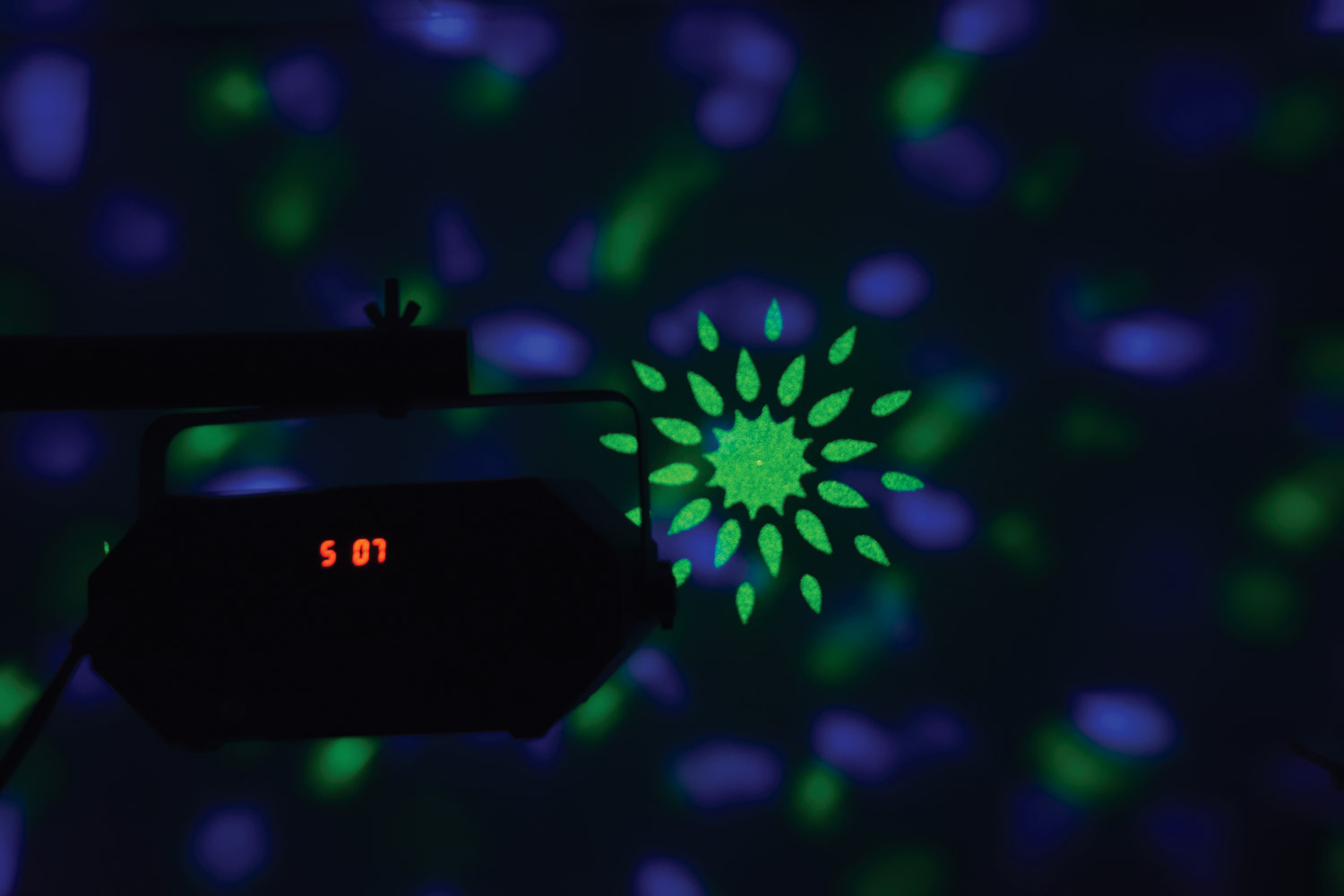

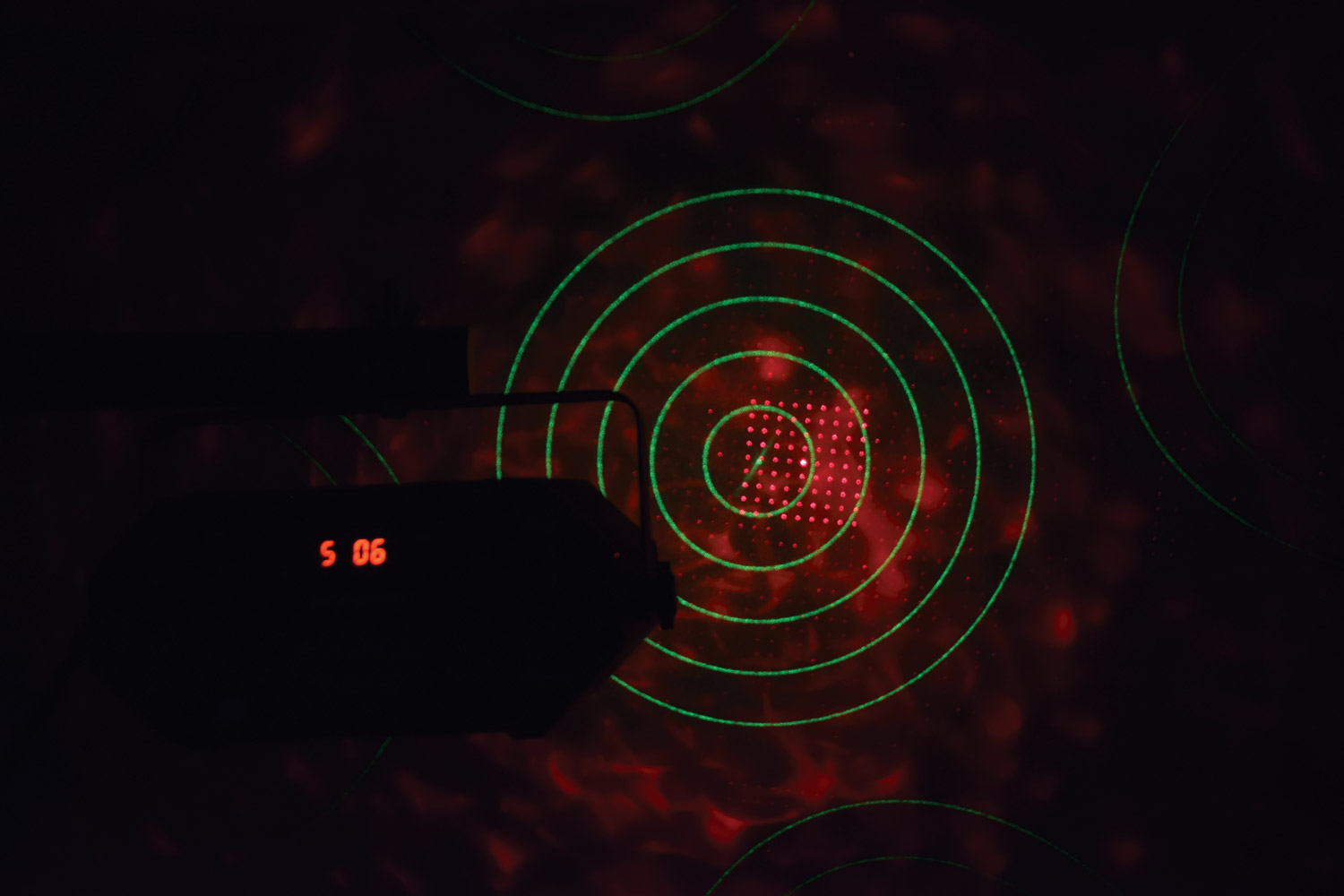

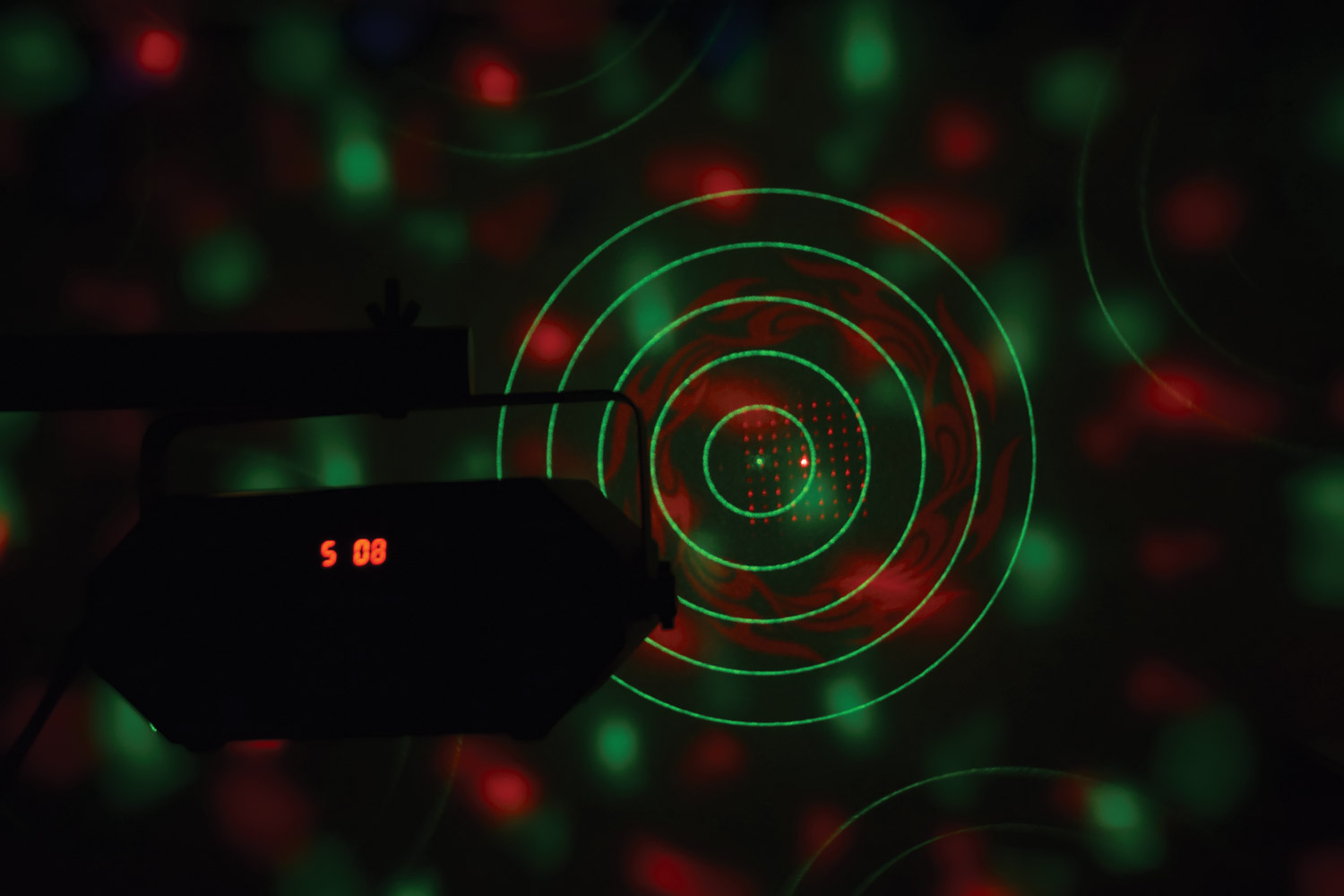

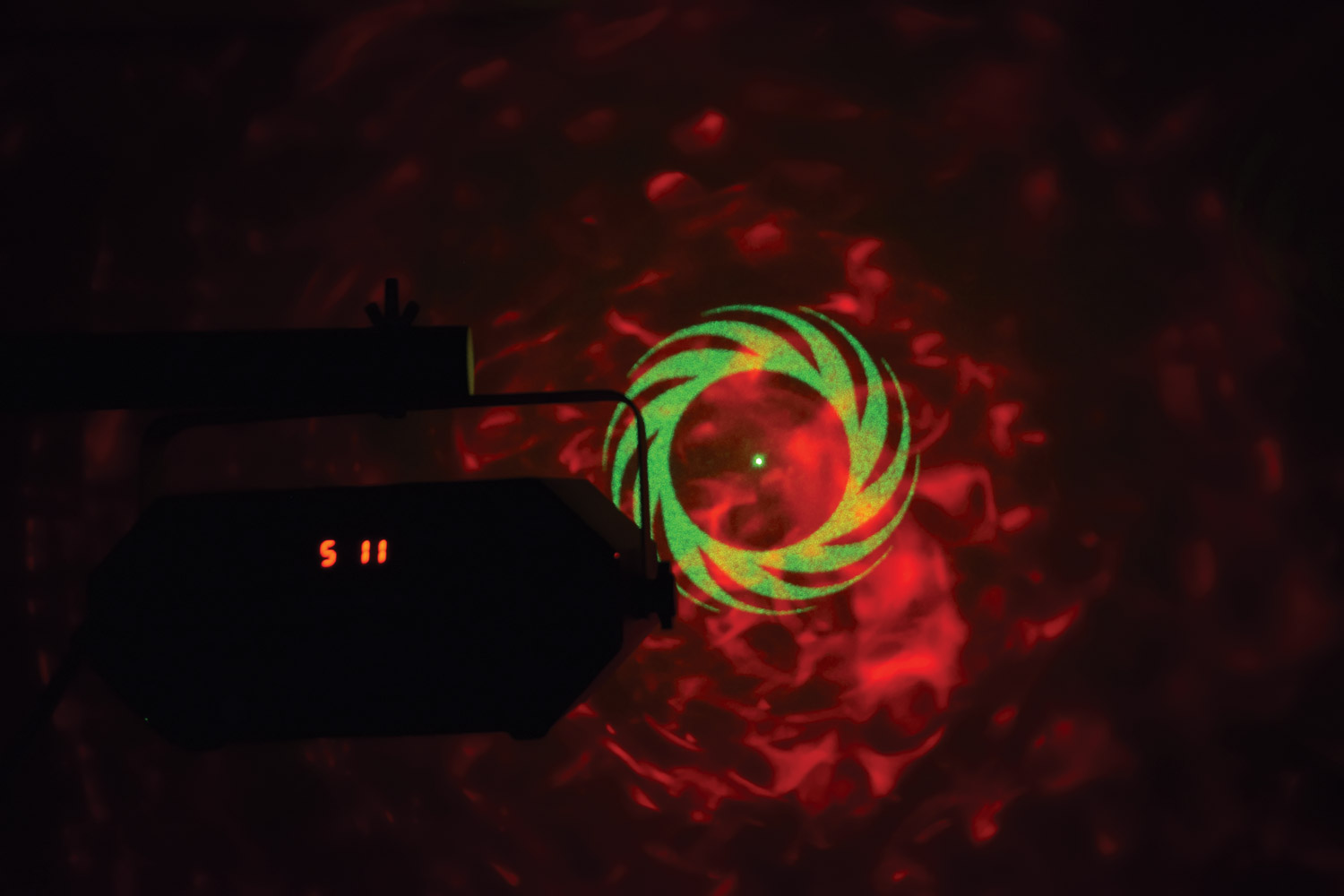

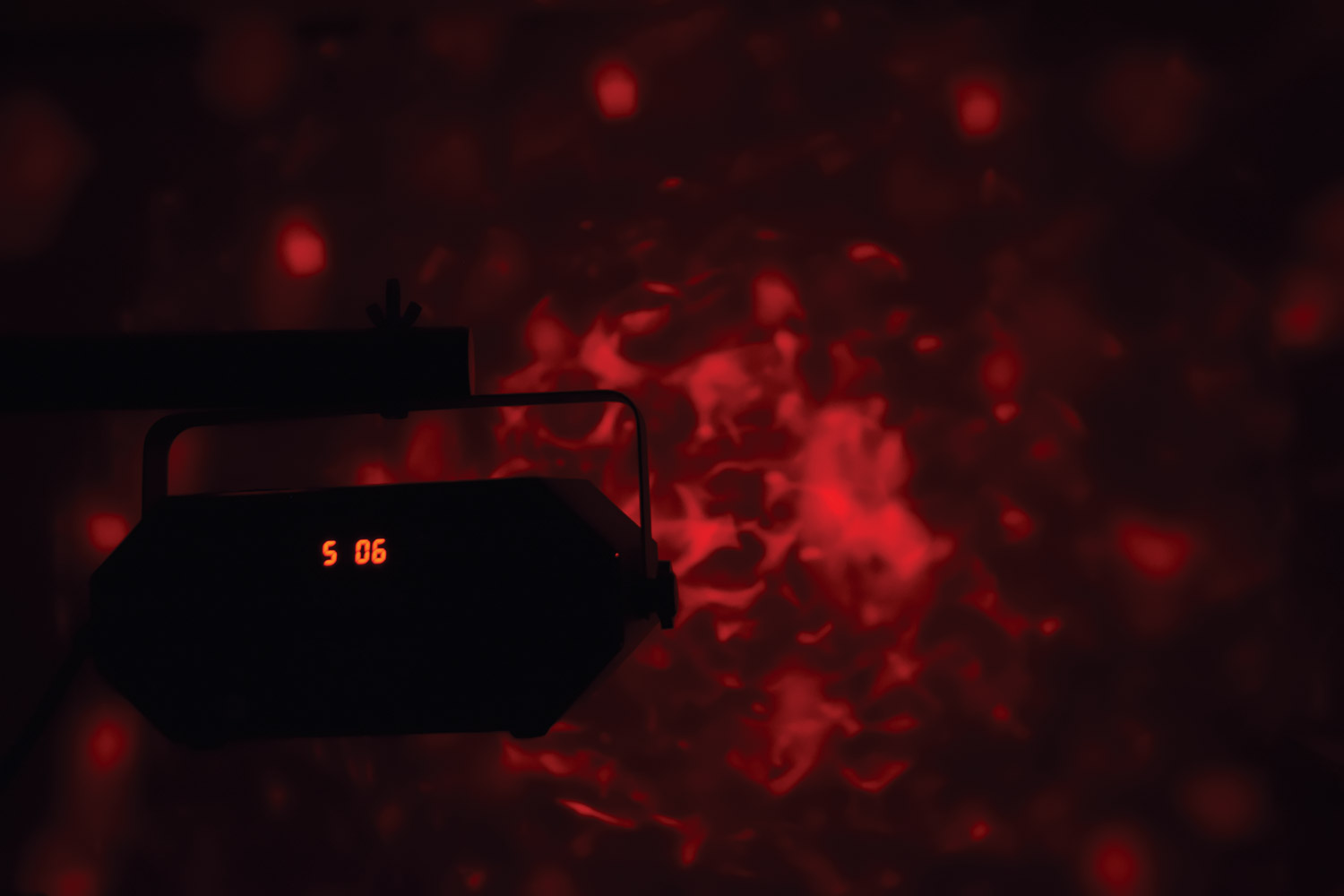

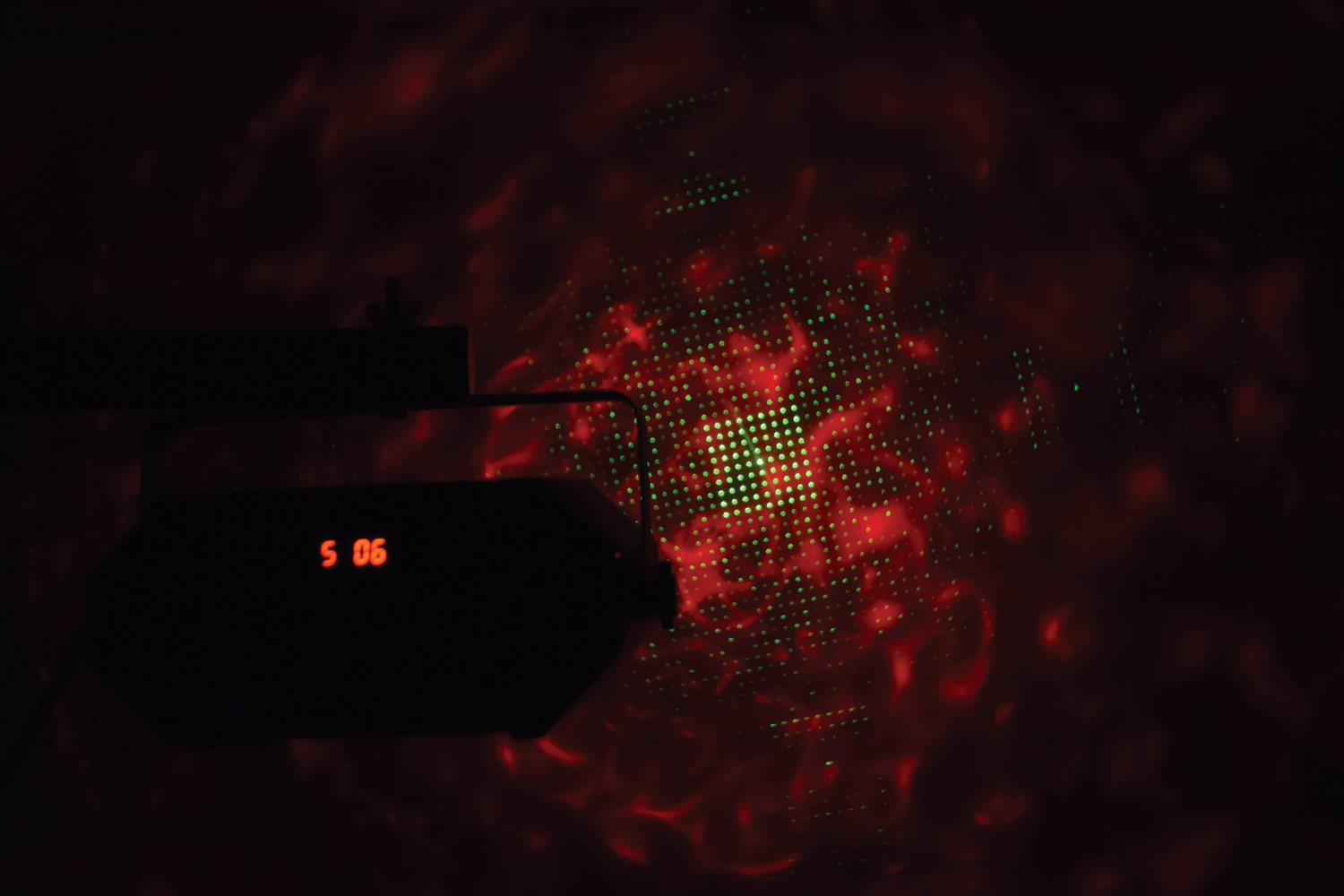

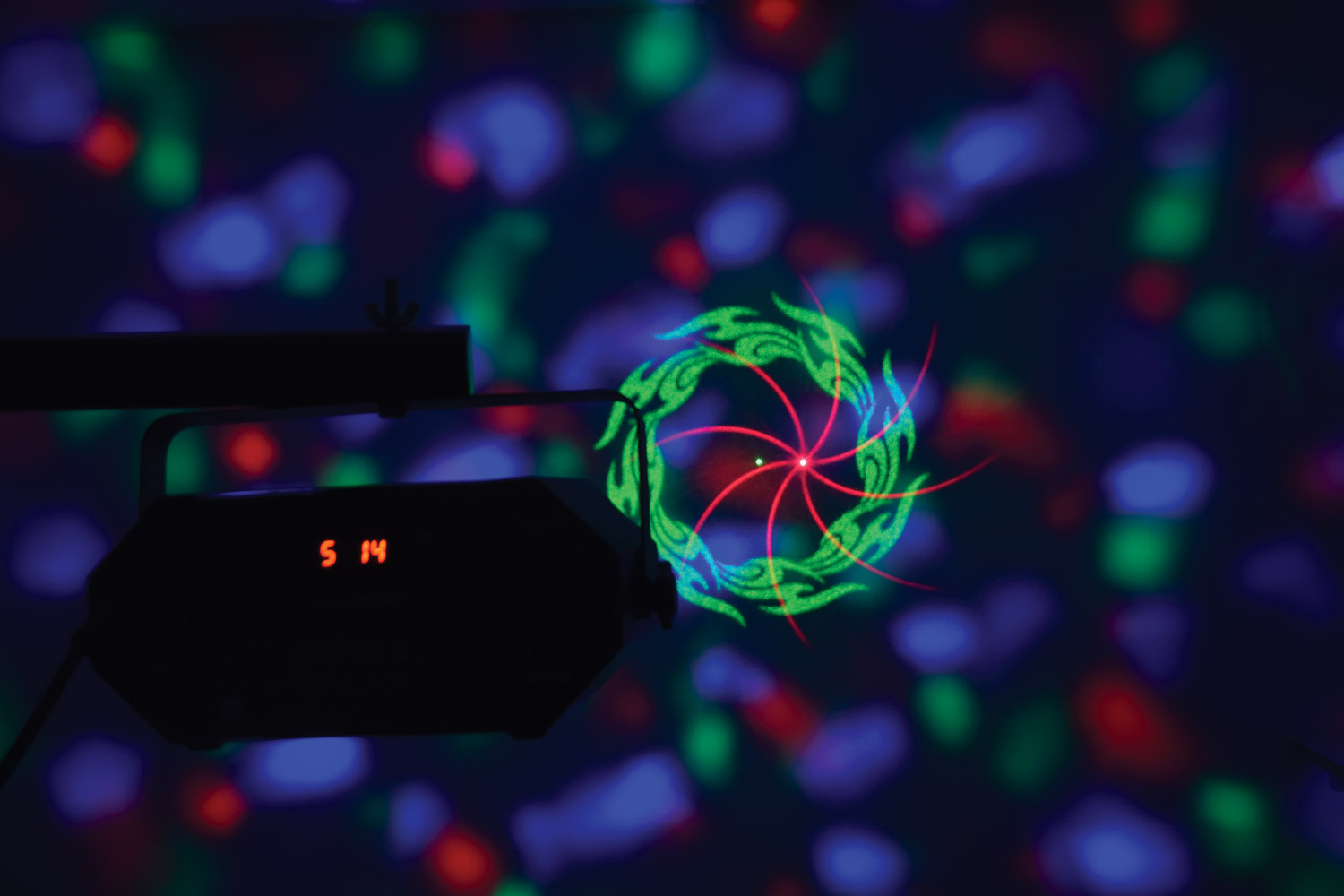

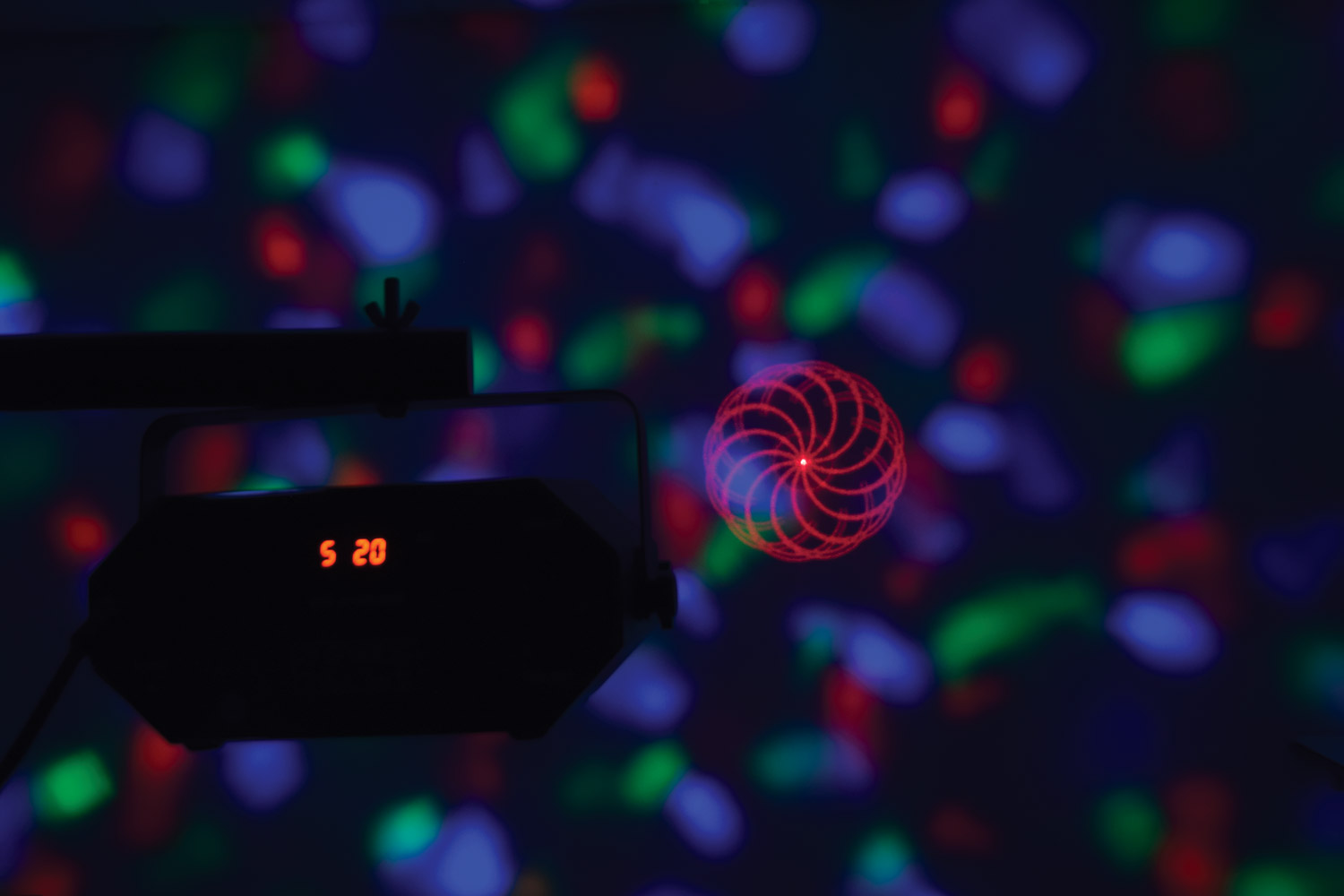

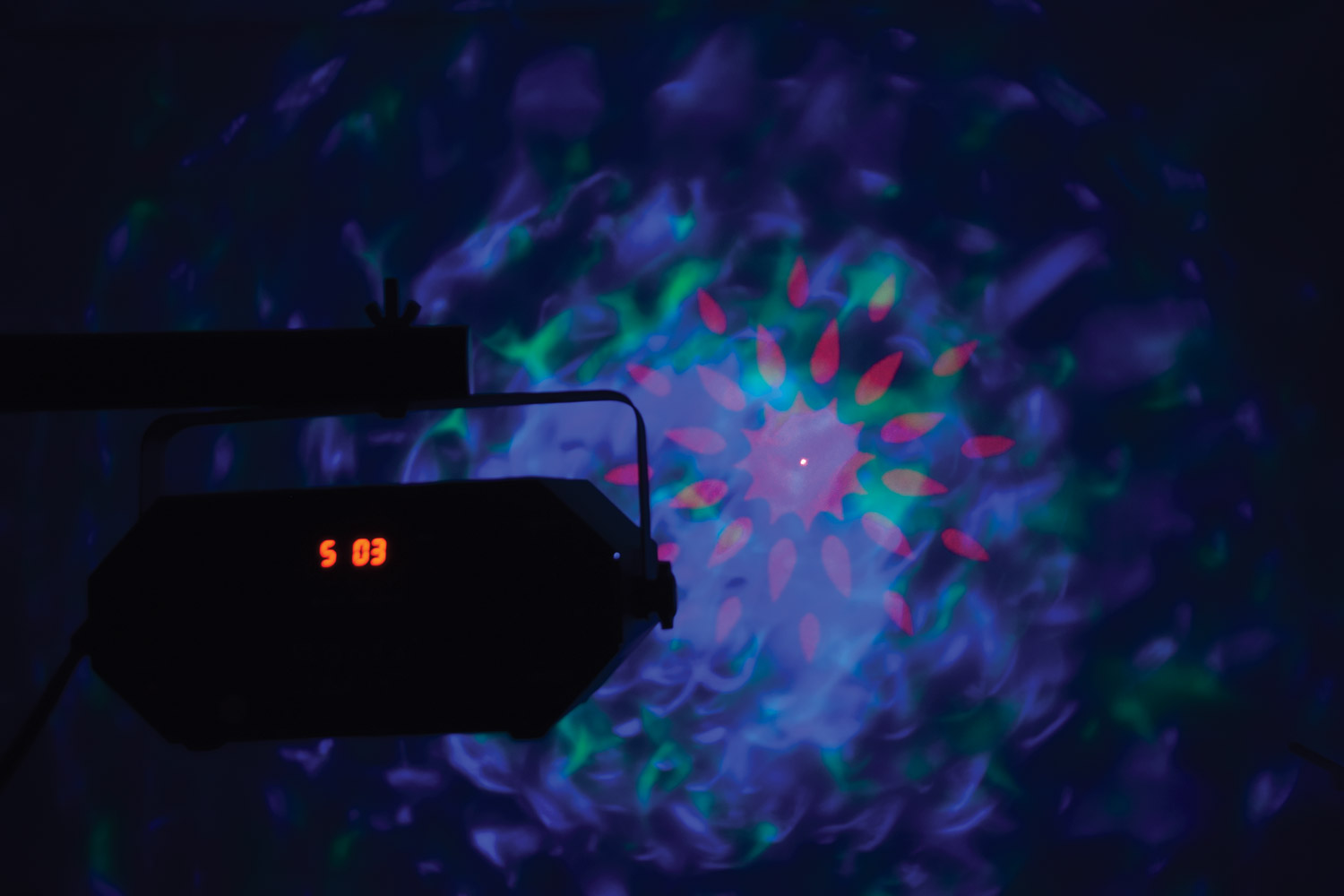

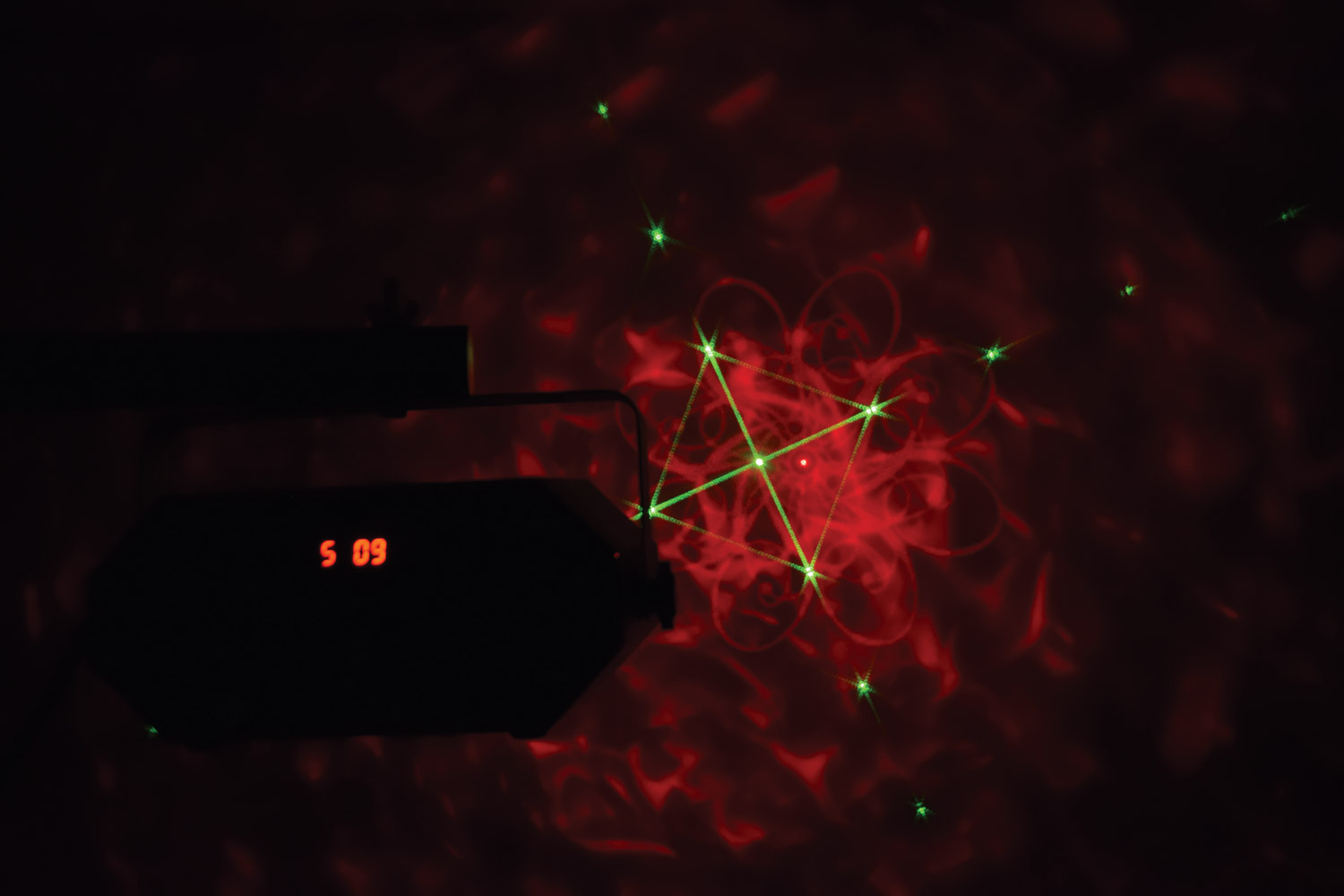

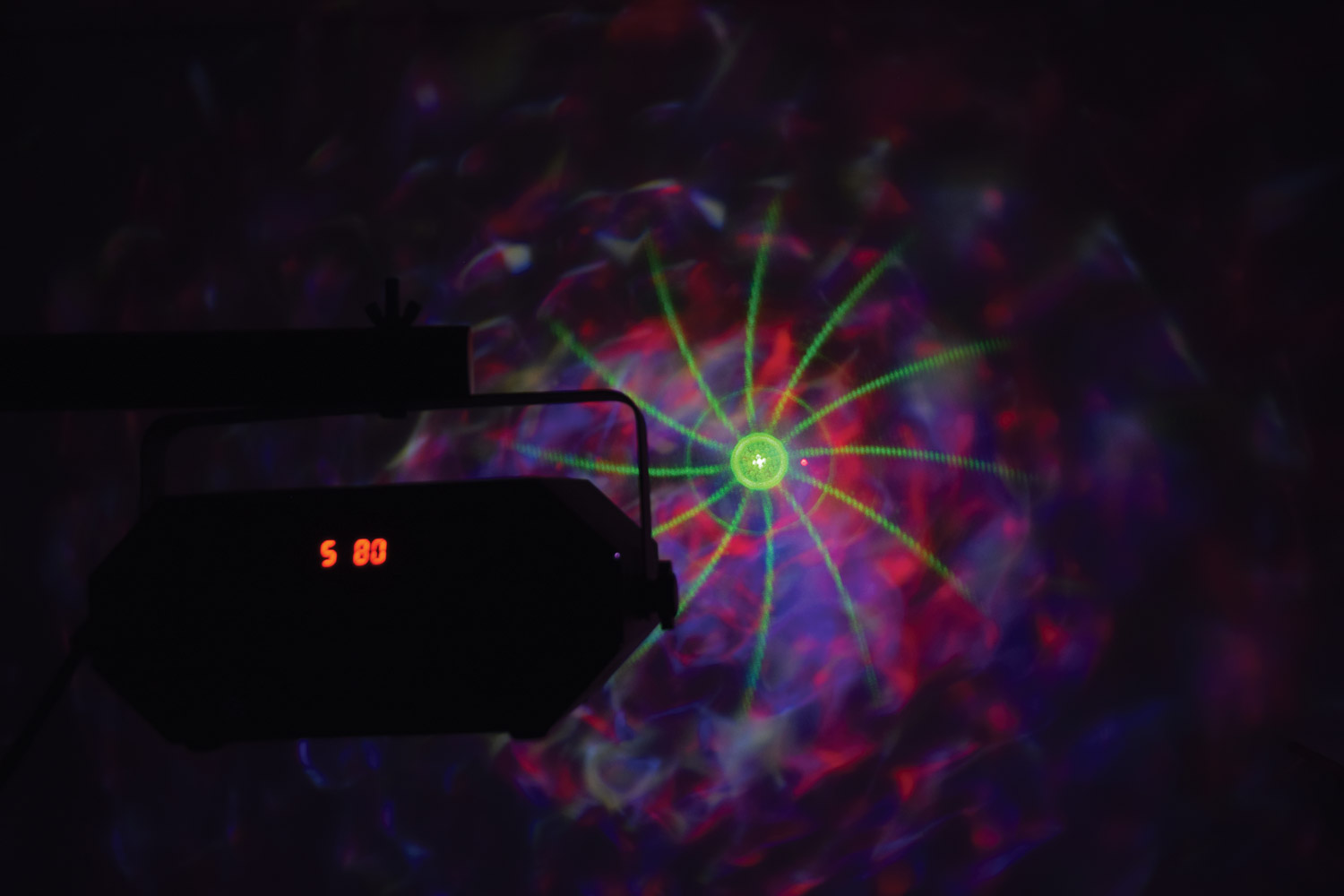

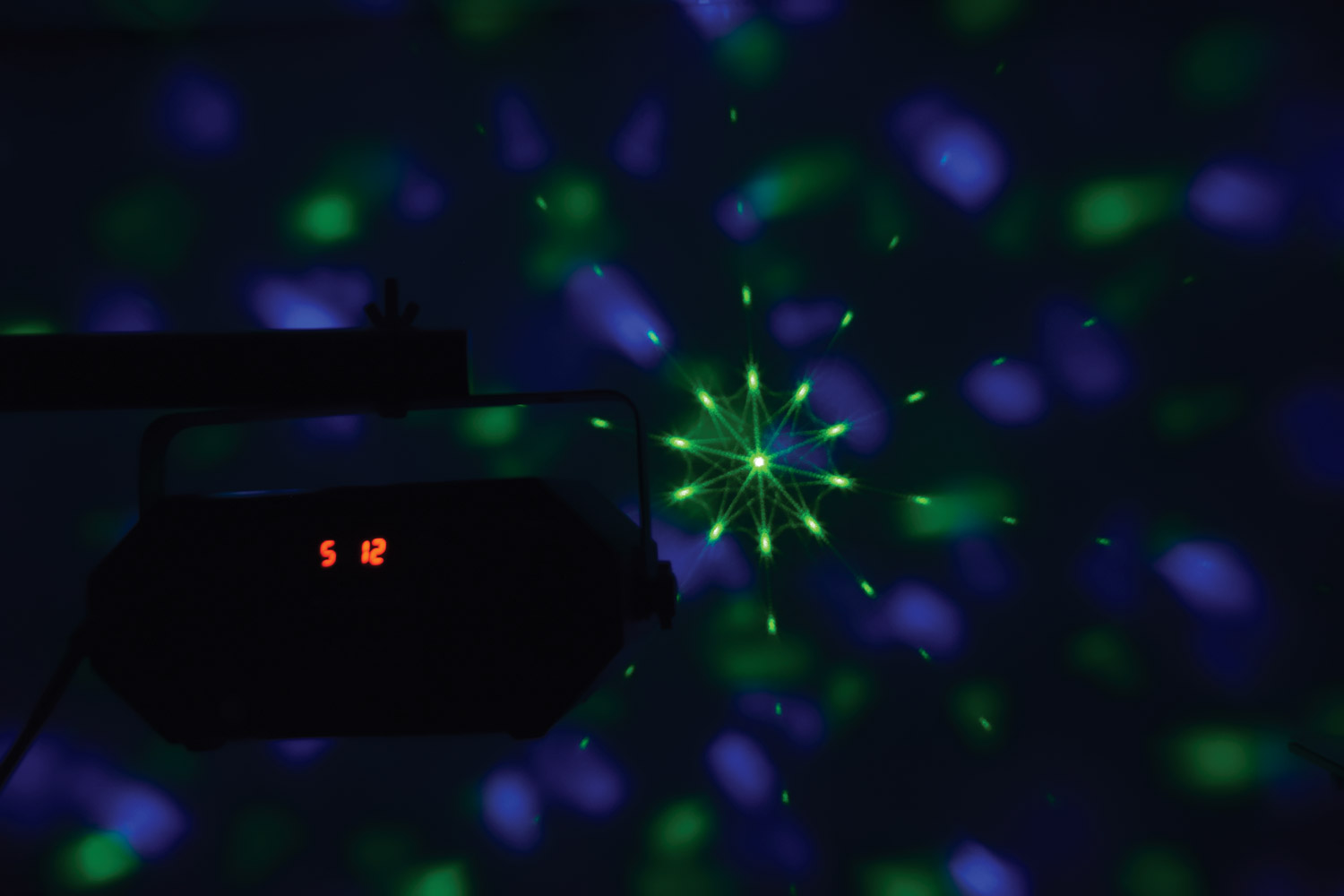

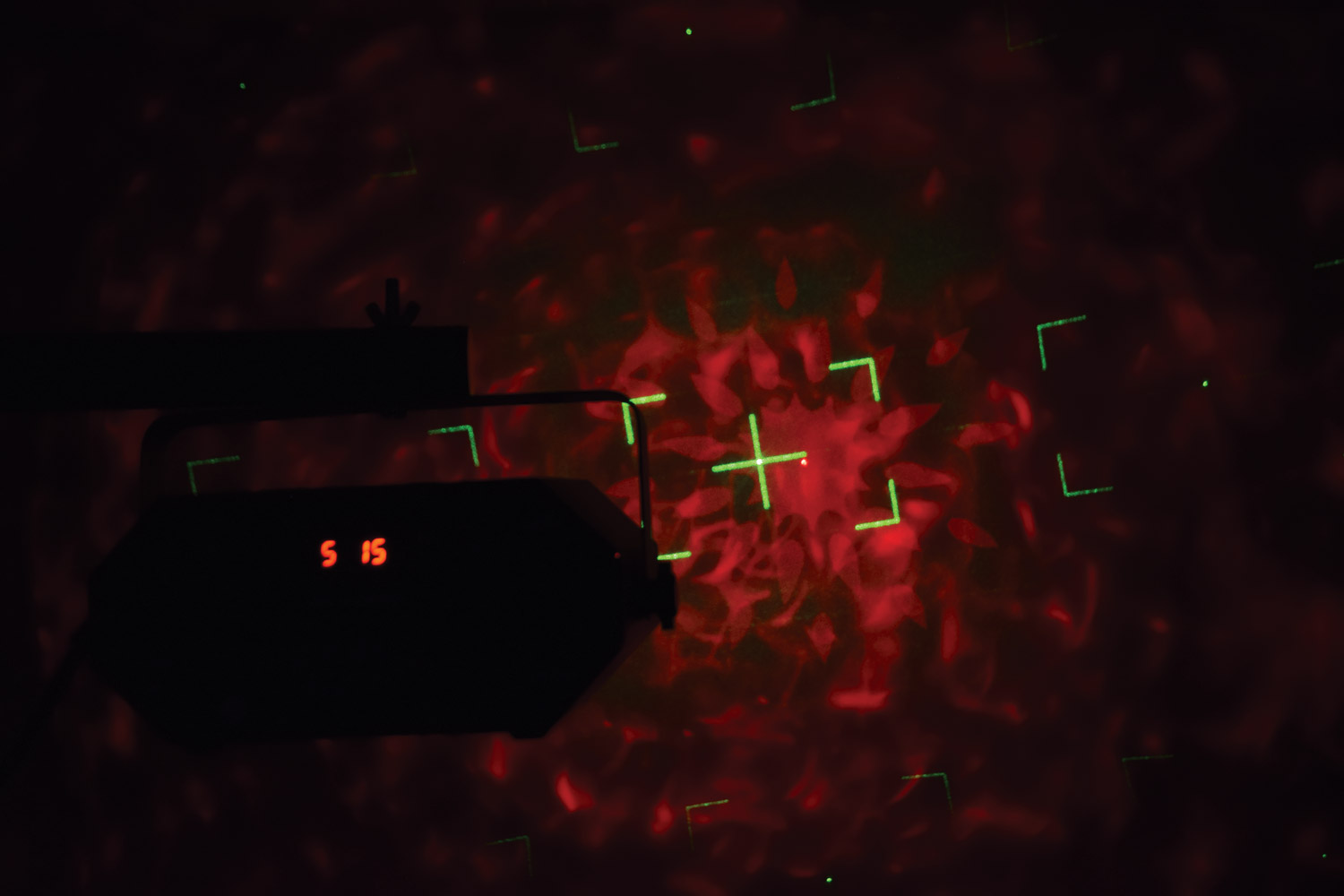

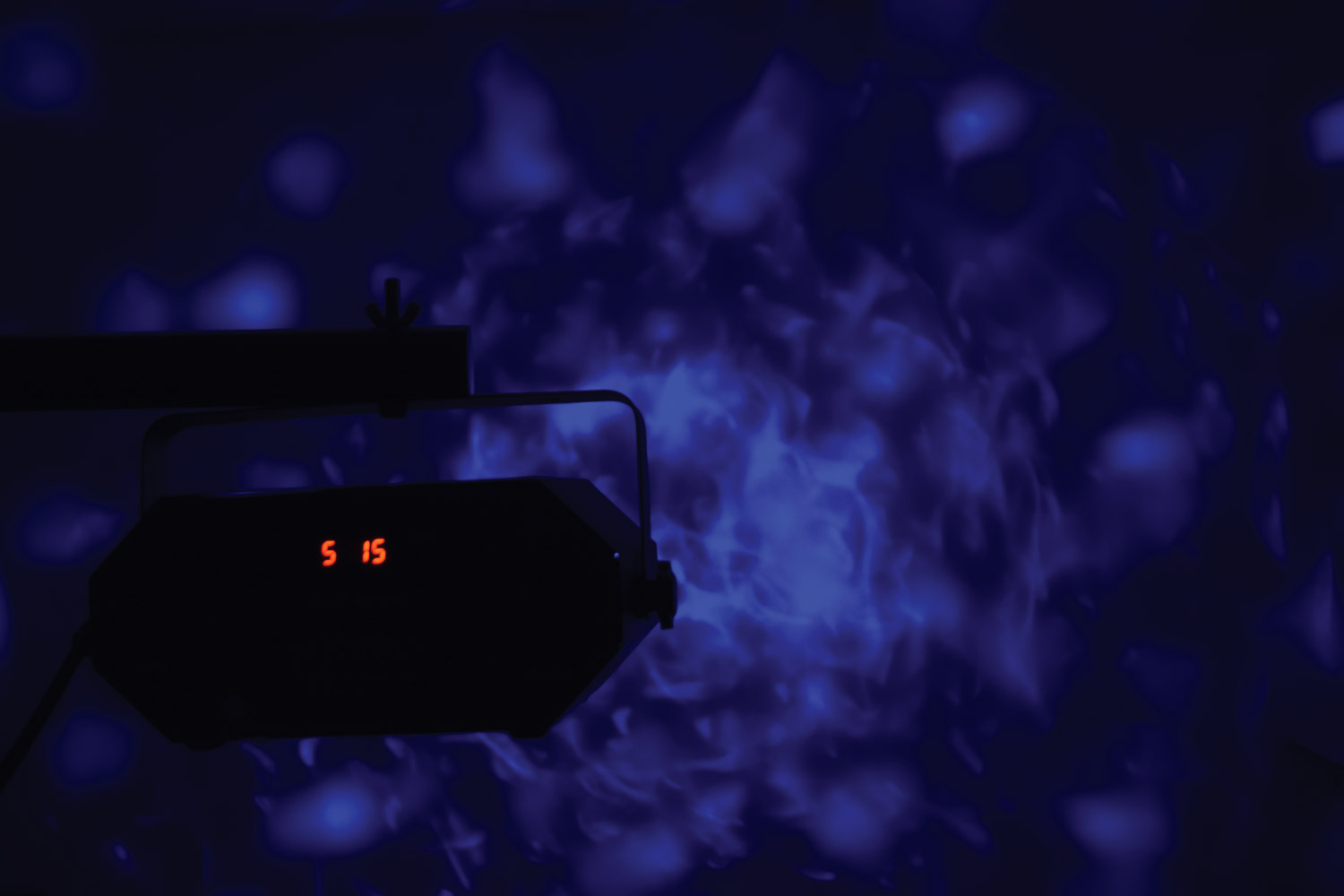

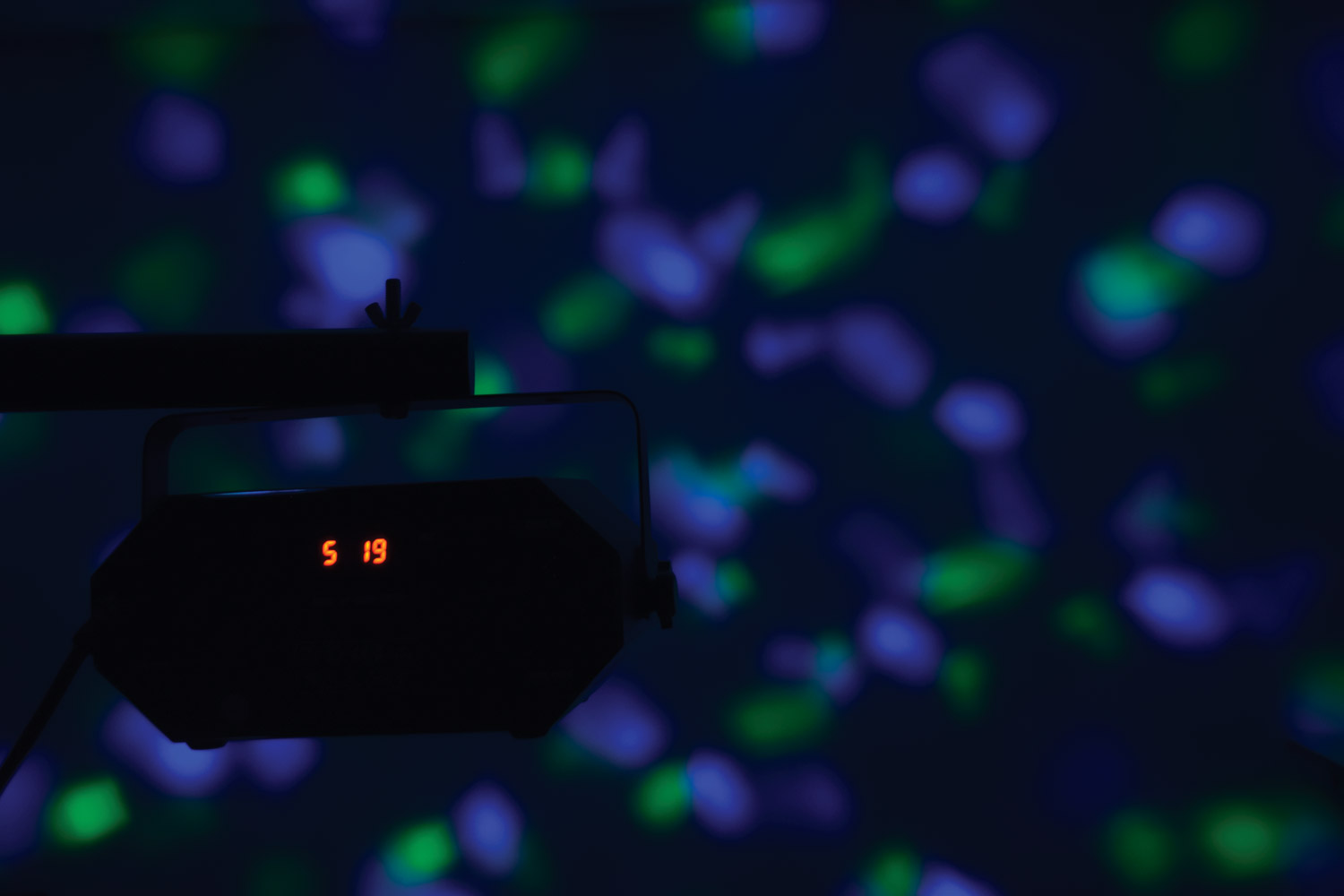

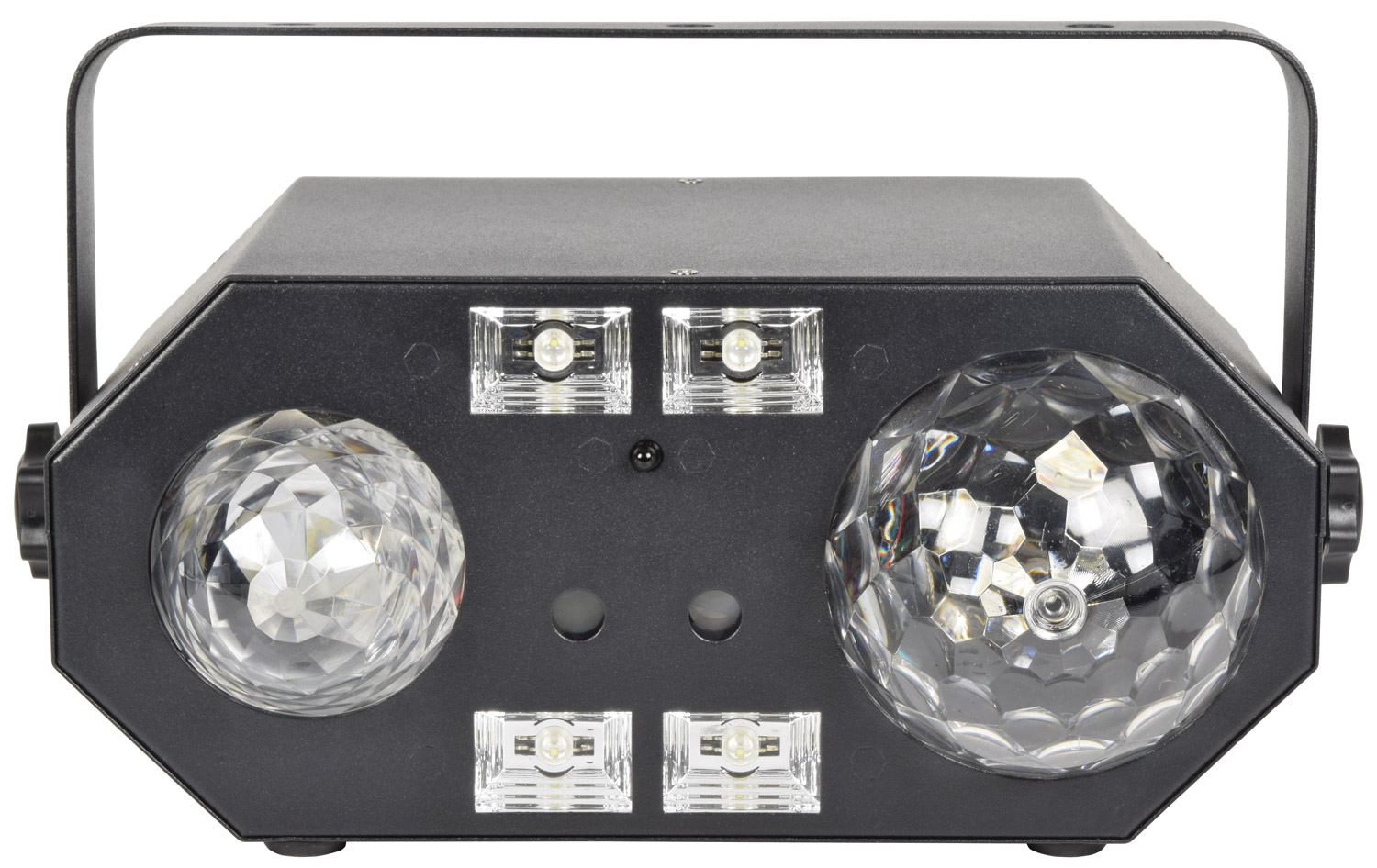

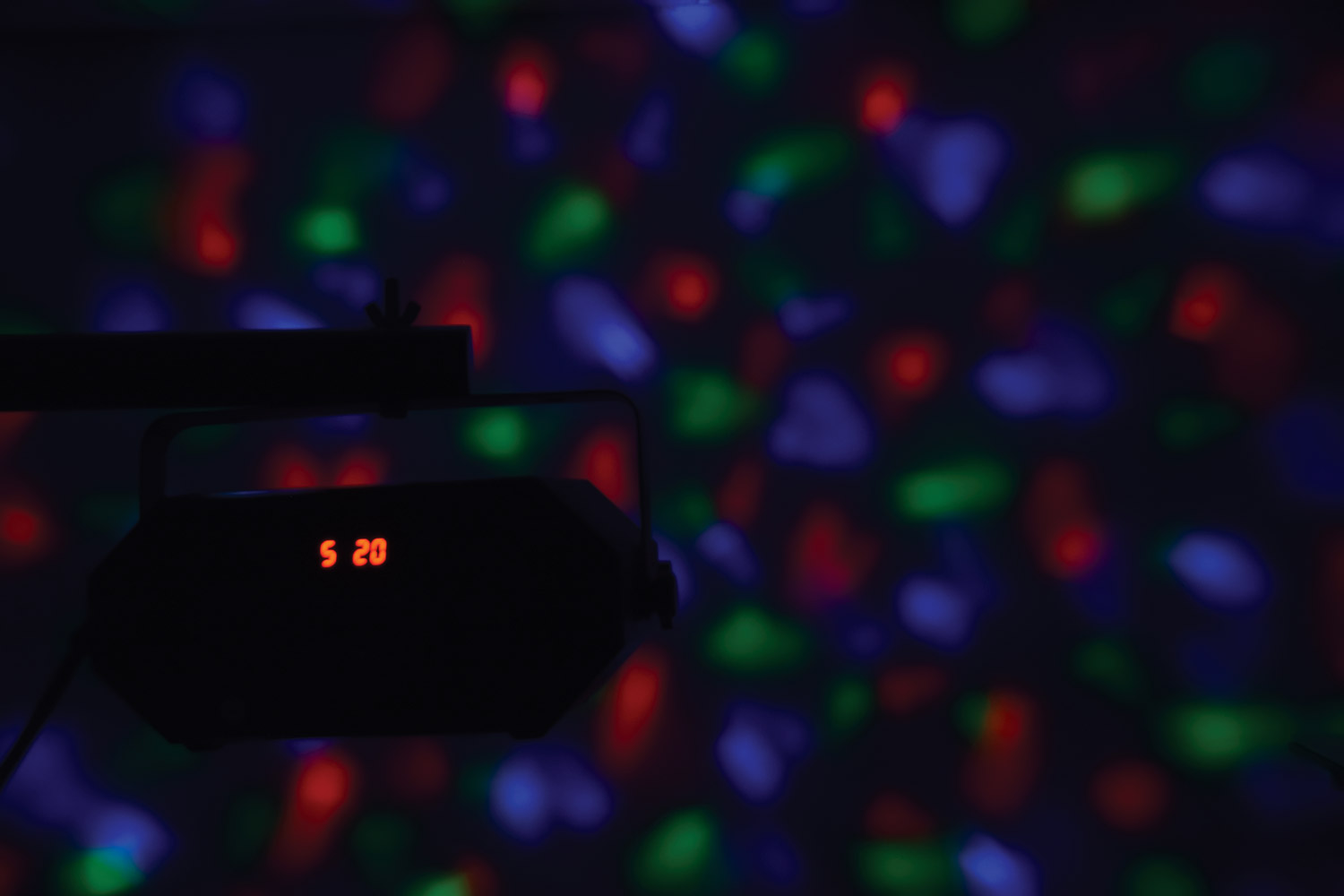

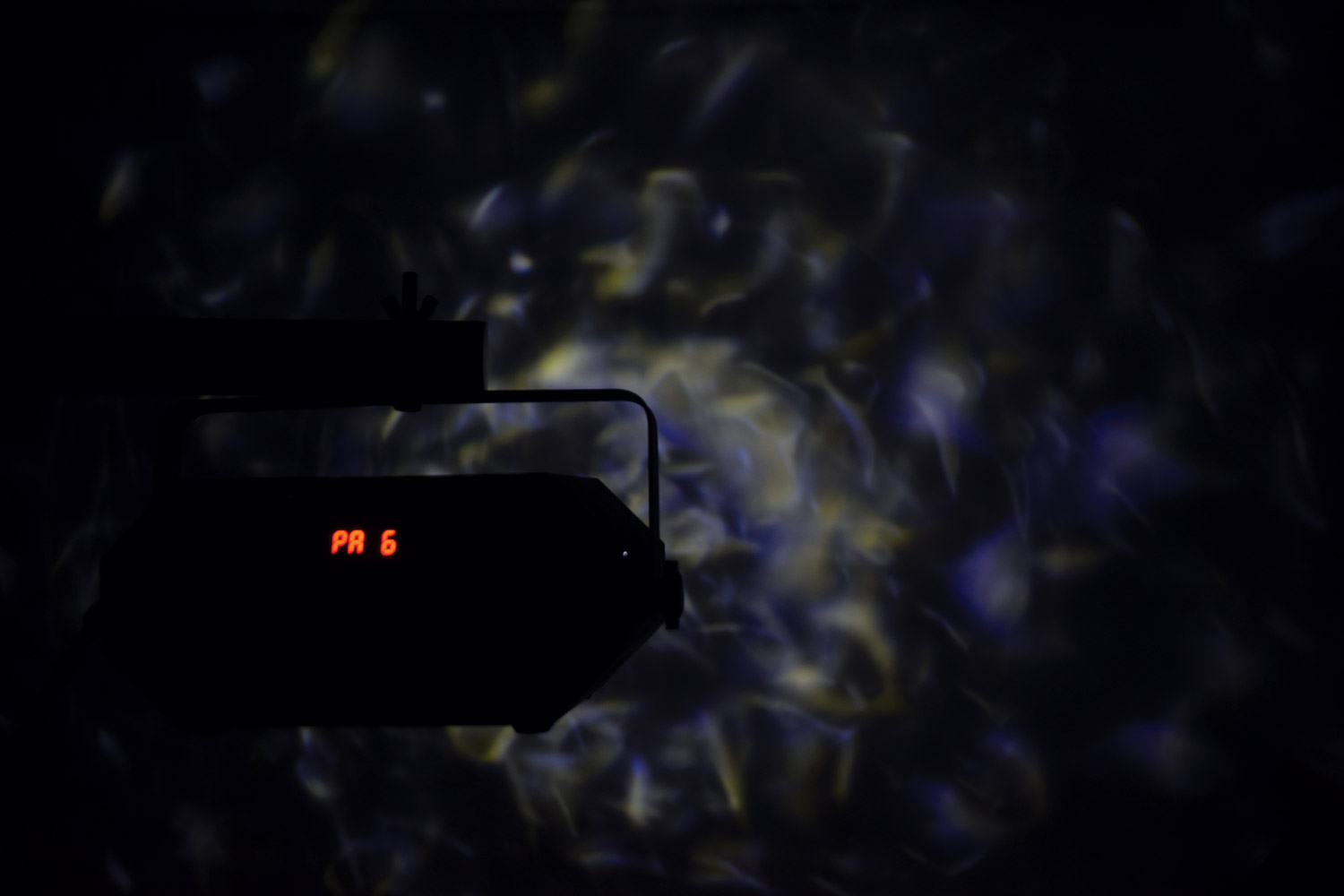

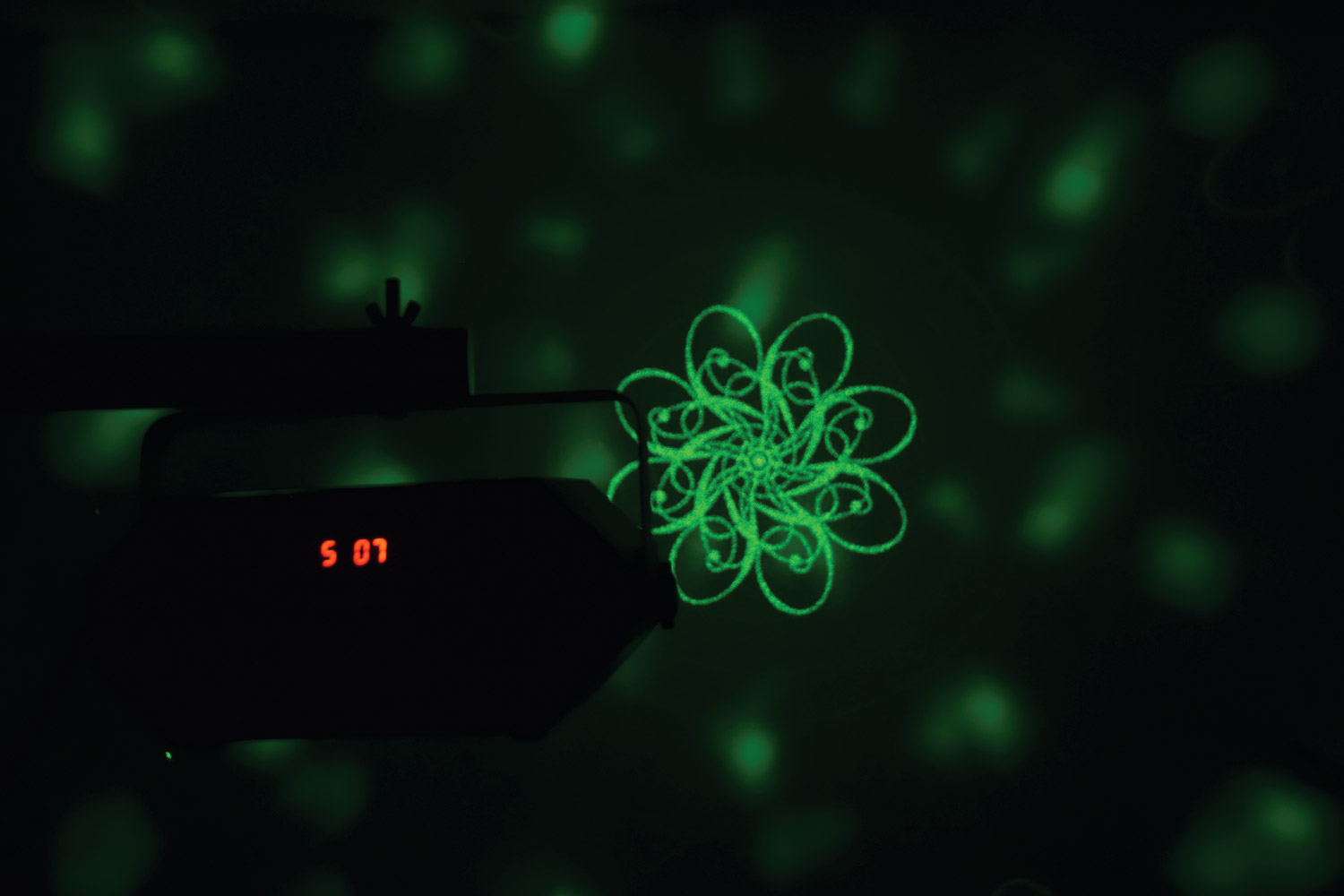

The Tetra is a 4-in-1 DMX light effect built into a single compact housing. A moonflower effect produces a wide pattern of colour from six 3W LEDs, countered with an RGBW aqua ripple effect. At the centre of the housing are 4 high power UV/strobe LEDs and a red/green pattern laser. All 4 effects are operated by internal auto and sound-activated programs or DMX512 control. An impressive combination of effects to add to any lighting rig without the need to add any large fixtures.
- Auto, sound-activated, master-slave or DMX control
- 4 impressive light effects in one compact fixture
- Supplied with mounting bracket
- Please note: The laser class of this product is 3B.
- Power supply 110-240Vac, 50/60Hz (IEC)
- Power consumption 30W
- Fuse rating 2A
- LED : power 6 x 3W moonflower, 4W RGBW ripple, 4 x 2W UV/Strobe
- Laser power 30mW + 100mW (green + red)
- Laser colour Green (523nm), red (650nm)
- Laser class 3B
- DMX connection XLRM in, XLRF out
- DMX channels 11
- Dimensions 270 x 160 x 110mm
- Weight 1.45kg
In the box
The box for this item contains :
- Tetra 4-in-1 light effect

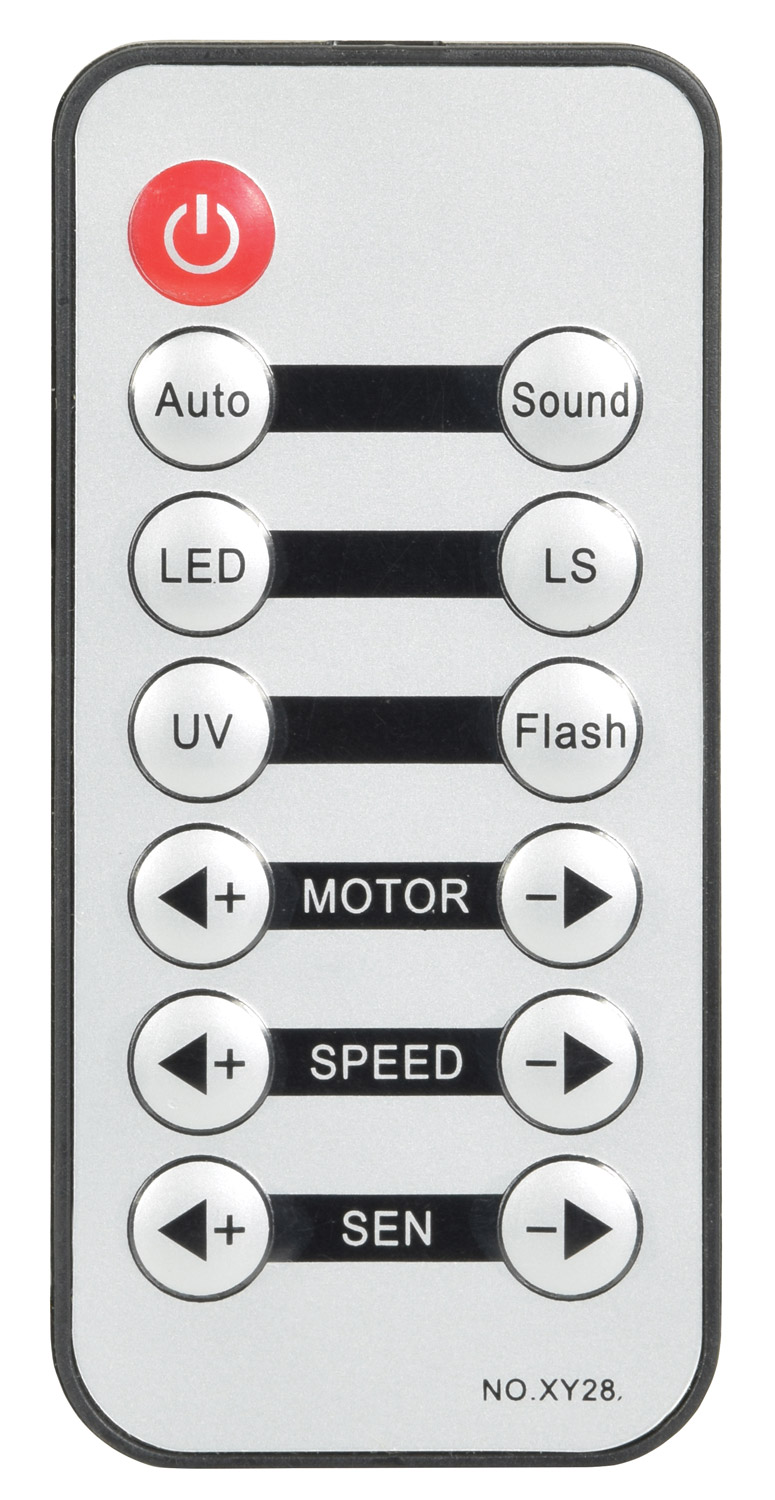

- I.R. remote control
- Mounting bracket
- IEC power lead
Downloads
Instruction manual
For 151.608UK (415KB)
For 151.608UK (415KB)
UK Declaration of conformity
For 151.608UK (249KB)
For 151.608UK (249KB)
EU Declaration of conformity
For 151.608UK (238KB)
For 151.608UK (238KB)
