12-24V RGBW DMX Controller 4x8A

153.778UK

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGBW LED tape. This model can drive 8A/channel and it simply assigns a c...

  • 4 channel DMX control for RGBW colour mixing
  • 256 levels of brightness
  • Up to 8A output per channel
Description Version Packed
153.778UK
12-24V RGBW DMX Controller
RGBW 4x8A Box Label

12-24V RGBW DMX Controller 4x8A

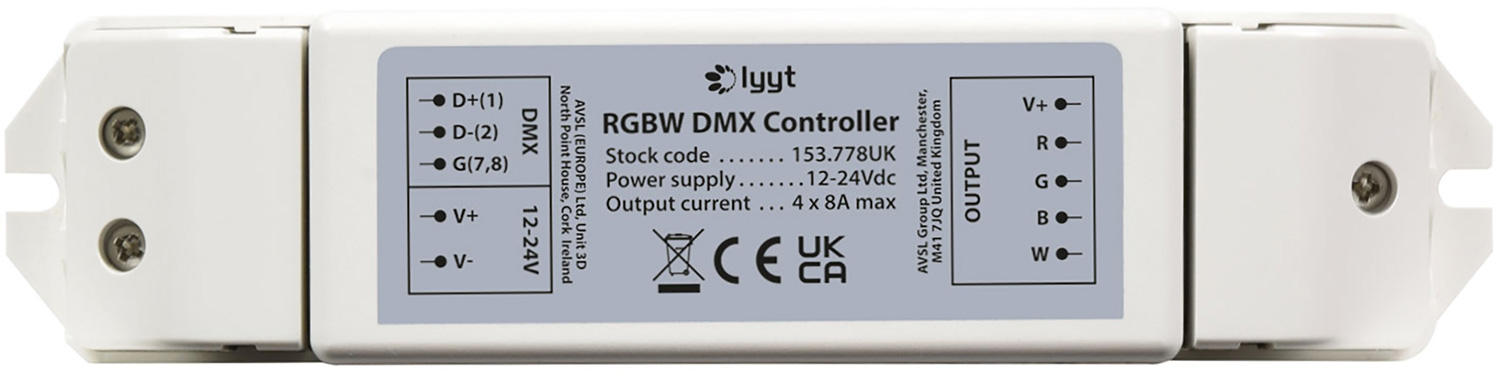

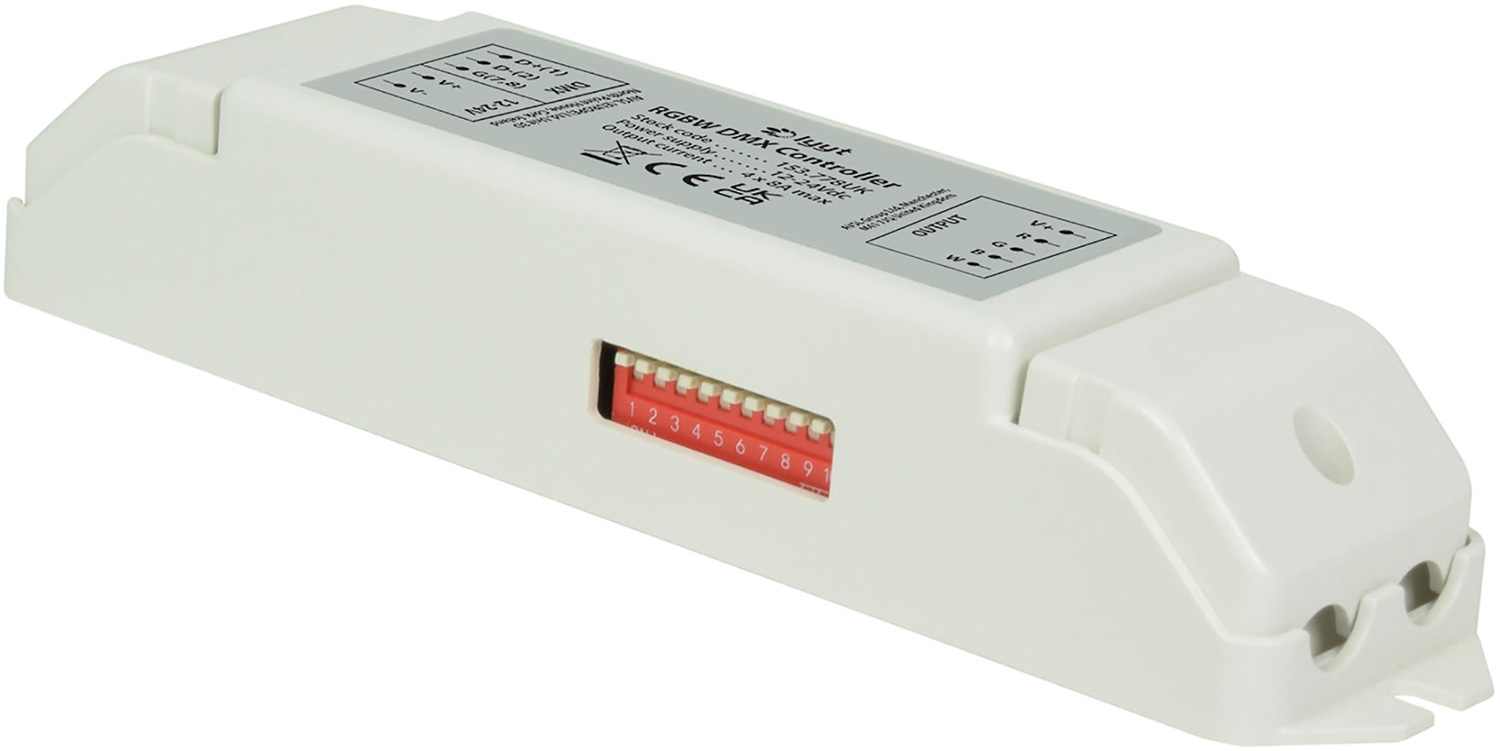

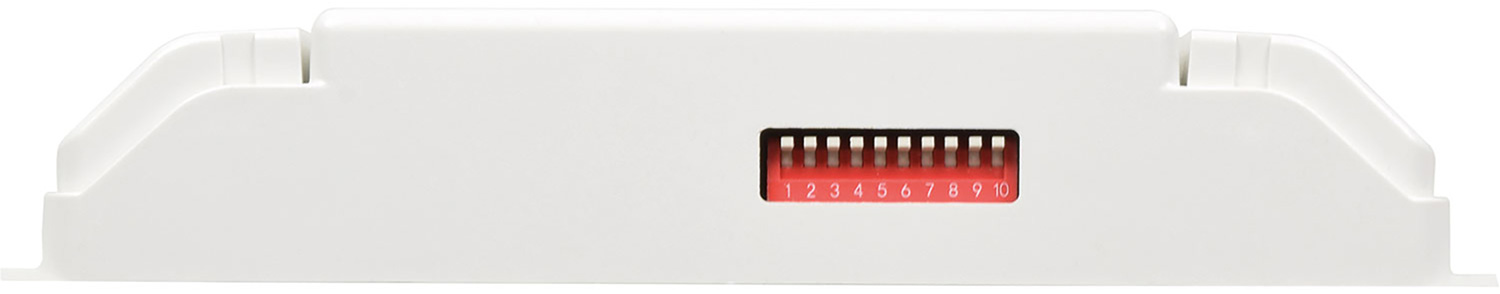

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGBW LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 4 channel DMX control of Red, Green, Blue and White output

  • 4 channel DMX control for RGBW colour mixing
  • 256 levels of brightness
  • Up to 8A output per channel
  • 12V or 24V operation
  • Screw terminal DMX input
  • Power supply 12-24Vdc
  • Power : max. ?384W/12V?768/24V
  • Current consumption 32A max.
  • DMX channels 4
  • Output current 4 x 8A max.
  • Power connection Screw terminals
  • Output Blue, Red, Green, White, V+
  • Working temperature -20?50?
  • IP rating IP20
  • Dimensions 170 x 30 x 40mm
  • Weight 92g

In the box

The box for this item contains :

  • RGBW DMX Controller

Downloads

Instruction manual
For 153.778UK (221KB)
UK Declaration of conformity
For 153.778UK (248KB)
EU Declaration of conformity
For 153.778UK (237KB)
