12V RGB LED Tape 5.0m Reel

156.720UK LT12560-RGB

Super-bright IP65 rated RGB LED tape which when connected to a controller can produce any colour of the rainbow. Supplied on 5m reel with an adhesive back this tape is easy to setup and quick to in...

  • 60 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Low voltage (12Vdc) and power consumption
Full description Find retailer
Description Version Packed
156.720UK
12V RGB LED Tape 5m - 60 LED/m 		60 LED per metre Poly Bag

Accessories

Description Version Packed
156.142UK
12mm RGB LED tape L connector - pack of 5 		12mm RGB L piece Poly Bag
156.144UK
12mm RGB LED tape T connector - pack of 5 		12mm RGB T piece Poly Bag
156.146UK
12mm RGB LED tape X connector - pack of 5 		12mm RGB X piece Poly Bag
153.771UK
In-line RGB LED tape amplifier with DC socket 		Poly Bag
153.741UK
RGB Controller for LED tape with IR remote control 		Box Label
153.751UK
RGB Tape controller with 44 key multi function IR remote 		Box Label
153.797UK
RGB LED Tape Controller DC 		Poly Bag
153.900UK
RGB LED Tape Y-Splitter Lead 		Splitter Lead 0.3m Poly Bag
153.903UK
RGB LED Tape Extension Lead 3.0m 		Extension Lead 3.0m Poly Bag
153.905UK
RGB LED Tape Extension Lead 5.0m 		Extension Lead 5.0m Poly Bag
156.150UK
Professional RGB Flexible Link - Pack of 5 		12mm RGB Poly Bag
777.000UK
2.1mm DC Plug with screw in terminals 		Poly Bag
777.001UK
2.1mm DC Socket with screw in terminals 		Poly Bag
153.744UK
Power Supply 12Vdc 5A 60W 		12Vdc 5A 60W Box Label
153.753UK
Power Supply 12Vdc 3.75A 45W 		12Vdc 3.75A 45W Box Label
153.754UK
Power Supply 12Vdc 2.5A 30W 		12Vdc 2.5A 30W Box Label
153.755UK
Power Supply 12Vdc 8.3A 100W 		12Vdc 8.3A 100W Box Label
153.756UK
Power Supply 12Vdc 12.5A 150W 		12Vdc 12.5A 150W Box Label
153.777UK
12-24V RGB DMX Controller 		RGB 3x8A Box Label
153.896UK
RGBW WiFi Touch Wall Controller 		RGBW WiFi Poly Bag
153.743UK
RGBW Sound Active Controller 		Box Label

12V RGB LED Tape 5.0m Reel

Super-bright IP65 rated RGB LED tape which when connected to a controller can produce any colour of the rainbow. Supplied on 5m reel with an adhesive back this tape is easy to setup and quick to install. Its low voltage supply and low power consumption makes it suitable for a wide variety of applications from homes to vehicles and from shops to bars and nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, making cleaning an easy task.

  • 60 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Low voltage (12Vdc) and power consumption
  • Flexible and lightweight
  • Supplied with solder connection accessories
  • IP65 rated
  • Can extend beyond 5m with an RGB amplifier 153.771UK and splitter 153.900UK (not supplied) and also 3m 153.903UK and 5m 153.905UK extension leads
  • Compatible with RGB controllers 153.741UK, 153.751UK, DMX 153.777UK or 153.797UK or WiFi 153.896UK (not supplied)
  • Voltage 12Vdc
  • Beam angle 140°
  • LED : type Epistar™ RGB5050
  • Light intensity per LED (millicandelas) 6000mcd
  • Reel length 5m
  • IP rating IP65
  • Cross-section 12 x 3mm
  • Weight 230g

Versions

  156.720UK
LED : quantity per metre 60
Power consumption per metre 14.4W
Current 1200mA per metre
Cut intervals 5cm
LED : spacing 16mm
Luminous flux (Lumens per metre) 600lm/m

In the box

The box for this item contains :

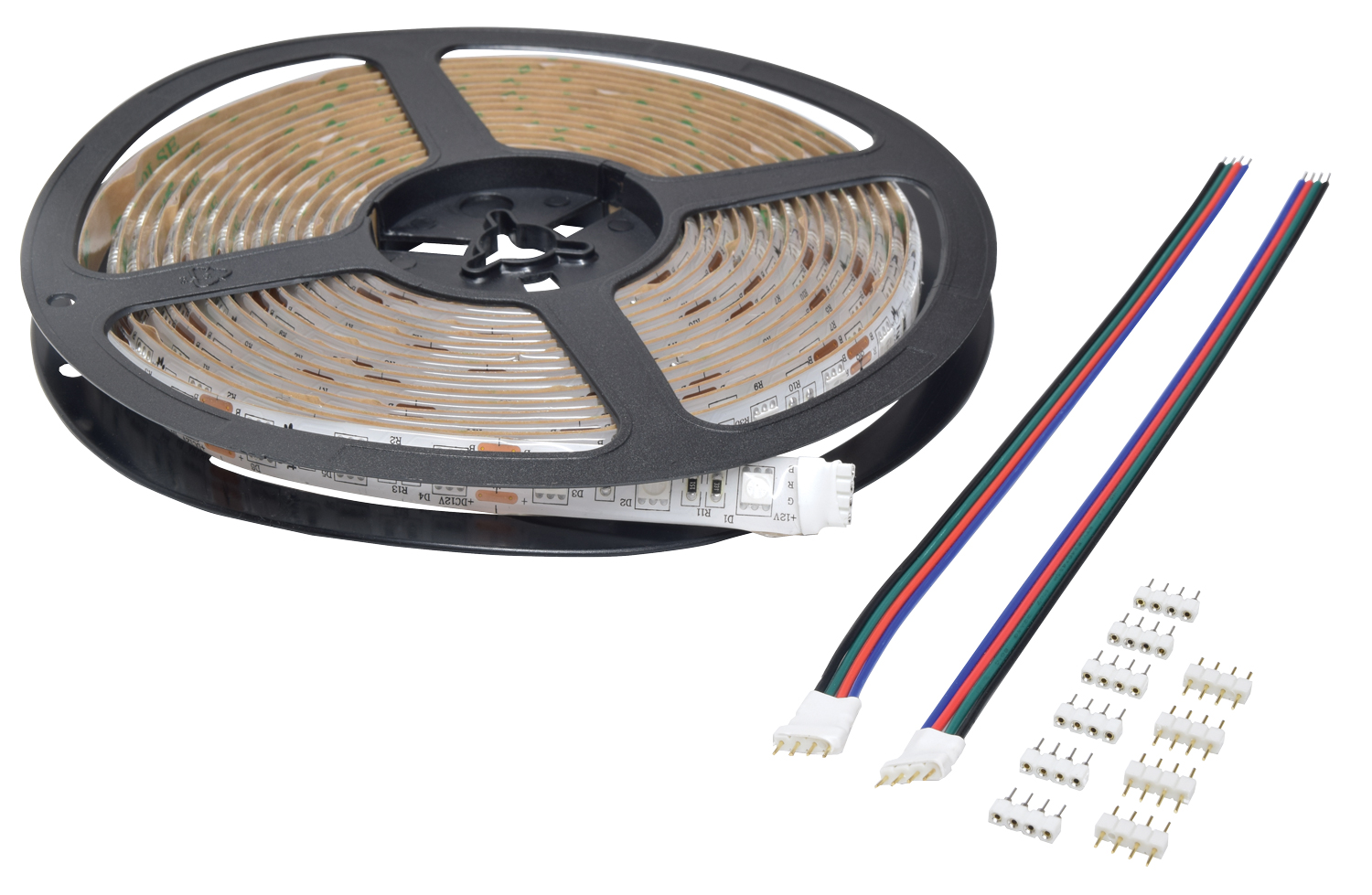

  • 1 x 12V RGB LED Tape 5.0m Reel

Downloads

Instruction manual
For 156.720UK (1.6MB)
UK Declaration of conformity
For 156.720UK (245KB)
EU Declaration of conformity
For 156.720UK (235KB)
