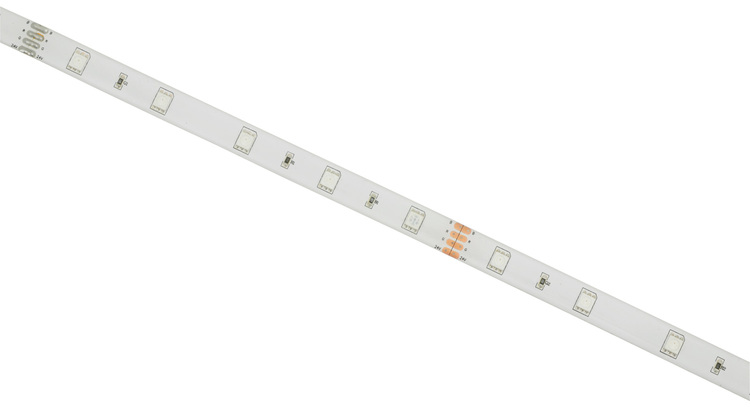

24V RGB LED Tape - 5m Reel

156.771UK LT24530-RGB

Super-bright IP65 rated RGB LED tape which when connected to a controller can produce any colour of the rainbow. Supplied on 5m reel with an adhesive back this tape is easy to setup and quick to in...

  • 60 or 30 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Low voltage (24Vdc) and power consumption
Full description Find retailer
Description Version Packed
156.771UK
24V RGB LED Tape 5m - 30 LED/m 		30 LED per metre Poly Bag
156.770UK
24V RGB LED Tape 5m - 60 LED/m 		60 LED per metre Poly Bag

Accessories

Description Version Packed
156.142UK
12mm RGB LED tape L connector - pack of 5 		12mm RGB L piece Poly Bag
156.144UK
12mm RGB LED tape T connector - pack of 5 		12mm RGB T piece Poly Bag
156.146UK
12mm RGB LED tape X connector - pack of 5 		12mm RGB X piece Poly Bag
153.771UK
In-line RGB LED tape amplifier with DC socket 		Poly Bag
153.751UK
RGB Tape controller with 44 key multi function IR remote 		Box Label
153.797UK
RGB LED Tape Controller DC 		Poly Bag
153.900UK
RGB LED Tape Y-Splitter Lead 		Splitter Lead 0.3m Poly Bag
153.903UK
RGB LED Tape Extension Lead 3.0m 		Extension Lead 3.0m Poly Bag
153.905UK
RGB LED Tape Extension Lead 5.0m 		Extension Lead 5.0m Poly Bag

24V RGB LED Tape - 5m Reel

Super-bright IP65 rated RGB LED tape which when connected to a controller can produce any colour of the rainbow. Supplied on 5m reel with an adhesive back this tape is easy to setup and quick to install. Its 24Vdc supply and low power consumption makes it suitable for a wide variety of applications from homes to vehicles and from shops to bars and nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, making cleaning an easy task.

  • 60 or 30 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Low voltage (24Vdc) and power consumption
  • Flexible and lightweight
  • Supplied with solder connection accessories
  • IP65 rated
  • Compatible with RGB controllers 153.797UK, DMX 153.777UK or WiFi 153.896UK (not supplied)
  • Can extend beyond 5m with an RGB amplifier 153.771UK (not supplied)
  • Voltage 24Vdc
  • Beam angle 140°
  • Light intensity per LED (millicandelas) 6000mcd
  • LED : type Epistar™ RGB5050
  • Reel length 5m
  • IP rating IP65
  • Cross-section 12 x 3mm
  • Weight 230g

Versions

  156.770UK 156.771UK
LED : quantity per metre 60 30
Power consumption per metre 14.4W 7.2W
Current 600mA per metre 300mA per metre
Cut points 10cm 20cm
LED : spacing 16mm 32mm
Luminous flux (Lumens per metre) 600lm/m 400lm/m

Downloads

Instruction manual
For 156.771UK (1.6MB)
UK Declaration of conformity
For 156.771UK (247KB)
EU Declaration of conformity
For 156.771UK (235KB)
