Aluminium LED Tape Profile - 90 Degree Arc

156.800UK AL1-A1616

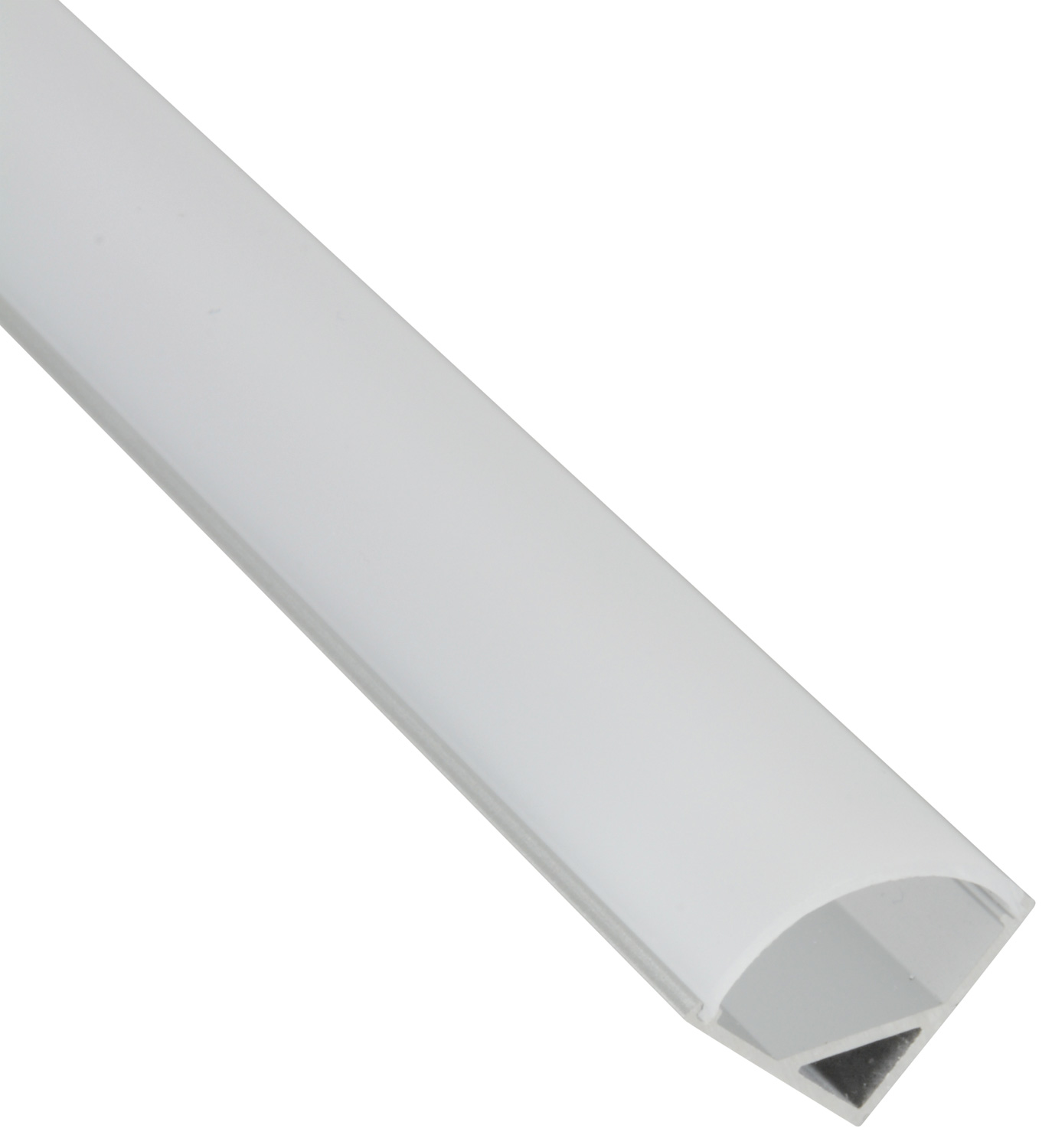

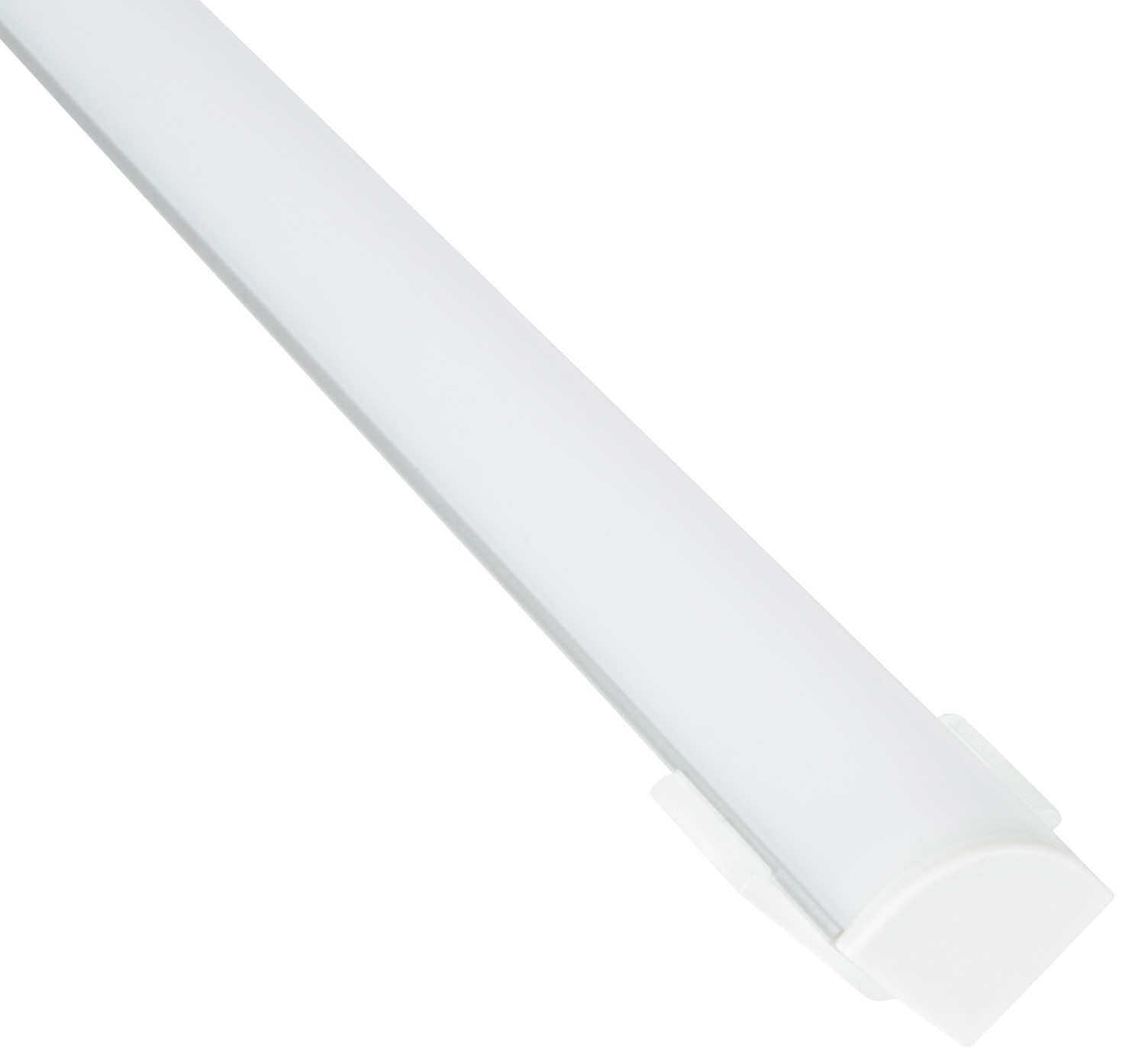

Extruded aluminium angle section profile with arc section diffuser and fitting accessories for LED tape installation. Ideal for illuminating edges, corners or architectural details.

  • Easy fit end caps and diffuser
  • Protects LED tape and aids cooling
  • Diffuser reduces glare and softens light output
Full description Find retailer
Description Version Packed
156.800UK
Aluminium LED Tape Profile 90 Deg Arc 1m 		1m Tube
156.810UK
Aluminium LED Tape Profile 90 Deg Arc 2m 		2m Tube

Aluminium LED Tape Profile - 90 Degree Arc

Extruded aluminium angle section profile with arc section diffuser and fitting accessories for LED tape installation. Ideal for illuminating edges, corners or architectural details.

  • Supplied complete with installation accessories
  • Easy, snap-fit diffuser

Specification : Common

  • External cross-section 16 x 16mm
  • Internal cross-section 10 x 8mm
  • Diffuser visible width 22mm

Specification : Versions

  156.800UK 156.810UK
Length 1m 2m

Trade information

  156.800UK 156.810UK
Barcode / EAN 5015972176566 5015972176627
Package type Tube Tube
Package dimensions 1000 x 27 x 27mm 2000 x 27 x 27mm
Package weight 0.21kg 0.42kg
Package quantity 1 unit 1 unit
Carton dimensions 1110 x 330 x 165mm 2110 x 165 x 165mm
Carton weight 10.50kg 10.50kg
Carton quantity 50 packages 25 packages

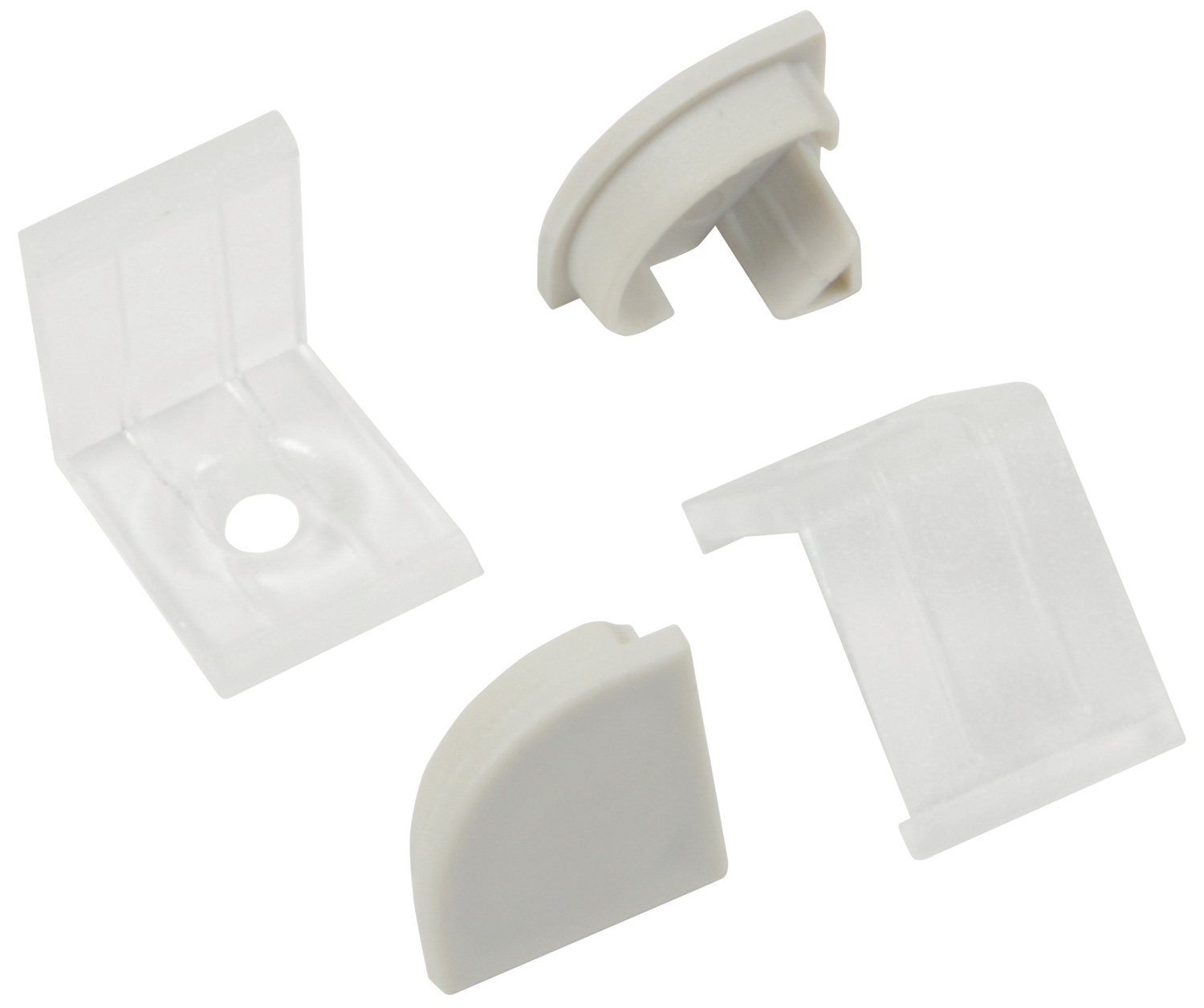

In the box

The box for this item contains :

  • 1 x aluminium extrusion
  • 1 x diffuser
  • 2 x end caps
  • 2 x mounting clips
