Aluminium LED Tape Profile - Tall Crown
156.818UK
AL2-C1716

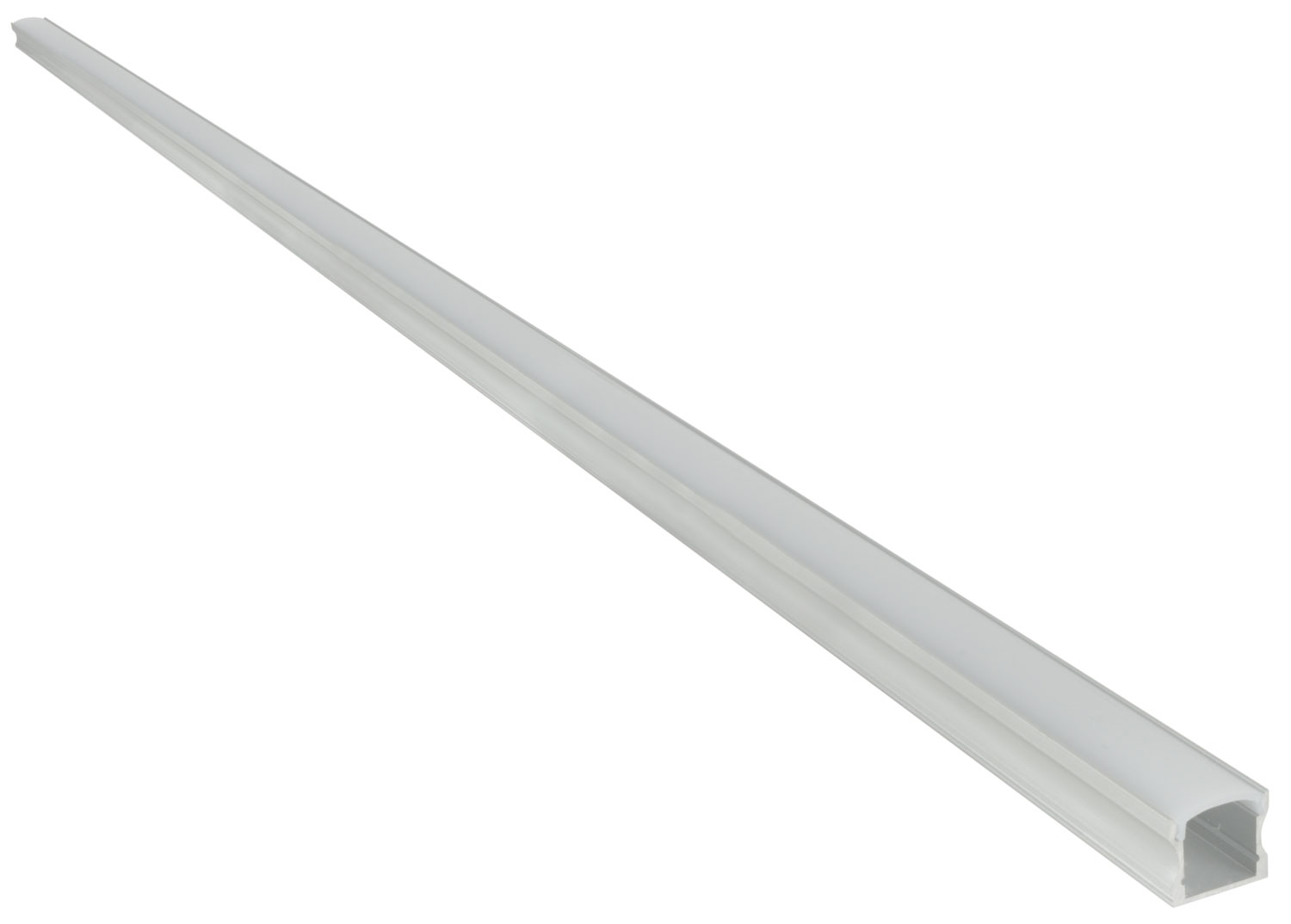

Extruded aluminium tall section profile with crowned diffuser and fitting accessories for LED tape installation. Ideal for illuminating furniture and architectural details.
- Easy fit end caps and diffuser
- Protects LED tape and aids cooling
- Diffuser reduces glare and softens light output
Aluminium LED Tape Profile - Tall Crown
Extruded aluminium tall section profile with crowned diffuser and fitting accessories for LED tape installation. Ideal for illuminating furniture and architectural details.
- Supplied complete with installation accessories
- Easy, snap-fit diffuser
Specification : Common
- External cross-section 18 x 16mm
- Internal cross-section 12 x 10mm
- Diffuser visible width 14mm
Specification : Versions
| 156.808UK | 156.818UK | |
|---|---|---|
| Length | 1m | 2m |
Trade information
| 156.808UK | 156.818UK | |
|---|---|---|
| Barcode / EAN | 5015972176580 | 5015972176788 |
| Package type | Tube | Tube |
| Package dimensions | 1000 x 27 x 27mm | 2000 x 27 x 27mm |
| Package weight | 0.19kg | 0.38kg |
| Package quantity | 1 unit | 1 unit |
| Carton dimensions | 1110 x 330 x 165mm | 2110 x 165 x 165mm |
| Carton weight | 9.50kg | 9.50kg |
| Carton quantity | 50 packages | 25 packages |
In the box
The box for this item contains :
- 1 x aluminium extrusion
- 1 x diffuser

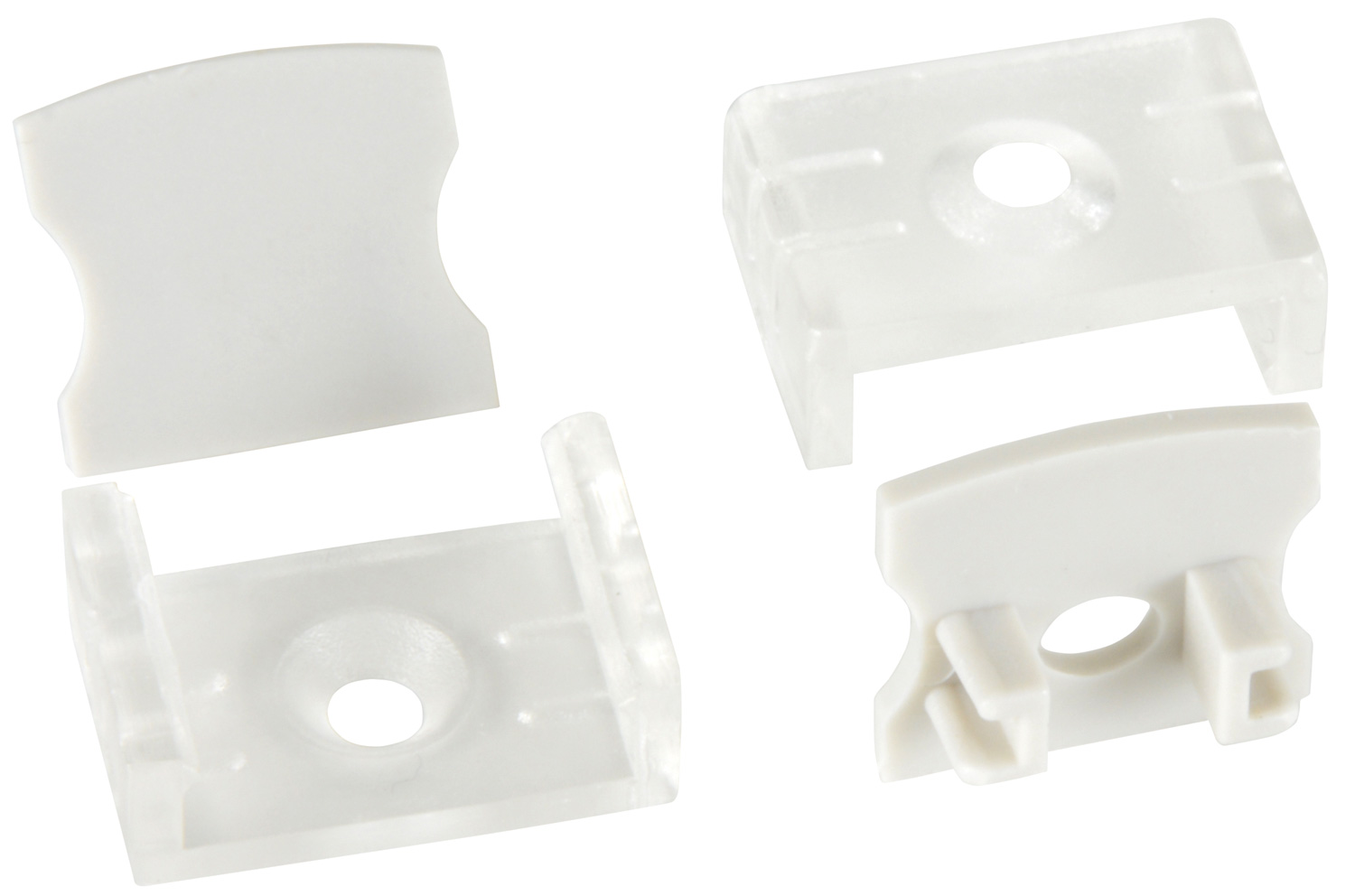

- 2 x end caps
- 2 x mounting clips
