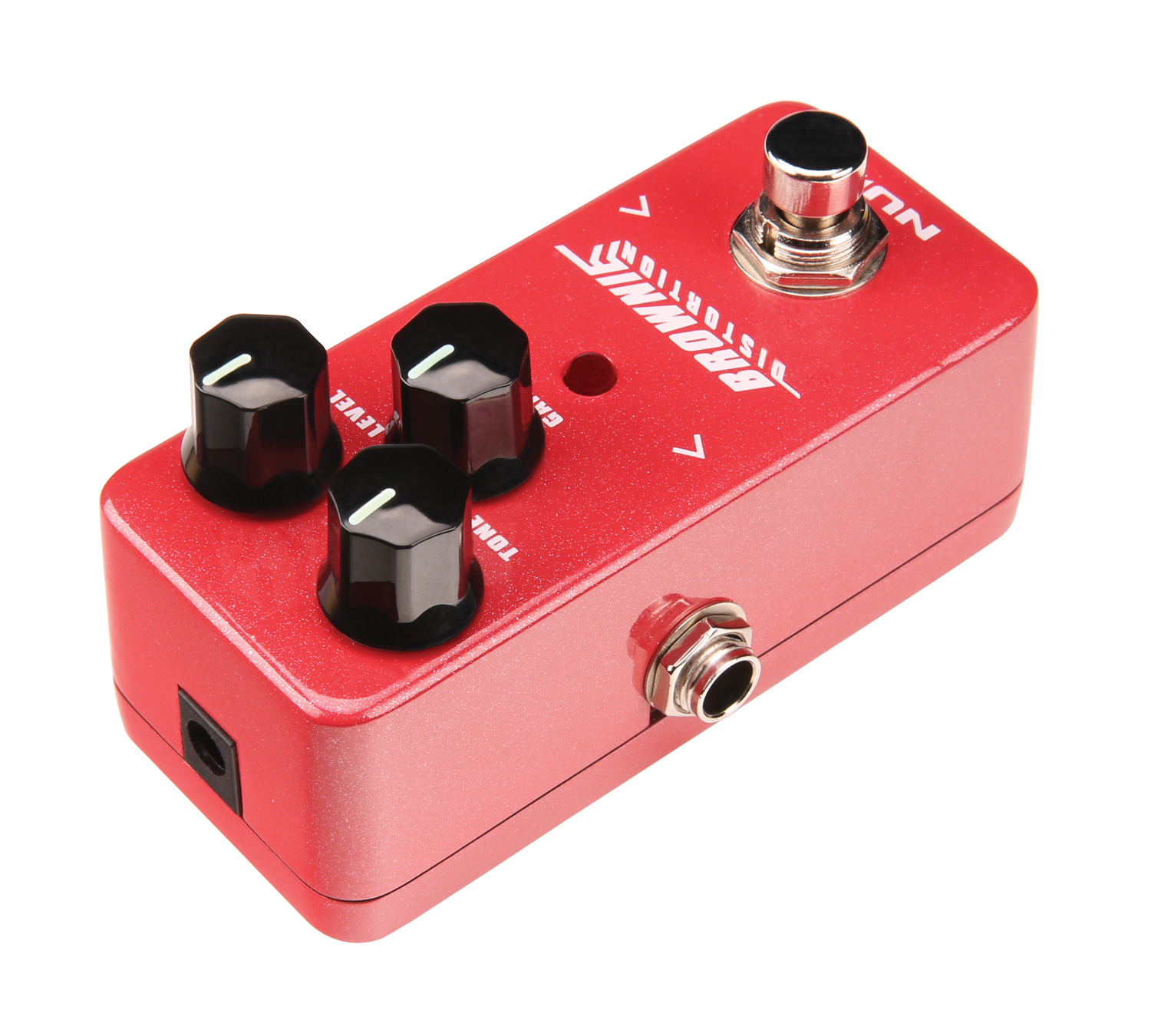

Brownie Distortion Pedal

173.304UK NDS-2

Shopping for a British distortion pedal? Try the Brownie! The Classical British rock tones of the 1970’s, packed into one little box. How it works? By using a hybrid of circuits, we created trul...

  • Rotary gain, level & tone controls
  • True bypass
  • Luminous glow-knobs for dark-stage environments
Description Version Packed
173.304UK
Brownie Distortion Pedal
Brownie distortion Gift Box

Accessories

Description Version Packed
173.290UK
Pedal Power Adaptor 9Vdc 500mA
9Vdc 500mA Box Label

Brownie Distortion Pedal

Shopping for a British distortion pedal? Try the Brownie! The Classical British rock tones of the 1970’s, packed into one little box. How it works? By using a hybrid of circuits, we created truly unique pre-amp and power tube distortion characteristics. You’ll be amazed to hear the warm, organic tone that’s reproduced. Brownie has a specially designed BJT input stage causing it to “break-up” when the preamp tube starts to distort. It also has an asymmetrical clipping circuit letting you simulate some of the characteristics of an actual tube amplifier. It also keeps the bottom-end tight by processing bass frequencies which can get muddy when distorted. Brownie uses a low-pass tone control filter to simulate the Variac effect (by lowering the voltage going into the amplifier) for rounding-off your tone. The range of tone is controlled yet perfect for dialing-in the high-end response. The power clipping circuit is crafted from a modern low-noise op-amp and 2 red LEDs. It can create symmetrical clipping that distorts both halves of the signal keeping the sound smooth. True bypass circuits with a high quality TPDP mechanical foot-switch gives the bypass its phenomenal signal clarity.

  • Rotary gain, level & tone controls
  • True bypass
  • Luminous glow-knobs for dark-stage environments
  • Strong and lightweight aluminium die-cast chassis
  • Requires 9V center negative DC Power Supply 75mA current draw (Not Supplied)
  • Compatible power supply 173.290UK

In the box

The box for this item contains :

  • Brownie Distortion Pedal
  • Instruction Leaflet

Downloads

Instruction manual
For 173.304UK (675KB)
UK Declaration of conformity
For 173.304UK (247KB)
EU Declaration of conformity
For 173.304UK (237KB)
