QXPA-plus Portable PA with UHF, USB/SD/FM & Bluetooth

178.857UK QX15PA-PLUS

Complete portable PA unit in a QX-series cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit. 2 x UHF handheld ...

  • Built in USB/SD/FM media player
  • Rechargeable battery or mains operation
  • 2 x UHF wireless microphones
  • Bluetooth connectivity
Description Version Packed
178.854UK
QX12PA-PLUS Portable PA UHF USB/SD/FM/BT
12 Inch Box Label
178.857UK
QX15PA-PLUS Portable PA UHF USB/SD/FM/BT
15 Inch Box Label

Accessories

Description Version Packed
178.895UK
Headset for QXPA-plus 863.8MHz
UHF 863.8MHz Box Label
178.896UK
Headset for QXPA-plus 864.8MHz
UHF 864.8MHz Box Label
178.897UK
Handheld Mic QXPA-plus 863.8MHz
UHF 863.8MHz Box Label
178.898UK
Handheld Mic QXPA-plus 864.8MHz
UHF 864.8MHz Box Label

QXPA-plus Portable PA with UHF, USB/SD/FM & Bluetooth

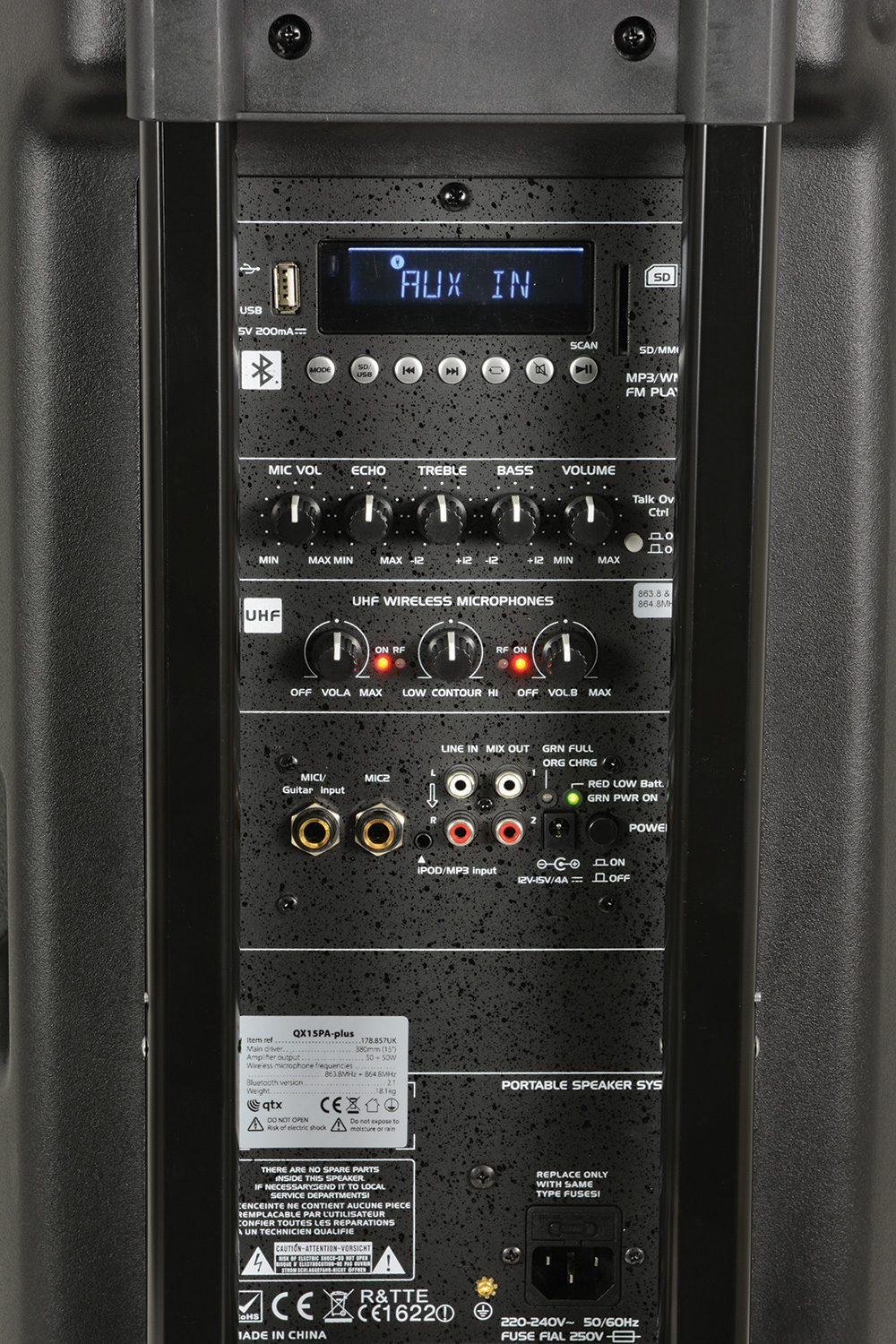

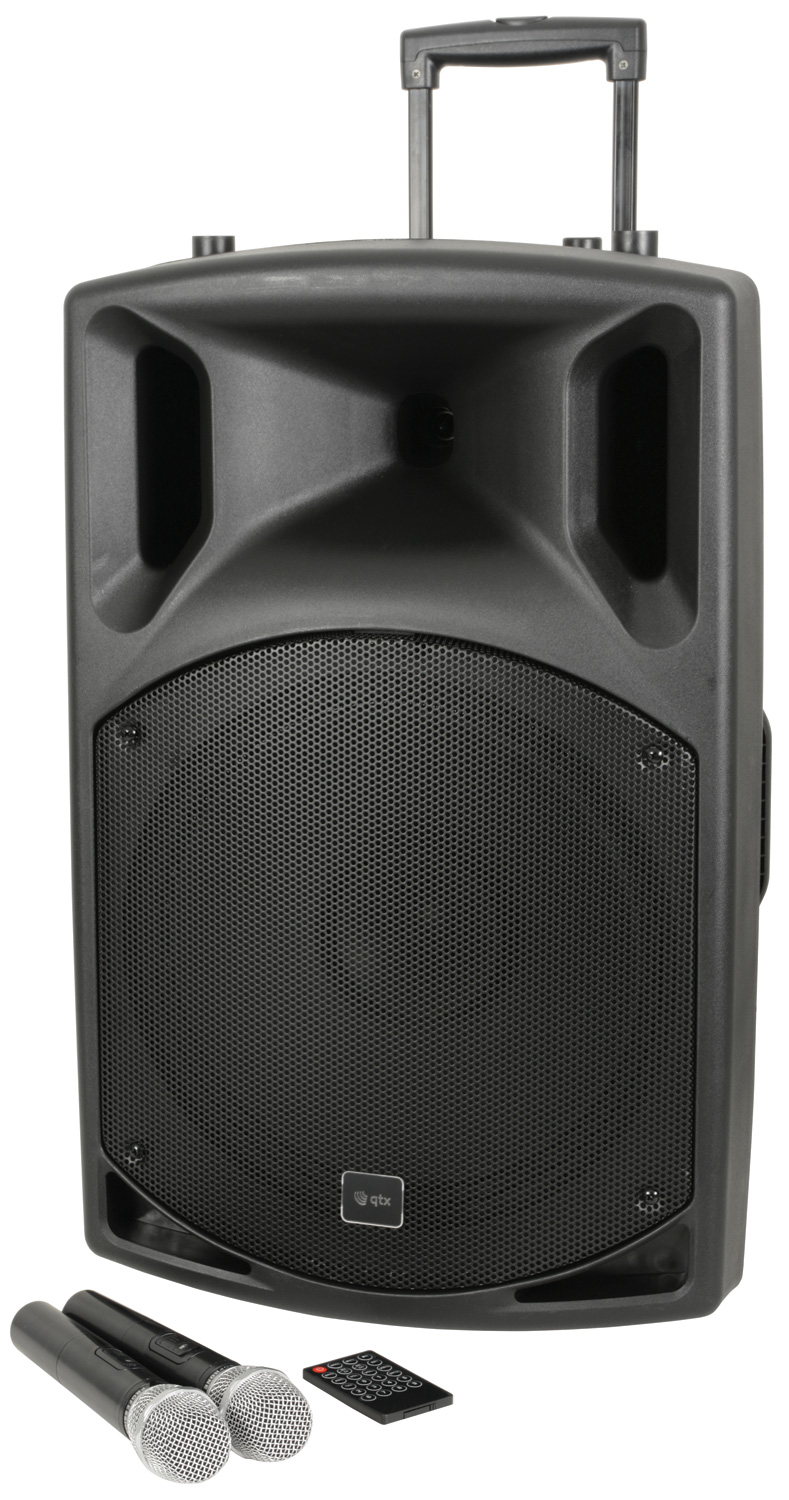

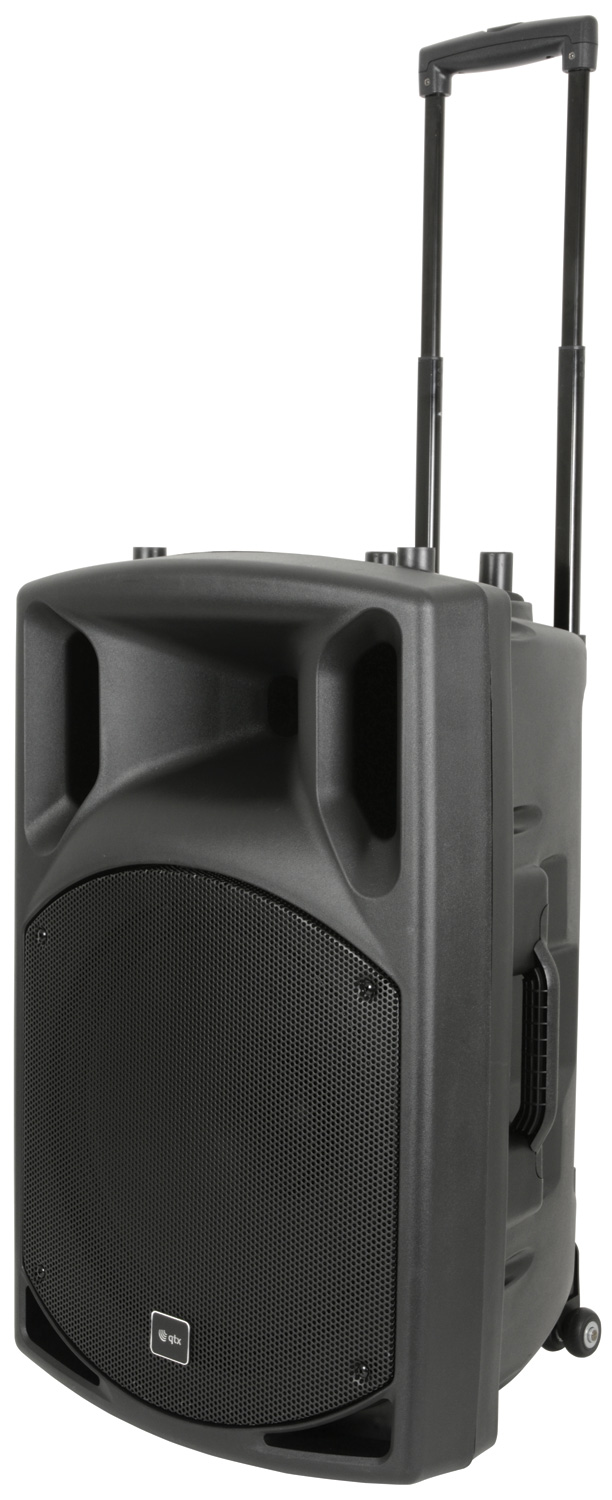

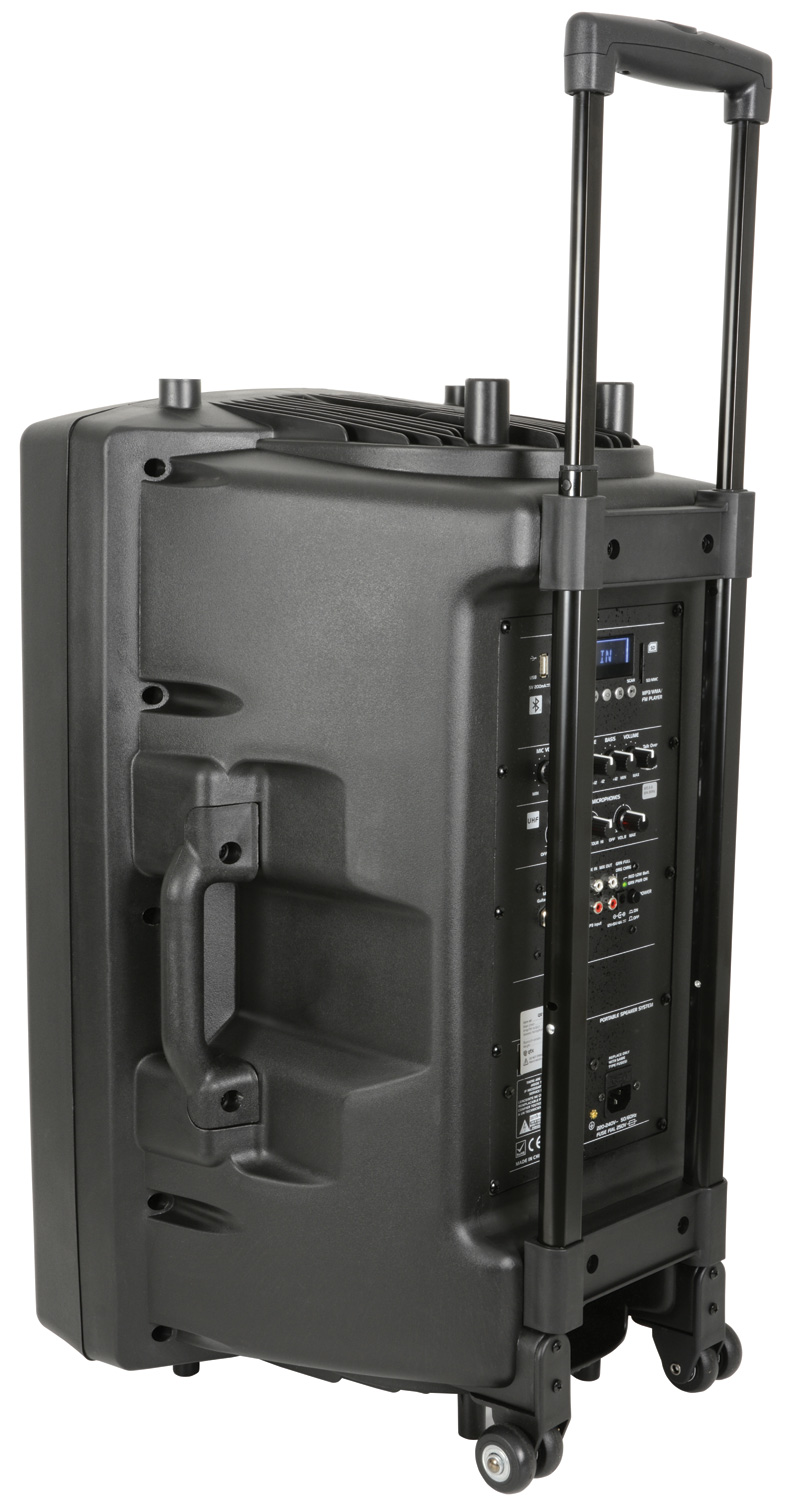

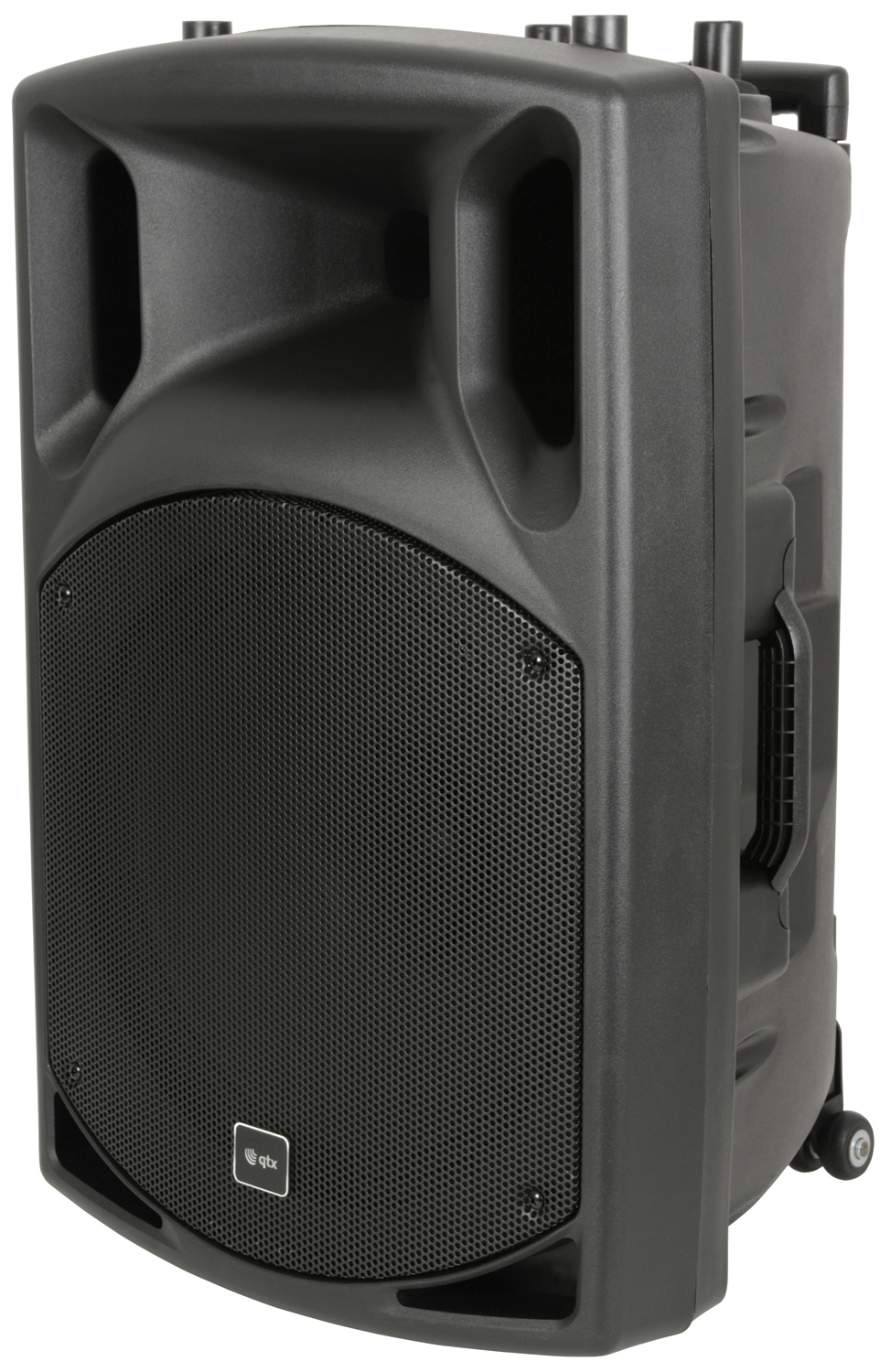

Complete portable PA unit in a QX-series cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit. 2 x UHF handheld wireless microphones are included with the receiver built into the rear panel along with 2 further mic inputs, auxiliary line input and Bluetooth receiver. Internal audio source is provided by an integral USB/SD/FM media player. A moulded handle and pole mount are included and a retractable trolley handle and rear wheels provide easy portability.

  • 2 x UHF handheld wireless microphones
  • Bluetooth connectivity
  • Slip cover included
  • Power supply 220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery
  • HF driver 25mm (1'') Titanium compression driver
  • Amplifier : output 50 + 50Wrms
  • Battery life Up to 8 hours
  • Controls Volume, Bass, Treble, Echo, Mic vol, UHF vol, Contour, VCV
  • Inputs 2 wired mic (jack) and aux (RCA & 3.5mm)
  • Bluetooth version 4.2
  • Dispersion 90┬░ x 60┬░ (H x V)

Versions

  178.854UK 178.857UK
Wireless microphone frequencies 863.8MHz + 864.8MHz 863.8MHz + 864.8MHz
Main driver 300mm (12'') 380mm (15'')
Dimensions 565 x 345 x 325mm 675 x 420 x 395mm
Weight 12.8kg 18.1kg

In the box

The box for this item contains :

  • QXPA+ portable PA unit

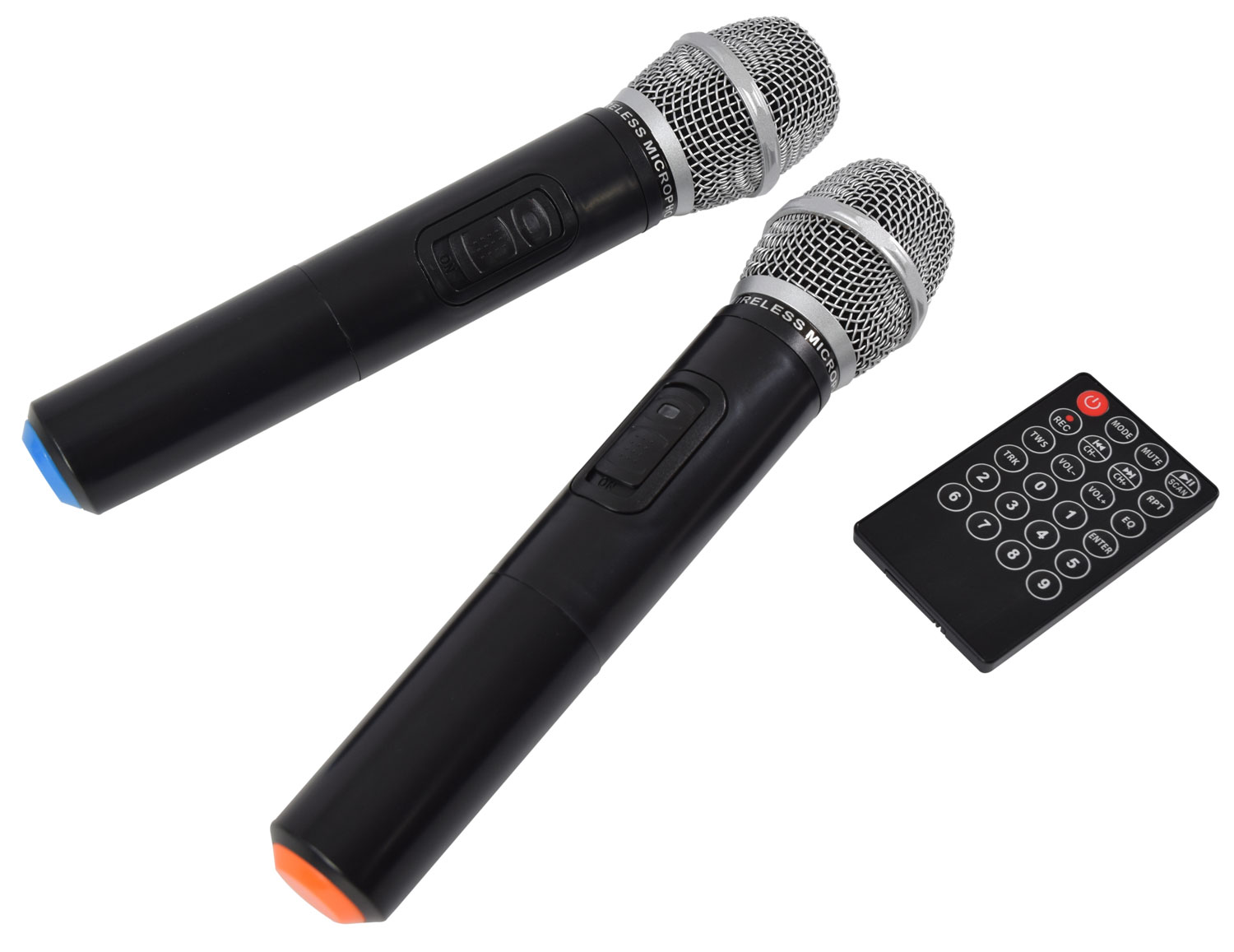

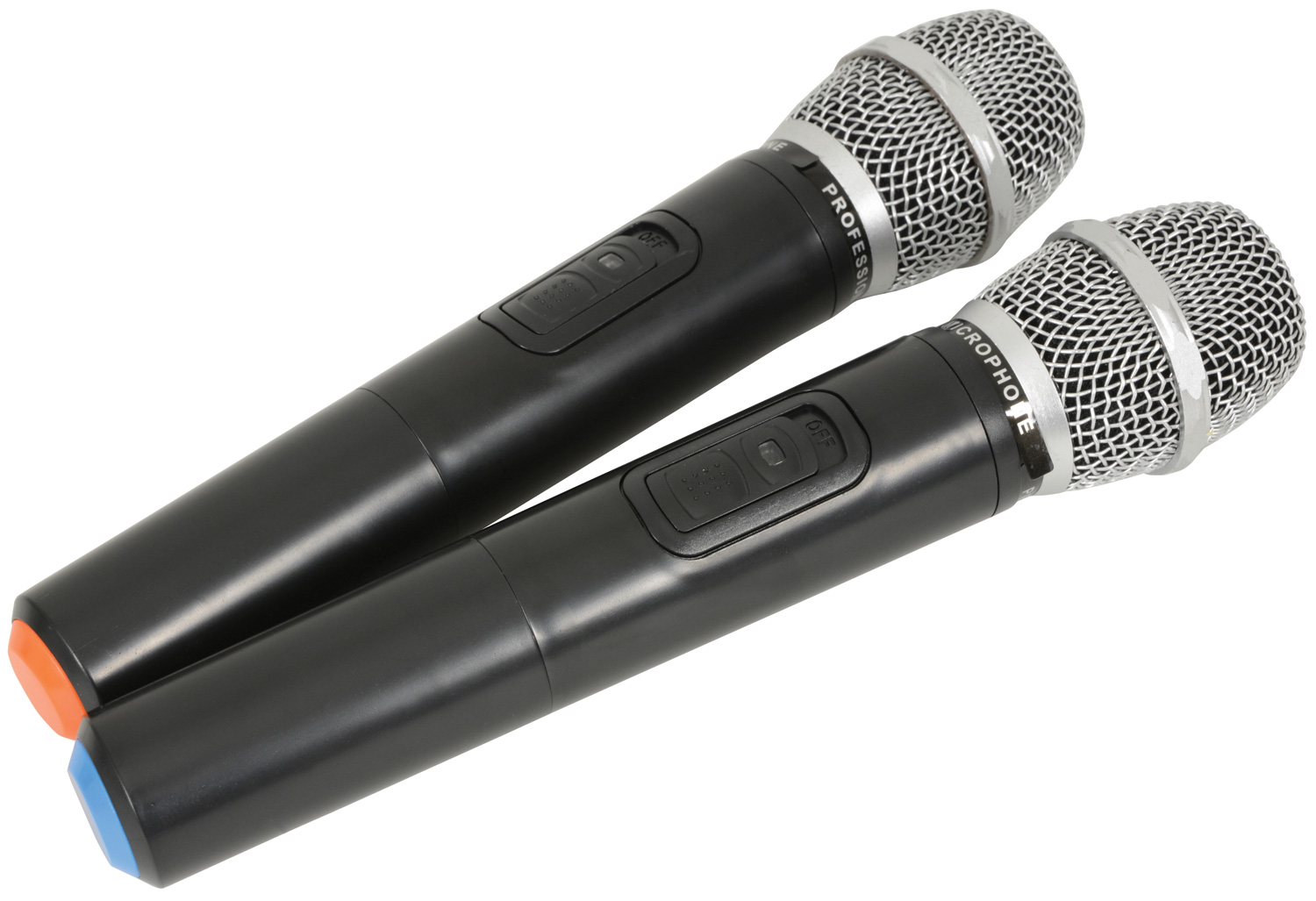

  • 2 x UHF wireless handheld microphones
  • Media player remote control handset
  • IEC mains lead(s)

Videos

178.857UK/ 178.854UK - QXPA-plus Portable PA with UHF, USB/SD/FM & Bluetooth®

Downloads

Instruction manual
For 178.857UK (411KB)
UK Declaration of conformity
For 178.857UK (251KB)
EU Declaration of conformity
For 178.857UK (241KB)
