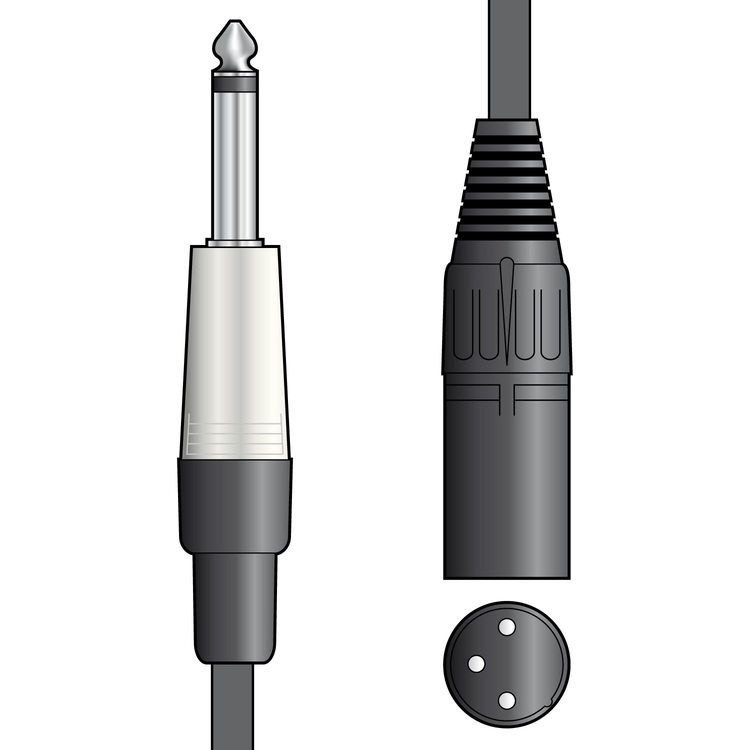

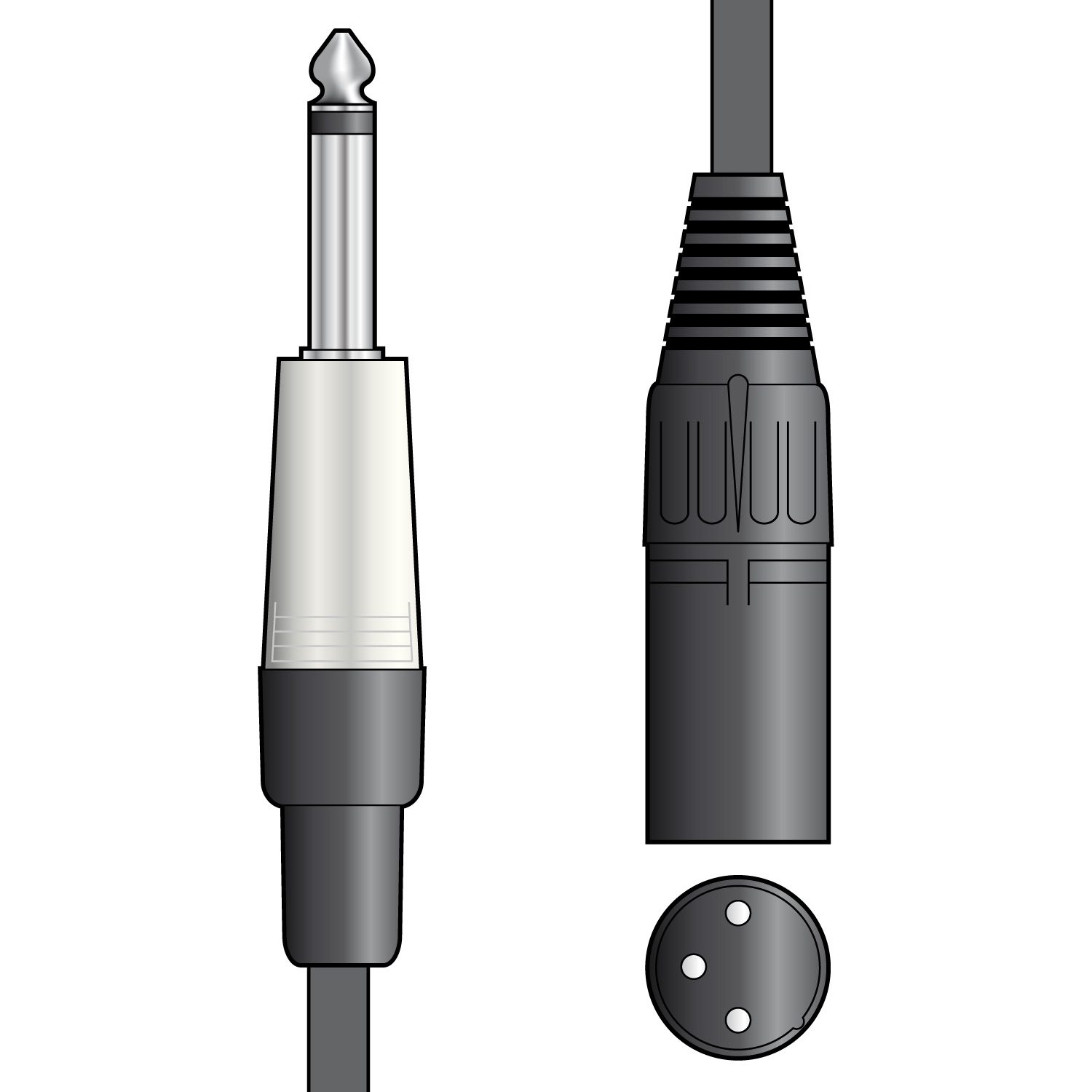

Classic Audio Leads 6.3mm Mono Jack Plug - XLR Male

190.047UK M6J-XM1200

A durable, high quality, shielded audio lead with pro quality, die-cast 6.3mm mono jack plug and XLR male connector, offering exceptional sound and reliability. Made with high-grade cable; pure co...

Description Version Packed
190.043UK
Classic Audio Lead Mono Jack - XLR Male 1.5m
1.5m Sleeve
190.044UK
Classic Audio Lead Mono Jack - XLR Male 3.0m
3.0m Sleeve
190.045UK
Classic Audio Lead Mono Jack - XLR Male 6.0m
6.0m Sleeve
190.047UK
Classic Audio Lead Mono Jack - XLR Male 12.0m
12.0m Sleeve

Classic Audio Leads 6.3mm Mono Jack Plug - XLR Male

A durable, high quality, shielded audio lead with pro quality, die-cast 6.3mm mono jack plug and XLR male connector, offering exceptional sound and reliability. Made with high-grade cable; pure copper conductors and cotton-reinforcement; soft-grip, anti-tangle, rubberised jacket; and machine-soldered connections.

Specification : Common

  • Cable : diameter 6mmØ
  • Conductor 15 strand 0.1mmØ pure copper
  • Connectors 6.3mm mono jack plug, male XLR

Specification : Versions

  190.043UK 190.044UK 190.045UK 190.047UK
Length 1.5m 3.0m 6.0m 12.0m

Trade information

  190.043UK 190.044UK 190.045UK 190.047UK
Barcode / EAN 5015972071212 5015972071229 5015972071236 5015972071243
Package type Sleeve Sleeve Sleeve Sleeve
Package dimensions 60 x 320 x 15mm 70 x 320 x 20mm 90 x 320 x 25mm 90 x 320 x 35mm
Package weight 0.11kg 0.17kg 0.30kg 0.56kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 330 x 390 x 280mm 330 x 390 x 280mm 330 x 390 x 260mm 330 x 390 x 260mm
Carton weight 11.20kg 13.68kg 15.15kg 13.88kg
Carton quantity 100 packages 80 packages 50 packages 25 packages
